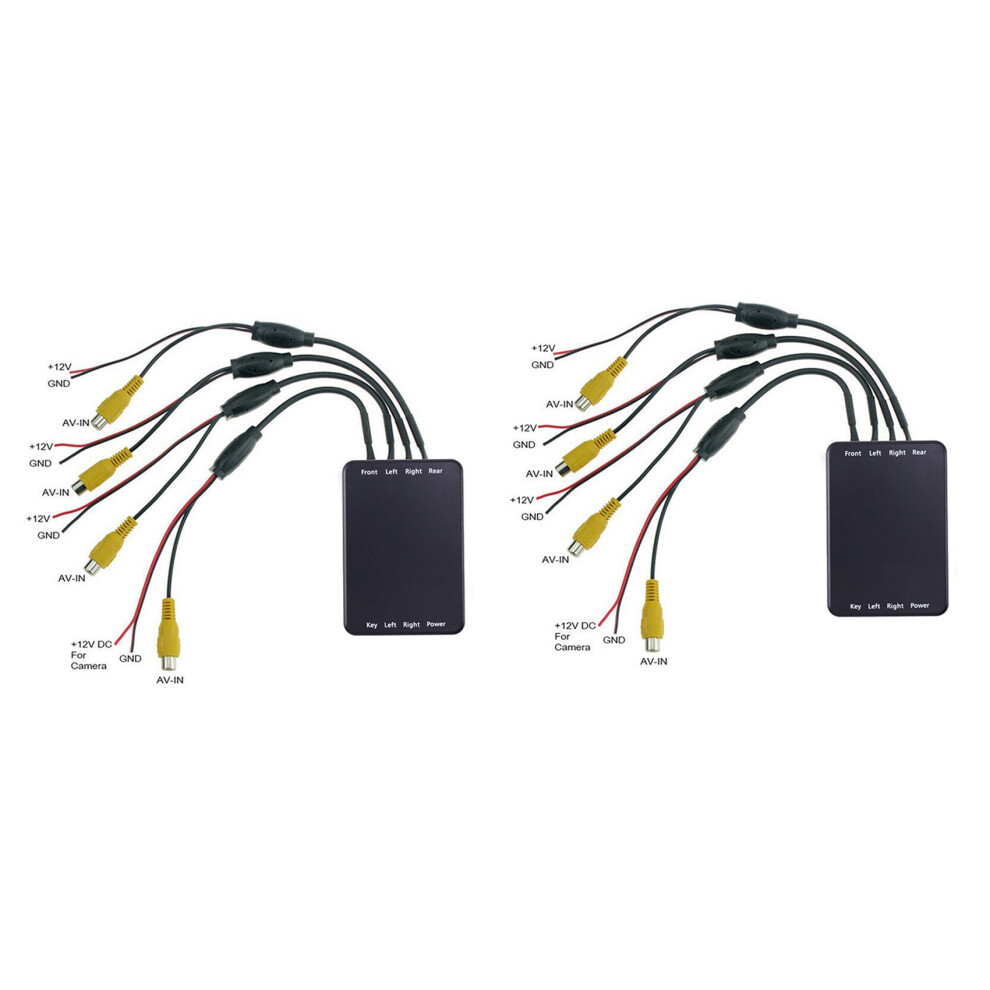

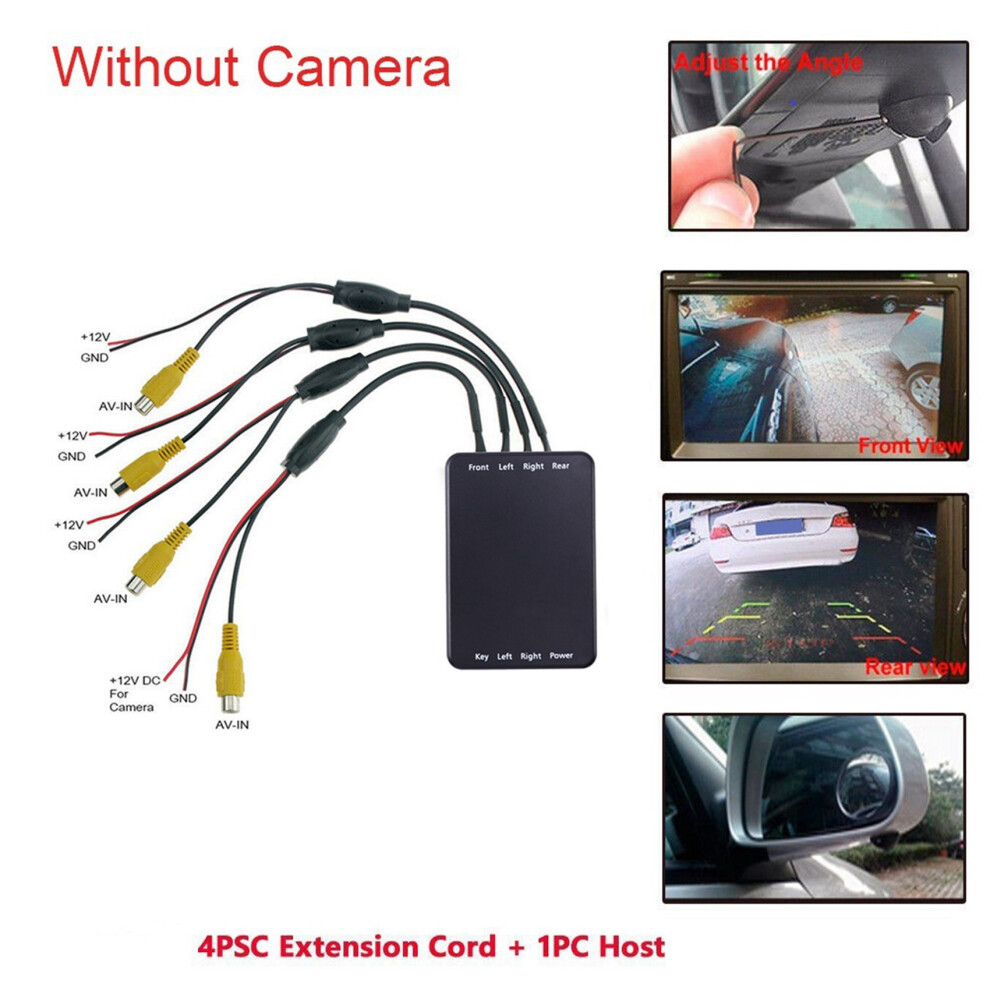

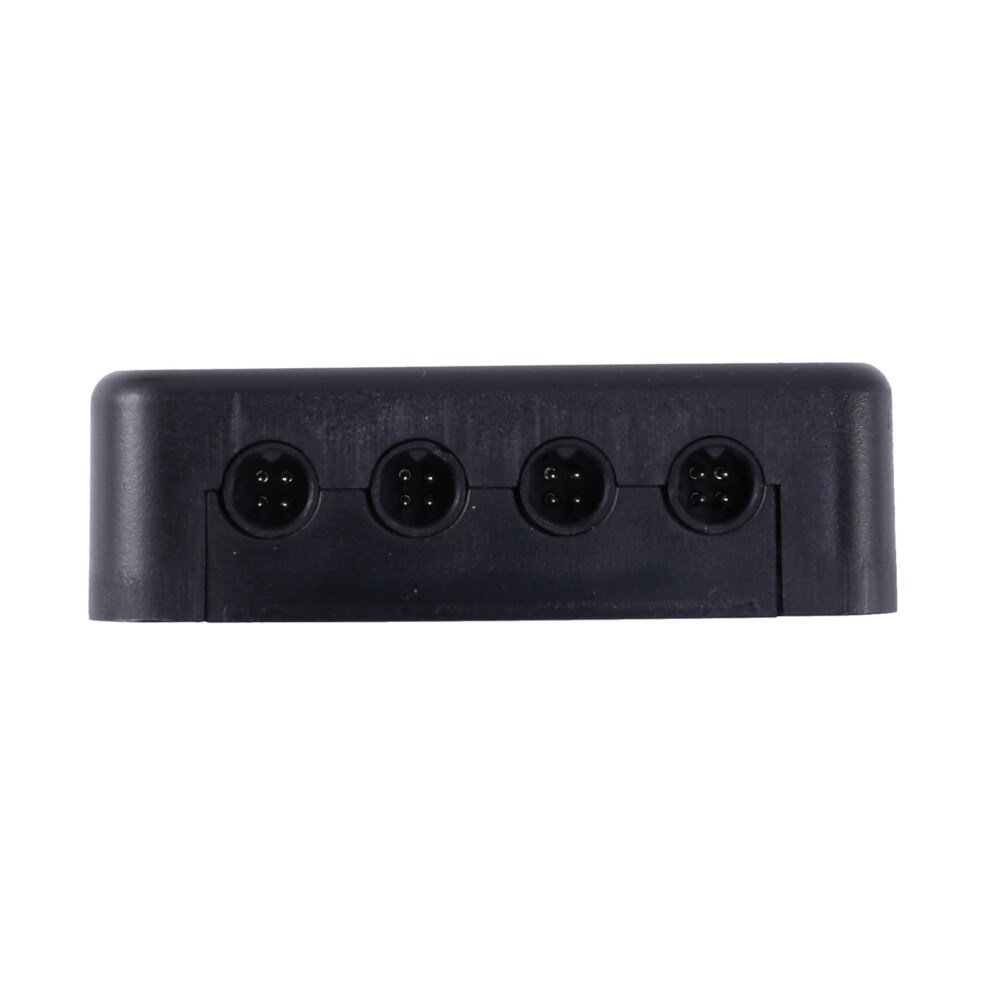

2X Car Parking Panoramic View Rearview 4 Way 360 Degree Degree View Camera Control Box System DVR Without Camera

2X Car Parking Panoramic View Rearview 4 Way 360 Degree Degree View Camera Control Box System DVR Without Camera Beskrivning

Automatical round view when starting: When car engine starts, the system will activate the car monitor and the all the camera around one by one to check the view around for 10 seconds, then turn off.

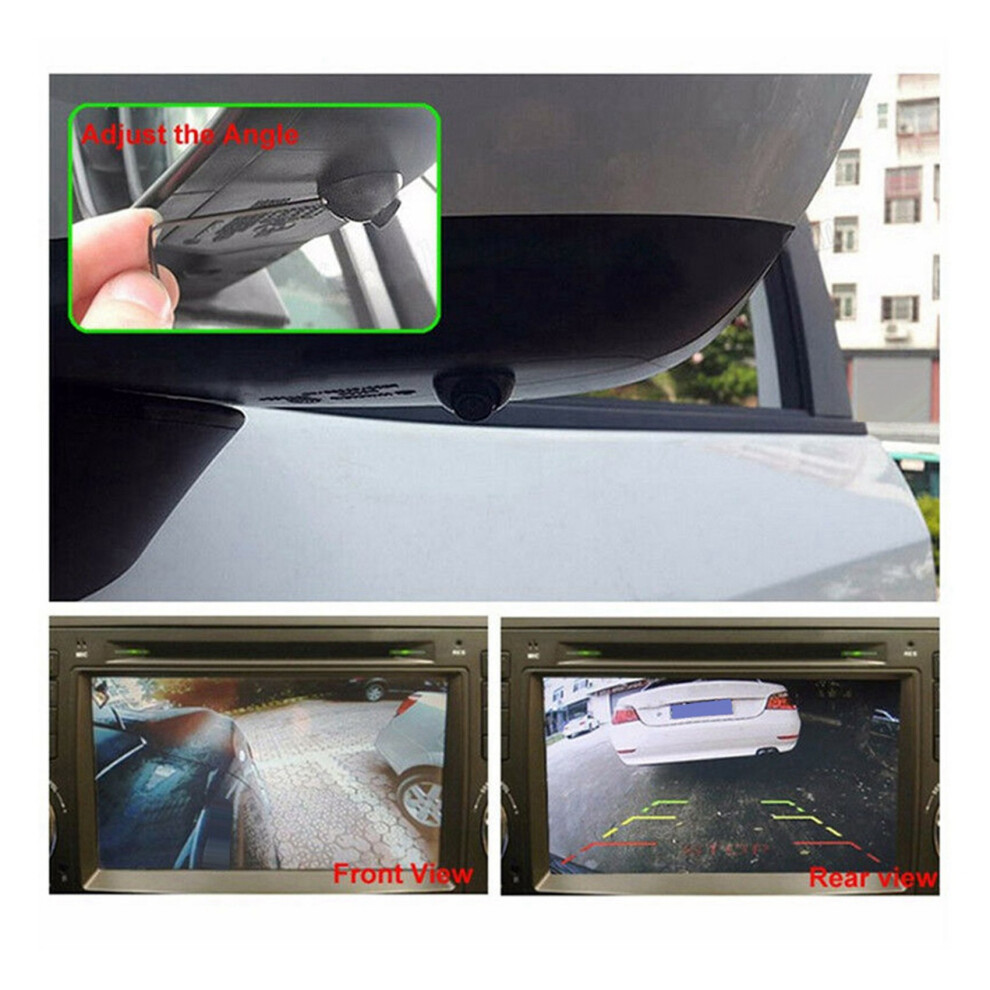

Automatically rear view:When you pull the reverse gear (Left/Right turning no triggered), the system will activate the monitor and rear view camera till the reverse gear back, then switches to front view camera for 10 seconds then shut off.
Front view mode:The system start with front view mode as default.Front view controlled by (included) .Press the control for 2 seconds, car monitor and car front view camera will be working all the , if no other trigger working. And then you could shut off the front view video by re-press the control for 2 seconds.

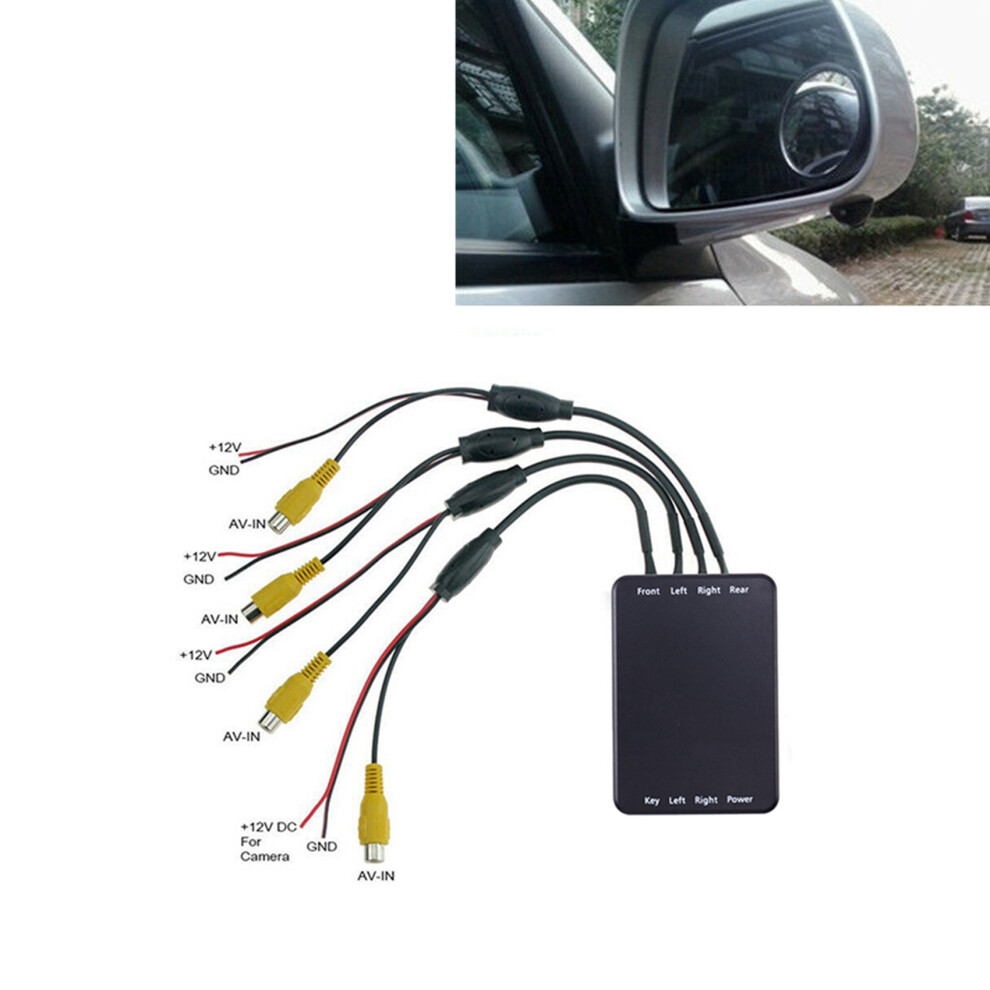

Side view mode:Press the control less than 1 second to enter Side View Mode.When you turn the turning , this system will activate Monitor and Side view camera (Left/Right side view camera is controlled by Left/Right steering lamp). The monitor and camera will turn off after 1.5 seconds when steer turning is finished.Press the control less than 1 second again to enter Front View Mode.

Description:

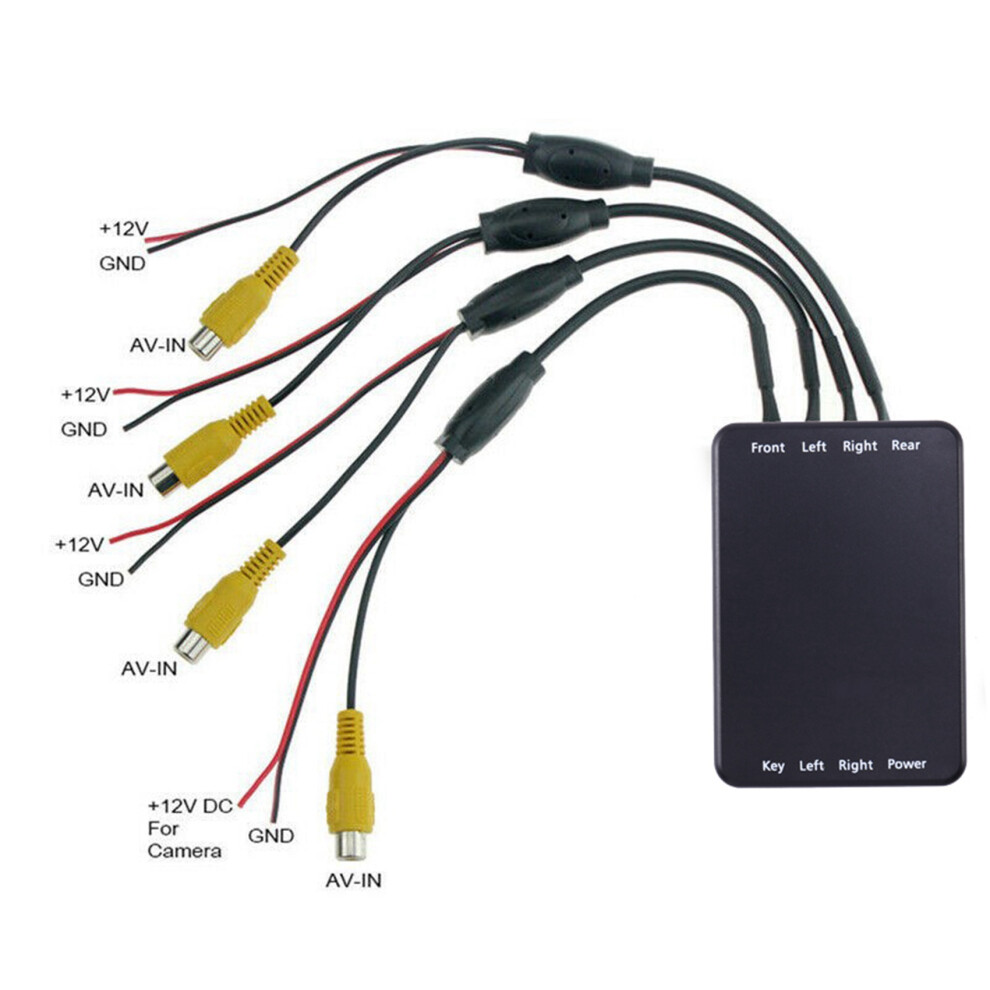

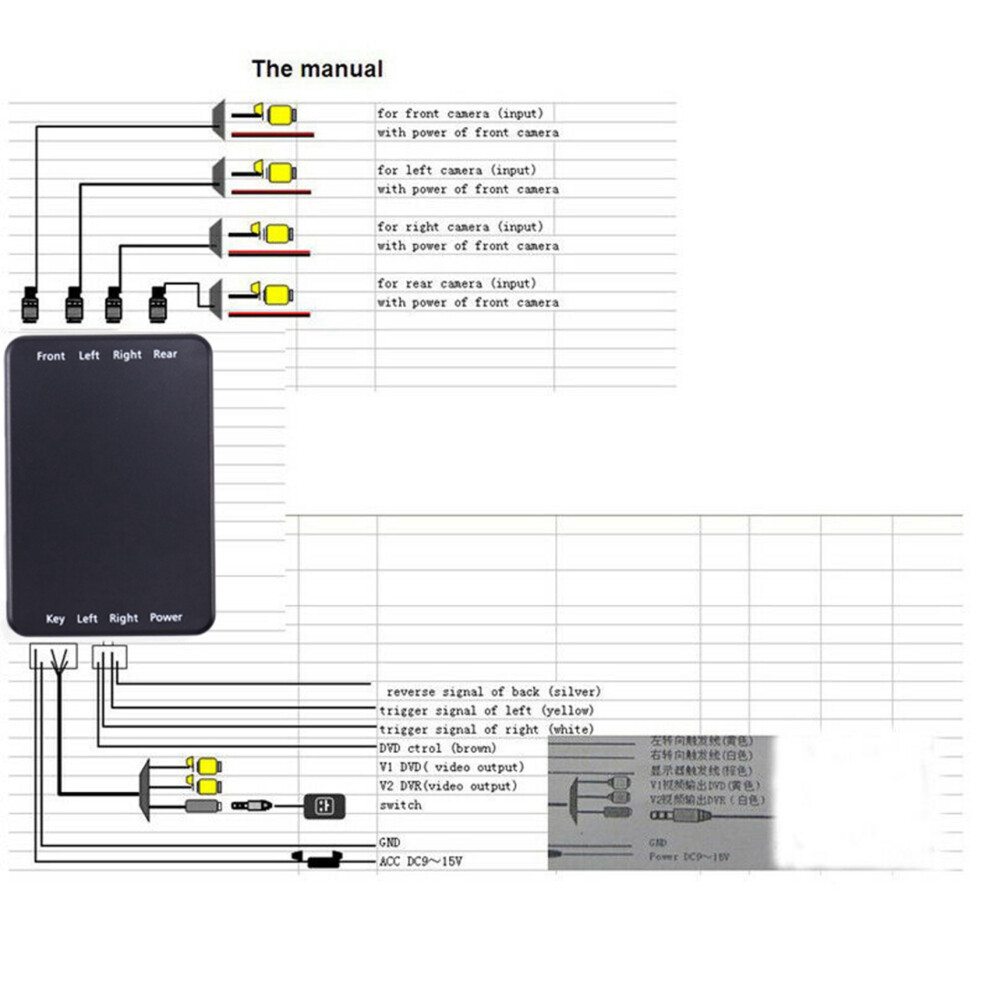

Video output: Two videos output, one for car monitor, the other for car DVR.
Front view camera power: supplied by control box system.
Rear view camera power: supplied by control box system, or could be supplied by reverse lamp power.
Left/Right side view camera power: supplied by control box system
Trigger priority:
Right View--Left View--Back View--Front View

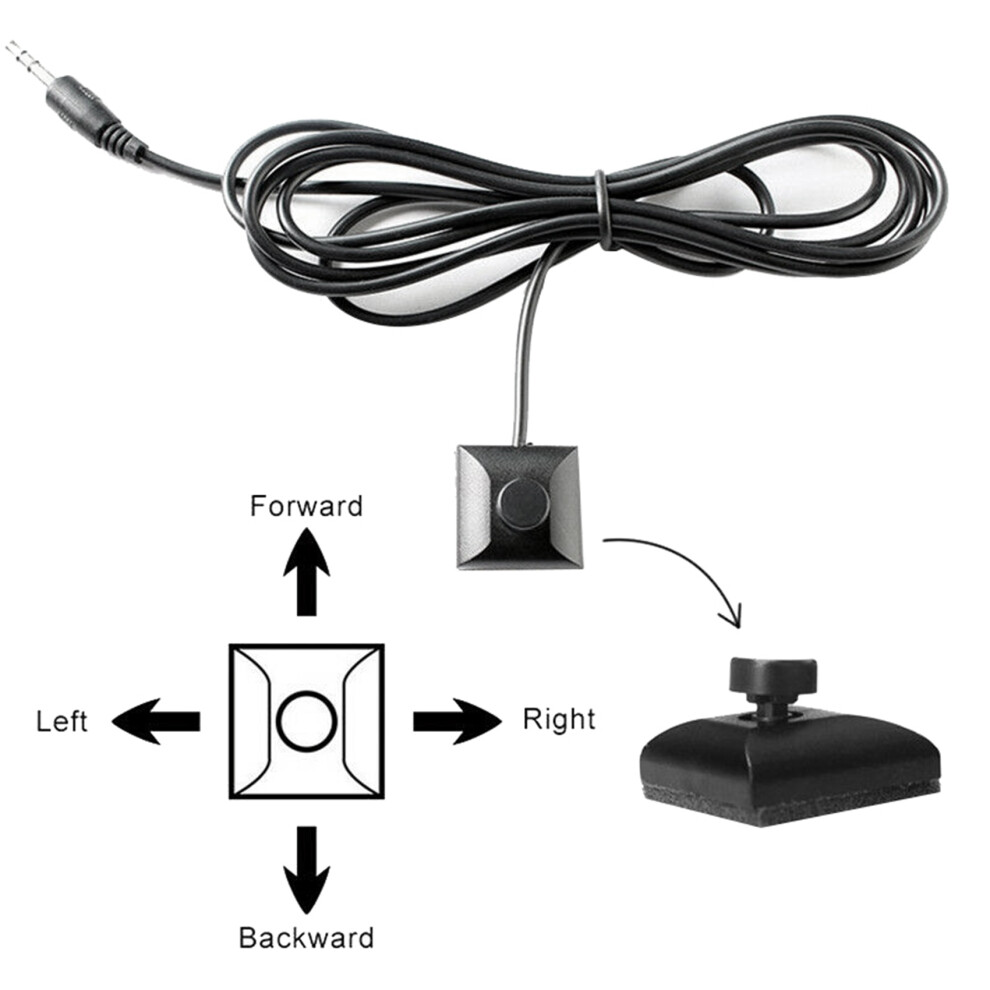

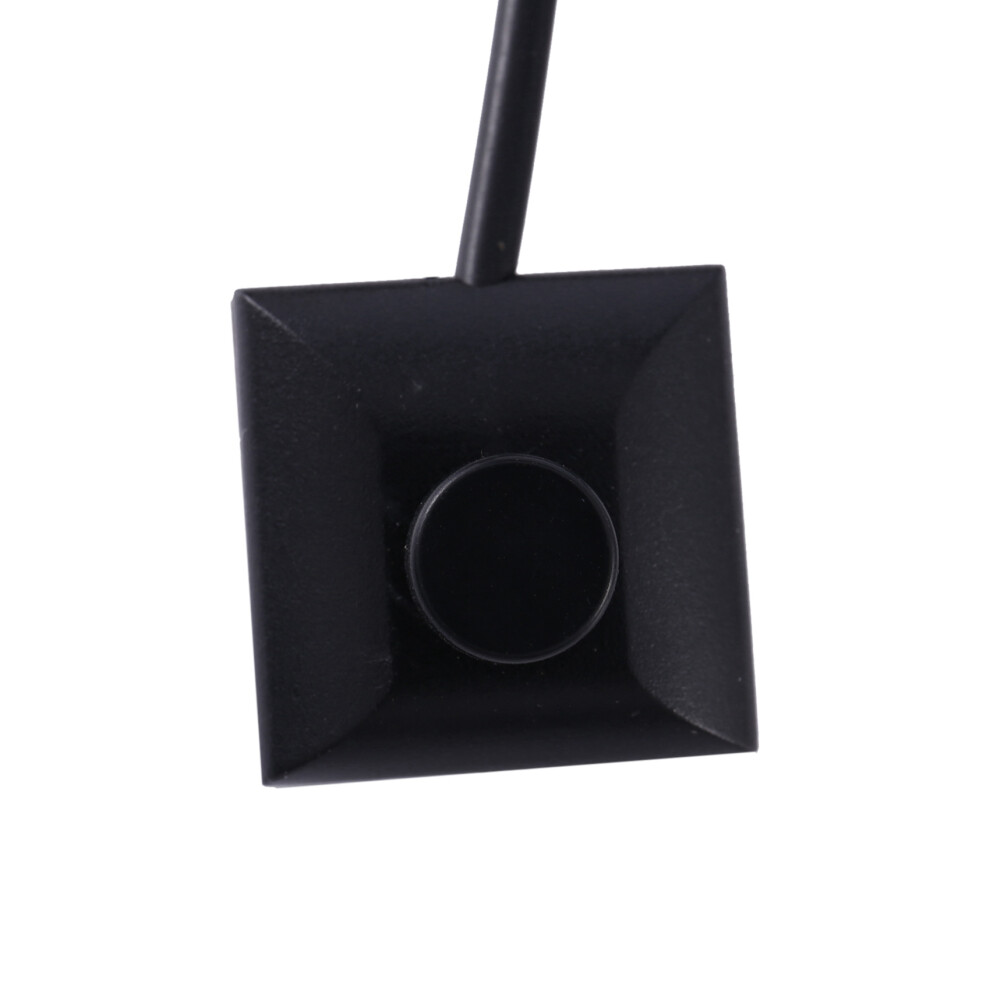

function:
Press for less than 1 second: Side View mode / Front View mode
Press for 2seconds (in Front mode): Front View always working / Front View turn off
Parameters:
The system working current: Max: 50MA. (Excludes working current of cameras)
