2X DC6-60V 30A Storage Battery Charging Control Module Protection Board Charger LCD Display XY-CD63L

2X DC6-60V 30A Storage Battery Charging Control Module Protection Board Charger LCD Display XY-CD63L Beskrivning

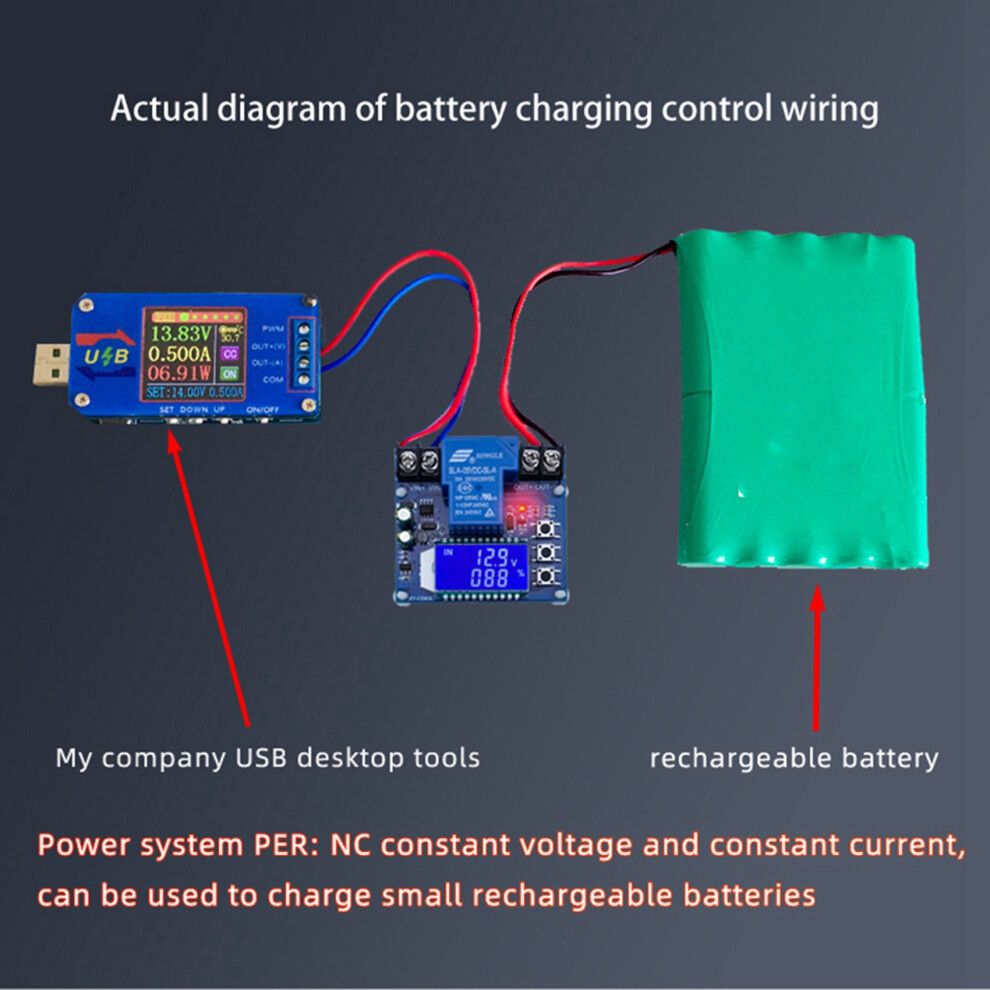

Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage , the relay is disconnected to complete an automatic charging; the relay is turned , IN flashes, indicating that it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage , the relay is turned and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn and off the output. It only functions as a and cannot be transformed.

Function Description:
1. Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
2. Button function:
button: Short press to display% and , long press for 5 seconds to mode, charging mode: IN, discharging mode: OUT
SET button: short press to view the currently set parameters; long press the SET button to enter the parameter setting interface, set : voltage upper limit, dn: voltage lower limit, OP: conduction , dOP: delayed conduction (0-999 seconds) , There is FOP in discharge mode: forced conduction (0-10 seconds)
DOWN button: Short press to turn off/ the relay enable (emergency stop function) after it is turned off, the LCD display is OFF, and the relay is disconnected
Colour:
Material: plastic
Size: 62 x 57 x 22mm
