5-Channel Digital Tracking Sensor Module Optical Scale Path Following for Robot Racing Car Identification Red

5-Channel Digital Tracking Sensor Module Optical Scale Path Following for Robot Racing Car Identification Red Beskrivning

Description:
Grayscale sensors and infrared sensors have similarities, but they have characteristics that infrared sensors cannot match.Using high brightness spotlighting LED lights and receiving tubes to compare the strength of different reflected light, as long as the light.
Different reflection strengths can be recognized, especially for green, white, or black and white track surfaces in many patrol competitions
All have good recognition effects, and the larger the color difference, the better the resolution; Add custom shade for mold making.Further improve product performance. Digital quantity, also known as signal, is a signal with high and low levels.
A sensor that outputs as a signal; The signal does not require AD conversion and can be implemented without complex algorithms.The current signal acquisition and control is a major highlight and advantage for children's shoes that make cars for patrol.

Parameter:
Supply voltage: 5V
Working current: approximately 53mA (with fluctuations in different working environments)
Signal indication: Five channel LED indicator lights

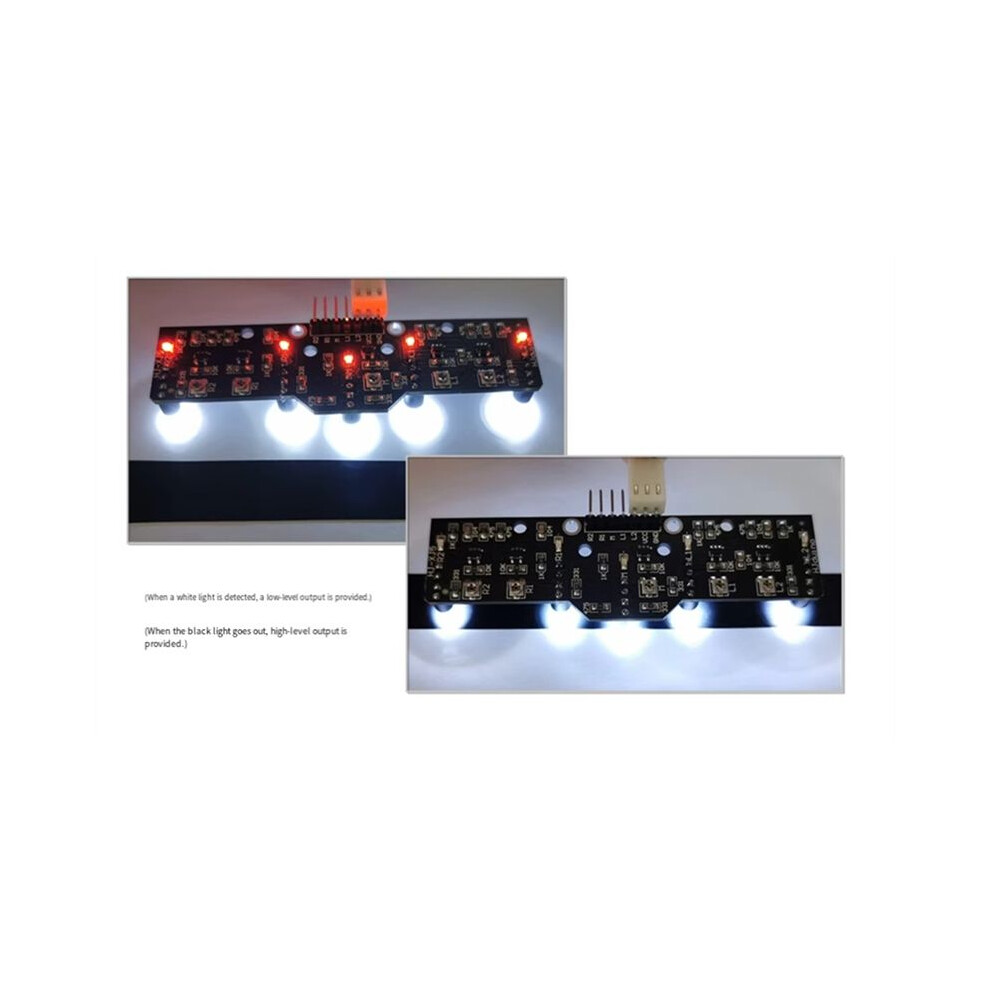

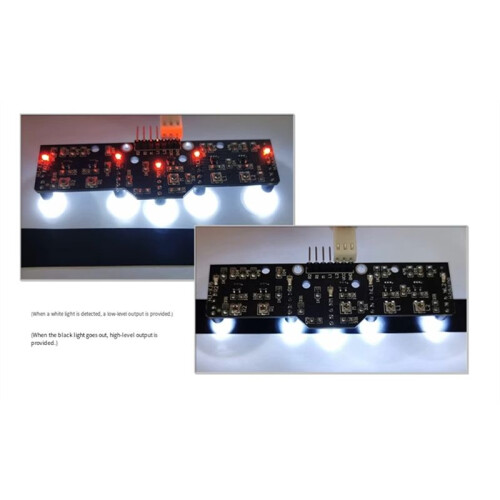

Signal output: Low level effective output (high level output when sensing black)
Detection distance: 10mm~50mm (recommended height is 15-25mm)
Interface form: 2.54 pitch pin interface
Color: Black
Material: PCB

Package Contents:

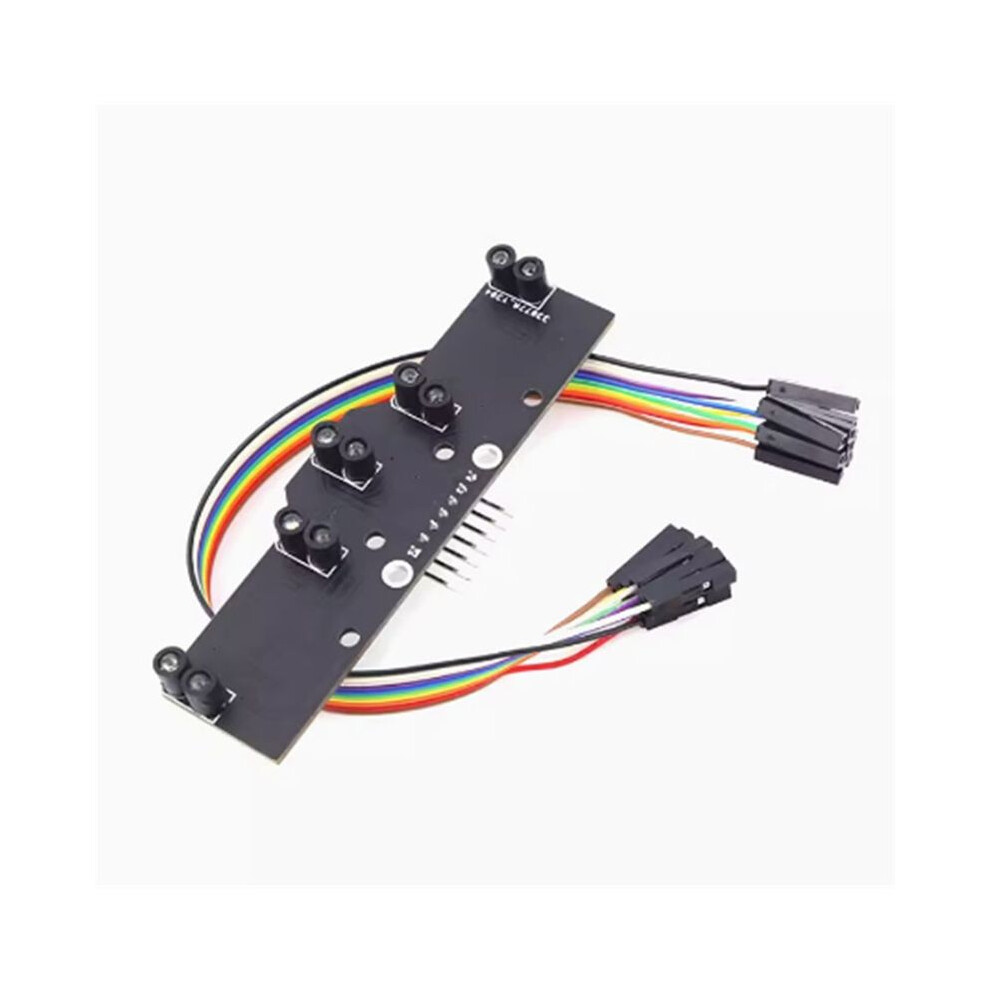

1 set 5-Channel Digital Tracking Sensor
