MT6701 Magnetic Encoder Module 14-Bit High Precision Angle Measurement Sensor for Magnetic Induction 10 Pieces

MT6701 Magnetic Encoder Module 14-Bit High Precision Angle Measurement Sensor for Magnetic Induction 10 Pieces Beskrivning

Based differential Hall technology, absolute Angle measurement from 0 to 360 is provided
Operating voltage 3.3-5.0V, operating temperature -40-125
Typical linearity deviation Less than 1, Less than 1.5 over the whole temperature range
System delay is as low as 5us and can support speeds to 55,000 RPM
Provides I²C/SSI interface to read 14-bit Angle data inside the chip

Description:
MT6701 is a new generation of magnetic Angle encoder chip based differential Hall induction principle. MT6701 senses the component of the magnetic field perpendicular to the chip surface, and with the rotation of a pair of magnetic radial magnets the chip surface,
The MT6701 corresponding output Angle signal of 0-360. In addition to providing ABZ/UVW incremental output and Analog/PWM absolute Angle output, the MT6701 provides 14 bit digital Angle output via the I2C/SSI interface. In addition to rotation Angle measurement, the MT6701 also offers a "push" output to enable single-chip button (rotation + press) functionality.
Features:
Incremental output ABZ supports any resolution of 1 to 1024 lines
Incremental output The UVW supports any polarity from 1 to 16
Provides 12-bit PWM output or analog output (12-bit DAC)
Dedicated press detection output (sensing changes in magnet and chip spacing) for single-chip button applications
Built-in EEPROM, Greater than 1000 iterations of programming
Color:As Shown
Material:PCB

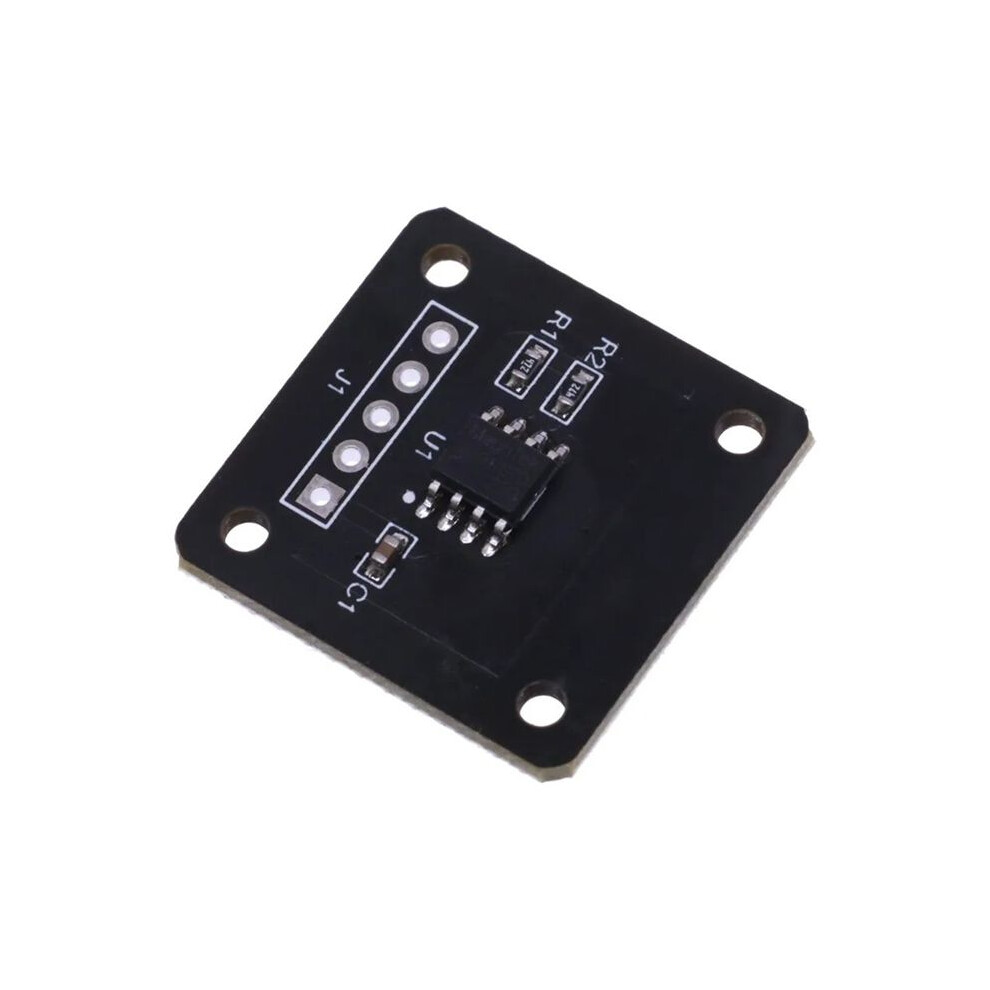

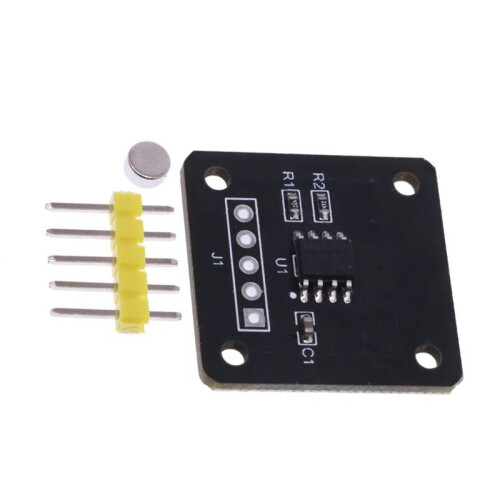

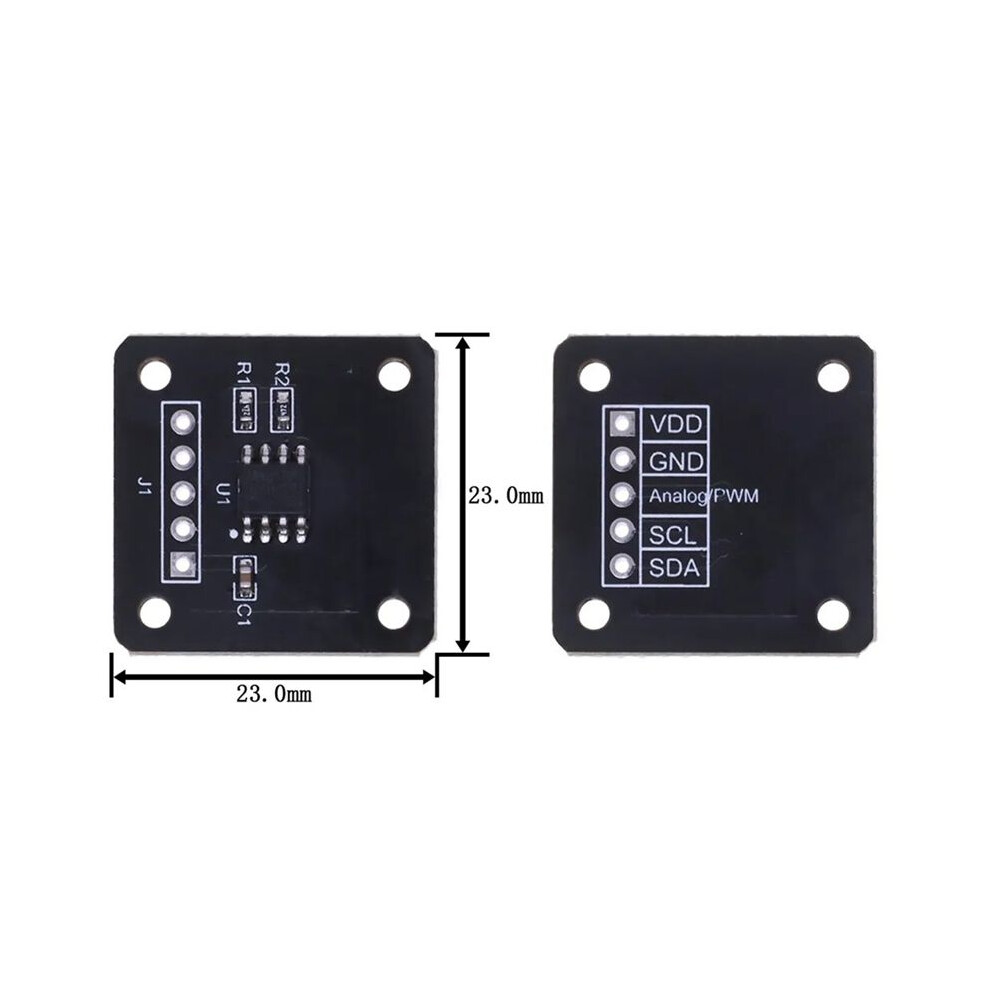

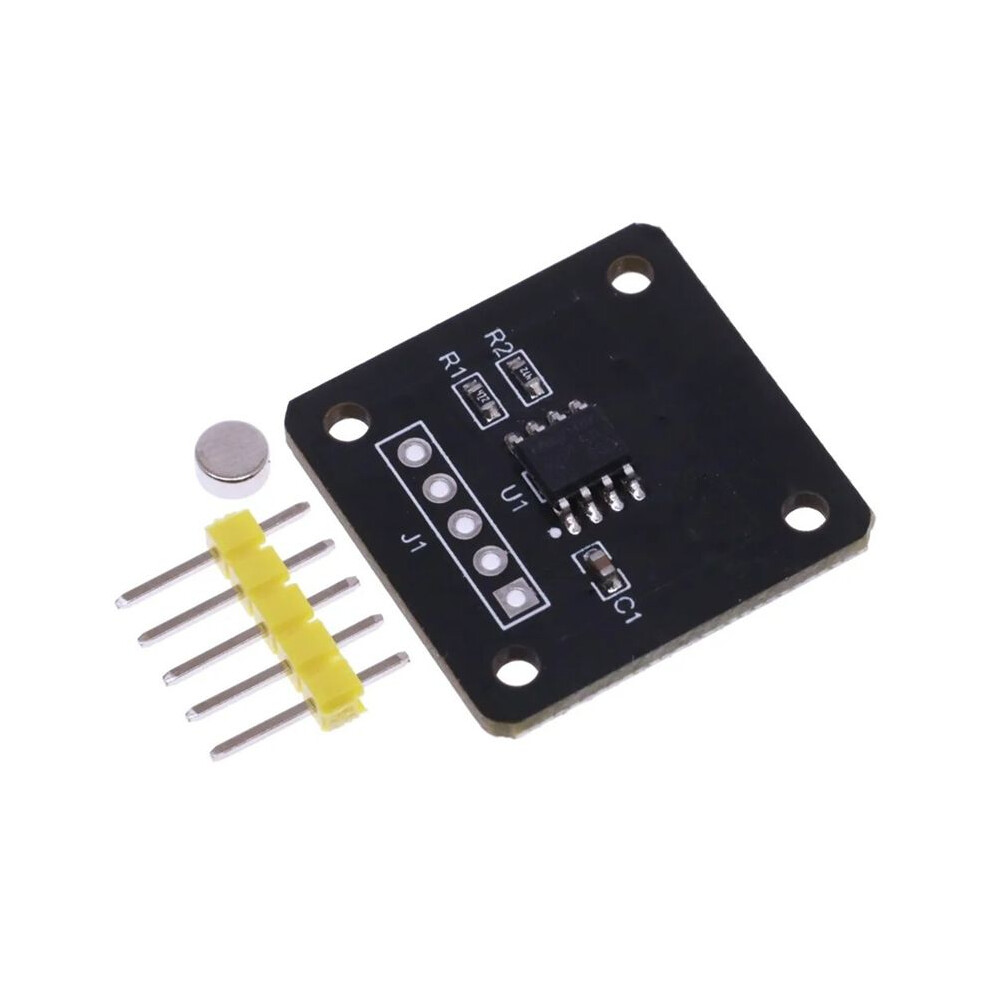

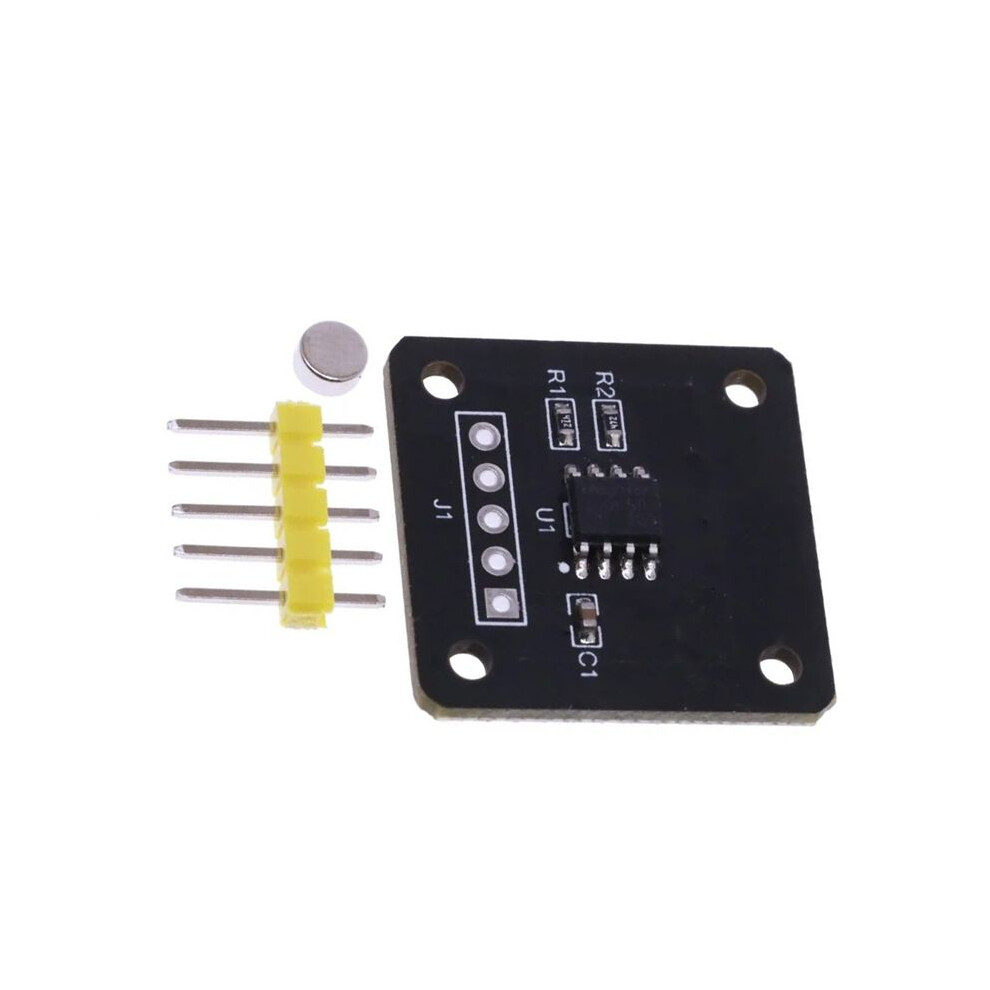

Package Contents:

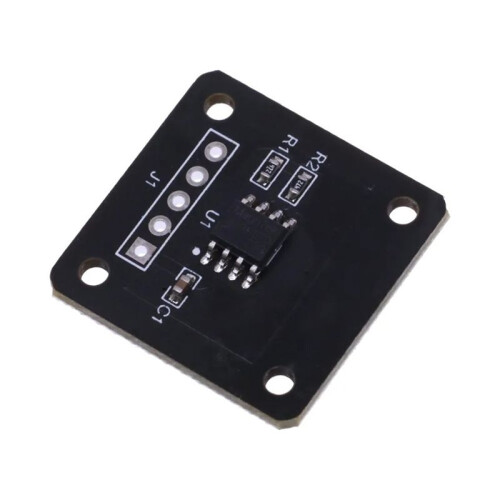

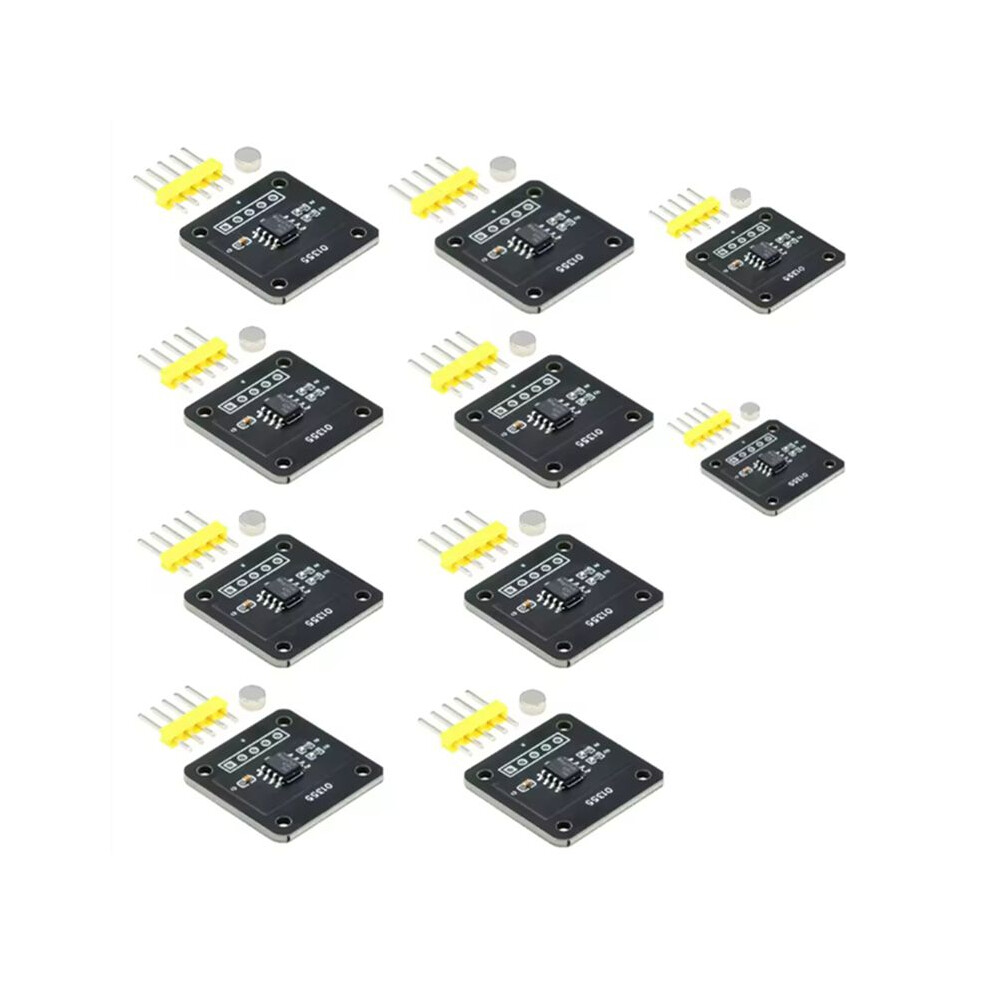

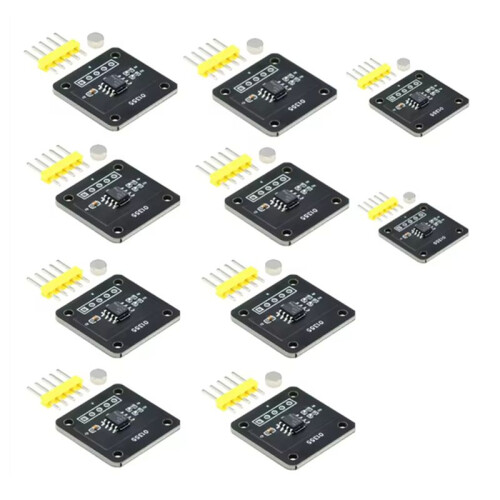

10 * MT6701 Magnetic Encoder Module
