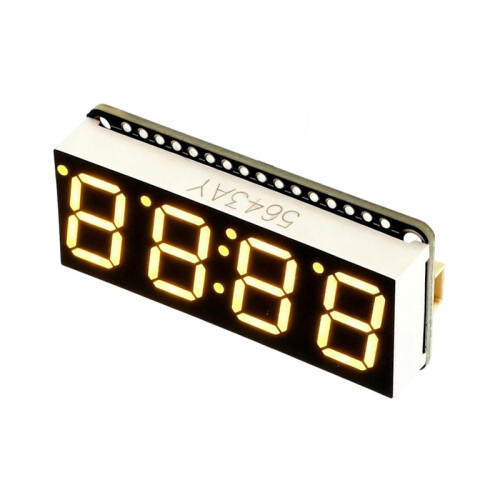

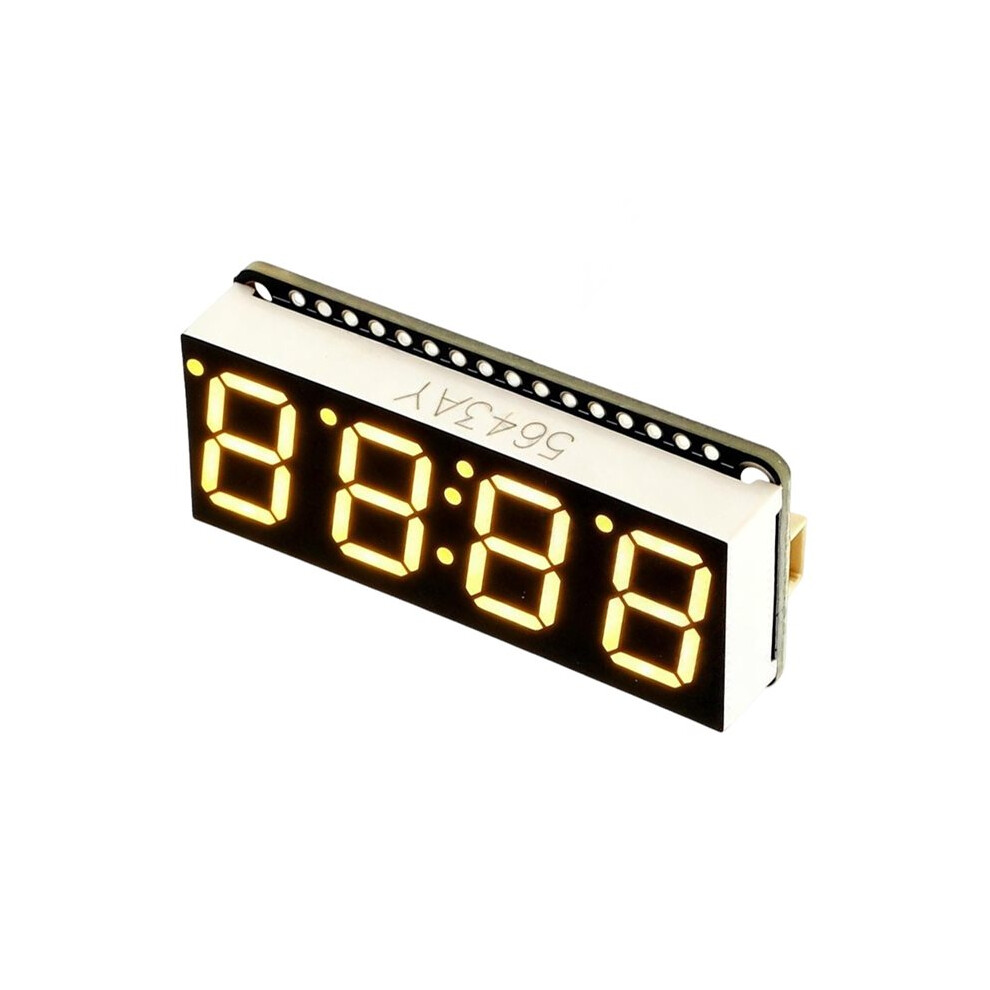

0.56inch 4-Bit 7 Segment LED Display Module with Clock HT16K33 Driver Chip for Digital Clock Countdown Timer B

0.56inch 4-Bit 7 Segment LED Display Module with Clock HT16K33 Driver Chip for Digital Clock Countdown Timer B Popis

Classic 4-Digit Display: Features a high-brightness 0.56-inch 7-segment display with a decimal point, designed for clear numerical visibility. It includes a built-in colon separator, making it ideal for electronic clocks or timers.
Simple I2C Control: Powered by the onboard HT16K33 driver chip, the display is controlled via I2C commands using only two I/O pins, greatly simplifying both programming and hardware connections.
Constant-Current Drive for Uniform Brightness: The driver chip utilizes a constant-current source to power the LEDs, ensuring consistent color and brightness across all digits at any intensity level.
Plug-and-: Integrated with STEMMA QT / Qwiic standard connectors for quick, solder-free connections.
Flexible Cascading: Supports I2C address adjustment (ranging from 0x70 to 0x77) via onboard address jumpers, allowing to eight modules to be cascaded a single I2C bus.

Display specifications: 0.56-inch, 4-digit, 7-segment display (including decimal points) with a clock colon
Driver chip: HT16K33 (I2C interface)
Supply voltage: 3.3V or 5V (compatible with 3V/5V logic levels)
Brightness control: Supports 1/16-step digital dimming
Module dimensions: 51mm x 23mm x 14mm
Color: As Shown
Material: PCB
Specification: Yellow display

Package Contents:
1 x Display module (assembled, includes driver backplane)
1 x Set of pin headers (requires self-soldering)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
