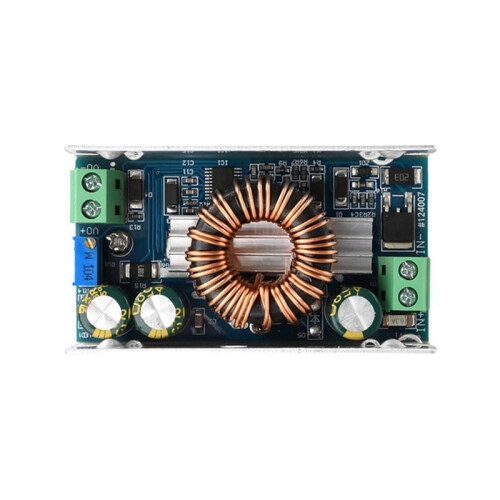

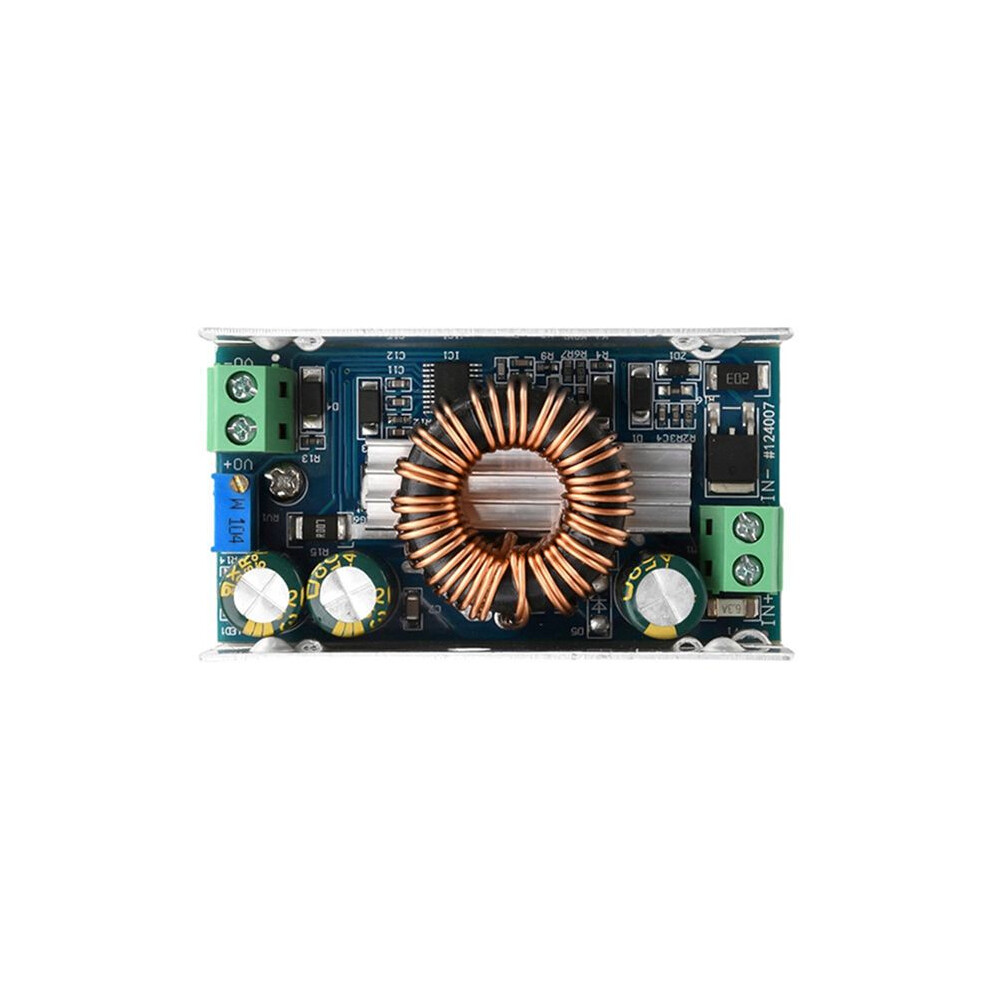

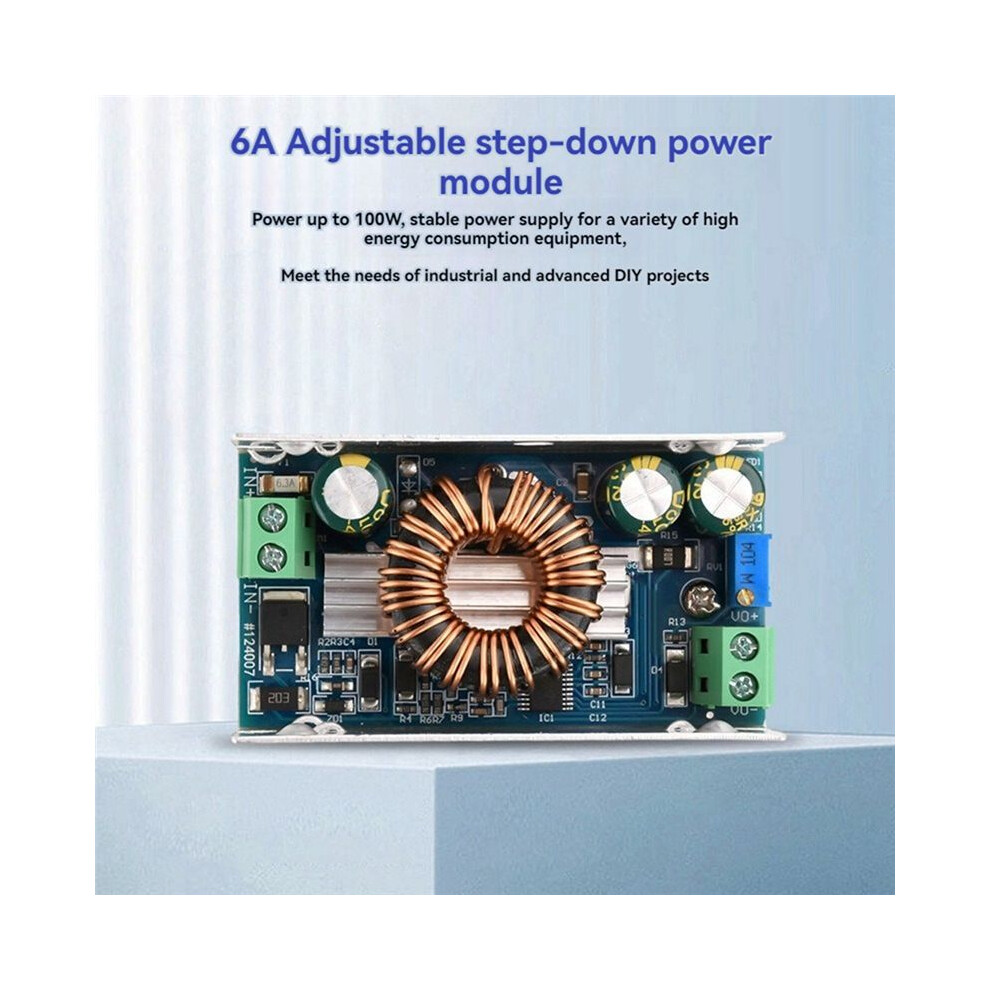

100W 6A - Buck Converter High-Efficiency Voltage Regulator Module Power Step-Down Board

100W 6A - Buck Converter High-Efficiency Voltage Regulator Module Power Step-Down Board Popis

1. to 100W, able to provide stable power supply for a variety of high- devices, to meet the needs of industrial and advanced DIY projects.
2. Supports a wide range of input voltages from 10V to 90V, flexibly adapting to different power systems and enhancing the versatility of application scenarios.
3. Adopting high-efficiency synchronous rectification design, compared with the traditional step-down mode, it significantly improves the conversion efficiency, reduces waste, and generates less heat.

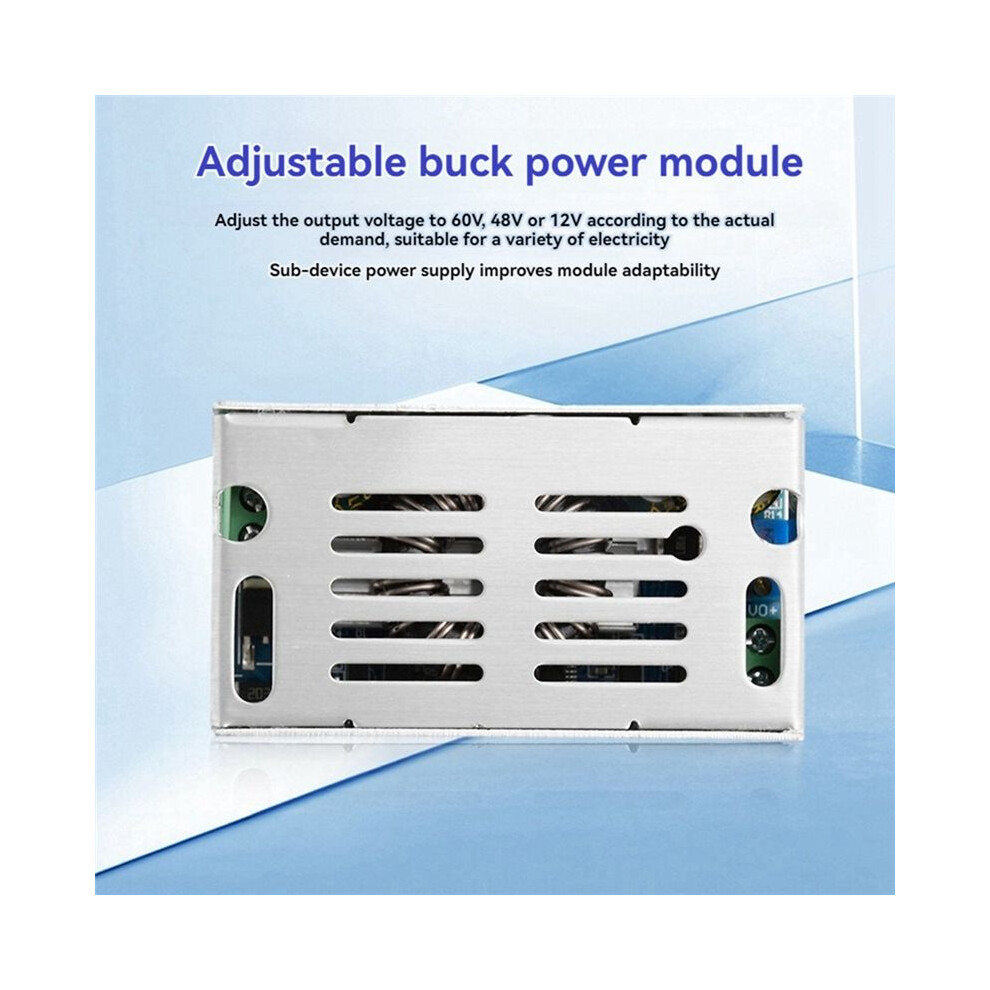

4. Optimized heat dissipation design, with heat sinks, can effectively emit heat to ensure long-term stable operation and prolong the life of the module.
5. Suitable for electric vehicle battery conversion, communication equipment, LED lighting drive, industrial control systems, security monitoring and high-end audio equipment, etc., a wide range of uses.

Input voltage: DC10-90V
Output voltage: DC1.5-60V (for applications where the input voltage is higher than the output voltage cannot be boosted)
Output current: MAX6A (high voltage output, please reduce the amount of use, the temperature exceeds 65 degrees need to add cooling)
Maximum power: 100W (maximum current 6A at low voltage output, maximum power 100W at high voltage output)
Operating frequency: 180KHz conversion efficiency: 97.5% (typical)
Operating Temperature: -40 to +85
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)

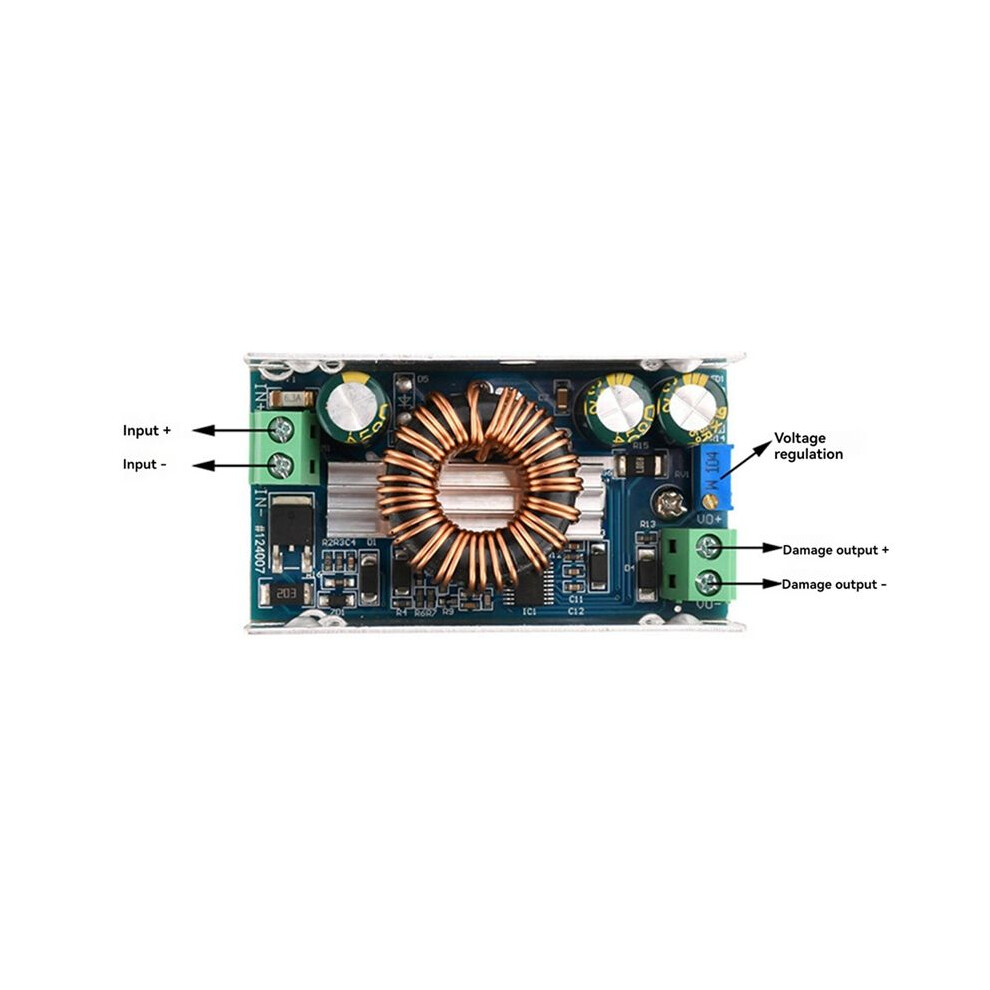

Wiring: terminal block
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:As Shown
Material:aluminum

Package Contents:
1 * Buck Module
