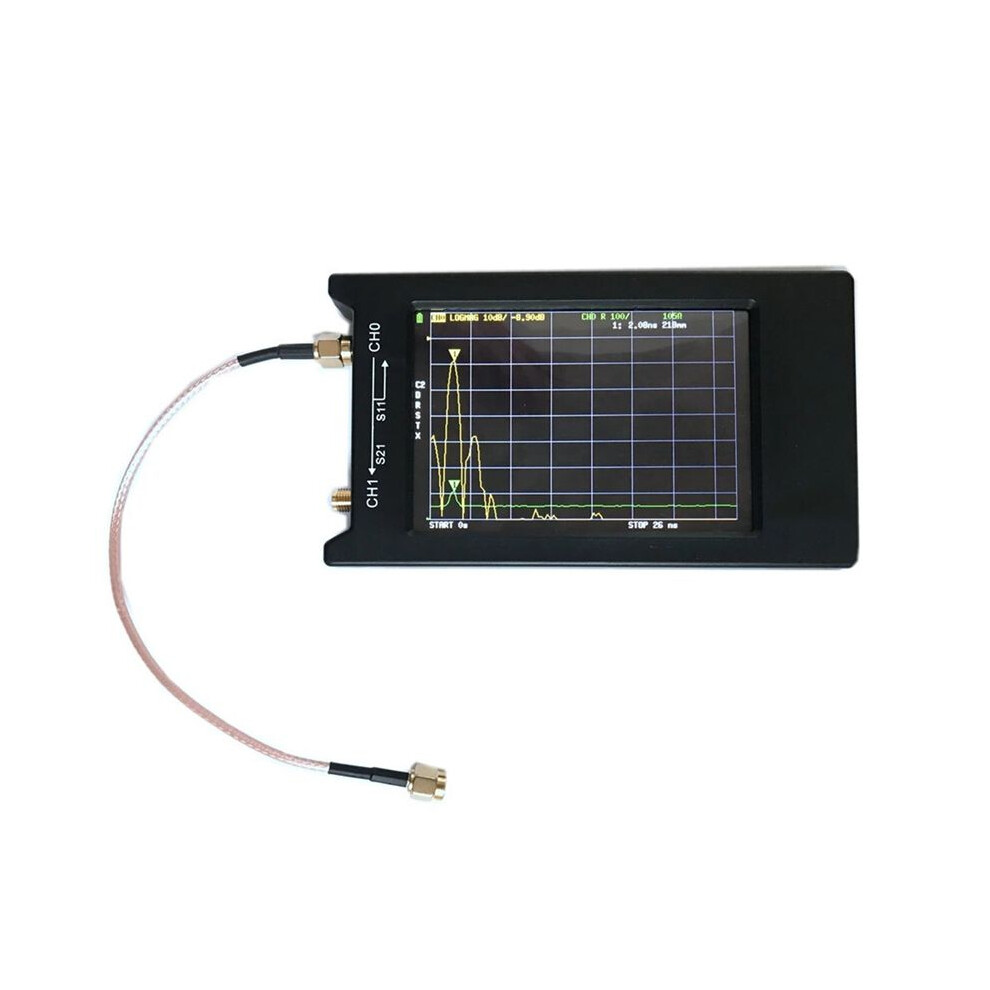

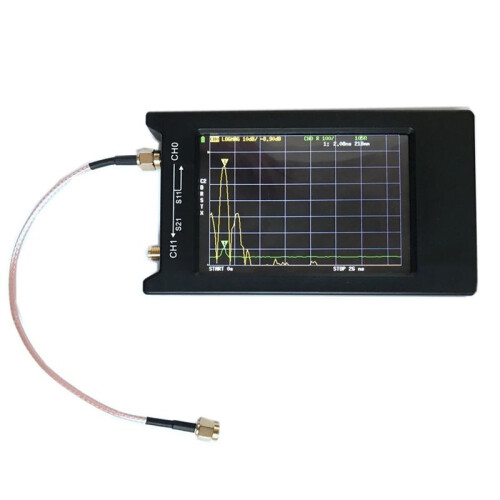

10KHz -1.5GHz -H4 4 Inch Touchscreen Network Analyzer Digital Touching Screen Antenna Analyzer

10KHz -1.5GHz -H4 4 Inch Touchscreen Network Analyzer Digital Touching Screen Antenna Analyzer Popis

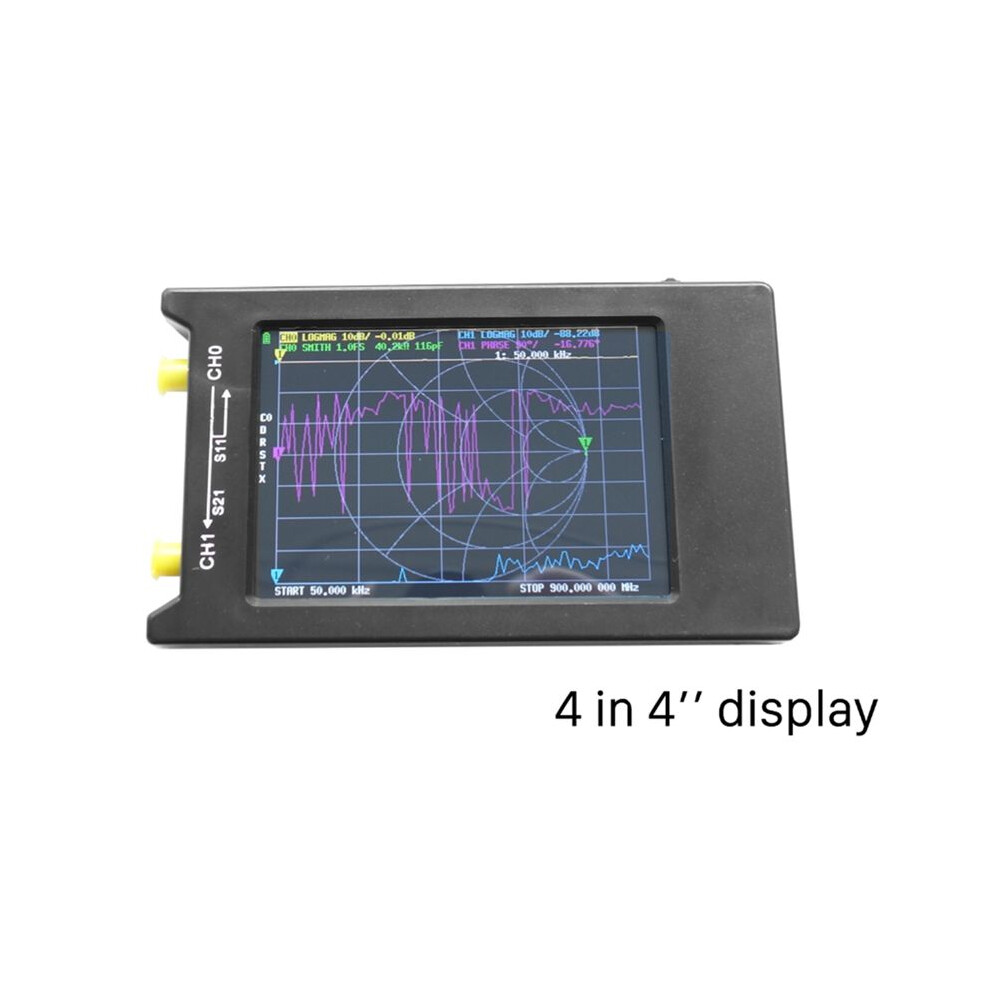

4 inch LCD touch screen
1950mAh battery
Support domain analysis function (TDR)
The battery usage can be displayed the interface.

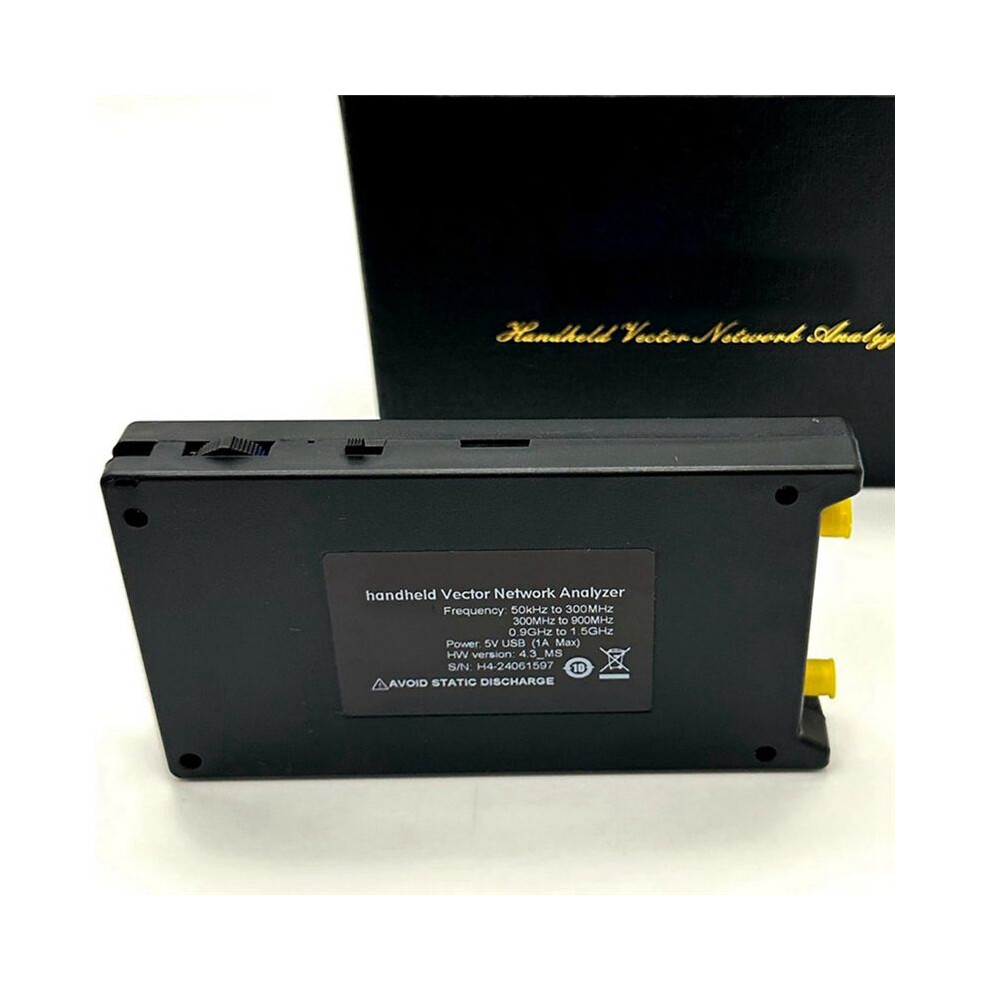

The spectrum analyzer serial number is attached to the back

-H4(4-inch):
Size:75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR:Less than 1.1
Display: 4 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:Less than 2.5ppm
Frequency Stability:Less than 0.5ppm
Weight:365g
Color:Black
Material:ABS

Package Contents:
1 * Vector Network Analyzer
1 * Charging Cable
1 * English instruction manual
1 Set * Accessories
