18650 Lithium Battery Capacity Tester Module High Precision LCD Digital Display True Capacity Module MaH/MwH Measurement
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 132,000 hodnotení s “Vynikajúcim” hodnotením
11,44 €
18,88 €
39 % zľava!
+6,50 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (6,50 €) | str 9 - str 16 sep
Predáva: PPEART
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Popis a podrobnosti
Zhrnutie
- Automatic save without operation 5 seconds after the value setting is complete.
- The minimum discharge stop voltage of 18650 battery is 2.75V. In general, when the voltage is reduced to 0.875 times of the rated voltage (3.24V), it should be charged, and if it continues to be used, the voltage will drop rapidly, and it may be damaged by overdischarge, which will affect the life span. (recommended discharge termination voltage set to 3.5V)
- The charging voltage is generally 4.20V-4.3V/4.35V.
- Measurement time calculation, Assuming that the battery capacity is 2000mAH, the discharge current of this detector is about 500mAH. the measuring time is about 4 hours.
- Lithium Battery Capacity Tester Module
18650 Lithium Battery Capacity Tester Module High Precision LCD Digital Display True Capacity Module MaH/MwH Measurement Popis
Automatic save without operation 5 seconds after the value setting is complete.
The minimum discharge stop voltage of 18650 battery is 2.75V. In general, when the voltage is reduced to 0.875 times of the rated voltage (3.24V), it should be charged, and if it continues to be used, the voltage will drop rapidly, and it may be damaged by overdischarge, which will affect the life span. (recommended discharge termination voltage set to 3.5V)
The charging voltage is generally 4.20V-4.3V/4.35V.
Measurement calculation, Assuming that the battery capacity is 2000mAH, the discharge current of this detector is about 500mAH. the measuring is about 4 hours.
Product name:18650 lithium battery capacity tester
Display accuracy:0.1
Measurement accuracy:1mAH

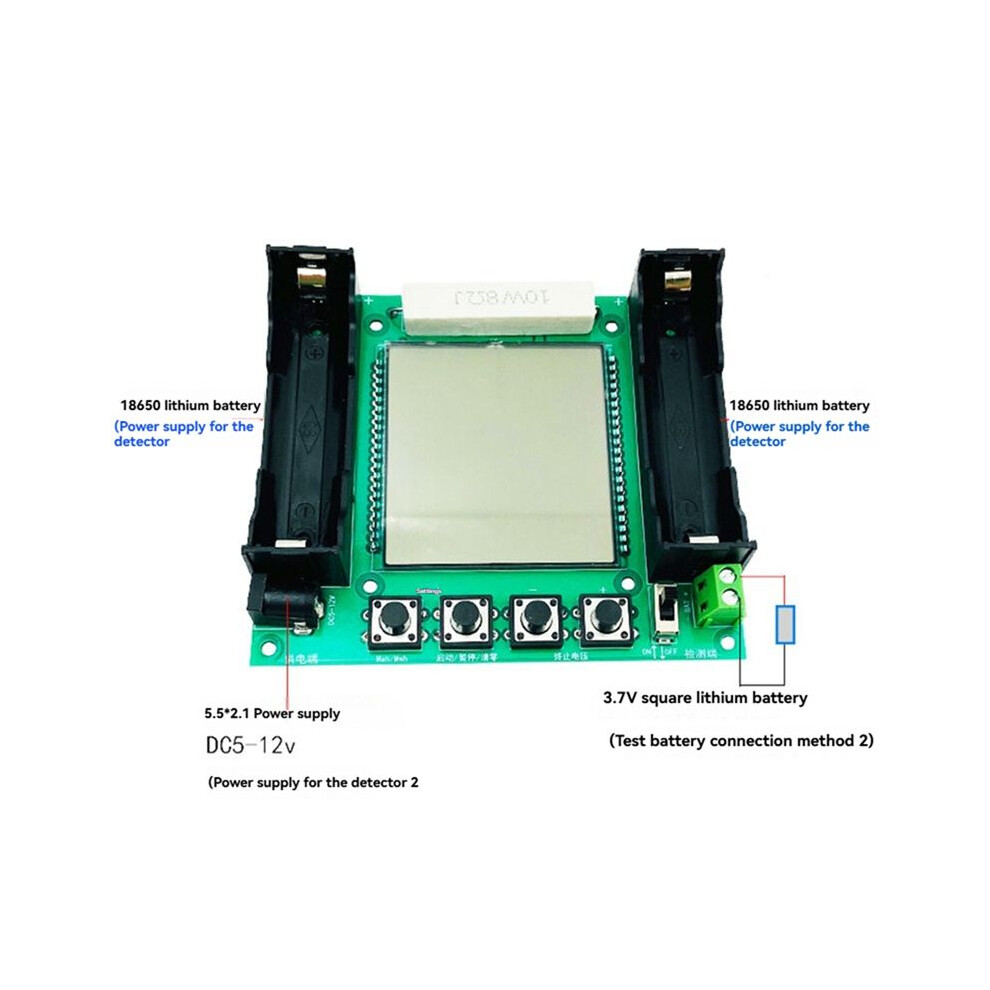

Power supply voltage:DC5-12V/18650 battery standby current:5mA
Discharge current:about 500mA
Load power:10W 8Ω
Set the discharge stop voltage and press the display 888 to restore the factory setting at the same .
Short press:start / pause switching
Short press:mAh/mWh toggles display
Long press:data zero
Color:Green
Material:PCB+Plastic
Package Contents:
1 * lithium battery capacity tester
Podrobnosti
| OPC | PXKQBQY |
|---|---|
| Kódy | 4711409355313 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 3cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.1kg |
| Colour | Green |
| Material | PCB+Plastic |
