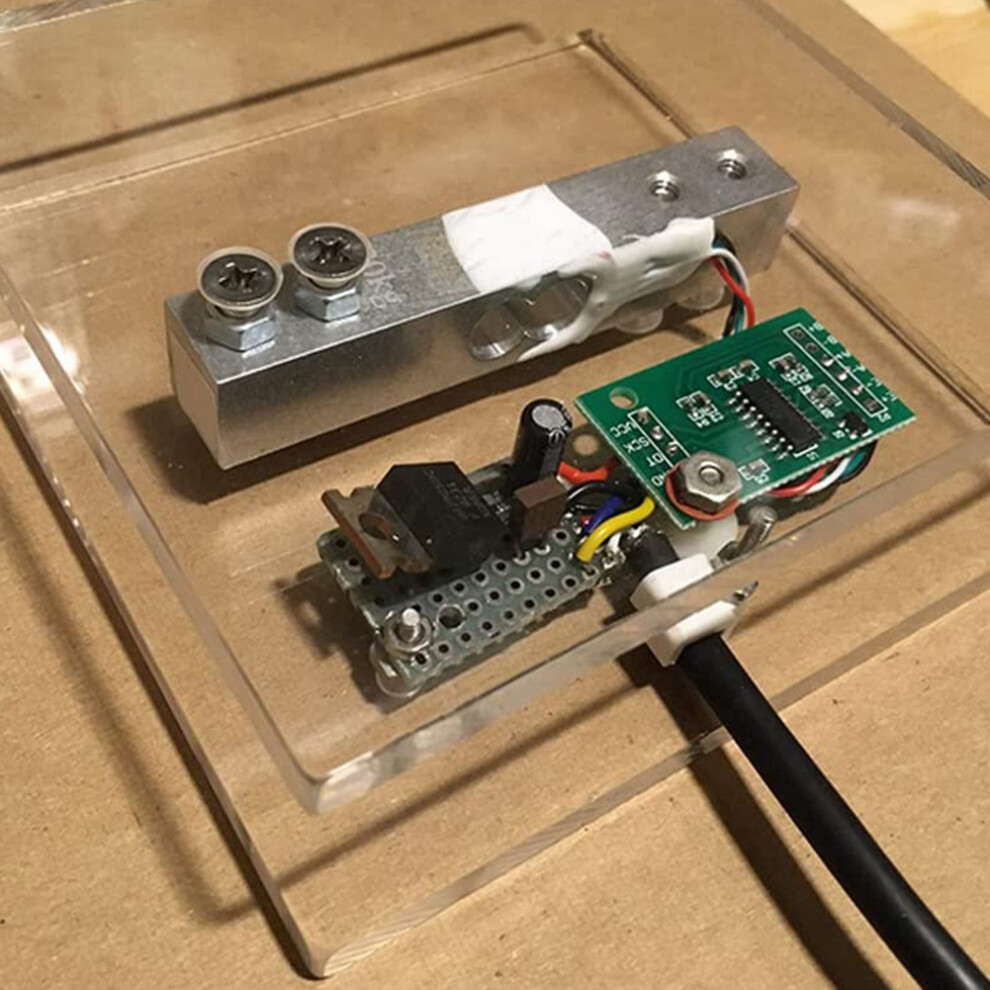

2 Sets Digital Load Cell Weight Sensor Electronic Kitchen Scale + HX711 Weighing AD Module (10Kg)

2 Sets Digital Load Cell Weight Sensor Electronic Kitchen Scale + HX711 Weighing AD Module (10Kg) Popis

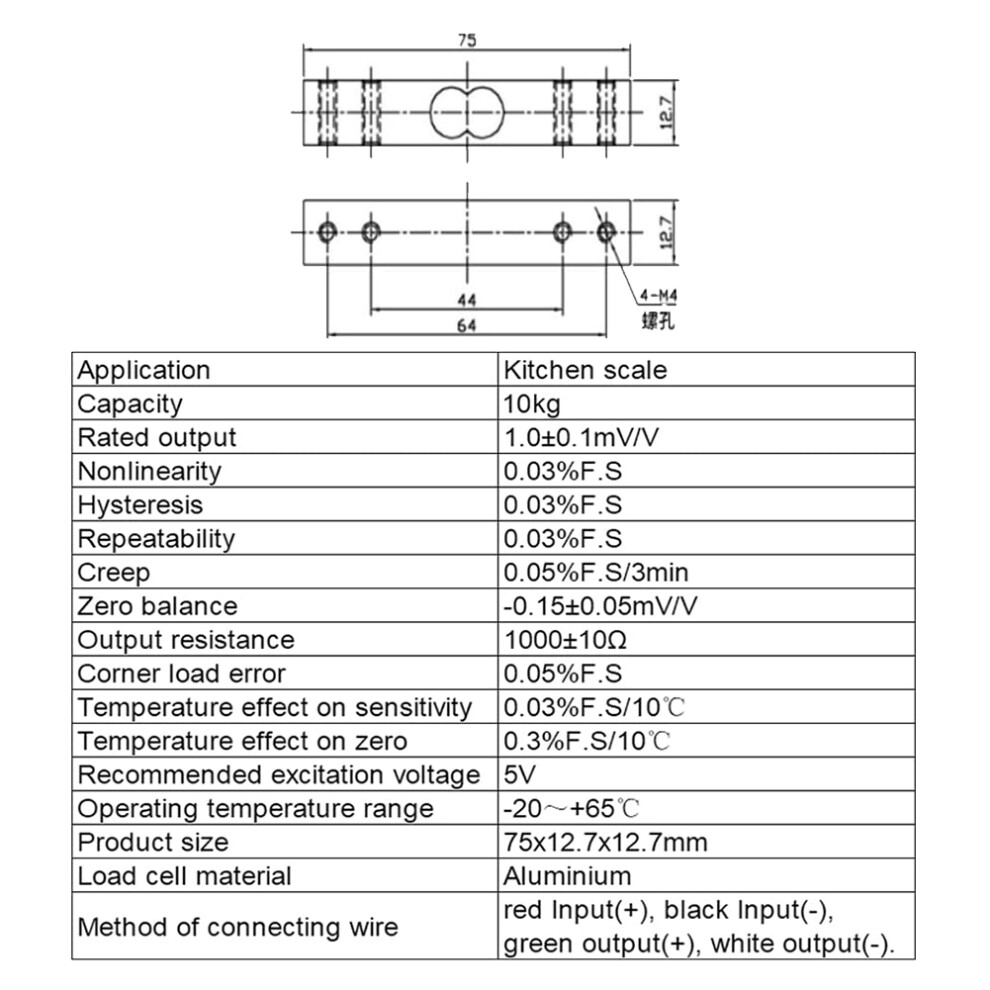

The Load Cell maximum measures force: 10kg (22lb)
You need to connect load cell with HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-
Load Cell: 4 leads, easy to use, 5-10V drive voltage, direct output as a voltage signal due to force changes. Works for and raspberry pi
The HX711 -chip active low noise PGA with selectable gain of 3264 and 128
This HX711 module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier.

Material: pcb
colour: As shown

Package Contents:
2 sets x Weight Sensor
