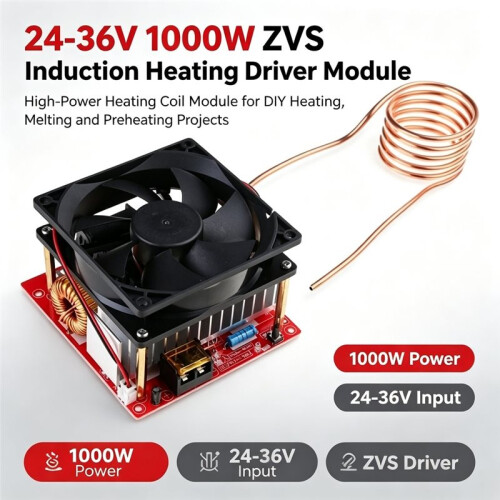

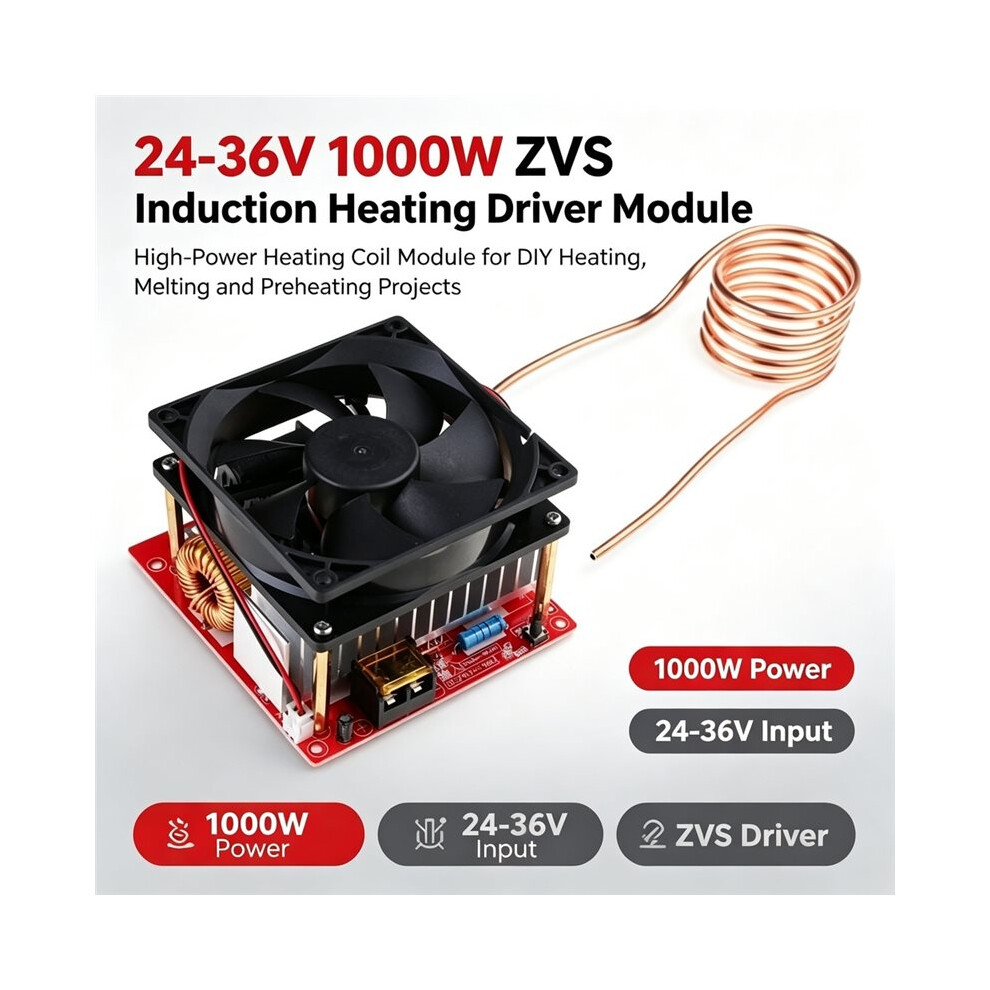

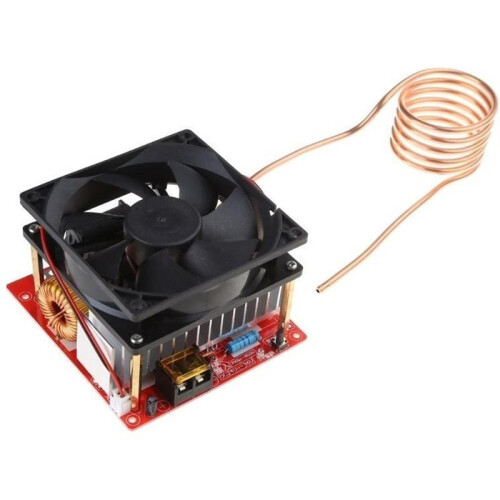

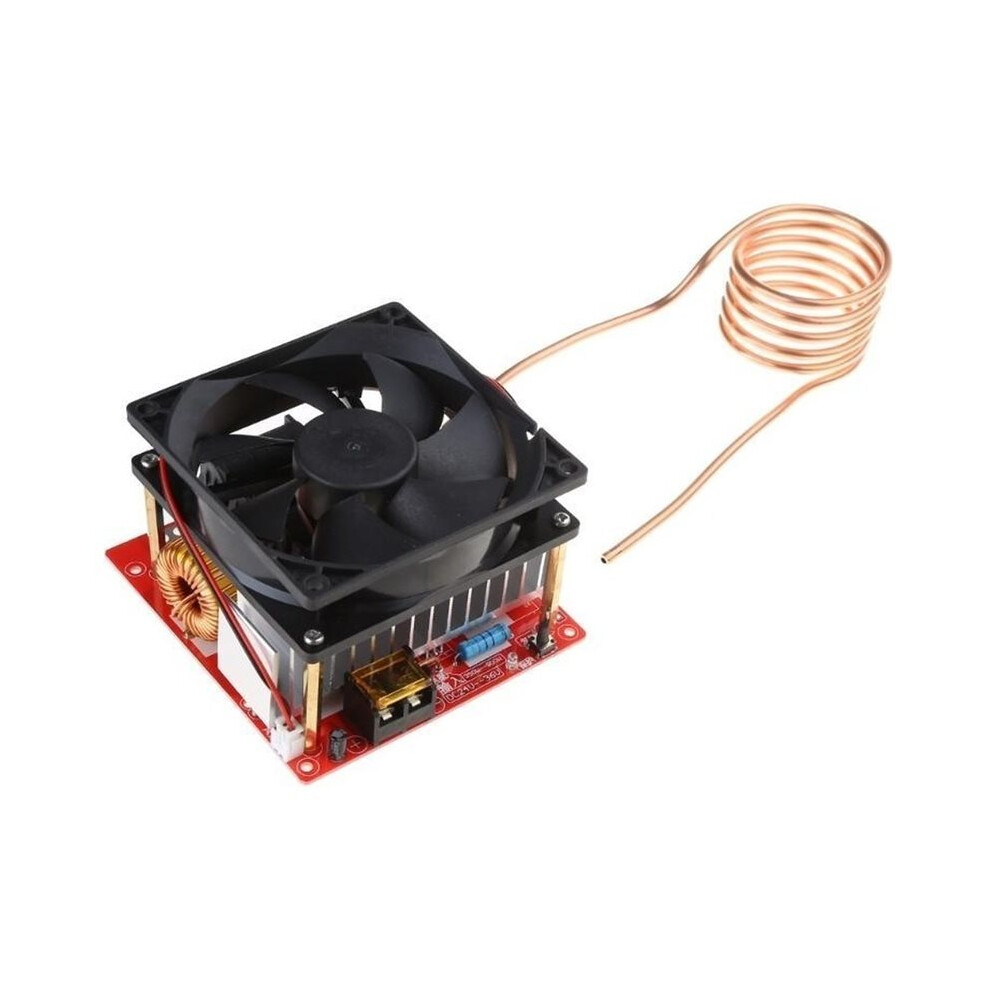

20A 24V-36V 1000W ZVS Induction Heating Board Module Driver Heater DIY High Frequency Induction Heating Machine Module

20A 24V-36V 1000W ZVS Induction Heating Board Module Driver Heater DIY High Frequency Induction Heating Machine Module Popis

Specifications:


Operating Voltage: 24-36V

Operating Current: 20A
Power Transistor: IRFP260N (50A 200V)
Dimensions: 100 x 100 x 85 mm

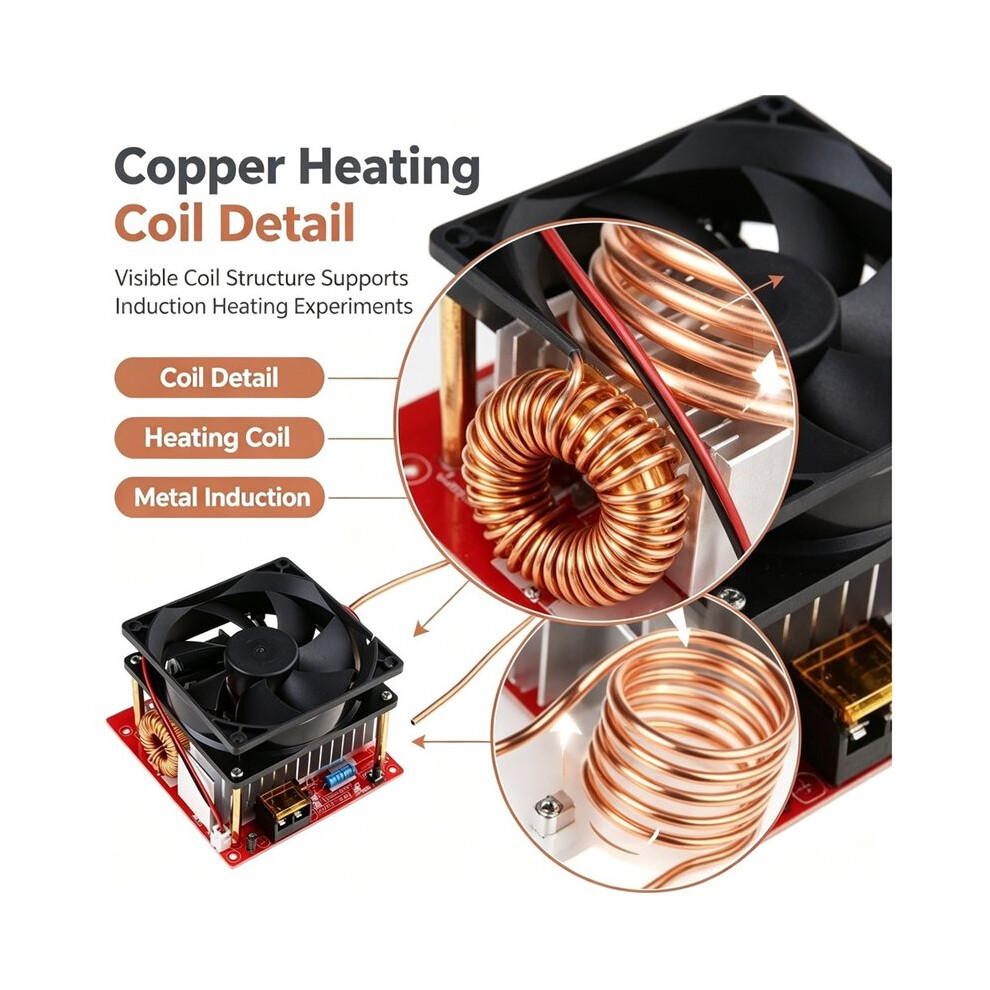

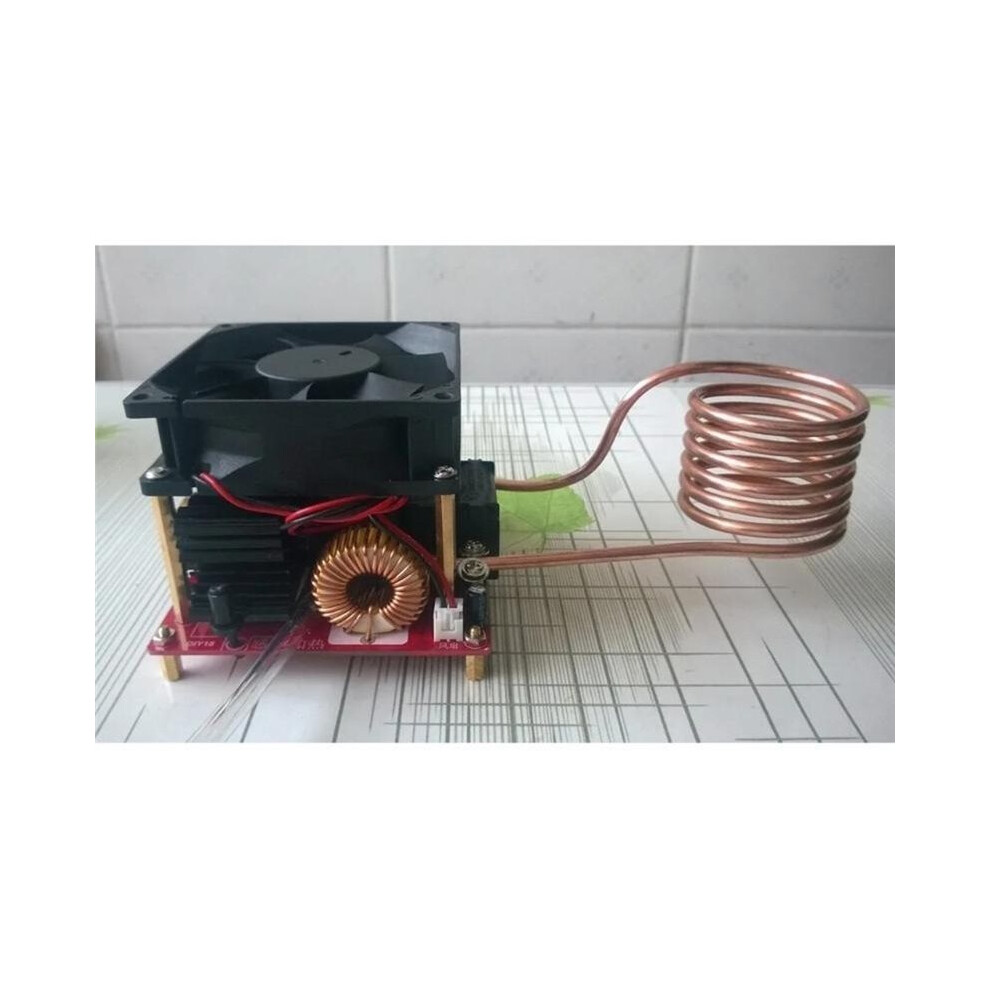

Copper Coil Dimensions: Inner diameter 40 mm, height 45 mm
Color: Red
Material: Copper-Clad Laminate (CCL) + Metal
New

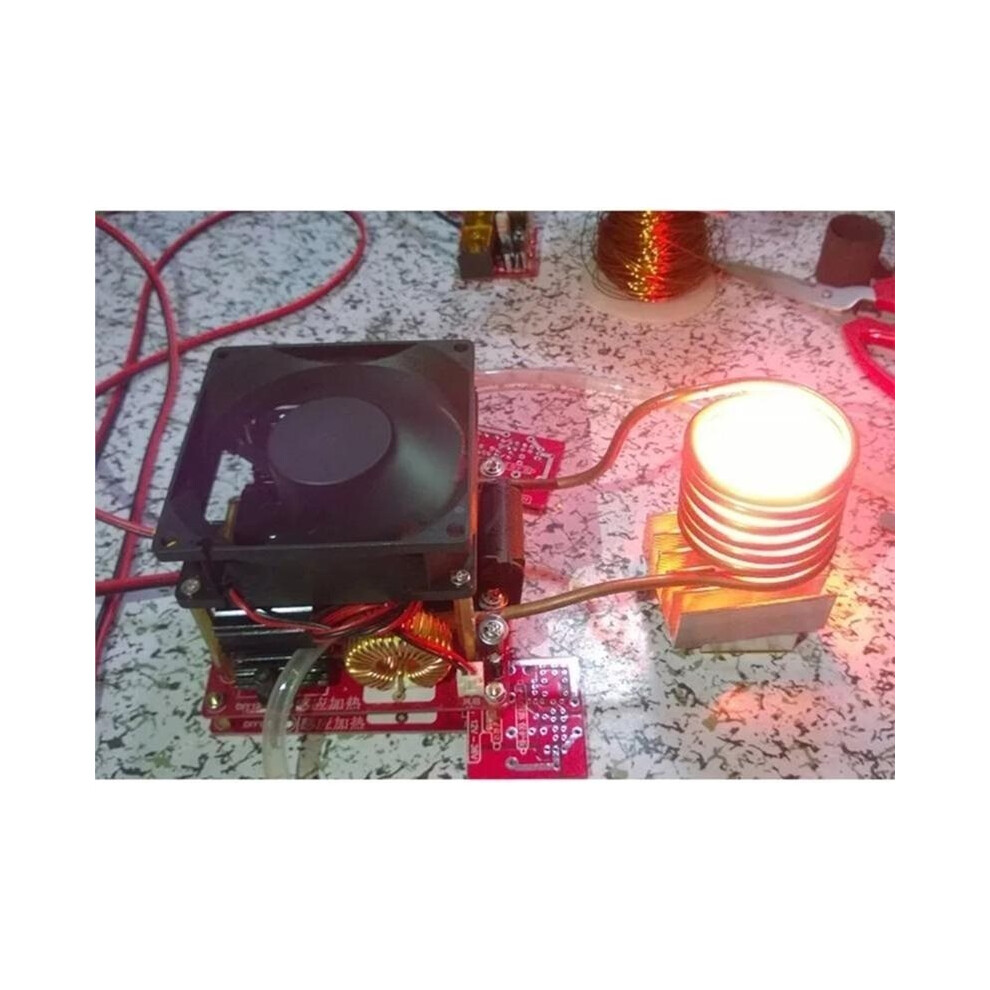

Test Data: Input current is 25A when using a 36V power supply with a new 30x30 crucible.
Power requirements for melting aluminum: 24V 350W-500W power supply (15A to 20A) [Melting point: 660C]
Power requirements for melting copper, gold, and silver: 36V 700W-900W power supply (20A to 25A) [Melting points: 1083C, 1065C, and 962C, respectively]

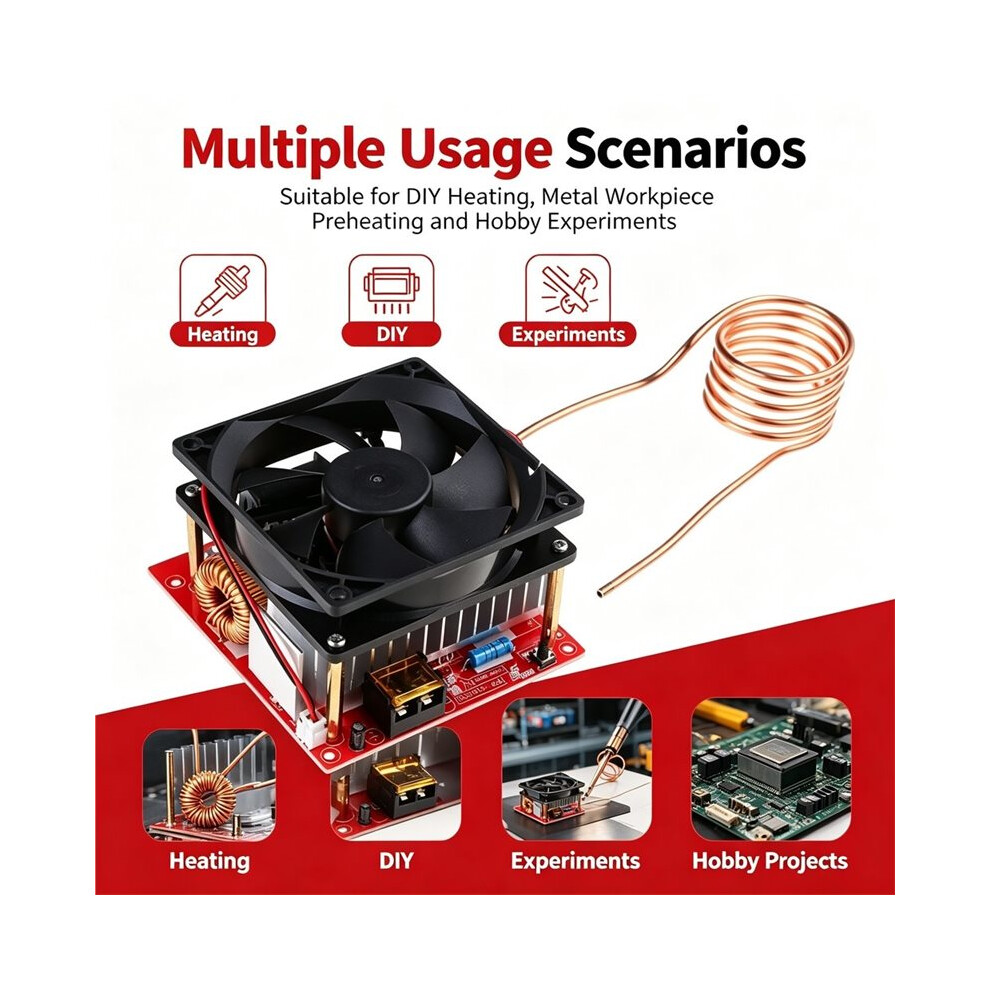

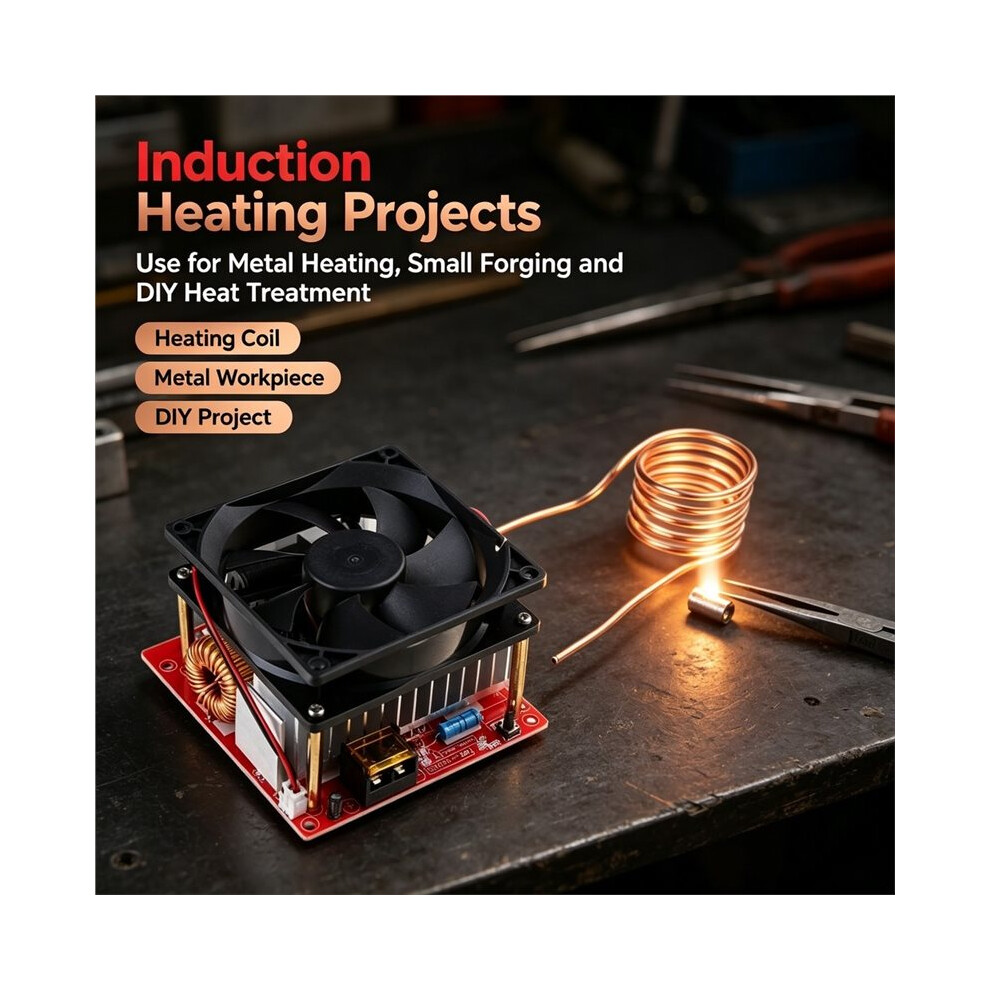

Applications: DIY quenching and annealing of small steel parts, melting metals with melting points below 1100C, DIY small heating furnaces, etc.

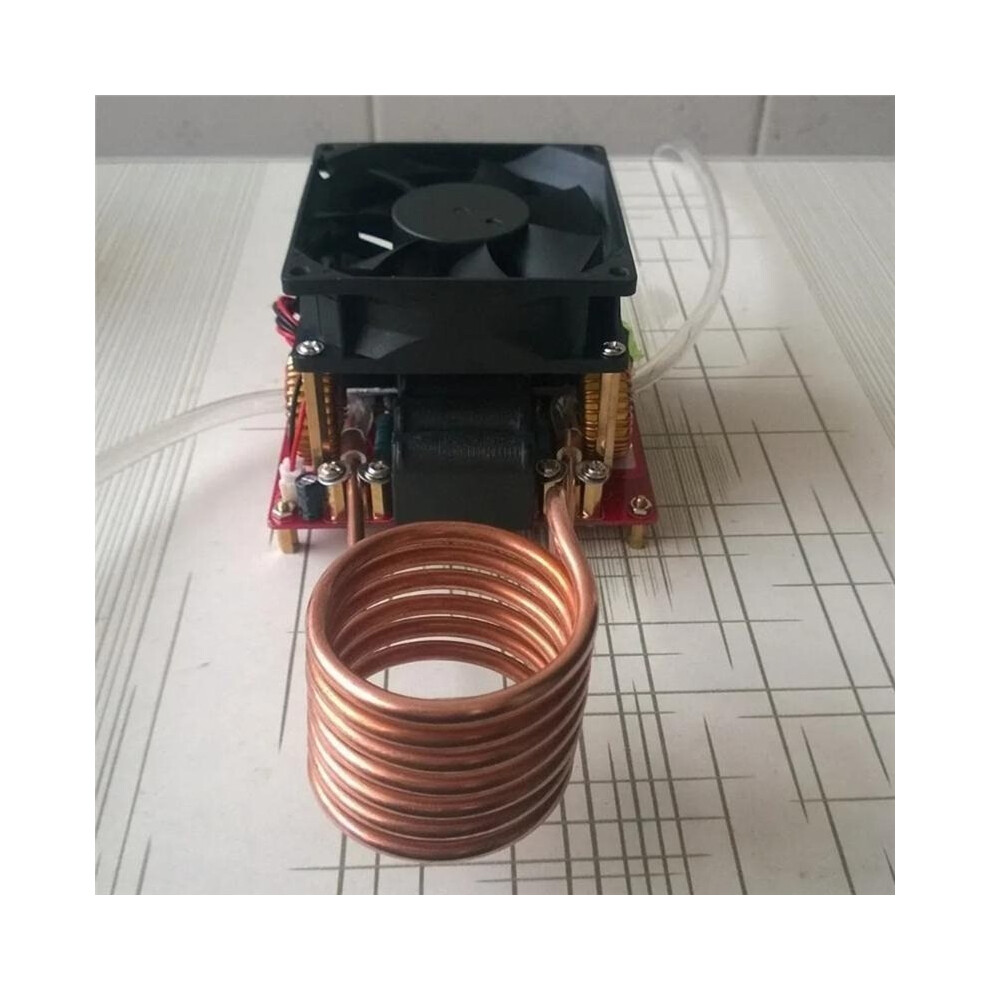

Note: Only steel (materials attracted by magnets) can be heated directly; gold, silver, copper, and aluminum cannot be heated directly and require a graphite crucible for melting. Circulating water cooling is required when heating; without it, the copper coil may turn black, though this has little impact functionality.

Package Contents:
1 * Induction Heating Board Module
