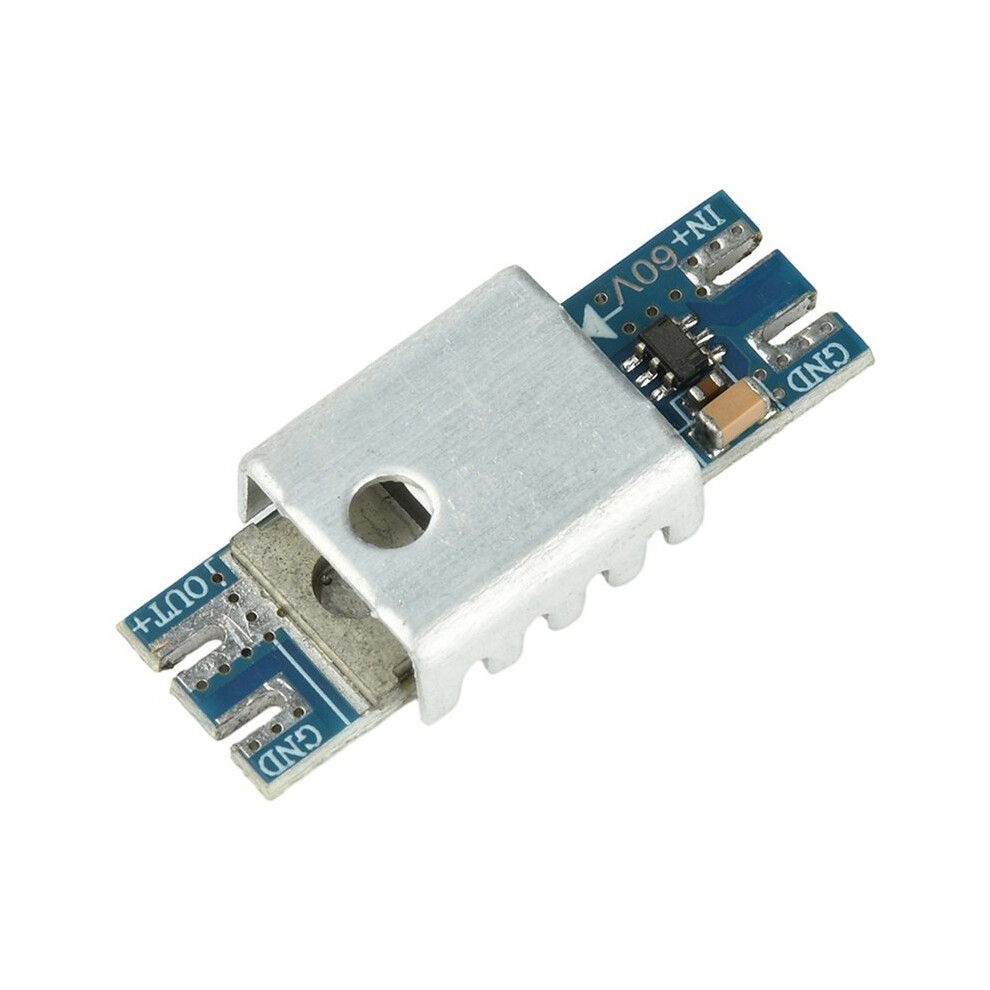

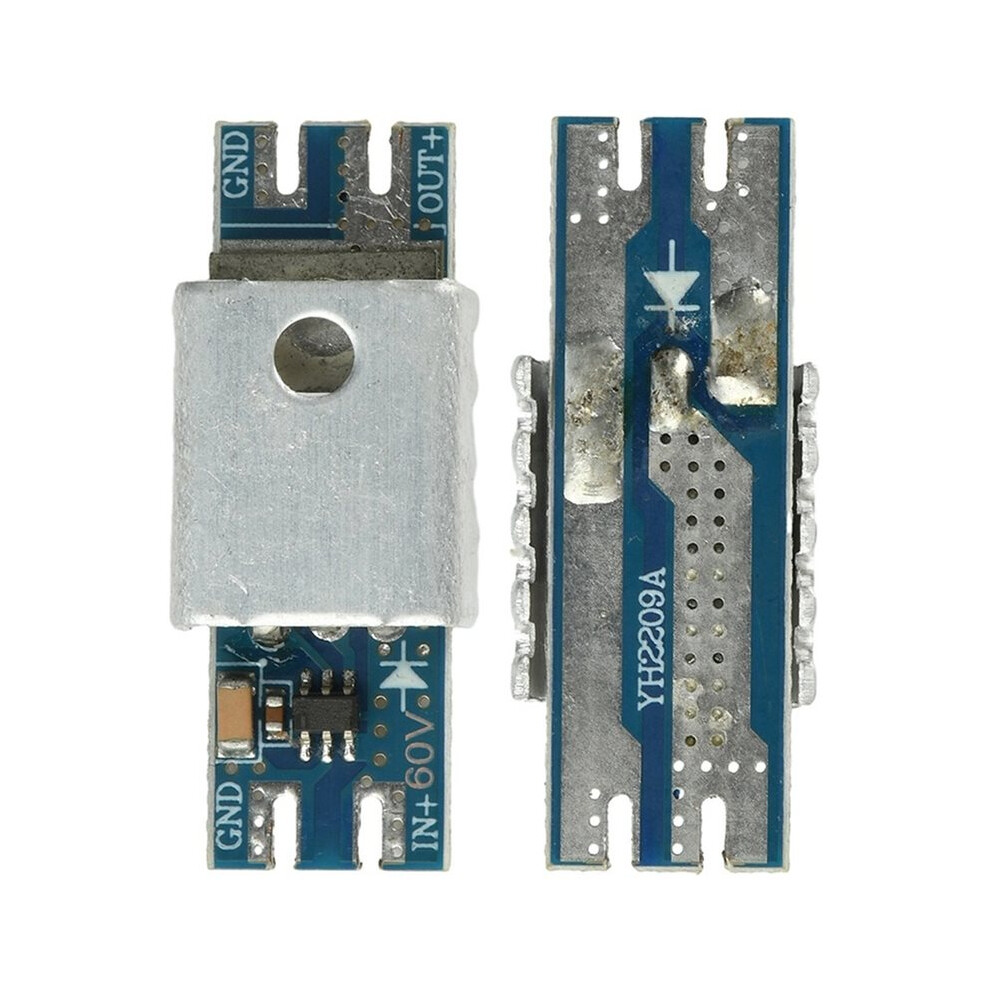

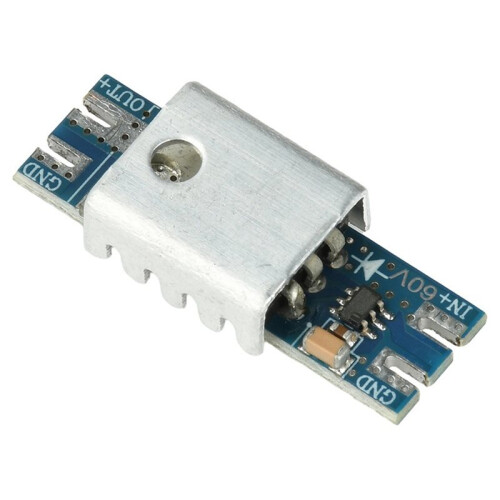

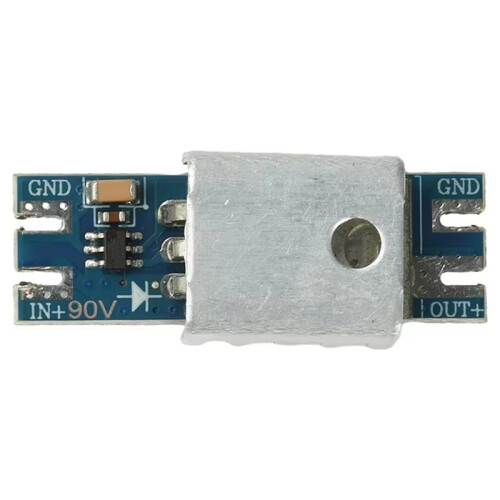

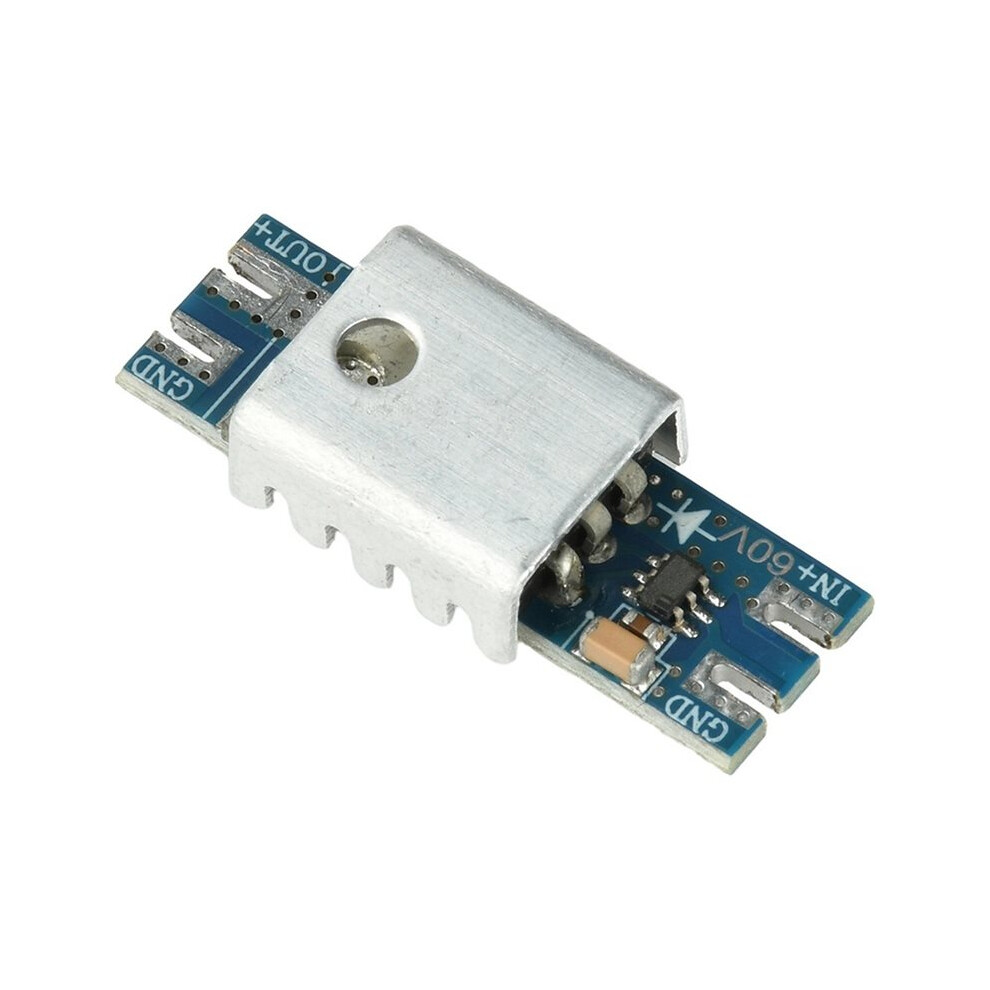

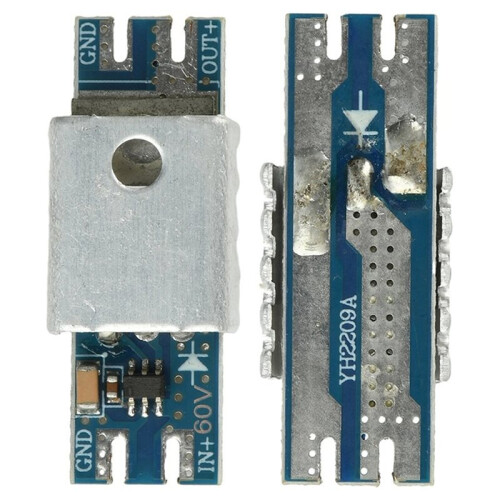

20A Solar Backfeed Protection Ideal Diode Module Ideal Diode Rectifier for Solar Charging & Battery Backup Systems 90V

20A Solar Backfeed Protection Ideal Diode Module Ideal Diode Rectifier for Solar Charging & Battery Backup Systems 90V Popis

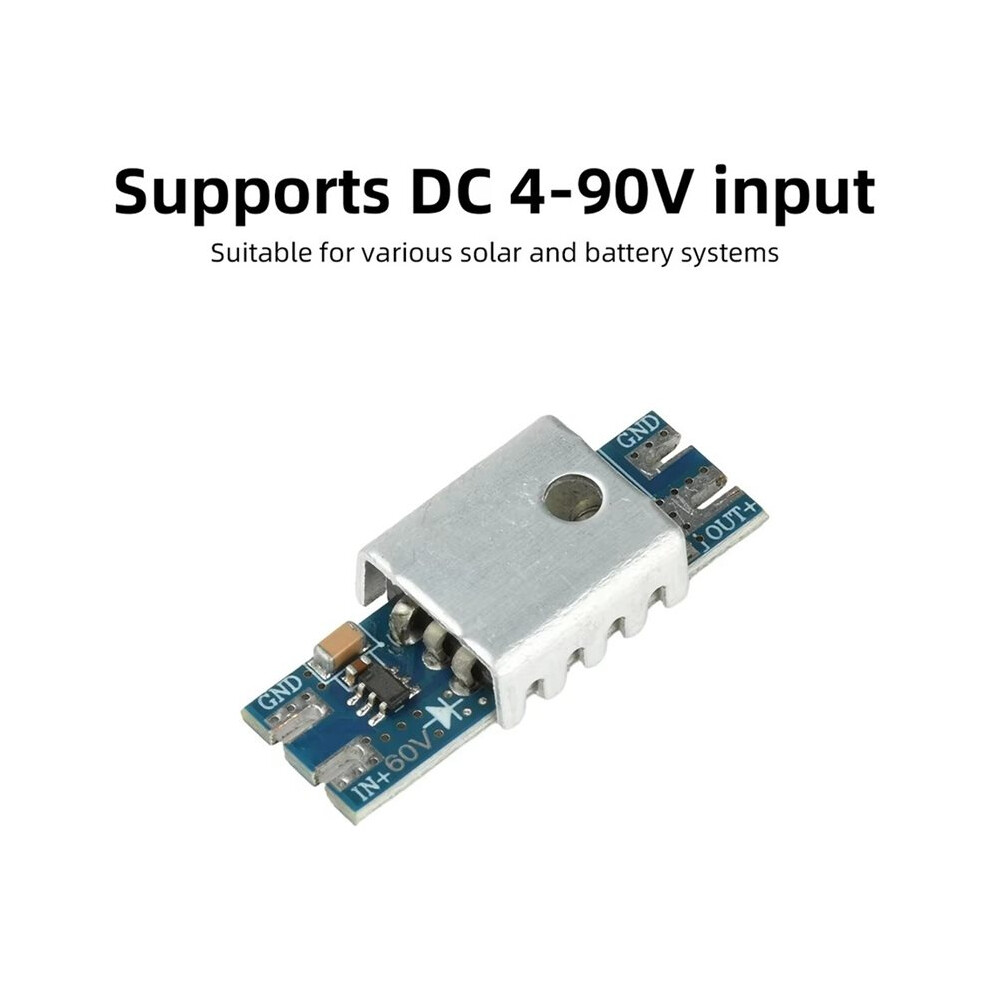

1. Supports 4-90V input, suitable for a wide range of solar and battery systems

2. Extremely low voltage drop, effectively prevents reverse leakage from batteries and improves efficiency

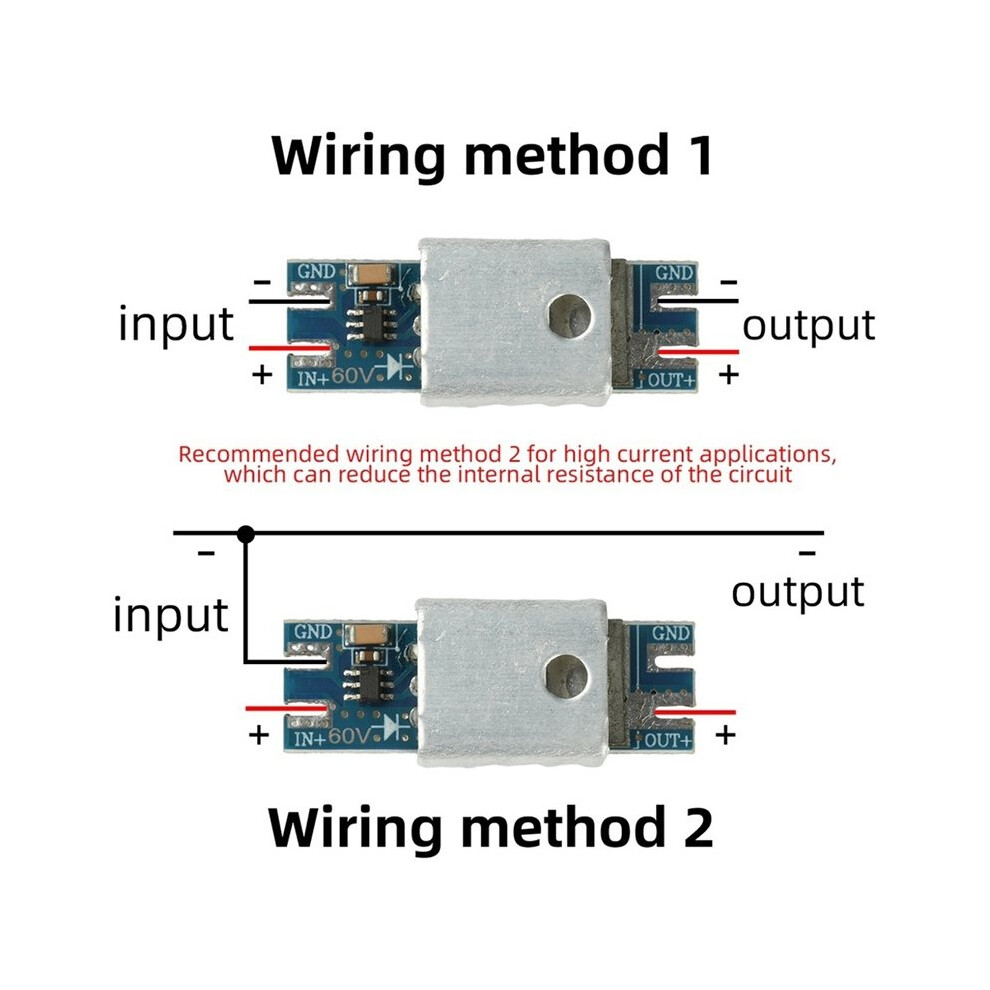

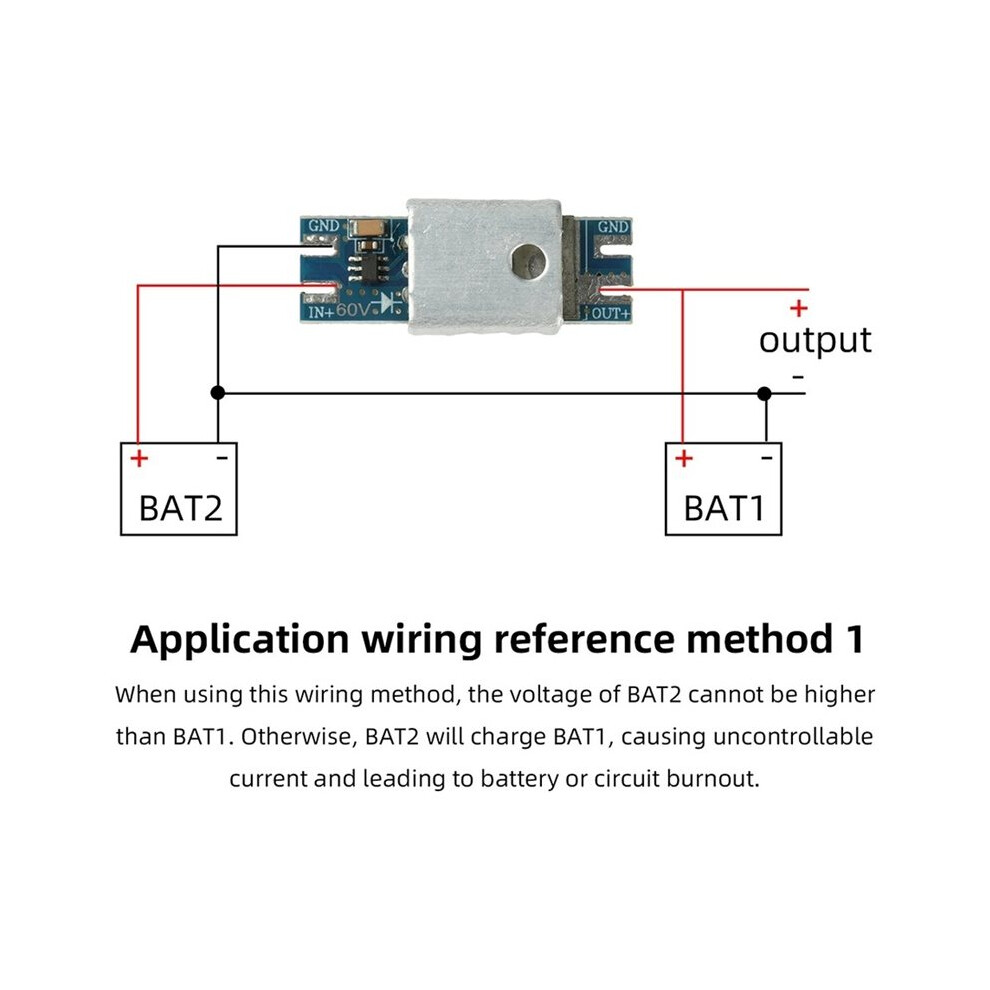

3. Simple wiring; can replace traditional reverse-connection protection diodes
4. Built-in heat sink effectively reduces heat generation
5. Backflow and reverse-connection protection safeguards the circuit against reverse current damage


Parameter

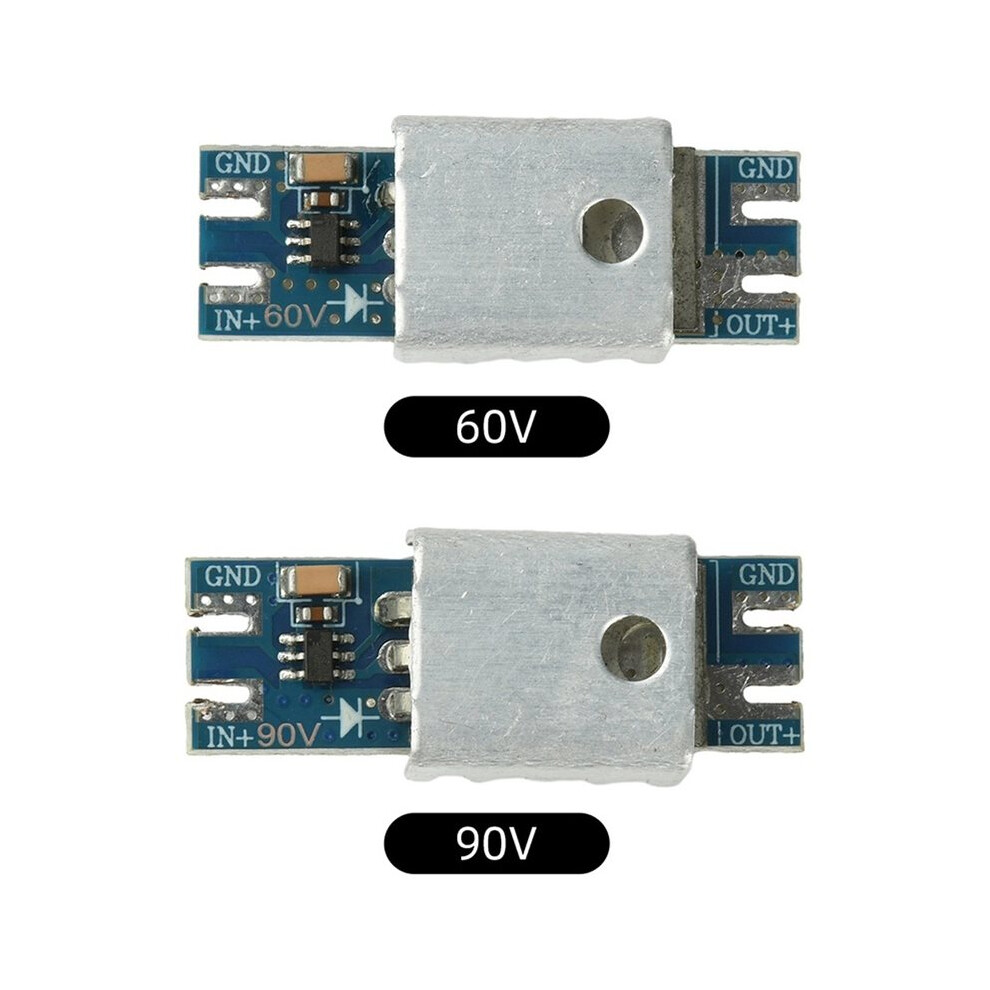

Operating Voltage Range: 60V: 3.5-60V / 90V: 4-90V
Operating Current: 20A (Enhance heat dissipation for currents exceeding 15A)
Quiescent Current: 300μA
-Resistance: 60V: 4.6mΩ / 90V: 3.6mΩ
-state voltage drop: Actual operating current x -state resistance; for example, at 10A, voltage drop = 10 x 0.0036 = 0.046V
-state power dissipation: (Actual operating current)² x -state resistance; for example, at 10A, power dissipation = 10 x 10 x 0.0046 = 0.36W
Switching frequency: Within 150 Hz

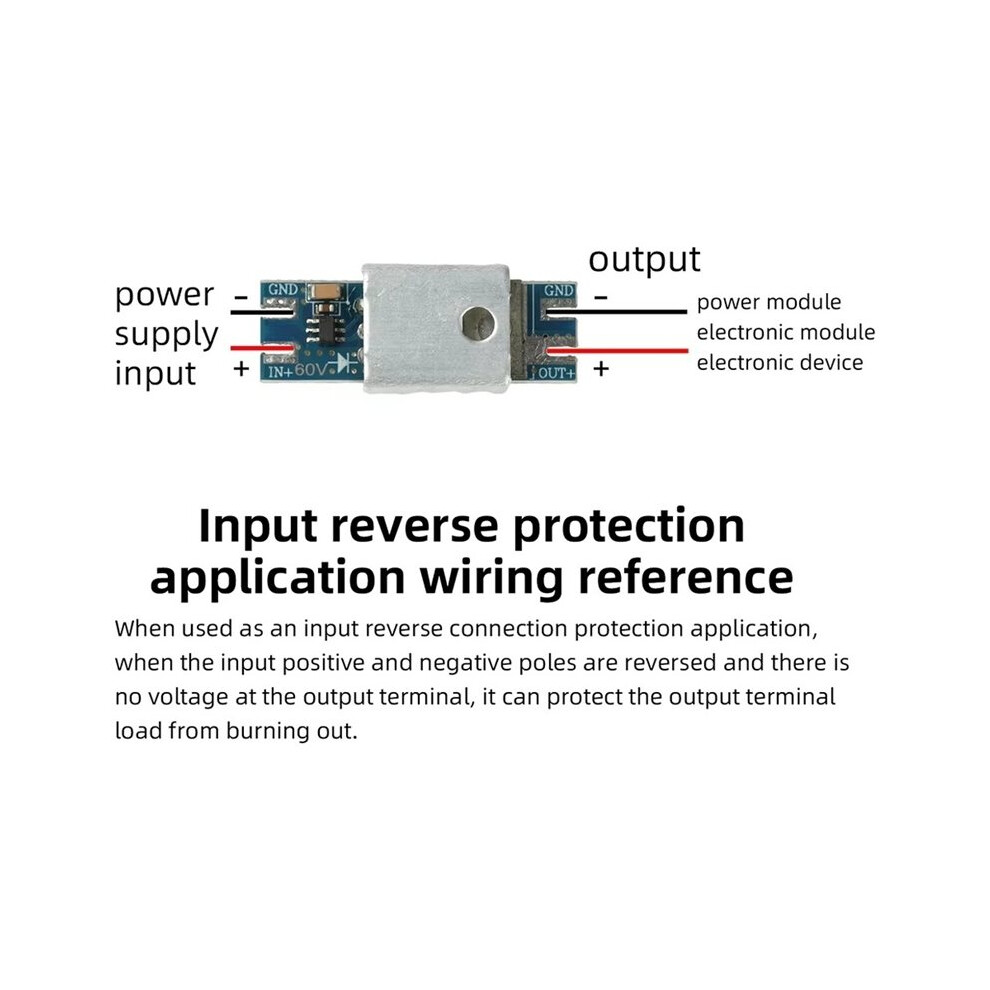

Reverse polarity protection: Yes, will not burn out if connected in reverse
Operating temperature: -40 to +125C
Color: As Shown
Material: Plastic+Metal

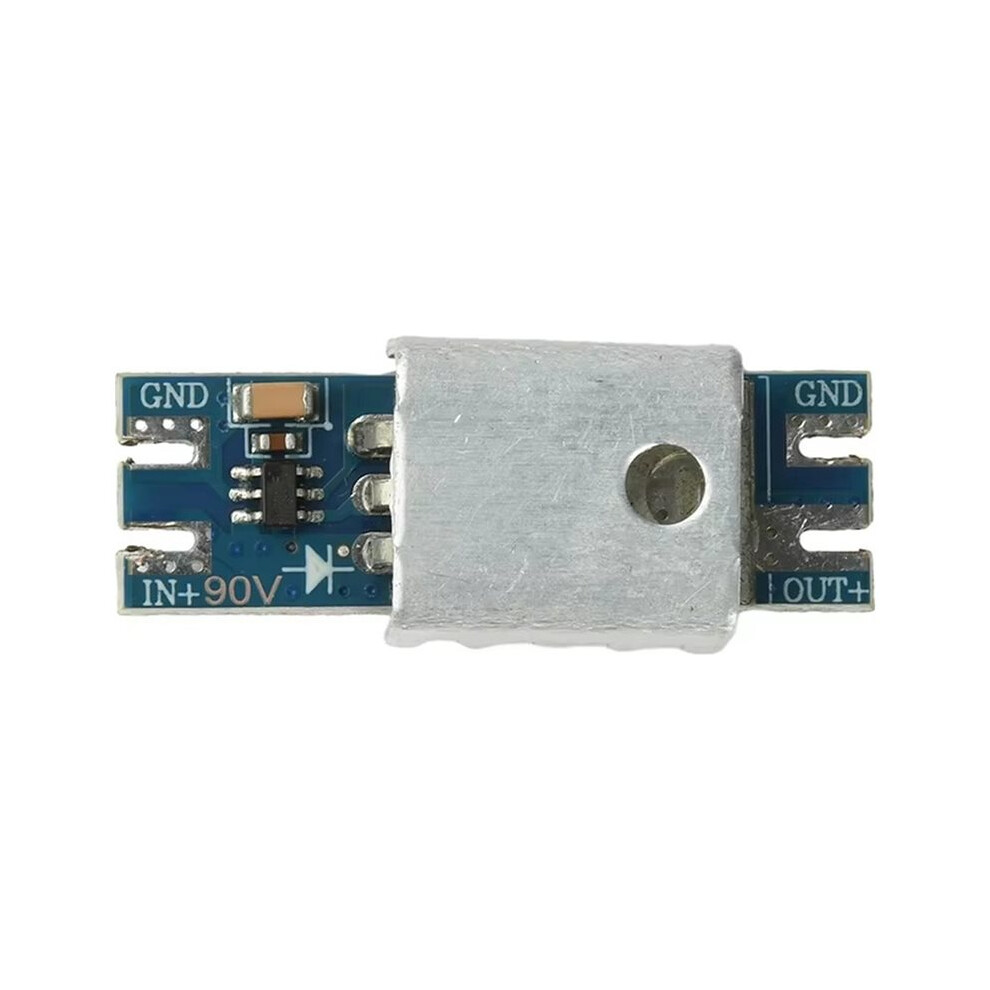

Specification: 90V

Package Contents:
1*module
