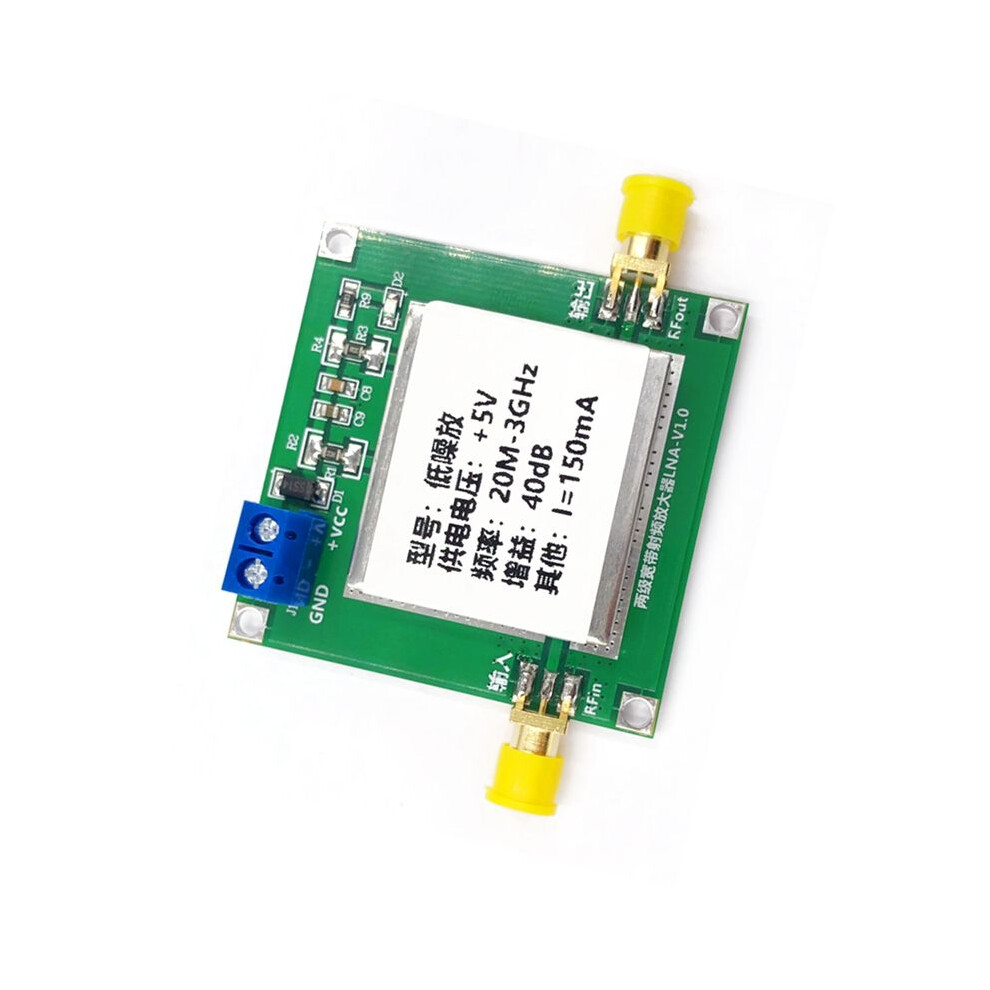

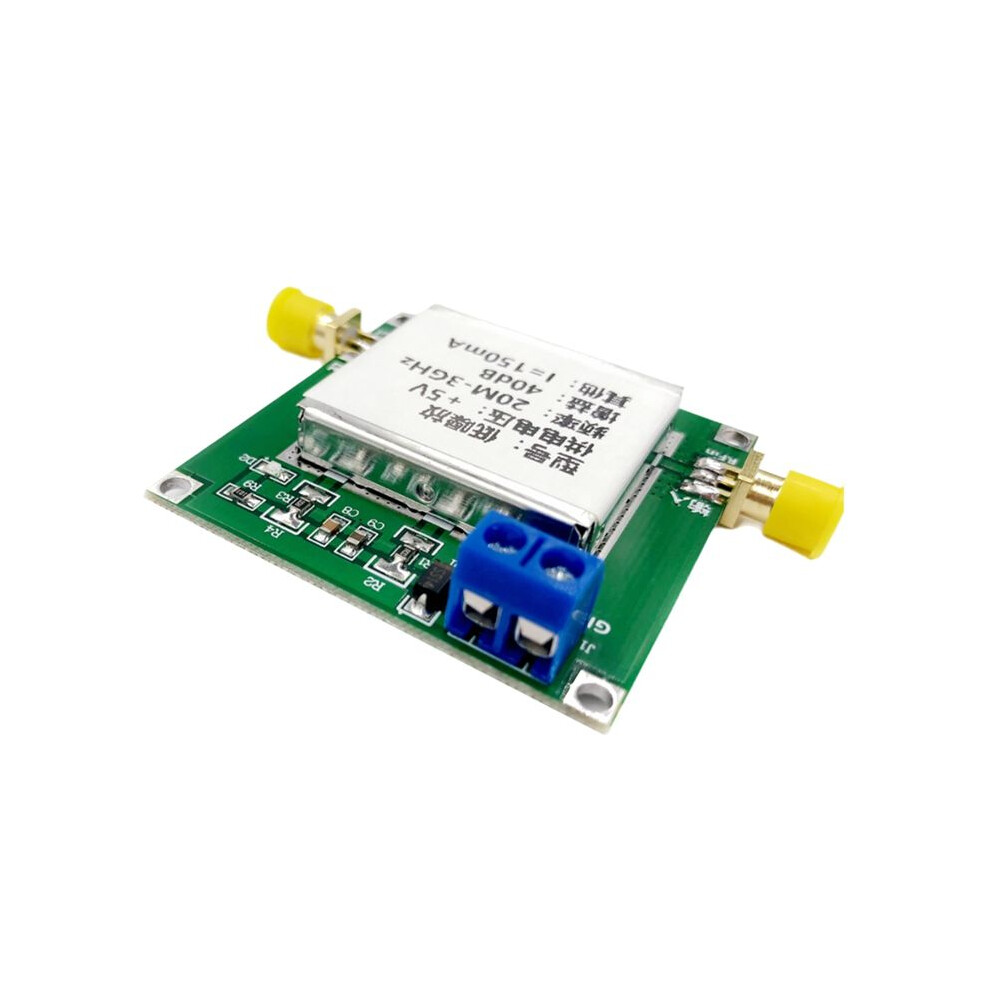

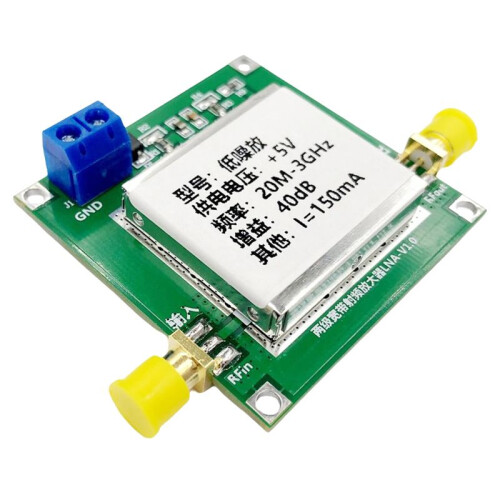

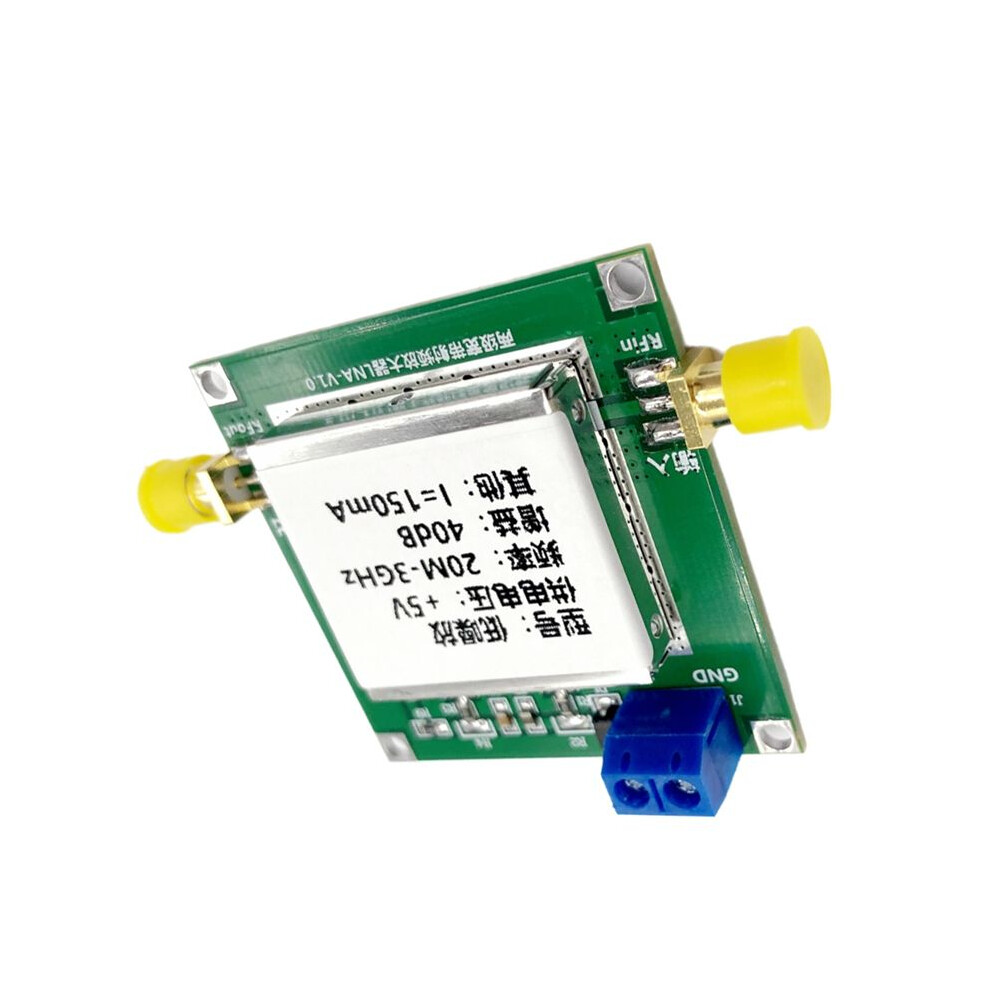

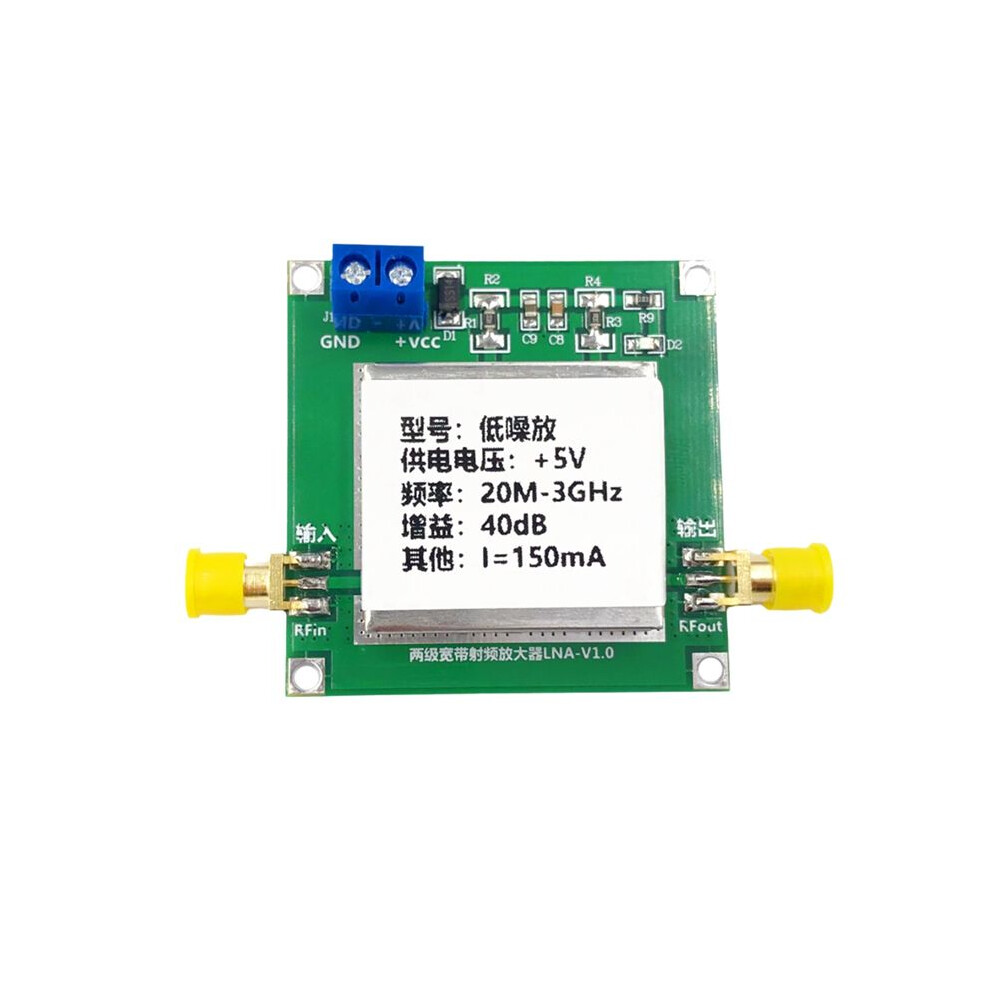

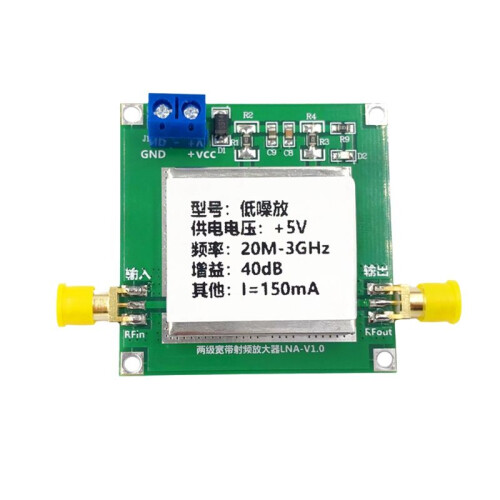

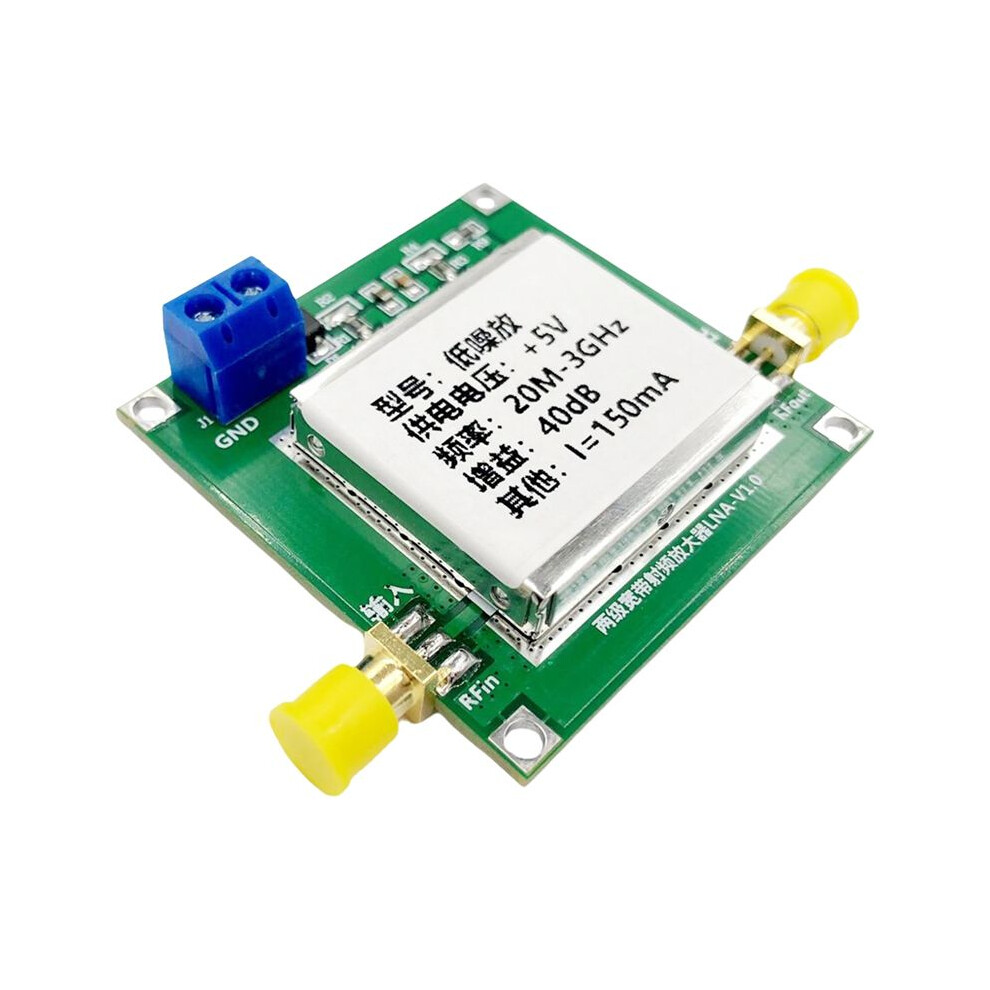

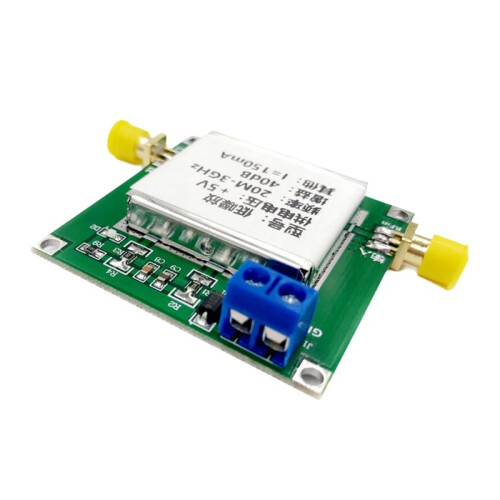

20M-3G 40DB RF Low Noise Amplifier 5V High Flatness Noise Coefficient 1.3dB Module
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 134,000 hodnotení s “Vynikajúcim” hodnotením
25,55 €
38,33 €
33 % zľava!
+4,00 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (4,00 €) | pia 2 - štv 8 okt
Predáva: najlepšie
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Popis a podrobnosti
Zhrnutie
- The amplifier has wide frequency range, stable gain, small noise figure and large dynamic range (+ 19 5dBm 1dBP )It is especially suitable for all kinds of RF receiving front-end circuit, increasing communication distance!
- Widely used in short wave, FM broadcasting, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G Bluetooth, WiFi receiver RF front end and other places that need low noise and small signal RF amplification! The amplifier has a shielding case and a protection diode against reverse connection.
- RF Amplifier Module
- Module
- Amplifier Module
20M-3G 40DB RF Low Noise Amplifier 5V High Flatness Noise Coefficient 1.3dB Module Popis
The amplifier has wide frequency range, stable gain, small noise figure and large dynamic range (+ 19 5dBm 1dBP )It is especially suitable for all kinds of RF receiving front-end circuit, increasing communication distance!
Widely used in short wave, FM broadcasting, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G , WiFi receiver RF front end and other places that need low noise and small signal RF amplification! The amplifier has a shielding case and a protection diode against reverse connection.
1. Power supply voltage: 5V (typical current value I Less than 150mA)
2. Gain: 40dB, input and output impedance: 50 ohm
3. Maximum output power: 19dbm (under 6vpp / 50 ohm load)
4. Input signal: Less than 20dbm (output signal has been distorted when input is greater than - 20dbm)
5. Bandwidth: 20MHz to 3GHz (gain varies with frequency, please refer to S21 curve index for details)
6. Noise figure: 1.3db (measured at 1.5GHz)
Color: As Shown
Material: ABS
Package Contents:
1 x Low noise amplifier module
Podrobnosti
| OPC | PXWCC5Y |
|---|---|
| Kódy | 4712893842990 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.02kg |
| Colour | As Shown |
| Material | ABS |
