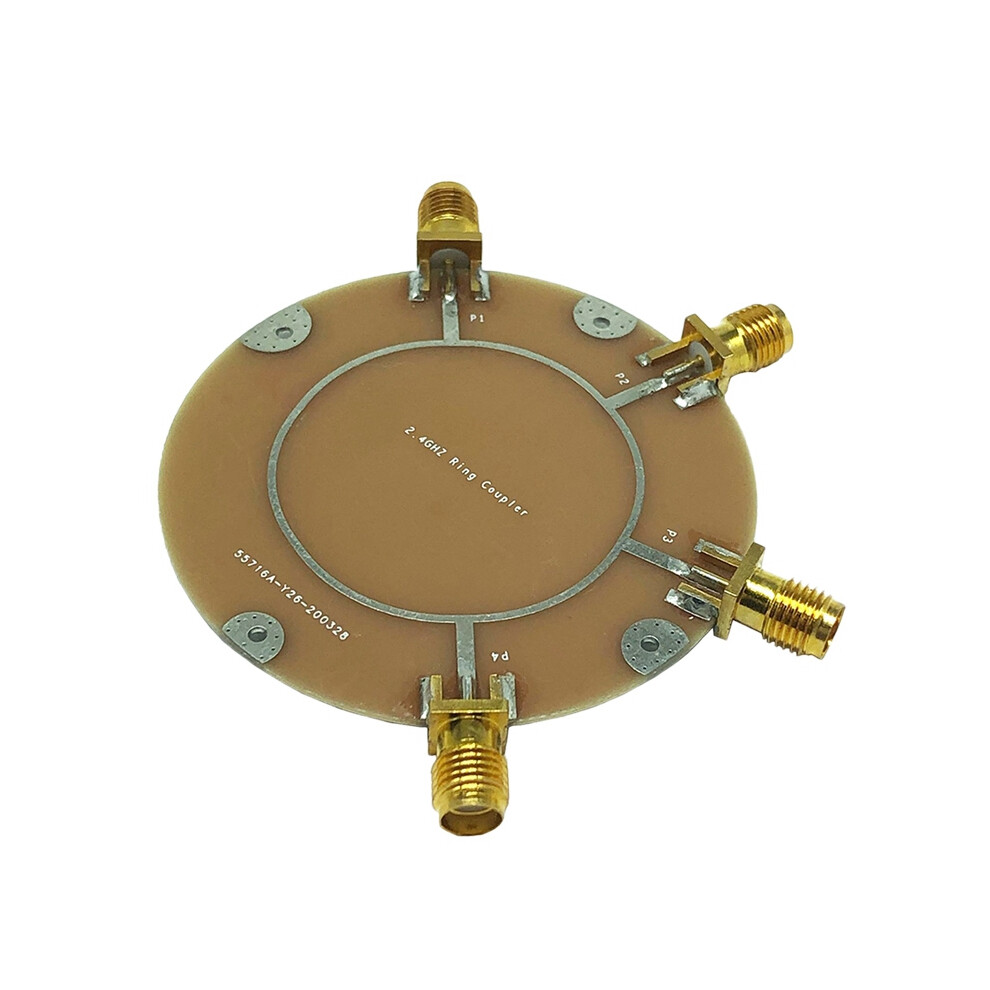

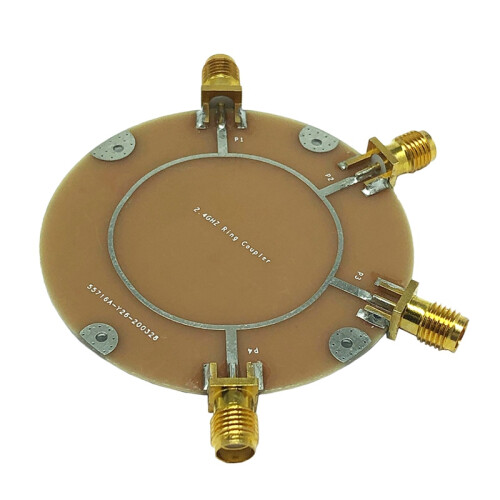

2.4GHZ Coupler 3Db Electric Bridge Directional Coupler Hybrid Coupler
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 137,000 hodnotení s “Vynikajúcim” hodnotením
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (9,09 €) | uto 10 - pon 16 nov
Predáva: Zemaoxia
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Zhrnutie
- This ring coupler is also called a hybrid ring, which is a kind of power divider.
- It can also be regarded as a directional coupler with 3DB coupling. Generally, when measuring the main signal, take the 3DB signal as a test Use, because there is a certain degree of isolation between the two channels, so the measurement will not have much impact on the main signal product
- Parameters: 1. Frequency range 2.3GHZ~2.5GHZ; 2. S21 is greater than -3.8dB; 3. S11 is less than -15dB; 4. S22 is less than -15dB; 5. Test results
- Hybrid Coupler
- 3db Electric Bridge
2.4GHZ Coupler 3Db Electric Bridge Directional Coupler Hybrid Coupler Popis
This coupler is also called a hybrid , which is a kind of power divider.
It can also be regarded as a directional coupler with 3DB coupling. Generally, when measuring the main signal, take the 3DB signal as a test Use, because there is a certain degree of isolation between the two channels, so the measurement will not have much impact the main signal product
Parameters: 1. Frequency range 2.3GHZ~2.5GHZ; 2. S21 is greater than -3.8dB; 3. S11 is less than -15dB; 4. S22 is less than -15dB; 5. Test results
Performance parameters:
Product size: 50x50MM without SMA
SMA outer screw inner hole
Product weight: 12 grams
Material:PCB
colour:brown
Package Contents:
1 x Coupler
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Podrobnosti
| OPC | PYG87FJ |
|---|---|
| Kódy | 6031585889012 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 1cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.0145kg |
| Colour | brown |
| Material | PCB |
