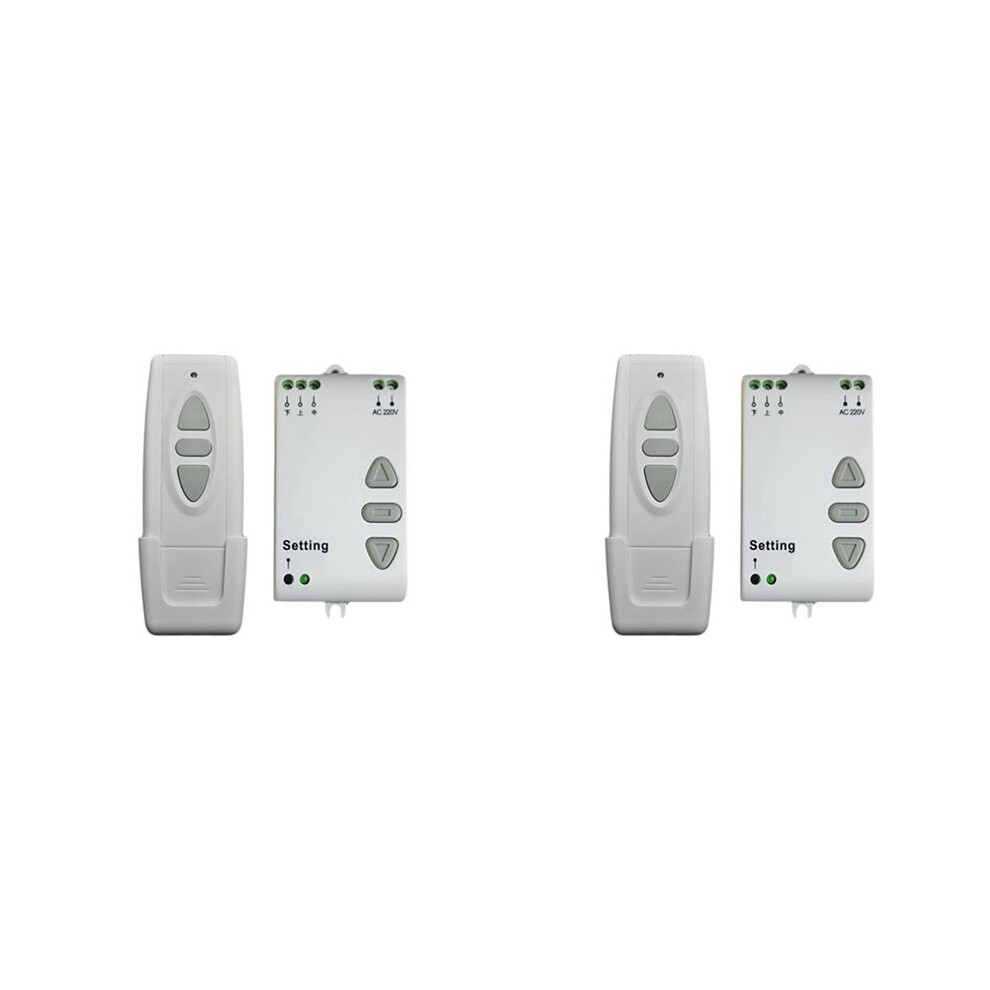

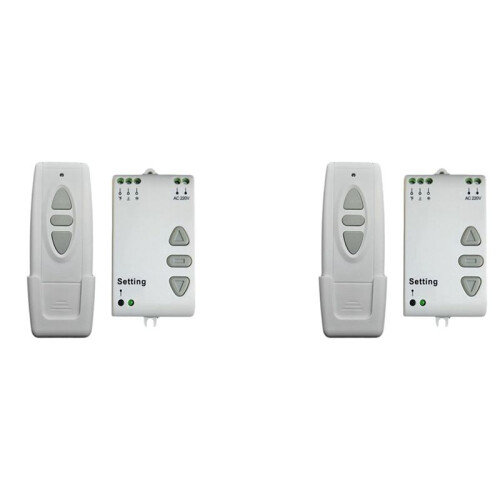

2X AC220V Motor Remote Controller Projection Screen Motor Wireless 433MHz Down Stop Forwards Reverse

2X AC220V Motor Remote Controller Projection Screen Motor Wireless 433MHz Down Stop Forwards Reverse Popis

1. Input Voltage: AC220V
2. Output Voltage: 2 pcs Live
3. Function: Manual & Remote Control
4. Transmitter & Receiver Button for " Triangle" /Motor Forward; Button " Down Triangle" for Down/Motor Reverse; Button "Square" for Stop;
5. Applicative Motor: AC220V 500W or less 3 Lines Forward Reverse Motor (Forward +Reverse + COM )

Output State: Latched
Latched------------------
Press button" Triangle", the Motor Forward, Press Button "Square" is stop. Press Button " Down Triangle" , the Motor Reverse, Press Button"Square"is stop
Encoding Type: Learning Code (Learning Button to add Transmitter)
Receive Size: 83 x 51 x 24mm (L x W x H)
Transmitter Size: 120 x 45 x 18mm (L x W x H)
Transmitter: 50m Transmitter with a base for fixed it the wall
Learning Code
Input AC220V for the receiver, press the receiver learning button, the LED indicator flash, then press the transmitter button, the LED indicator OFF, it means the learning is successfully. When you press the Stop Down Button, you will hear the sound of the relay.
This Controller Perfectly suitable for Tubular Motor, the controller Terminal for Tubular Motor 4 pcs Lines,( Tubular Motor Yellow Green connect to GND).This controller with no limited Terminal, Tubular Motor itself with Limited
Precautions
1. The bottom plate is live, please do not touch it after power
2. If the motor does not work after installation, you can try to exchange the direction
Colour:White
Material:ABS

Package Contents:
2 x Wireless Remote Controller(1X 12V 23A battery not included)
2 x Receiving Controller
