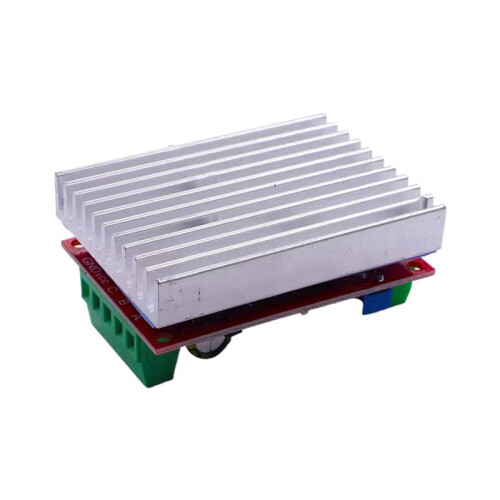

2X BLDC Three-Phase Brushless with Hall Motor Controller 6-60V12V48V Motor 400W Convenient Driver Board
Brand Semoic
New
34,17 €
Podobné produkty, ktoré by sa vám mohli páčiť
Would you like us to let you know when it's back?
Popis a podrobnosti
Zhrnutie
- 1. Tips: This Driver Is A DC Three-Phase Brushless Control Board That Requires The Motor To Have A Hall To Work Properly.
- 2. This Driver Is Only Suitable For Dc Brushless Hall Motors With An Electrical Angle Of 120 Degrees.
- 3. Newly Upgraded Bldc Wide Voltage 6-60v High Power 400W DC Three-Phase Brushless Hall Controller,
- 4. Support PLC0-5V Analog Control And Pwm Control Amplitude 2.5-5V
- 5. Humanized Design, The Interface Adopts Binding Posts, And The Standard Heat Sink Has An Integrated Speed Potentiometer On The Board. It Can Be Used Immediately After Powering On, Saving Time And Effort.
2X BLDC Three-Phase Brushless with Hall Motor Controller 6-60V12V48V Motor 400W Convenient Driver Board Popis
1. Tips: This Driver Is A Three-Phase Brushless Control Board That Requires The Motor To Have A Hall To Work Properly.
2. This Driver Is Only Suitable For Brushless Hall Motors With An Electrical Angle Of 120 Degrees.
3. Newly Upgraded Bldc Wide Voltage 6-60v High Power 400W Three-Phase Brushless Hall Controller,
4. Support PLC0-5V Analog Control And Pwm Control Amplitude 2.5-5V
5. Humanized Design, The Interface Adopts Binding Posts, And The Standard Heat Sink Has An Integrated Speed Potentiometer The Board. It Can Be Used Immediately After Powering , Saving And Effort.
Product Name: 400W Brushless Motor Driver With Hall
Working Voltage: 6 To 60V
Maximum Current: Rated 16A, Value 20A
Maximum Power: 400W
Overcurrent Protection: Yes
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB+Plastic
Size:about 63 x 45 x 31mm
Package Contents:
2 x Motor Controller Driver Board
2 x Wire
Podrobnosti
| OPC | PST96DC |
|---|---|
| Značka | Semoic |
| Kódy | 6032787137918 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 12cm |
|---|---|
| Width | 8cm |
| Length | 9cm |
| Weight | 0.184kg |
| Colour | As Shown |
| Material | PCB+Plastic |
