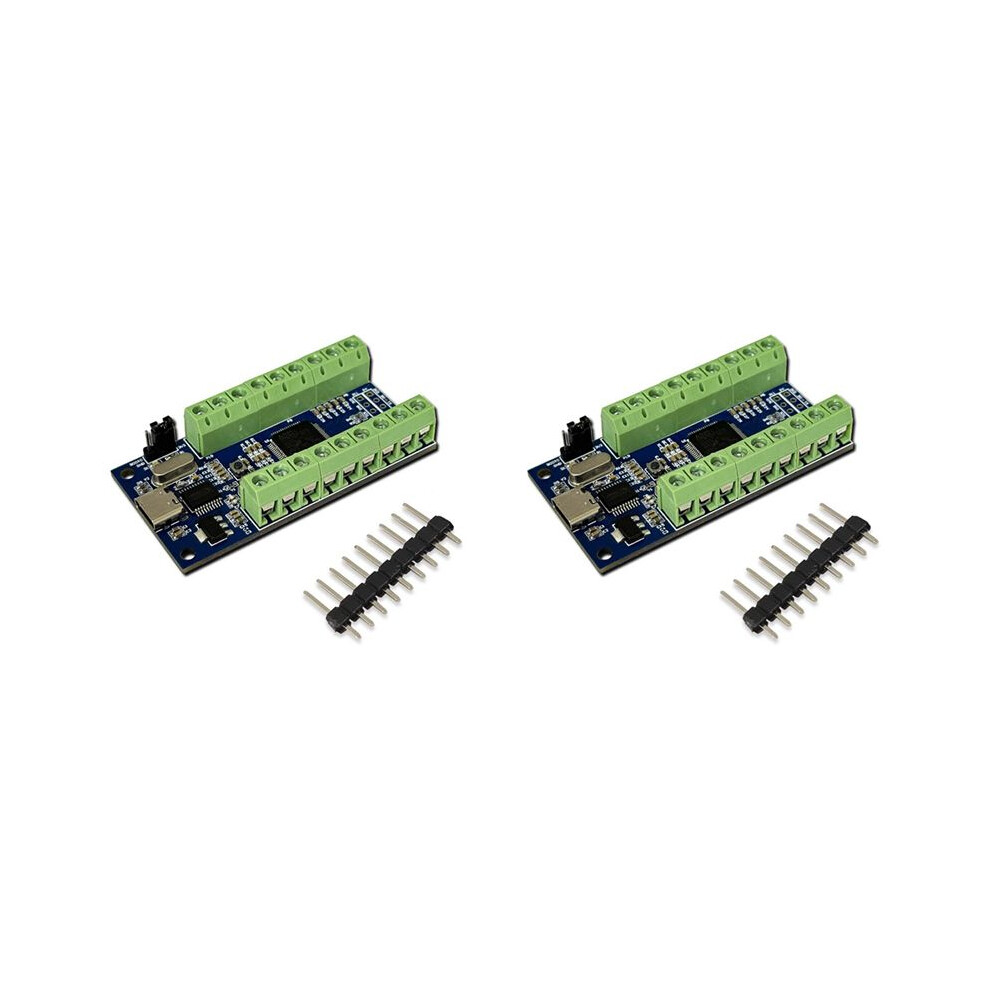

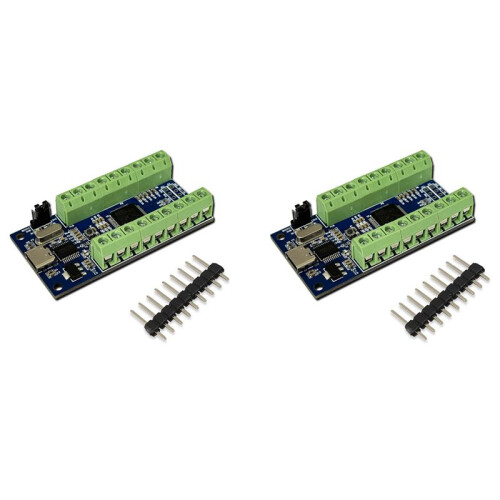

2X USB Interface 16 Channels 12Bit Bit AD Sampling Data Acquisition STM32 Uart Communication ADC Multifunction Module

2X USB Interface 16 Channels 12Bit Bit AD Sampling Data Acquisition STM32 Uart Communication ADC Multifunction Module Popis

12BIT AD Sampling, Collecting for Stm32uart Communication ADC Module
STM32 Uart Communication Adc Module
To 16 12-Bit Ad Acquisition Channels (Resolution 4096)
Use for Stm32f103r8t6 As The Main Control Chip And The Onboard Ch340t Chip. You Can View The Ad Sampling Results The Pc Through The Type_C Data .
Reserve Uart Serial Communication Interface And SWD Serial Debugging Interface, To 16 12-Bit Ad Acquisition Channels (Resolution 4096)

Product Name: Stm32 16-Channel Ad Sampling Module
Product Interface: Type C Interface Power Supply
Instructions For Use:
Interface Description:
Ino-In15: 16 Ad Sampling Voltage Inputs;
Gnd: Power Supply Negative Pole/Sampling Voltage Common Ground Interface;
Tx, Rx: Uart Communication Interface
Tck, Tms: Swd Debugging Interface
3v3/5v: Reserved 3.3v/5v Power Input Port
Use Pc:
Install The Driver Of The Usb To Serial Port Chip Ch340, Plug The Module Into The Computer, Connect Ino-In15 To The Positive Pole Of The Sampling Voltage, And Gnd To The Negative Pole Of The Sampling Voltage (That Is, Common Ground Processing). Open The Serial Port Debugging Assistant And Select The Correct Com Port And Baud Rate ( 115200), You Can View The Ad Sampling Results. The Sampling Results Are Refreshed Every 500ms. This Can Be Modified Based The Source Code.
Here, Sample The 3.3v Voltage That Comes With The Module. The Steps Are As Follows: Prepare A Dupont , Connect One End To The 3.3v Pin That Comes With The Module, And The Other End To The Ino-In15 Pin In Turn. The Data Sent Through The Serial Port Can Be Found, Sampling Results Change
Note: Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Material: FR-4
colour: As Shown

Package Contents:
