Popis a podrobnosti
Zhrnutie
- Comprehensive protection features including overcharge, over-discharge, and short circuit protection to ensure battery safety and longevity.
- Supports high-current applications with a maximum operating current of 100A and an instantaneous current of 120A.
- Temperature protection feature can be enhanced by adding a normally closed temperature sensor switch for improved safety.
- Compact dimensions of 70*60*8.5mm make it suitable for various battery pack configurations.
- Delayed self-recovery short circuit protection ensures reliable operation after fault conditions.
3S 12.6V 100A Li-Ion Lithium Battery Protection Board Module 3 Cells 11.1V Polymer PCB BMS Balance Function Charge Popis
Comprehensive protection features including overcharge, over-discharge, and short circuit protection to ensure battery safety and longevity.
Supports high-current applications with a maximum operating current of 100A and an instantaneous current of 120A.
Temperature protection feature can be enhanced by adding a normally closed temperature sensor for improved safety.
Compact dimensions of 70*60*8.5mm make it suitable for various battery pack configurations.
Delayed self-recovery short circuit protection ensures reliable operation after fault conditions.

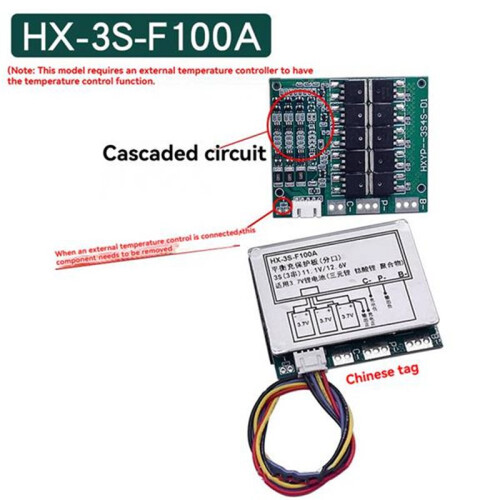

The HX-3S-F100A lithium battery protection board is engineered to provide essential safety measures for battery packs. It features a maximum charging current of 10A and operates within a charging voltage of 12.6V. The overcharge voltage range is set at 4.28V 40mV, while the overdischarge voltage range is 2.5V + 80mV. Additionally, it includes an equalization current of 56mA to maintain battery health.
Color: As Shown
Material: PCB
Package Contents:
1*Protection Board Module
Podrobnosti
| OPC | PRT8MYZ |
|---|---|
| Kódy | 4713140873804 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 7cm |
| Weight | 0.0535kg |
| Colour | As Shown |
| Material | PCB |
