4X 5.8G Wireless Communication System Dedicated Bandpass Filter 5800 Filter SMA Interface

4X 5.8G Wireless Communication System Dedicated Bandpass Filter 5800 Filter SMA Interface Popis

The center frequency of this filter is 5750MHz, and the 3 dB bandwidth is about 600MHz.
It is a multilayer thin-film circuit structure with non- cut-off characteristics.
Anti-interference and performance optimization for 5.8G WiMAX, WiFi and other wireless system receiving equipment can effectively filter out out-of-band signals, reduce noise, and increase dynamic range.

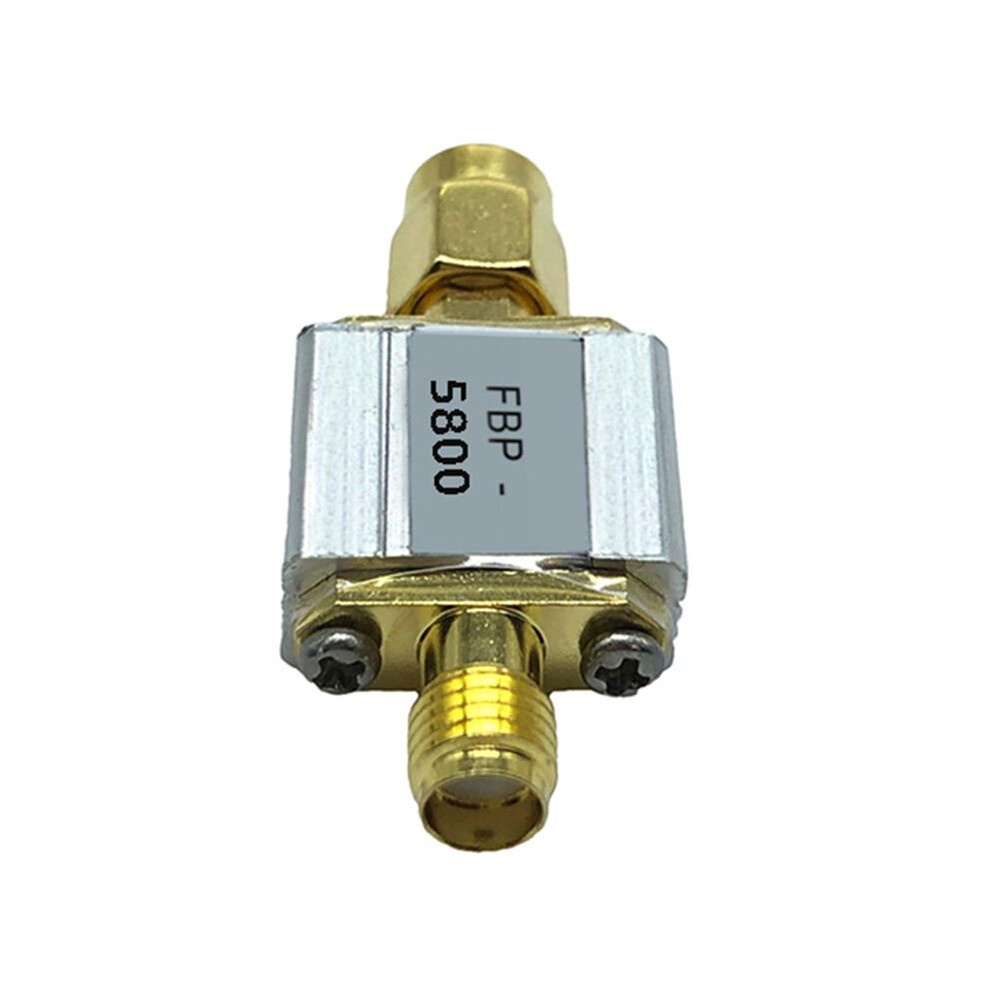

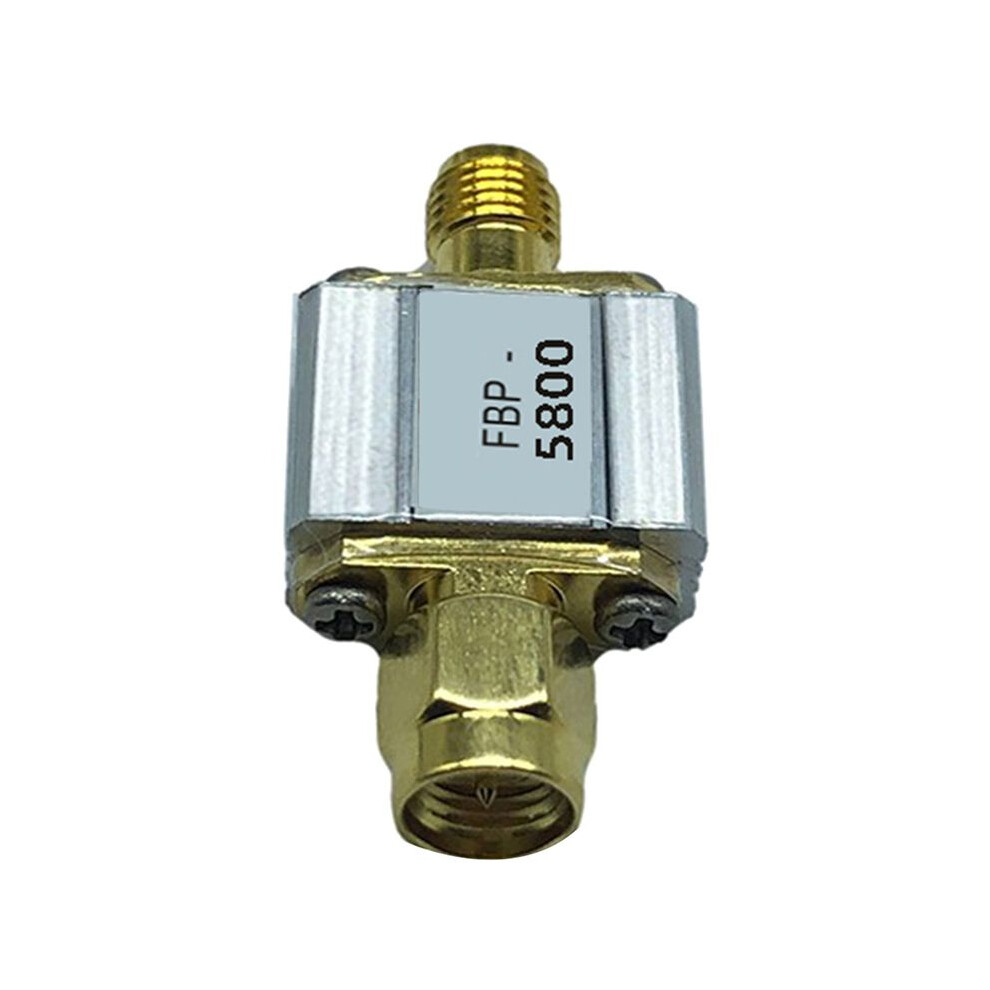

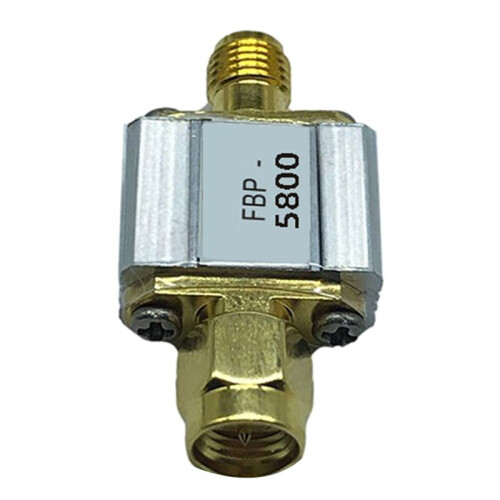

Model: FBP-5800
Impedance: 50 Ohms
Center frequency: 5750 MHz
3 dB passband: 5450 to 6100 MHz
Insertion Loss: Less than 2.5 dB @5100 ~ 6050 MHz
Maximum Carrying Power: 5 W (37 dBm)

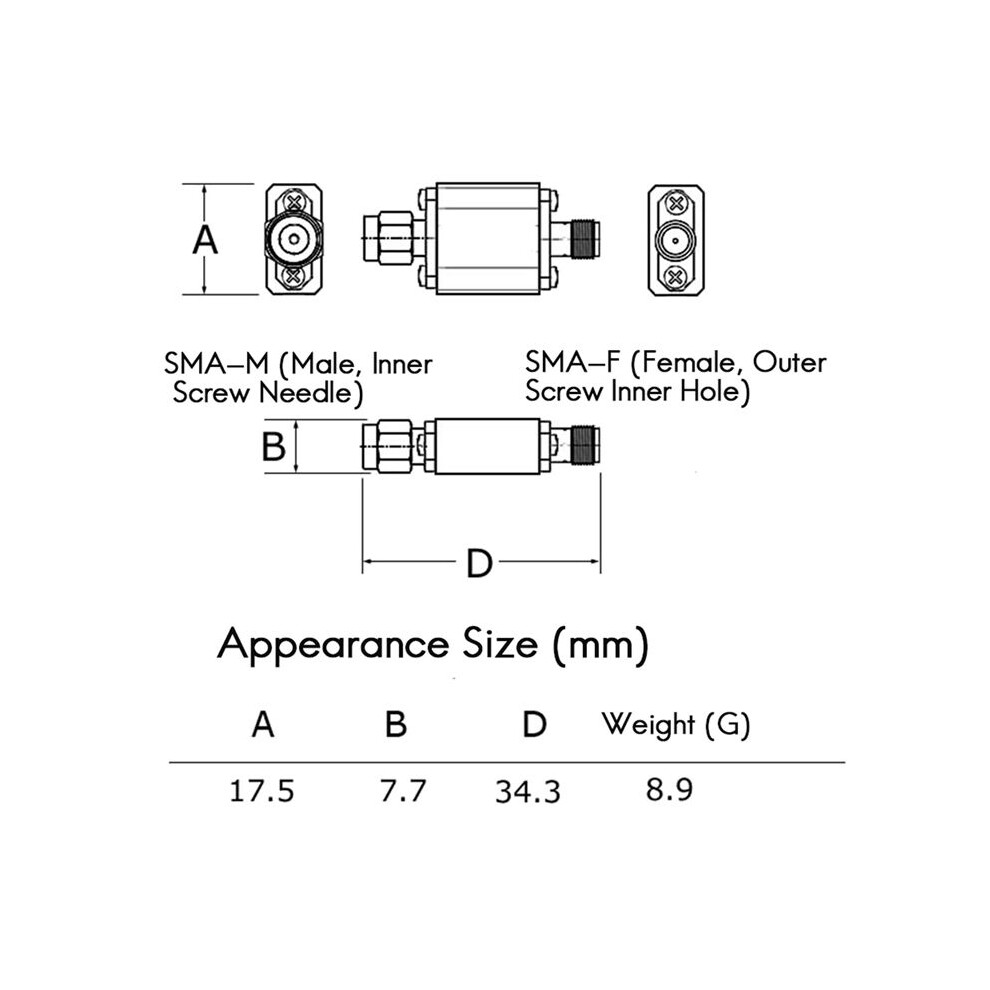

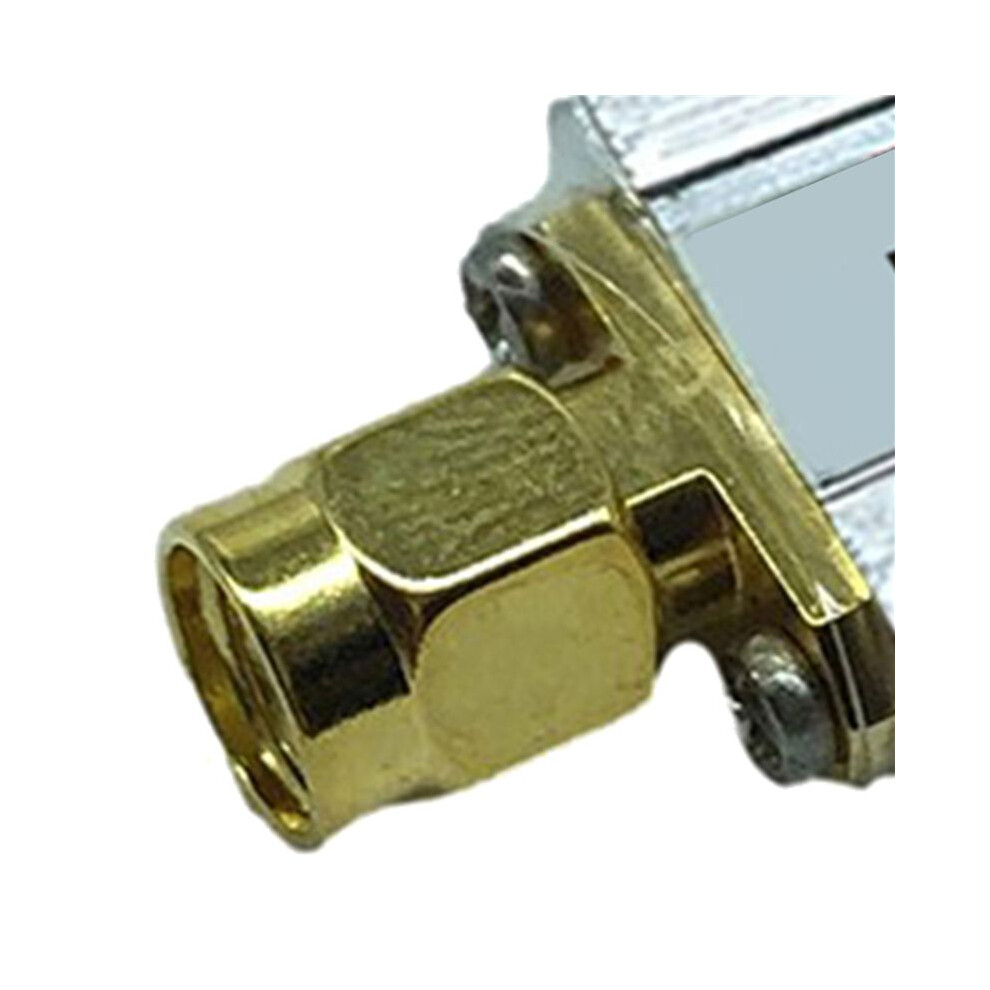

Interface: SMA-M, SMA-F (RF characteristics are symmetrical at both ends, non-directional)
color:As shown
Material:Metal

Package Contents:
4 x FBP-5800 Band Pass Filter
