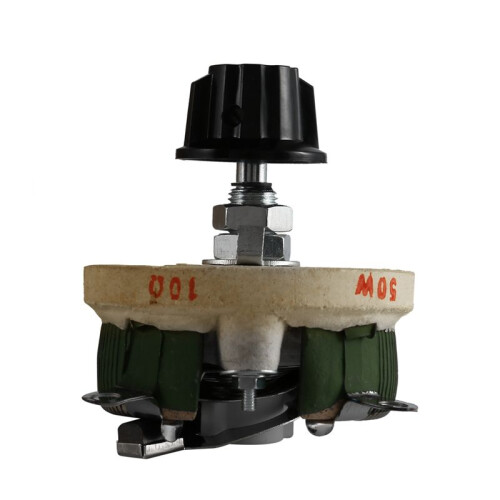

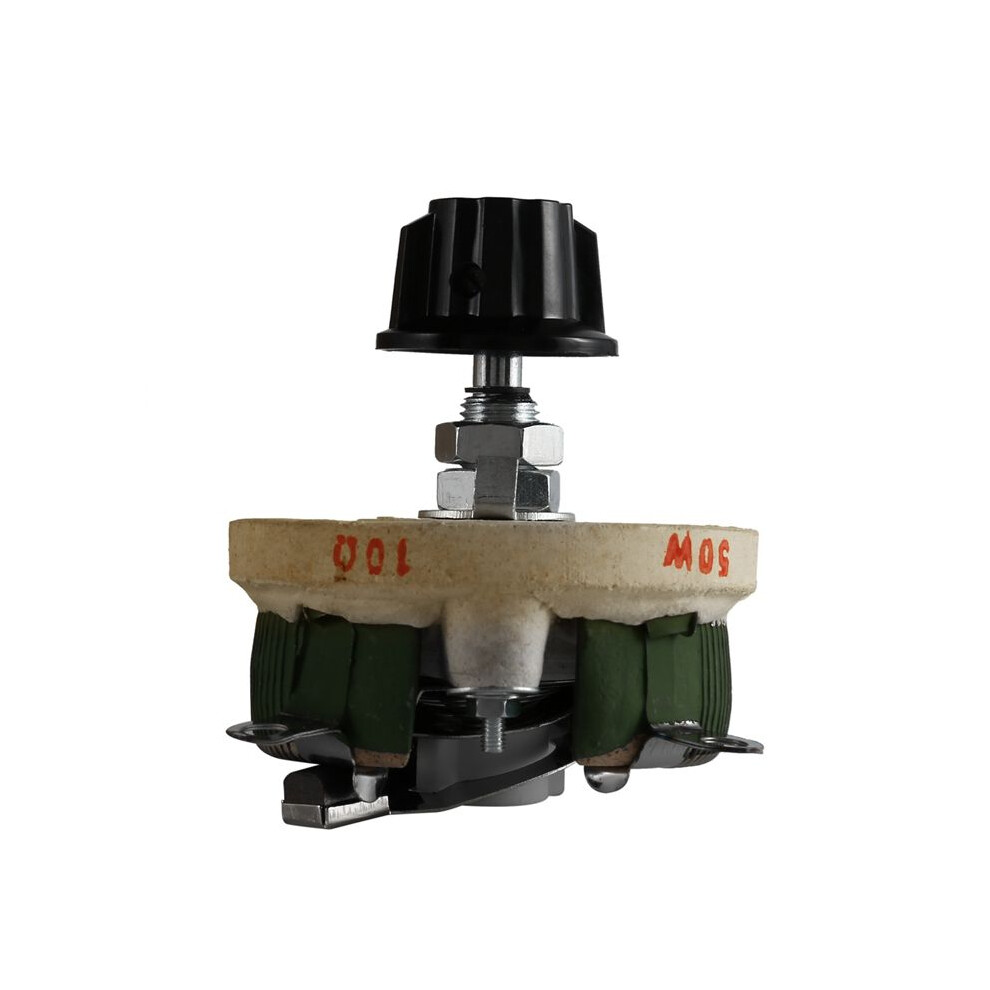

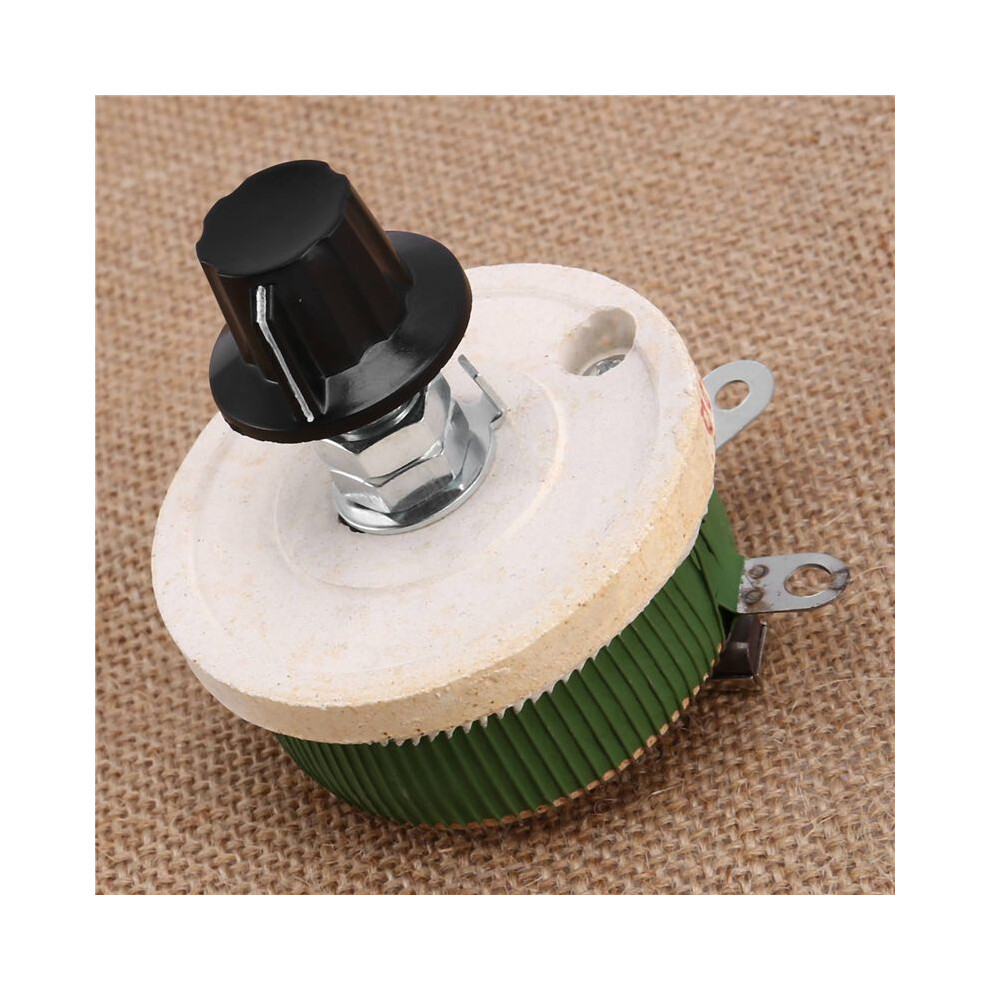

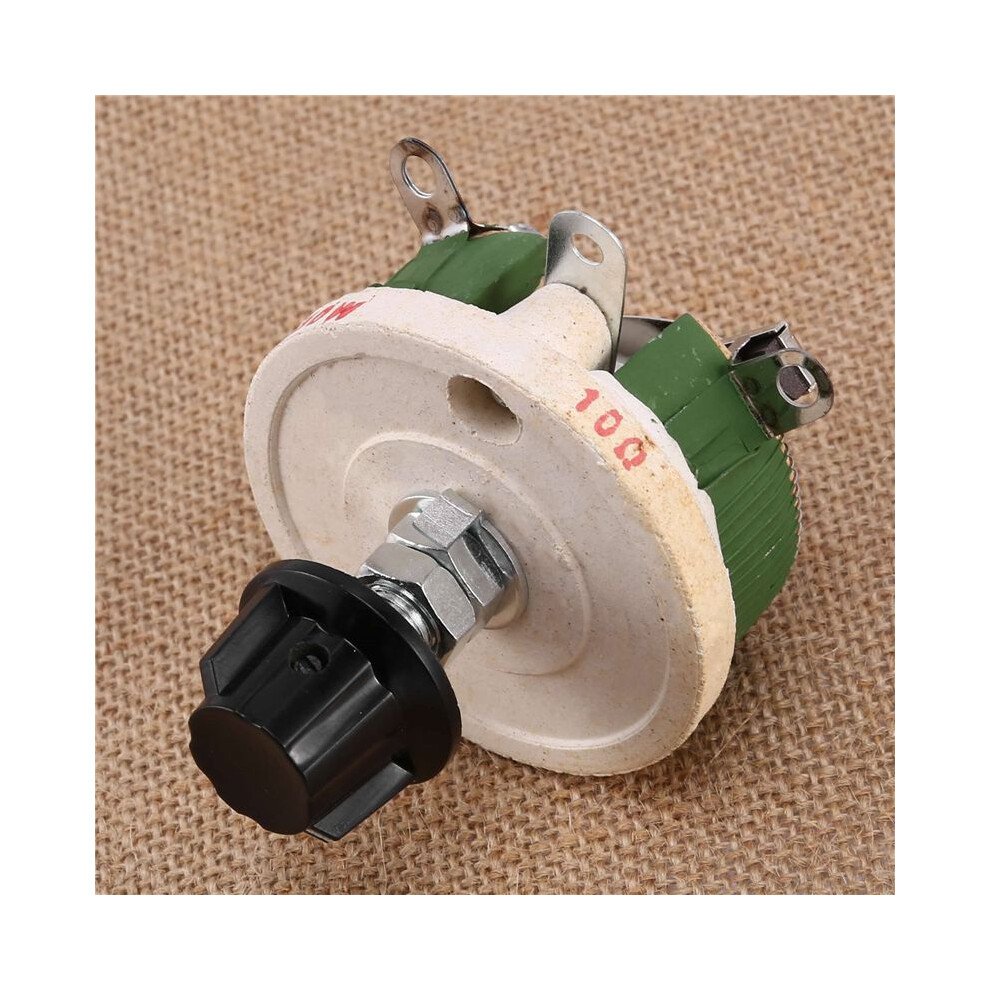

5X 50W 10 Ohm Ceramic Potentiometer Variable Taper Pot Resistor Rheostat

5X 50W 10 Ohm Ceramic Potentiometer Variable Taper Pot Resistor Rheostat Popis

Product Name : Rheostat; Material : Ceramic, Metal
Power Rating : 50 W; Resistance Value : 10 Ohm
Mounted Hole Dia : 9.5mm/ 0.37 inch
Bottom Screw Diameter : 3mm/ 0.12 inch; Bottom Base Diameter : 57mm/ 2.3 inch
Shaft Size : 40 x 6mm/ 1.6 inch x 0.24 inch(L x D); Body Size : 63 x 35mm/ 2.5 inch x 1.4 inch (Max. D x T)

Color: As Shown
Net Weight: 800g
Control the electrical resistance of a circuit without interrupting the flow of current.
The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.
Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, respirators, dental and model trains or other applications that require high voltage and current.

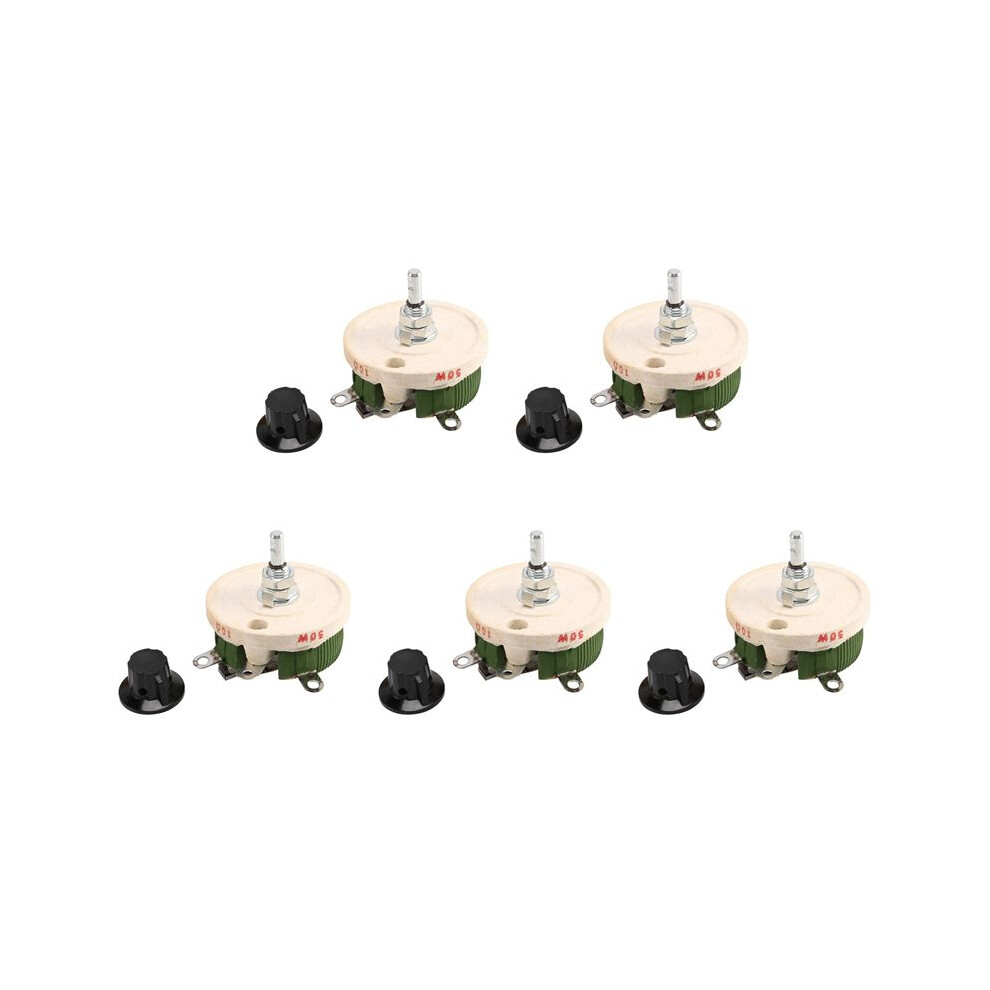

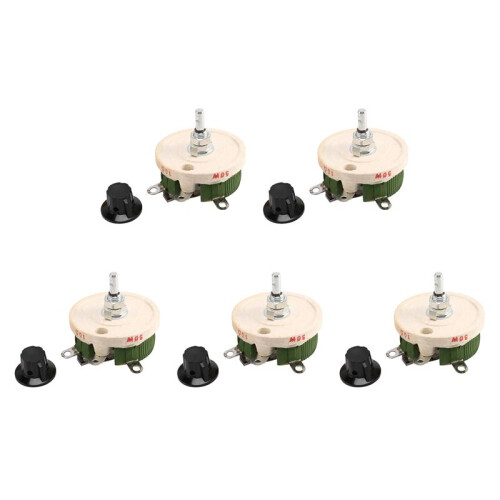

Package Content: 5 x Rheostat

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
