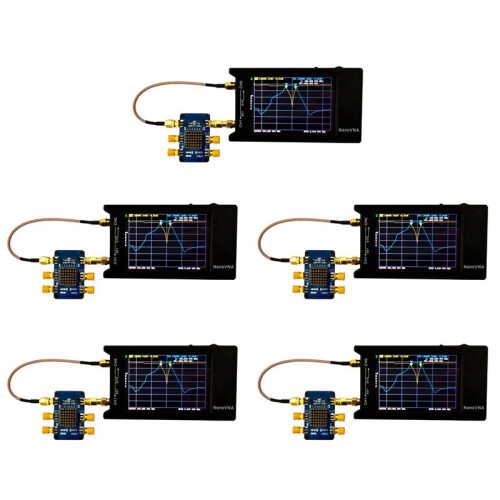

5X Testboard Kit VNA Test Demo Board Vector Network Analyzer Testing Board
Podobné produkty, ktoré by sa vám mohli páčiť
Chceš, aby sme ti dali vedieť, keď bude späť?
Zhrnutie
- NanoVNA Testboard kit VNA Test Demo Board
- This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement DIP and SMT devices.
- This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over. Please ensure that you have enough Hands-on ability. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs, our store is not responsible for circuit guidance.
- Test Demo Board
- Network Analyzer Testing Board
5X Testboard Kit VNA Test Demo Board Vector Network Analyzer Testing Board Popis
Testboard kit VNA Test Demo Board
This test board kit is used for or other vector network analyzer user-friendly measurement DIP and SMT devices.
This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over. Please ensure that you have enough Hands- ability. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs, our store is not responsible for circuit guidance.
Colour:As shown
Material:PC+Metal
Package Contents:
5 x Testboard main board
30 x SMA female
20 x 6mm copper stud
20 x M2.5 screw
10 x 40pin round row
10 x 0805 49R9 Calibration resistance
Podrobnosti
| OPC | PWMRBFB |
|---|---|
| Značka | Typecat |
| Kódy | 6031743534792 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 5cm |
|---|---|
| Width | 4cm |
| Length | 12cm |
| Weight | 0.115kg |
| Colour | As Shown |
| Material | PC+Metal |
