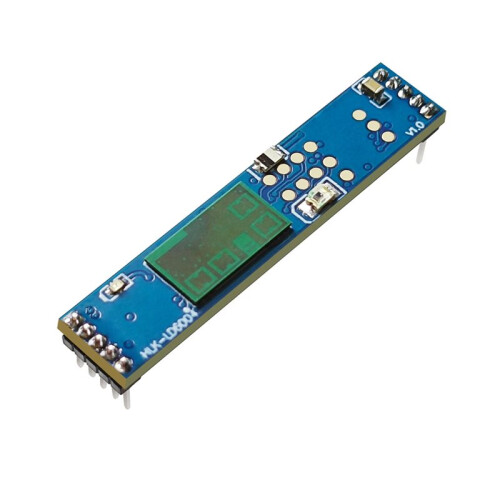

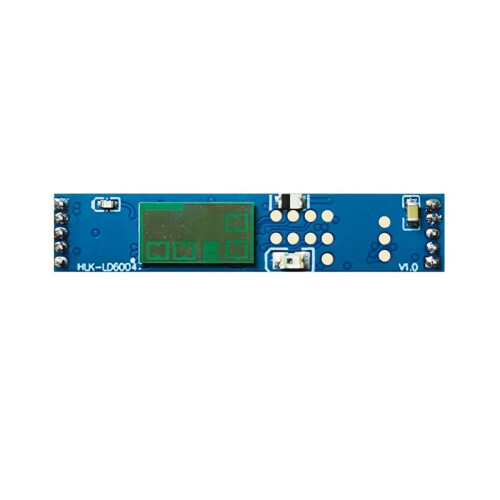

60G High-Precision Millimeter-Wave Module LD6004 Multi-Target 3D Human Presence Sensing Serial Communication

60G High-Precision Millimeter-Wave Module LD6004 Multi-Target 3D Human Presence Sensing Serial Communication Popis

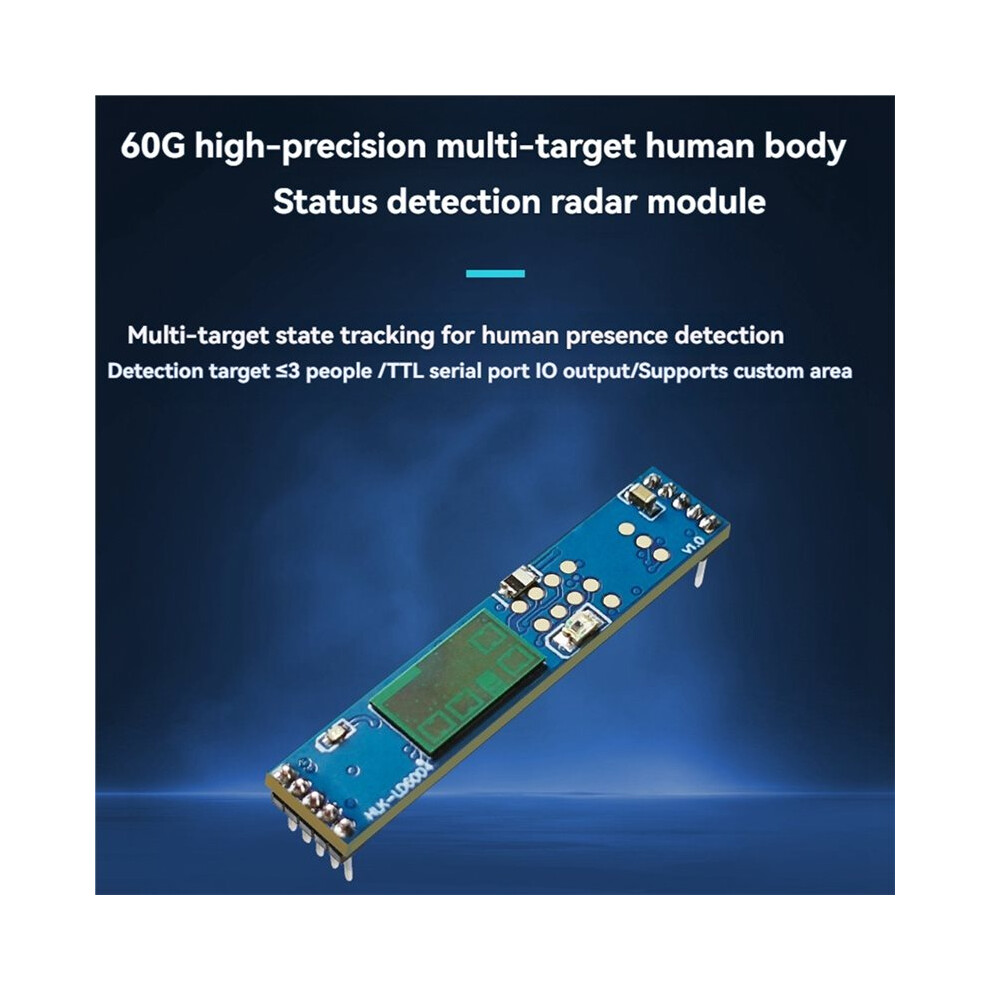

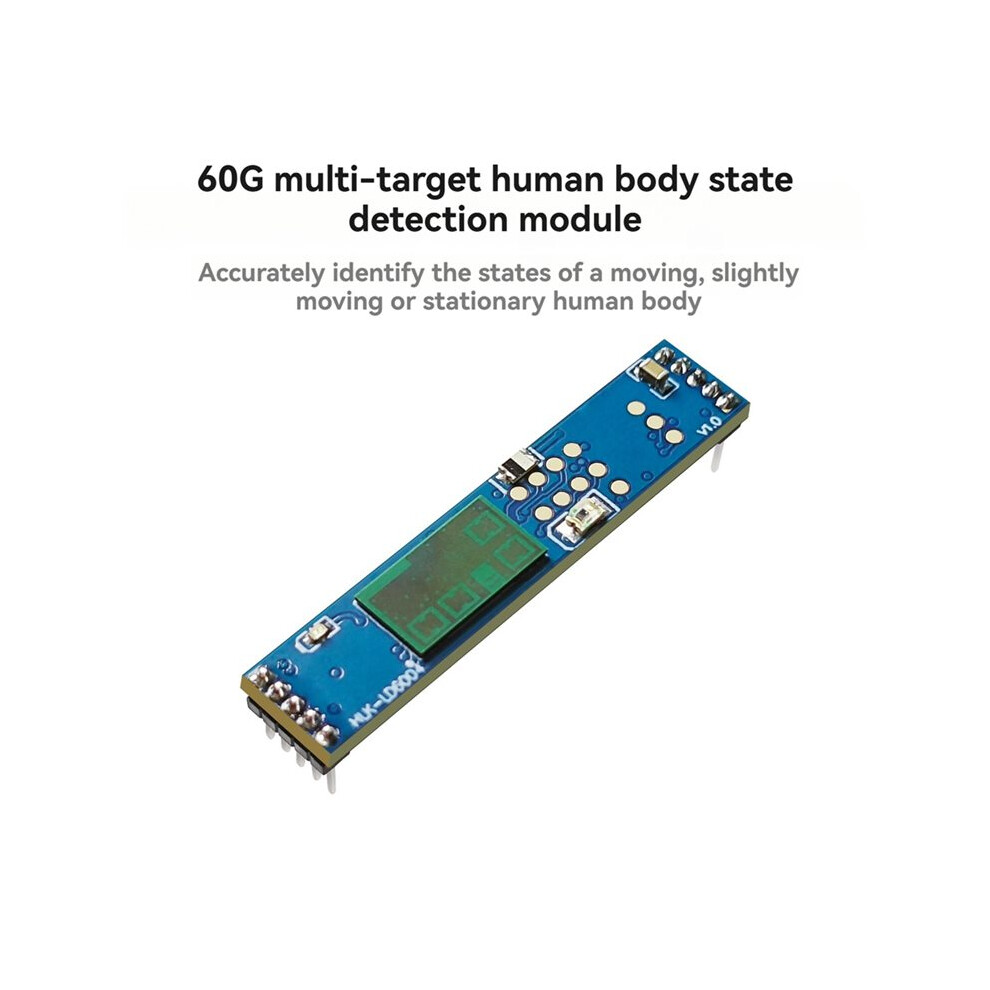

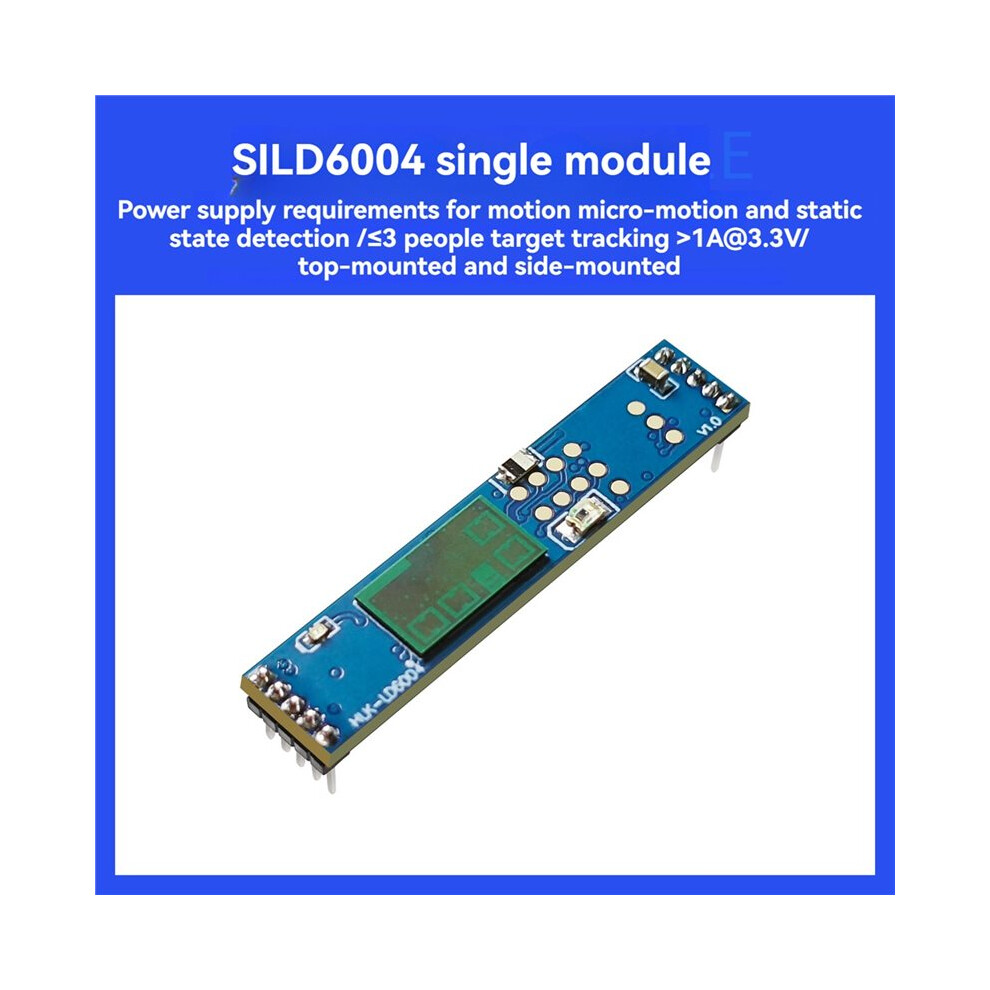

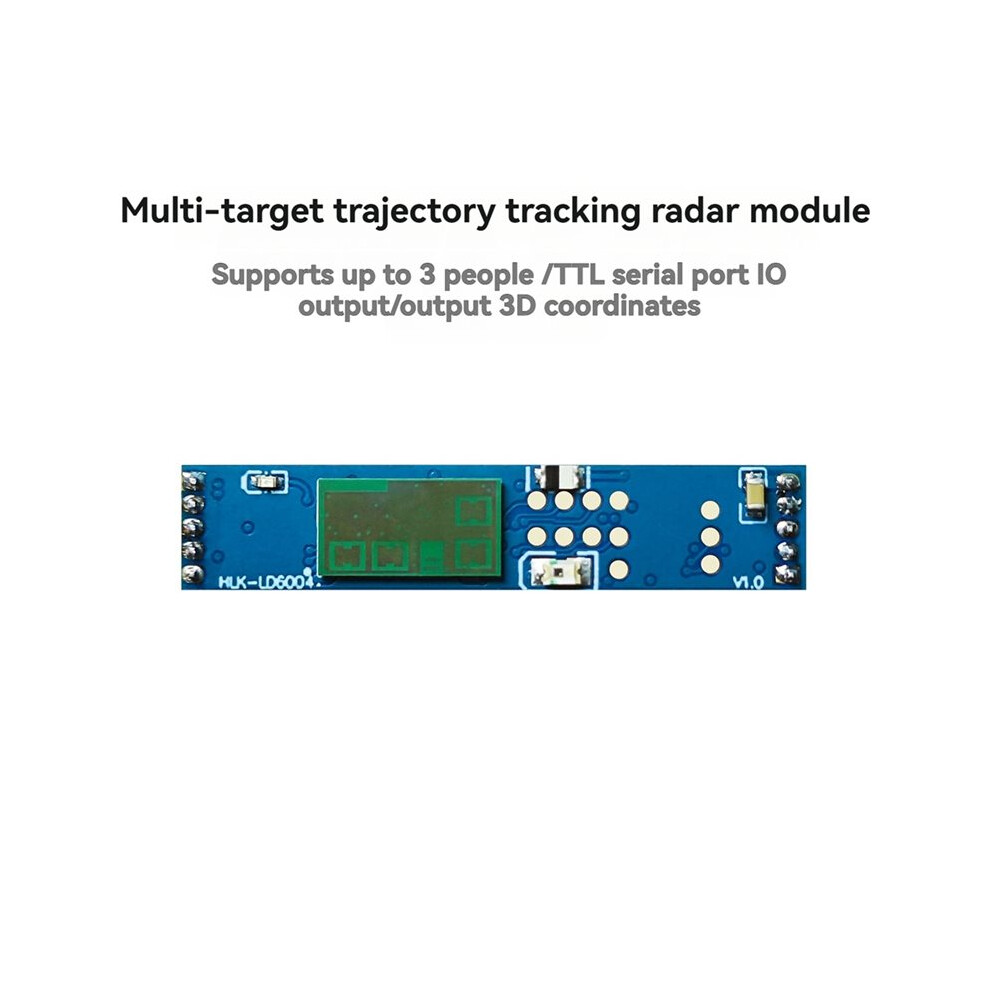

The HLK-LD6004 is a 60GHz module based FMCW signal processing. Combined with signal processing algorithms, it achieves highly sensitive human presence sensing, capable of identifying moving, slightly moving, and stationary human bodies, and calculating auxiliary information such as target distance, angle, and speed.
It is suitable for home appliances, motion-sensor lights, home applications, and other scenarios, enabling the detection of human presence within a spatial range and the tracking of multiple self-targeted human trajectories.

Operating Frequency: 60 GHz (58-64 GHz)
Transmit Power: 12 dBm
Modulation Method: FMCW
Antenna Gain: 4 dBi
Detection Angle: Azimuth 60 / Elevation 60

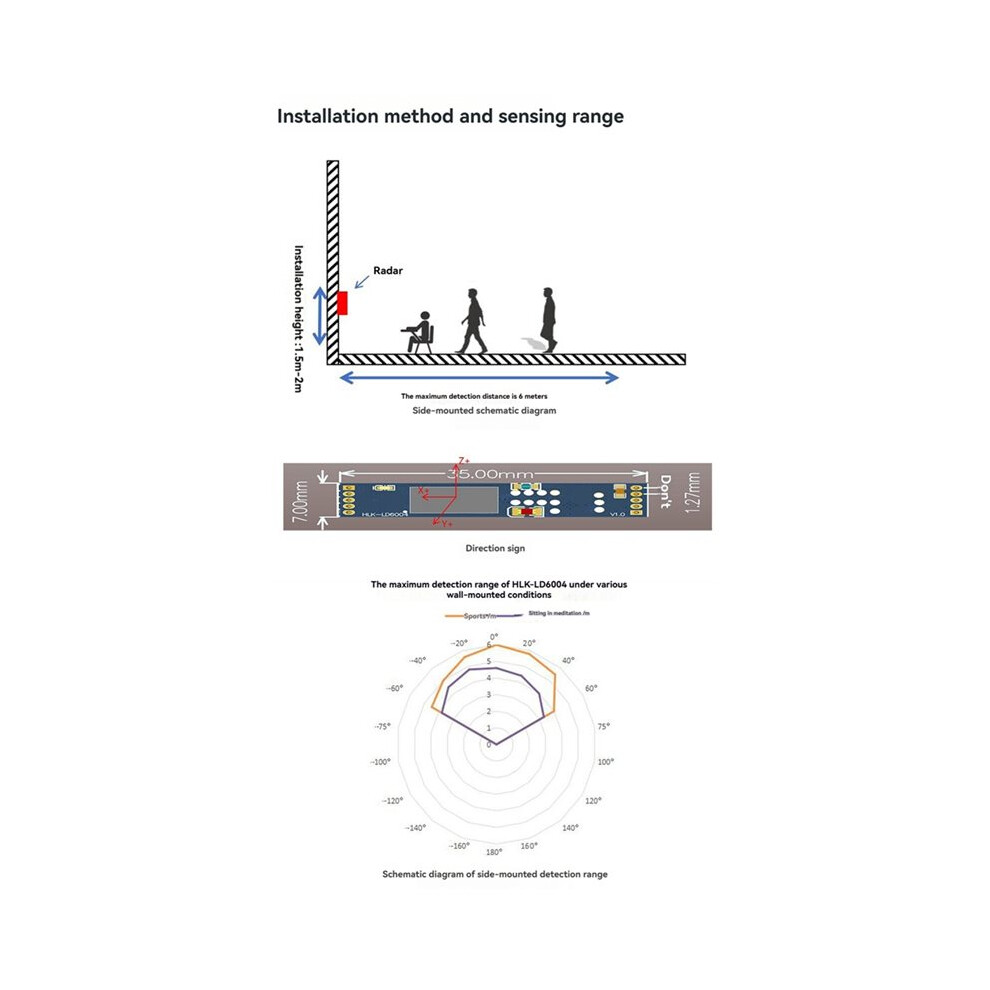

Side-mount Sensing Distance: Less than 6 m (1.5-2 m for side-mount)
Recognition Accuracy: 95% (Typ.)
Power Supply Requirements: 3.3V (Typ.)/Greater than 1A
Operating Temperature: -20 to +85
Ambient temperature: -40 to +85
Color:
Material: PCB

Package Contents:
1 * Human Detection Module
