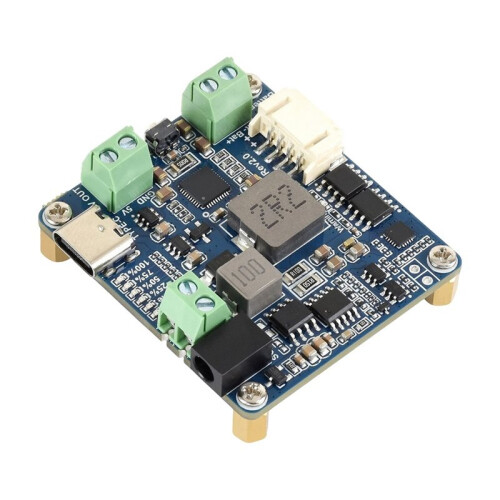

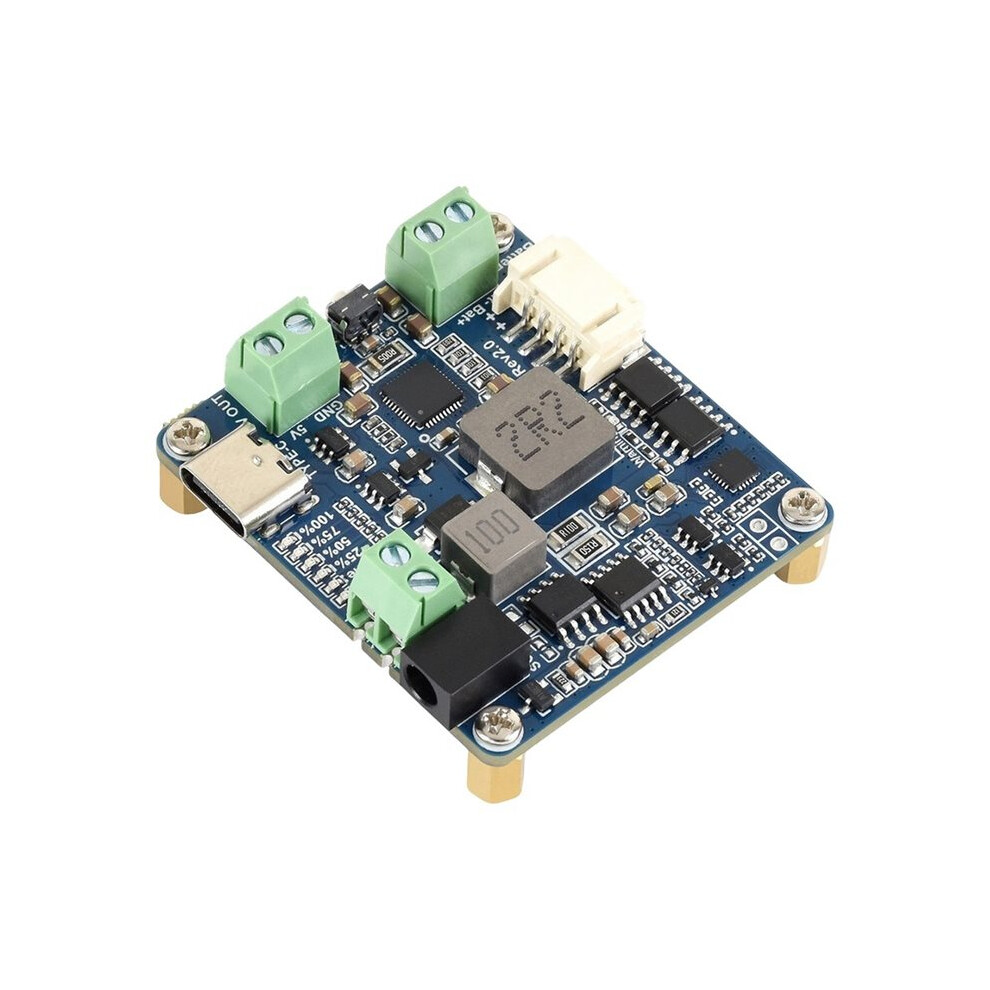

6V-24V MPPT Solar Charging Module Type-C Solar Power Manager Module for Charging Li-Battery with 5V 3A Output
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 136,000 hodnotení s “Vynikajúcim” hodnotením
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (4,00 €) | pia 30 okt - štv 5 nov
Predáva: najlepšie
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Zhrnutie
- Supports MPPT (Maximum Power Point Tracking) to significantly enhance solar conversion efficiency
- Supports multiple charging methods including solar panels and Type-C power adapters
- Compatible with 6-24V solar panels, featuring adaptive input voltage and reverse polarity protection
- Onboard status indicators for easy monitoring of solar panel and battery conditions
- Integrated protection circuits including overcharge, over-discharge, overtemperature, and overcurrent protection
6V-24V MPPT Solar Charging Module Type-C Solar Power Manager Module for Charging Li-Battery with 5V 3A Output Popis
Supports MPPT (Maximum Power Point Tracking) to significantly enhance solar conversion efficiency
Supports multiple charging methods including solar panels and Type-C power adapters
Compatible with 6-24V solar panels, featuring adaptive input voltage and reverse polarity protection
Onboard status indicators for easy monitoring of solar panel and battery conditions
Integrated protection circuits including overcharge, over-discharge, overtemperature, and overcurrent protection
Parameter:
A power management module for 6-24V solar panels, supporting charging of 3.7V rechargeable lithium batteries via solar panels or Type-C interfaces. Provides stable 5V/3A output (supporting multiple protocols including PD/QC/FCP/PE/SFCP), incorporates MPPT power point tracking and multiple protection circuits. Operates efficiently, stably, and safely, suitable for solar power generation, low-power IoT, and other eco-friendly projects.
Product Parameters:
Solar Panel Input Voltage: 6-24V
Charging Methods: Solar Panel, Power Adapter, USB
Lithium Battery Specification: 3 x 18650 cells (not included in shipment)
USB Input Voltage: 5V (Type-C port, supports PD fast charging protocol)
Power Output: 5V/3A (Type-C port, terminal blocks)
Charge Cut-off Protection Voltage: 4.2V 1%
Over-Discharge Protection Voltage: 3.0V 1%
Solar Panel Charging Efficiency: Approx. 78%
USB Charging Efficiency: Approx. 93%
Battery Boost Output Efficiency: Approx. 90%
Quiescent Current (Max):
Podrobnosti
| OPC | PY9KGWF |
|---|---|
| Kódy | 6031262498780 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.0315kg |
| Colour | As Shown |
| Material | Plastic+Metal |
