Zhrnutie
- 1. Wide input voltage range: DC 7-38V, fixed output 12V, 6A high current carrying capacity
- 2. Ultra-low ripple output, clean and stable voltage, suitable for precision equipment with high power quality requirements
- 3. Built-in input reverse connection protection, output short circuit protection, input and output TVS protection, multi-layered protection
- 4. Soft-start design effectively suppresses inrush current, protecting downstream loads from impact

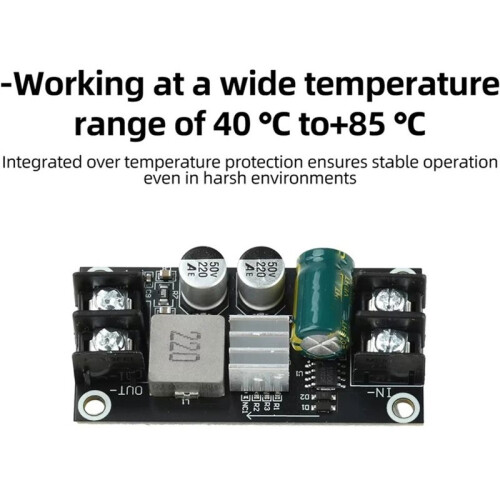

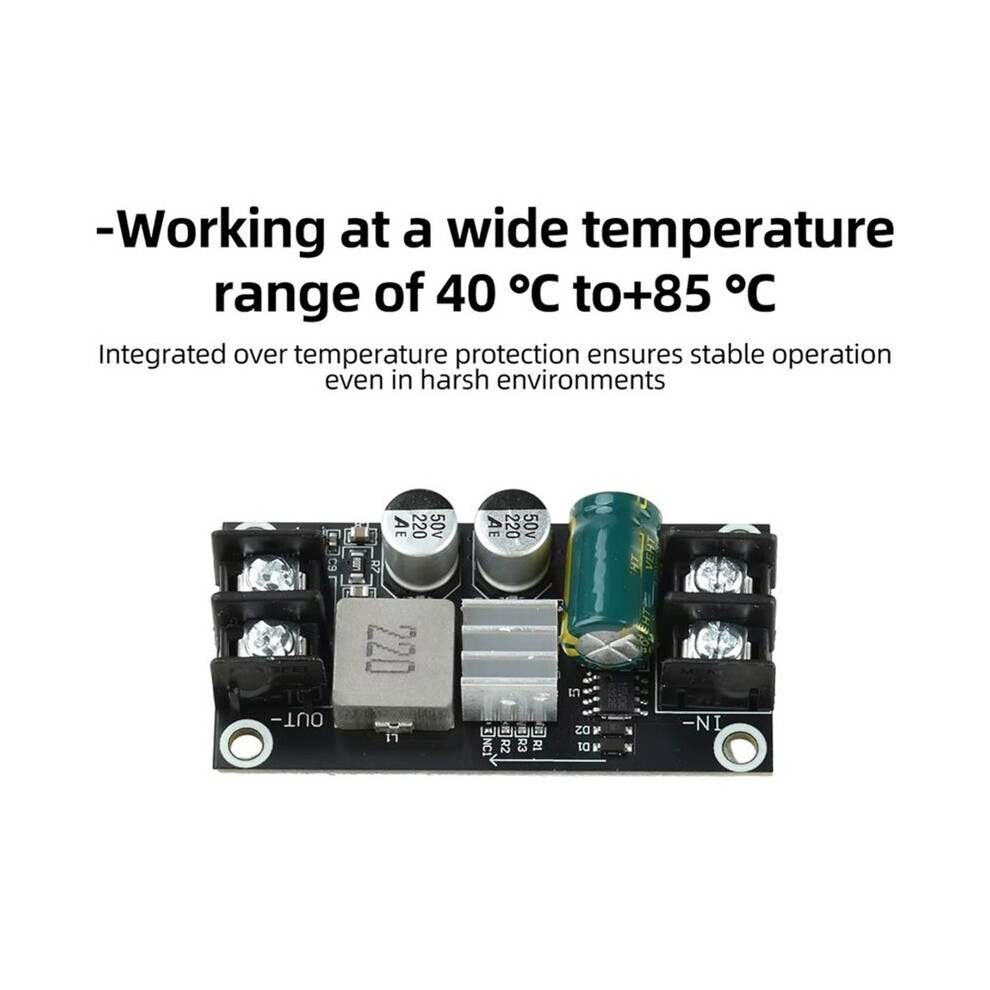

- 5. Wide operating temperature range: -40℃~+85℃, integrated over-temperature protection, stable operation even in harsh environments
7-38V to 12V 6A Step-Down Module Low Ripple High Power Step-Down Converter Board with Reverse Polarity Protection Popis
1. Wide input voltage range: 7-38V, fixed output 12V, 6A high current carrying capacity
2. Ultra-low ripple output, clean and stable voltage, suitable for precision equipment with high power quality requirements
3. Built-in input reverse connection protection, output short circuit protection, input and output TVS protection, multi-layered protection
4. Soft-start design effectively suppresses inrush current, protecting downstream loads from impact
5. Wide operating temperature range: -40~+85, integrated over-temperature protection, stable operation even in harsh environments
Product Parameters
Input Voltage: 7-38V
Output Voltage: 12V
Output Current: 6A
Input Reverse Connection Protection
Output Short Circuit Protection
Input/Output TVS Protection
Input Fuse Included
Soft Start Supported
Integrated Over-Temperature Protection
Warm Reminder:
This product is a high-power step-down module with reverse connection protection. The recommended operating voltage is below 38V. Under good heat dissipation conditions, it can continuously output 6A. Under normal use, the continuous current should not exceed 5A. As this is a step-down module, ensure a voltage difference of at least 1V between input and output.
Color: Black
Material: PCB
Package Contents:
Module *1
Podrobnosti
| OPC | PYQ5F7C |
|---|---|
| Kódy | 4711242799923 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 2cm |
|---|---|
| Width | 4cm |
| Length | 7cm |
| Weight | 0.025kg |
| Colour | Black |
| Material | PCB |
