8X Solar Panel Bracket Photovoltaic Panel Rail Solar Panel Mount Fastening Module with Mid for Trapezoidal Roof 35mm

8X Solar Panel Bracket Photovoltaic Panel Rail Solar Panel Mount Fastening Module with Mid for Trapezoidal Roof 35mm Popis

Features: new and high quality.

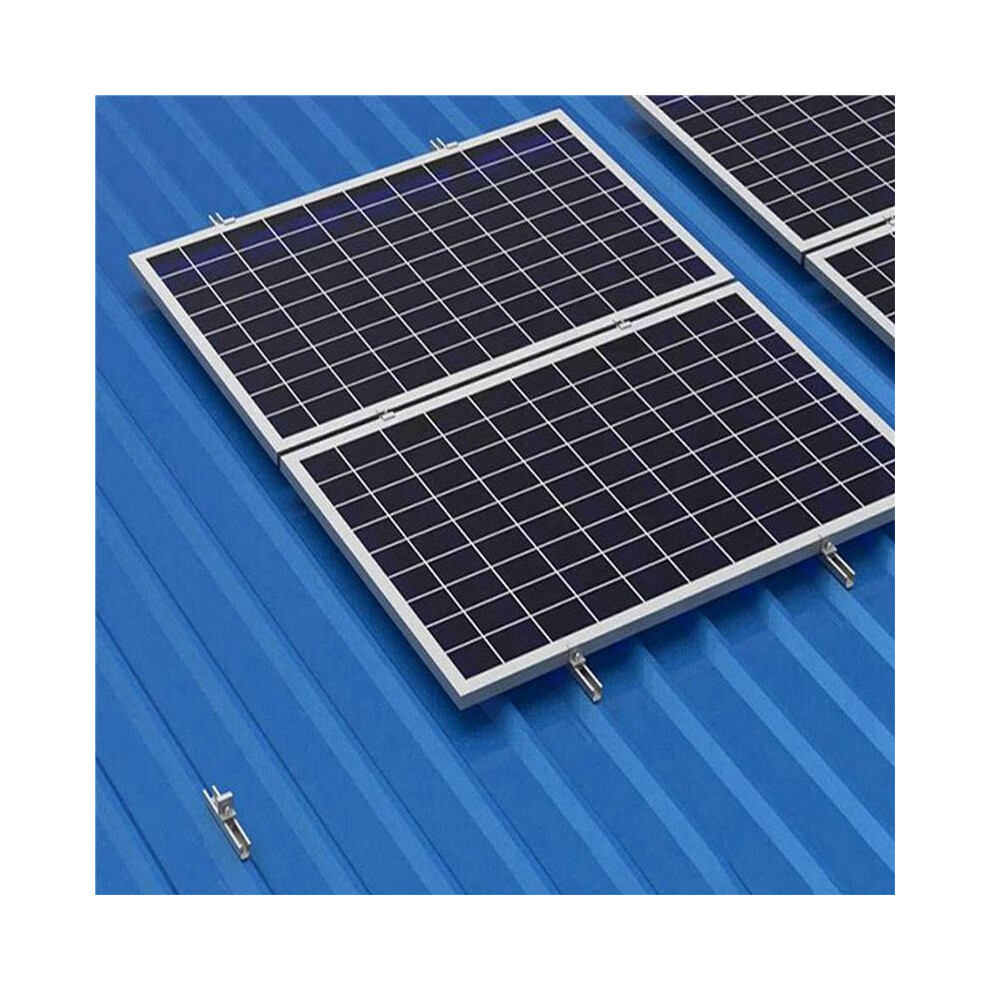

Application: -rail for installation of trapezoidal photovoltaic panels walkable trapezoidal metal sheet roofs with metal sheet skins.
Good static load distribution. This type of installation reduces the suction effect of the weight of the PV system the outer skin of the roof covering.
No need to transport long profile strips, adjusted to the post spacing of the profile panels.
Profile sections are pre-drilled and covered with sealing tape.

Description:
Rail size: 200mm

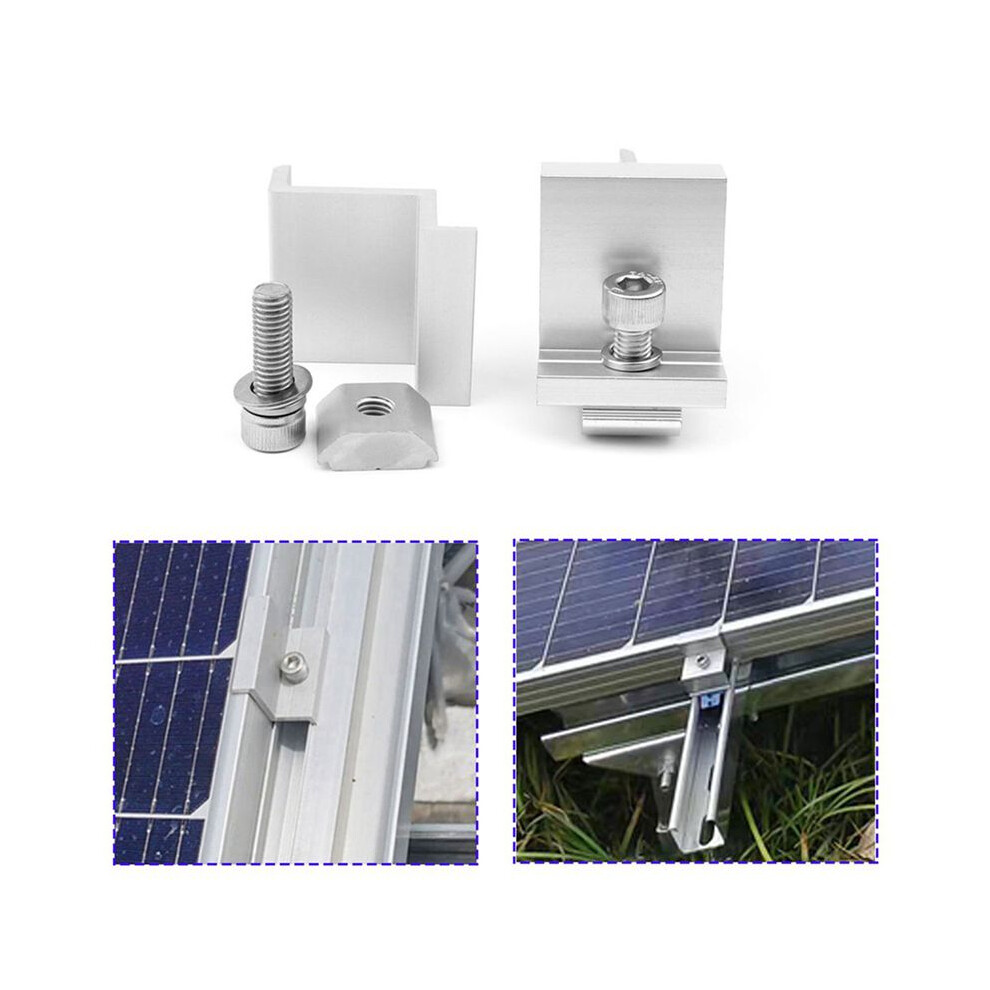

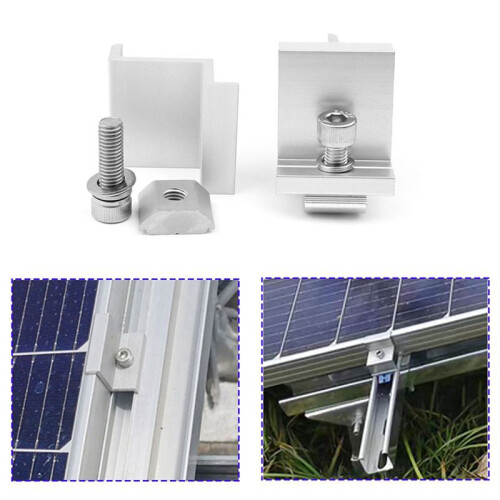

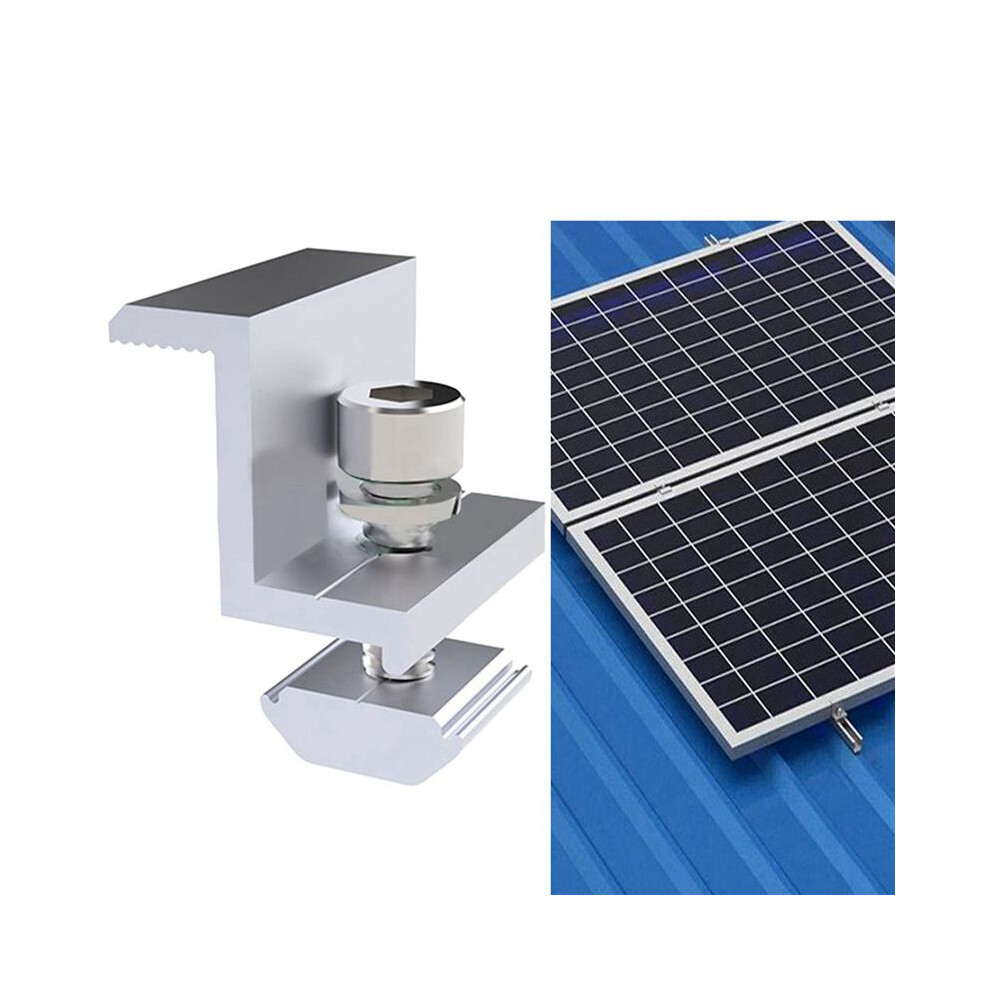

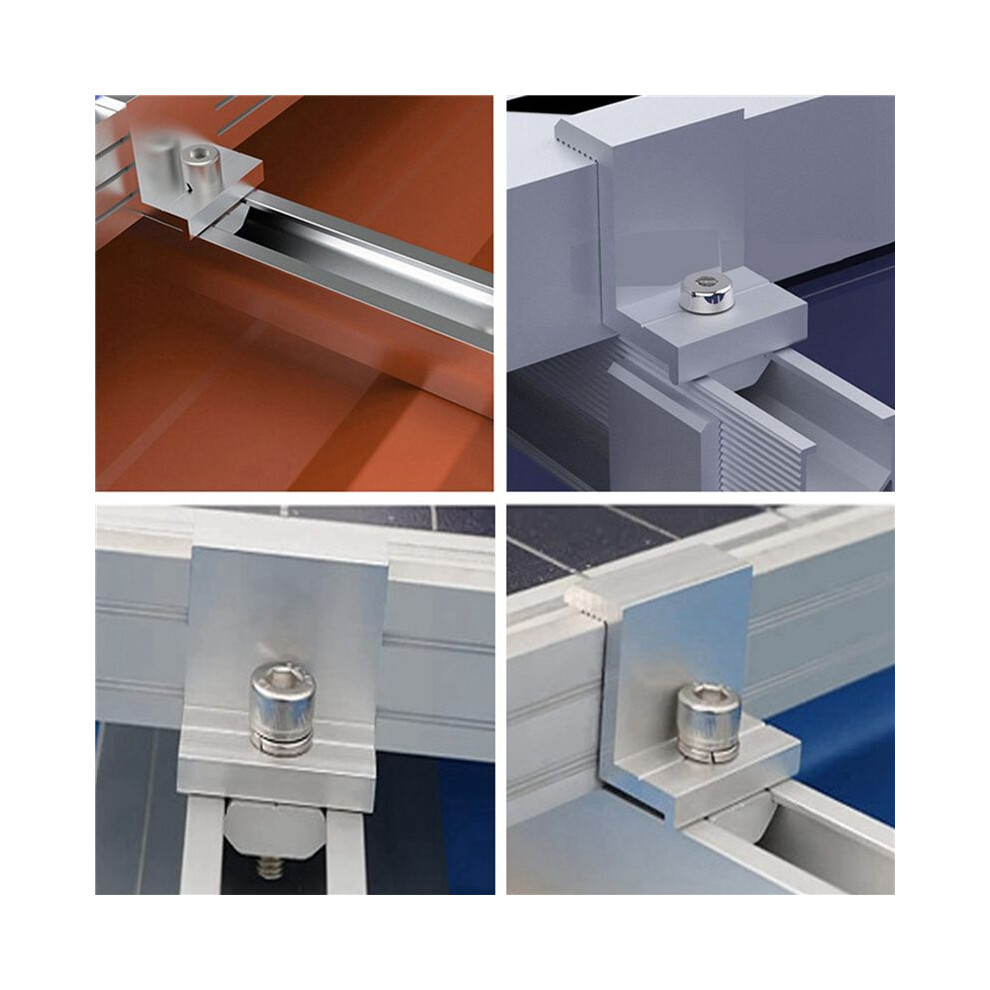

End clips: for 35mm solar panels
Assembling:
1. The division of the roof depends the size of the module.
2. Align the first row with chalk lines.
3. Place the bracket in place, pre-drill holes with Ø 5.00 mm sheet metal and secure with 4 blind rivets. Or use a thin sheet metal screw to fix it without pre-drilling.
4. Place the next row with a wooden template and after 10 rows, check the orientation again with a piece of string.
Material: Aluminum alloy
colour: silver

Package Contents:
8 x rails (with accessories gasket + screws)

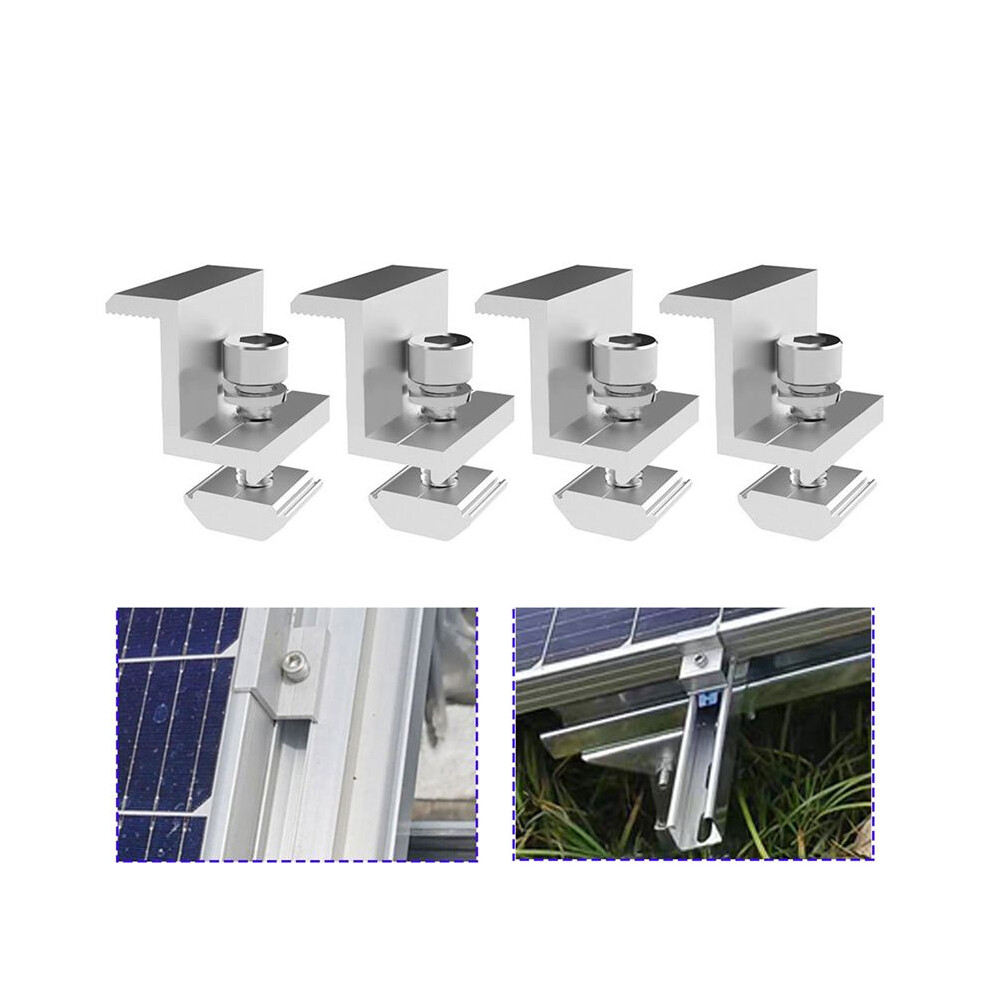

8 x end clips
