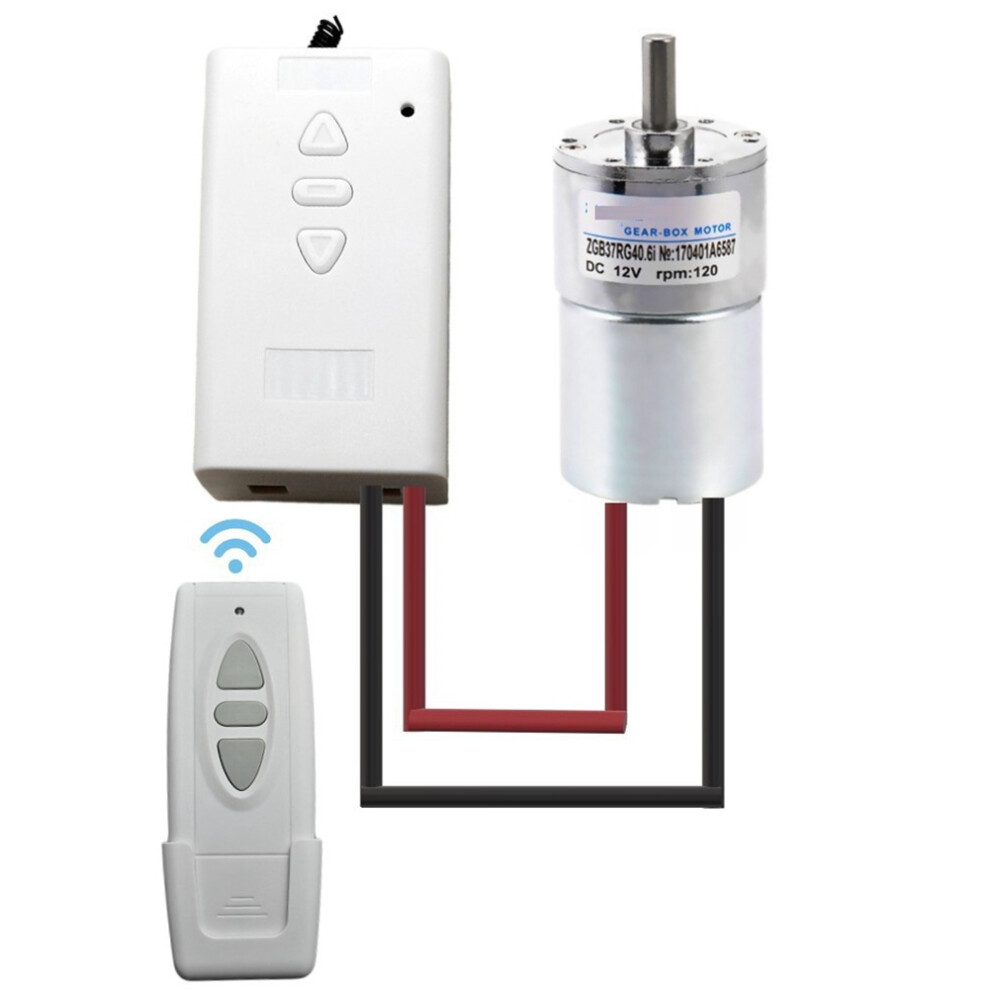

AC Motor Remote Controller 12V 24V 36V Motor Forwards Reverse Down Transmitter Manual Button Limit

AC Motor Remote Controller 12V 24V 36V Motor Forwards Reverse Down Transmitter Manual Button Limit Popis

Working Voltage: AC/ 12V-36V (AC& both are ok. Wide working voltage from 12V to 36V(12V 24V 36V))
Working Current: 48ma
Quiescent current:16ma
Max Load: 10A Relay ( have better load less than 5A (60W)
Function: Receiver Manual Button Control & Wire External Button (without transmitter) ( Wire the Normally Open Limited to the External Button Pin ( U--S--D--GND) make your motor Forwards Reverse Cycle)

1. Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it )
2. Out State: Momentary Toggle Latched Adjusted by the Jumper the Receiver, ( we ship default as Latched, if you need use Momentary to change the Jumper the Receiver ,Notice, please don't use Toggle)
3. Momentary----------Jumper "1&2"
4. Latched-----------Jumper "3&4"
5. Momentary -------------
Press button"", the Motor Forward, Release is Stop.
Press Button "Down", the Motor Reverse, Release is Stop.
Latched------------------
Press button "", the Motor Forward, Press Button "Stop" is stop.
Press Button "", the Motor Reverse, Press Button"Stop" is stop
6. If you don't need wire the Limited , you need connect the Down and COM with a , we have connect it before we ship out ,if you need use it take away the that is ok.
7. When the receiver output state is "Latched", we have set it 0.5s delay for forwards and reverse, it is the Protection function.
type: Wireless Remote Controller
color:White
Material:ABS

Package Contents:
1 x Wireless Remote Controller(1pcs 12V 23A battery not included)
1 x Receiving Controller
