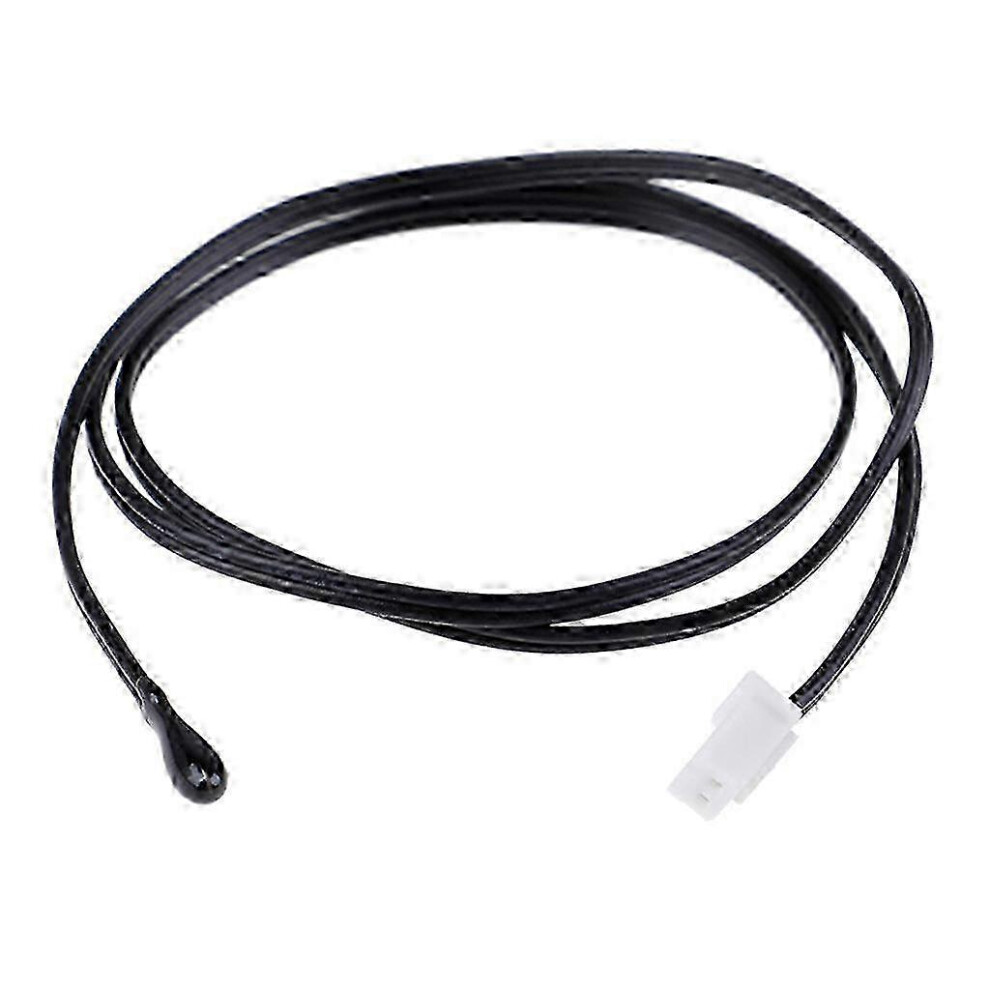

AC Temperature Probe for System Control and Monitoring

AC Temperature Probe for System Control and Monitoring Popis

Air Conditioning Temperature Sensor Water Drop Head Temperature Control ProbeP202112241076
Features:
1.High sensitivity and quick response. 10K in water drop shape, 500mm in line length, xh-2y. Easy installation, high sensitivity, fast response.
2.Applicable Category: sensor temperature sensitivity response rapid.
3.Waterproof stable performance, used in water heaters, boilers and other measurement temperature environment.
4.Wide operating temperature zone, good stability and high reliability. Can provide products with different R and B values, with strong interchangeability and high precision.
5.Widely use. Temperature measurement and control of gas water heaters and instant water heaters and other household appliances, refrigerators and medium and low temperature drying ovens, incubators and other occasions.
Package Includes:
1 Piece 10K Probe Sensor
Specifications:
Nominal Resistance: R25 (25C): (commonly used) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
Resistance Accuracy: 1%, 2%, 3%
B value R25/50: (commonly used) 3435K, 3600K, 3950K, 3990K, 4100K, 4200K, etc.
B Value Accuracy: 1%
Operating Temperature Range: -40+150
Dissipation Power Coefficient: 5 mW/ (in static air)
Maximum Rated Power: 45mW
Thermal Time Constant: 7S (in static air)
Temperature Coefficient of Resistance: -2-5%/
Insulation Performance: 500V DC test single insulation resistance 100M
Withstand Voltage Performance: 1500V AC, 5s, 0.5mA without breakdown
Cable Length: Approx. 50cm/19.69in
Weight: Approx. 20g
note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
