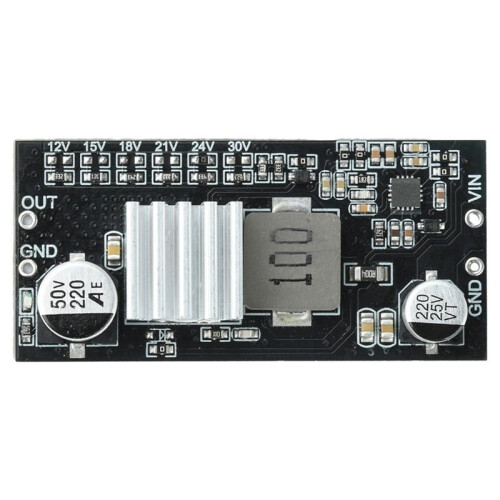

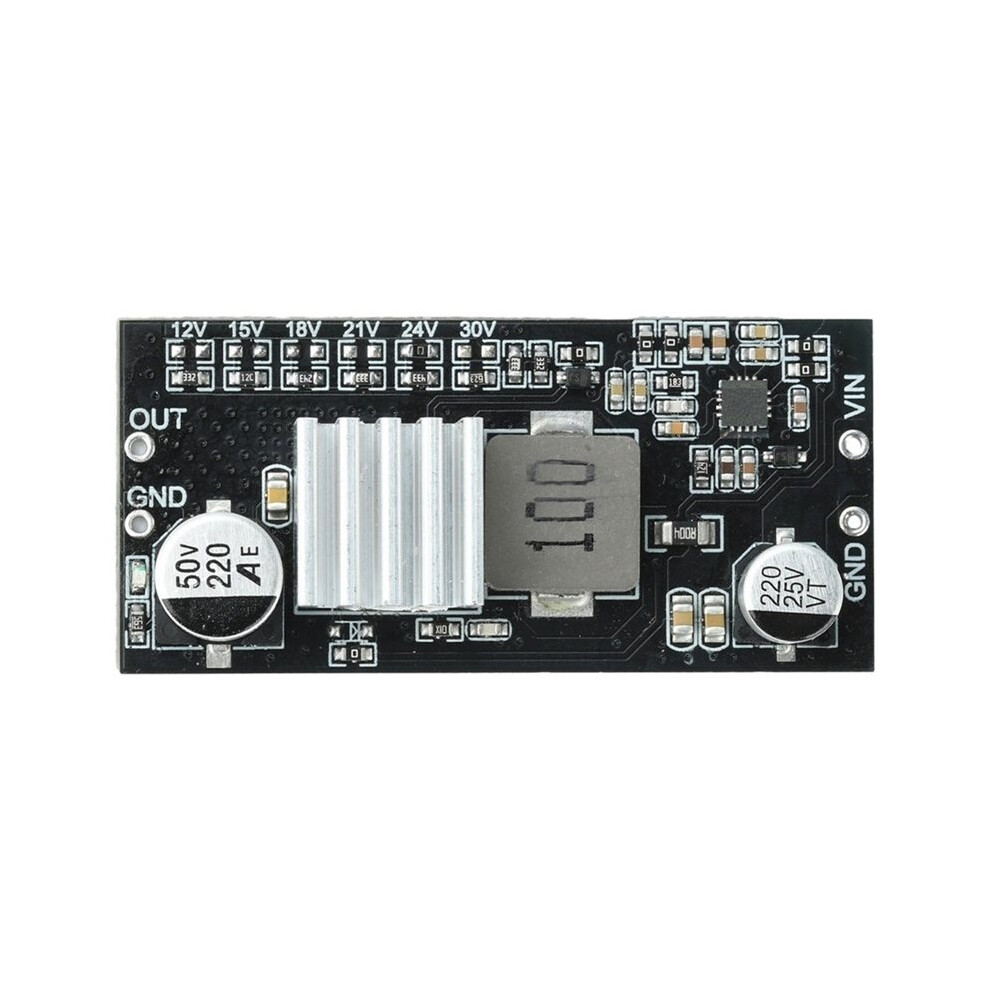

- Boost Module 9-12V to 15V 18V 21V 24V 30V 2A Adjustable Voltage High Efficiency Power Converter for DIY Projects

- Boost Module 9-12V to 15V 18V 21V 24V 30V 2A Adjustable Voltage High Efficiency Power Converter for DIY Projects Popis

1. Wide input voltage range of 9-12V; boost output adjustable to multiple levels: 15V, 18V, 21V, 24V, and 30V
2. 2A high-current output for stable powering of various load devices
3. High conversion efficiency, low heat generation, long service life, and stable, reliable continuous operation
4. Adjustable output voltage; a single module meets multiple voltage requirements, offering high versatility
5. Compact size for easy integration; simple wiring; suitable for both DIY projects and industrial retrofits

Parameter:
Input Voltage: 9-12V (Input voltage must be higher than output voltage)
Output Voltage: 12V/15V/18V/21V/24V/30V (adjustable via a single pad resistor)
Maximum Operating Current: 2A
Precautions
1. The input voltage range is 9V to 12V. Do not exceed 12V to avoid damaging the module.
2. When the input voltage is too low, the output voltage will drop under full load: If you require a full-load output of 30V / 2A, the input voltage must be 11V. For a 24V / 2A output, the input voltage must be 9V.
3. Never reverse the positive and negative input terminals; doing so will burn out the module.
4. The maximum output is 30V; wiring must be performed with the power off.
5. The module will generate heat during continuous high-power output; ensure adequate ventilation around the heat sink.
6. Do not short-circuit the output terminals for extended periods.
7. If smok, unusual odors, or abnormal heat are detected, disconnect the power immediately.
8. The voltage can only be adjusted to one setting, and adjustments must be made with the power disconnected; otherwise, there is a risk of burning out the mainboard.
Color: Black
Material: PCB+Metal

Package Contents:
Module x 1
