Popis a podrobnosti
Zhrnutie
- 1. Off-line recording: no need to connect to computer, direct power supply can record all the data of CAN bus.

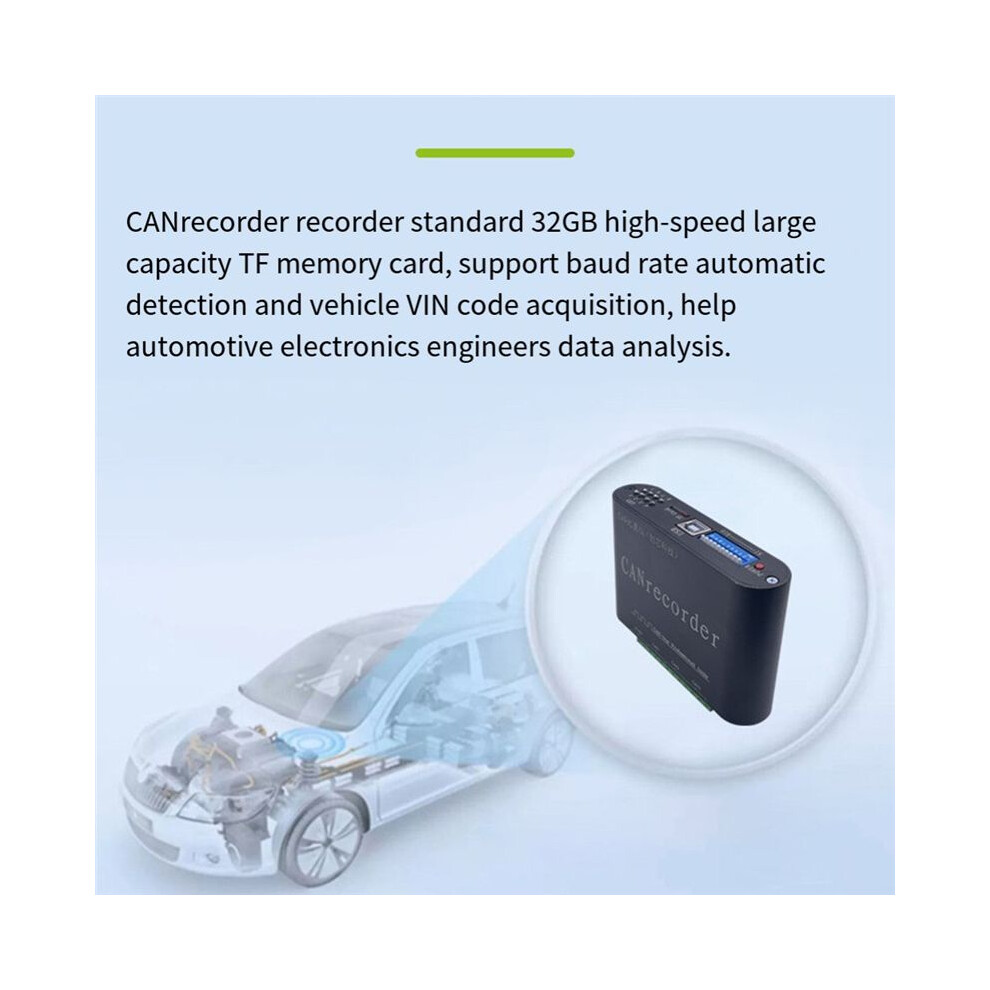

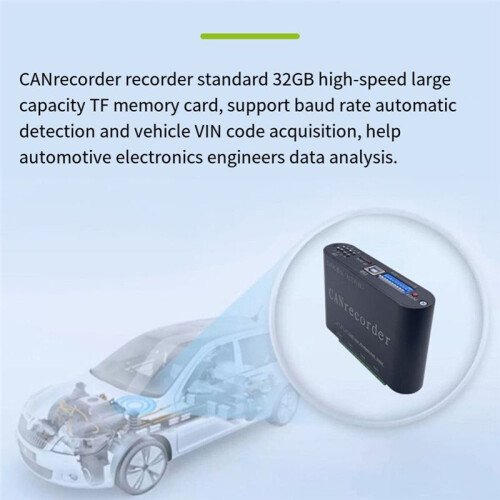

- 2. TF card storage: standard 32G SanDisk class 10 high-speed TF card, can store 350 million frames of CAN data.
- 3. All kinds of CAN lines: support High-speed / low-speed / fault-tolerant / single-line CAN / comfort / entertainment CAN lines.

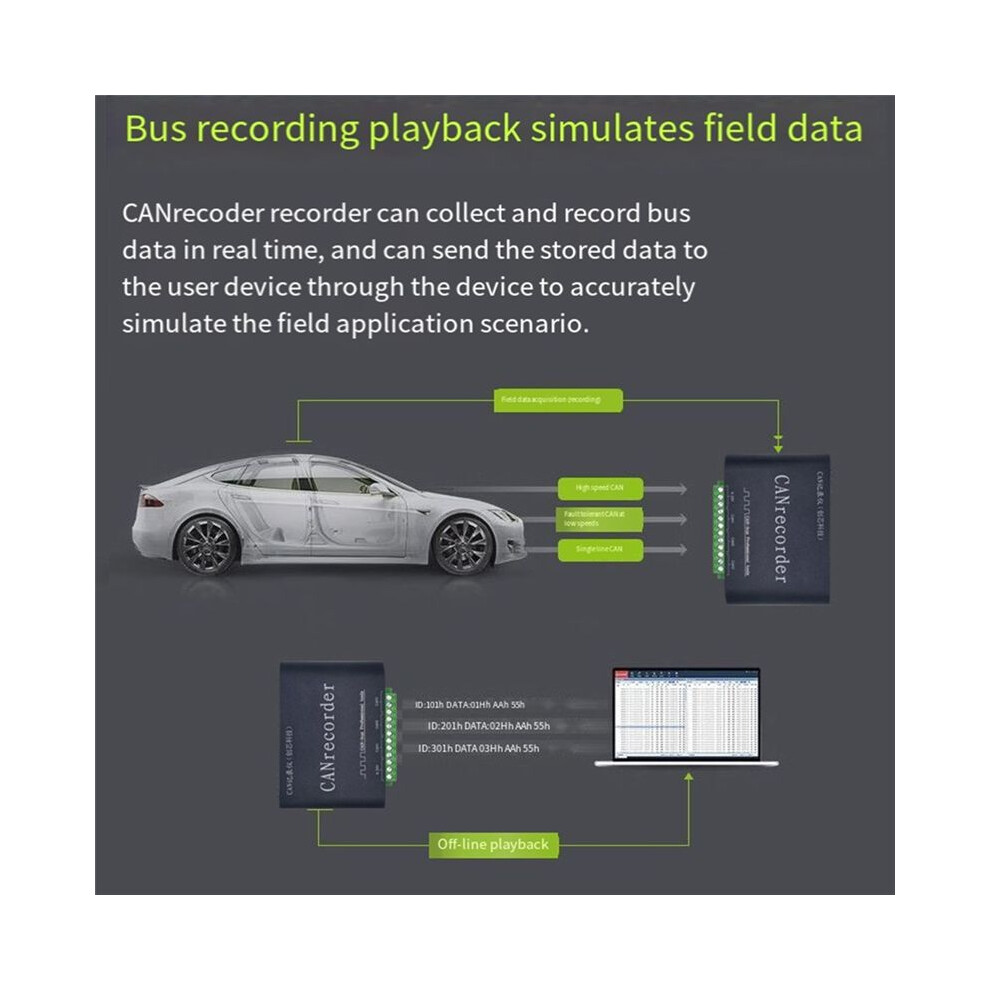

- 4. Off-line playback: the saved data can be sent back to the CAN bus directly as is, simulating the device to send signals.
- 5. Off-line relay: between CAN1 and CAN2, it can relay intelligently and forward directly or rewrite and forward.
CAN Bus Data Logger Offline Recording Off- Playback Relay Battery Powered Card Storage Popis
1. Off- recording: no need to connect to computer, direct power supply can record all the data of CAN bus.
2. TF card storage: standard 32G class 10 high-speed TF card, can store 350 million frames of CAN data.
3. All kinds of CAN lines: support High-speed / low-speed / fault-tolerant / single- CAN / comfort / entertainment CAN lines.
4. Off- playback: the saved data can be sent back to the CAN bus directly as is, simulating the device to send signals.
5. Off- relay: between CAN1 and CAN2, it can relay intelligently and forward directly or rewrite and forward.
USB power supply: 5V power supply through USB cable, can be connected to cell phone charger/computer.
power supply: 9V-35V wide range power supply, 0.5A.
Built-in clock: It can save the received Beijing for each frame of data.
Data saving format: txt, csv, asc, CAN.
Interface:
POWER: power , mainly for battery power.
S1-S10: Baud rate and function selection .
USB: can configure Beijing /copy TF card data through PC (USB port can't read CAN data in real ).
TF Card: standard TF card.
LED 1-8: LED indicator.
+PE-: Switching power input.

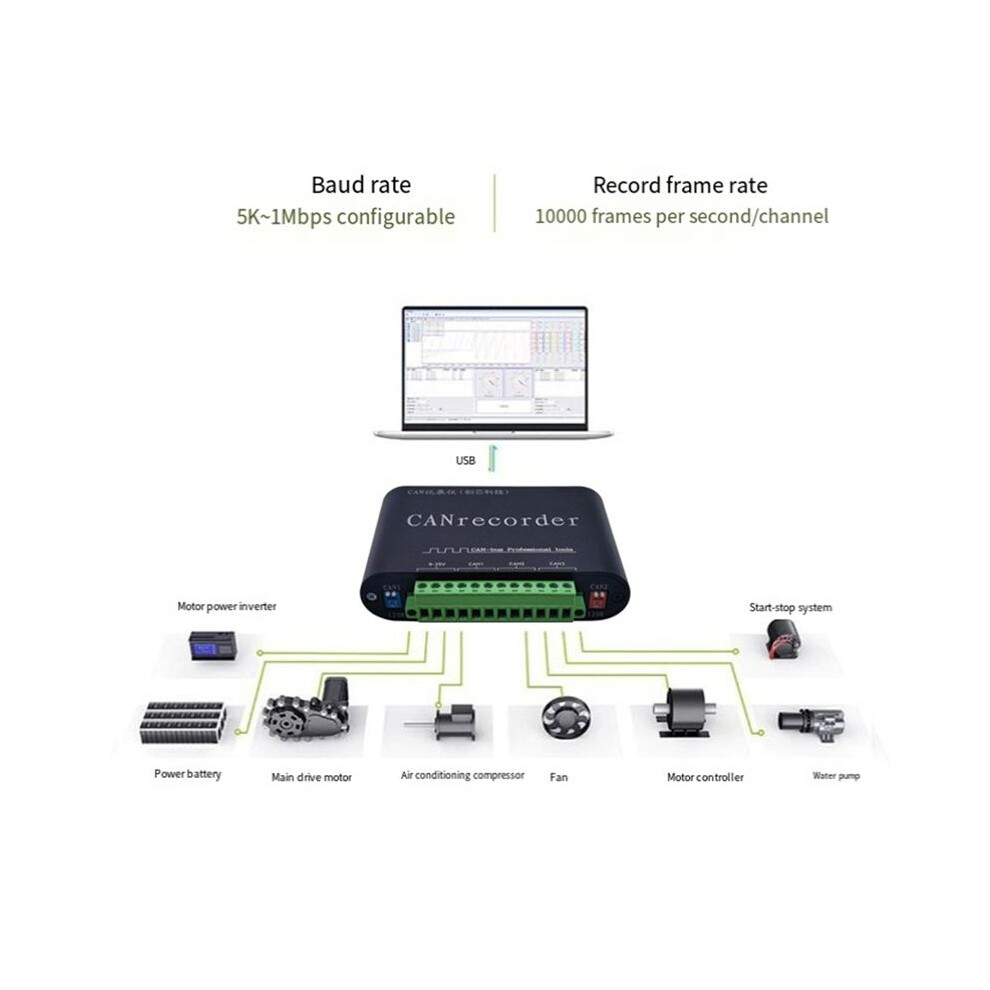

1H/1G/1L: CAN1 channel, high-speed CAN, baud rate 10k-1M.
2H/2G/2L: CAN2 channel, high speed CAN, baud rate 10k-1M.
3H/3G/3L: CAN3 channel, low-speed fault-tolerant CAN, baud rate 10k-125K (Note: CAN3 channel is the extension channel of CAN2 channel, CAN2 channel is not available when CAN3 channel is enabled).
CAN1 120R: CAN1 channel terminal resistance selection .
CAN2 120R: CAN2 channel terminal resistance selector .
The printed words may vary from batch to batch, but will not affect the use.
Colour:As Shown
Material:aluminum alloy
Package Contents:
1 * CAN Bus Data Logger
Podrobnosti
| OPC | PXKQK2X |
|---|---|
| Kódy | 6033792555193 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 5cm |
|---|---|
| Width | 13cm |
| Length | 18cm |
| Weight | 0.3795kg |
| Colour | As Shown |
| Material | aluminum alloy |
