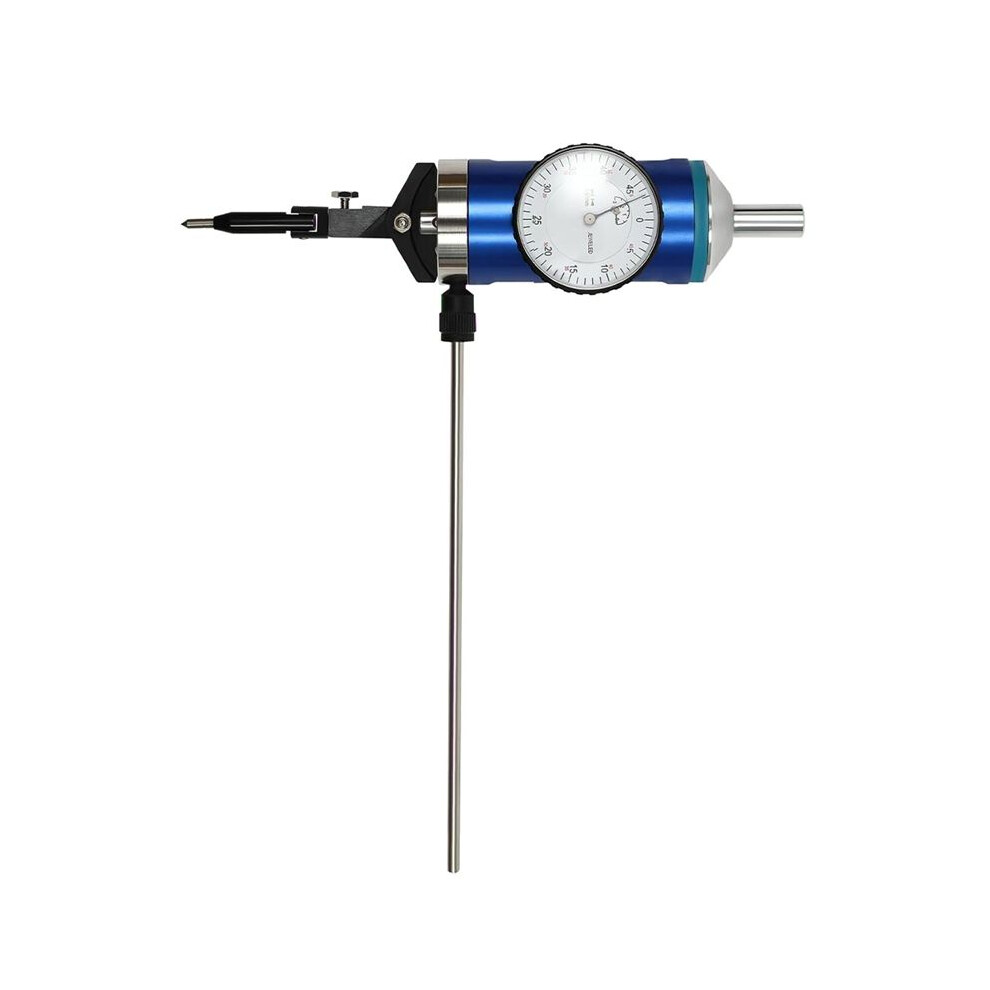

Coaxial Indicator, Coaxial Centering Indicator Co-Ax Precision Milling Machine Test Dial with Storage Case Accurate

Coaxial Indicator, Coaxial Centering Indicator Co-Ax Precision Milling Machine Test Dial with Storage Case Accurate Popis

The precise internal mechanical structure makes it highly sensitive and precise in operation, with a measurement range of 0-3mm and a graduation value of 0.01mm, indicating high measurement accuracy.
The 3 straight feelers, 3 curved feelers, 2 test bars, clamping drive shaft, etc. allows for flexible operation at various angles from horizontal to vertical, expanding usage methods and scope.
When the machine tool spindle rotates, the surface of the indicator can remain stationary in any desired position, allowing you to freely and accurately position the workbench with both hands, improving work efficiency and accuracy.
The 7.3Inch length, 1.76 lbs , and the dedicated wooden box with soft protective lining ensure effortless carrying and convenient storage while protecting the product from ordinary impacts.
It can be used for boring and milling settings horizontal or vertical machine tools, to quickly and accurately center the workpiece or fixed device the grinder.

The centering dial test indicator is a new measuring tool using the lever to transmit the relative position of the workpiece center to the dial indicator and convert it into pointer-angular displacement. It is an accurate, easy, and visible tool to find out the relative center such as the excircle and inner bore of the processed workpiece in the machining of various fabricating machineries.
Round : The smooth and burr-free after fine processes can better care for your skin, providing you with a comfortable user experience.
Clear Gauge: The clear scales and numbers the large dial and the clear cover make it easy to read the meter, bringing more convenience to your work.
Complete Accessories: This set includes 1 gauge, 6 probes, 2 test bars, and 2 wrenches, which are sufficient to handle various centering tasks.
Measurement Range: 0
