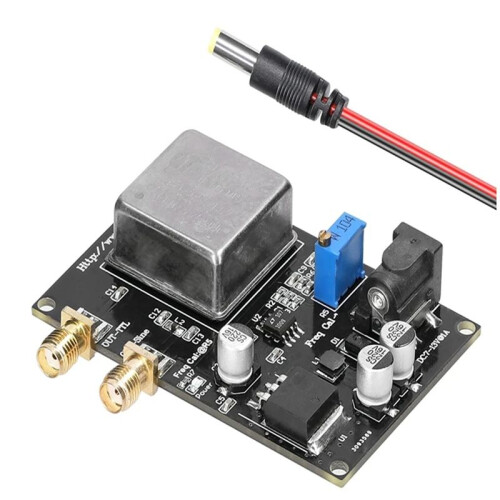

Constant Temperature 10MHz OCXO Frequency Reference Source Sine Wave Square Wave Frequency Trimming Reference Module

Constant Temperature 10MHz OCXO Frequency Reference Source Sine Wave Square Wave Frequency Trimming Reference Module Popis

Features: 1.Adopting high quality electronic components, using precision technology to ensure fine durability and long service life.
2.Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.
3.This product adopts 10MHz frequency standard, provided by OCXO furnace-controlled crystal oscillator.
4. Constant temperature crystal oscillator means that this product uses a thermostatic bath to keep the temperature of the crystal oscillator or quartz crystal oscillator constant, thus minimising the change in oscillator output frequency caused by changes in ambient temperature and making it more accurately calibrated to an accuracy of 0.01Hz.
5. Equipped with SMA external screw inner hole interface. Widely used, can be used for audio system, decoder, short-wave radio, frequency meter, signal source and other instruments marking.

Product parameters:
Name: Frequency Reference Module
Model: OCXO-10MHz
DSD sampling frequency: 2.8224 MHz (DSD64)
PCM word length: 16 bits
PCM sampling rate: 44.1 kHz
Output: RCA
Current consumption: less than 750mA in warm- phase, less than 300mA in operating phase
Warm- : 5 minutes
Calibration accuracy: 0.01Hz
Frequency stability: 5e-12
Output level: 10dBm 2dBm @ 50Ω
VRMS: 0.7071V @ 50Ω
VPeak: 1.0V @ 50Ω
VP-P: 2.0V @ 50Ω
Output Impedance: 50Ω
Connector Type: SMA external screws inside holes
Interface Specification: DC5.5 x 2.1mm
PCB board size: 66 x 43 x 13mm
Product Application: Constant Temperature 10MHz, Ultra-low Phase Noise, Frequency Reference Module, Frequency Reference Source, OCXO Frequency Reference Source, Used for audio system, decoder, shortwave radio, frequency counting source and other instruments reference.
Material: PC+Metal
colour: black

Package Co
