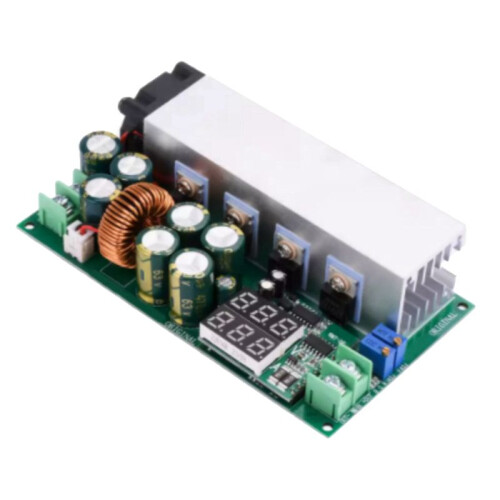

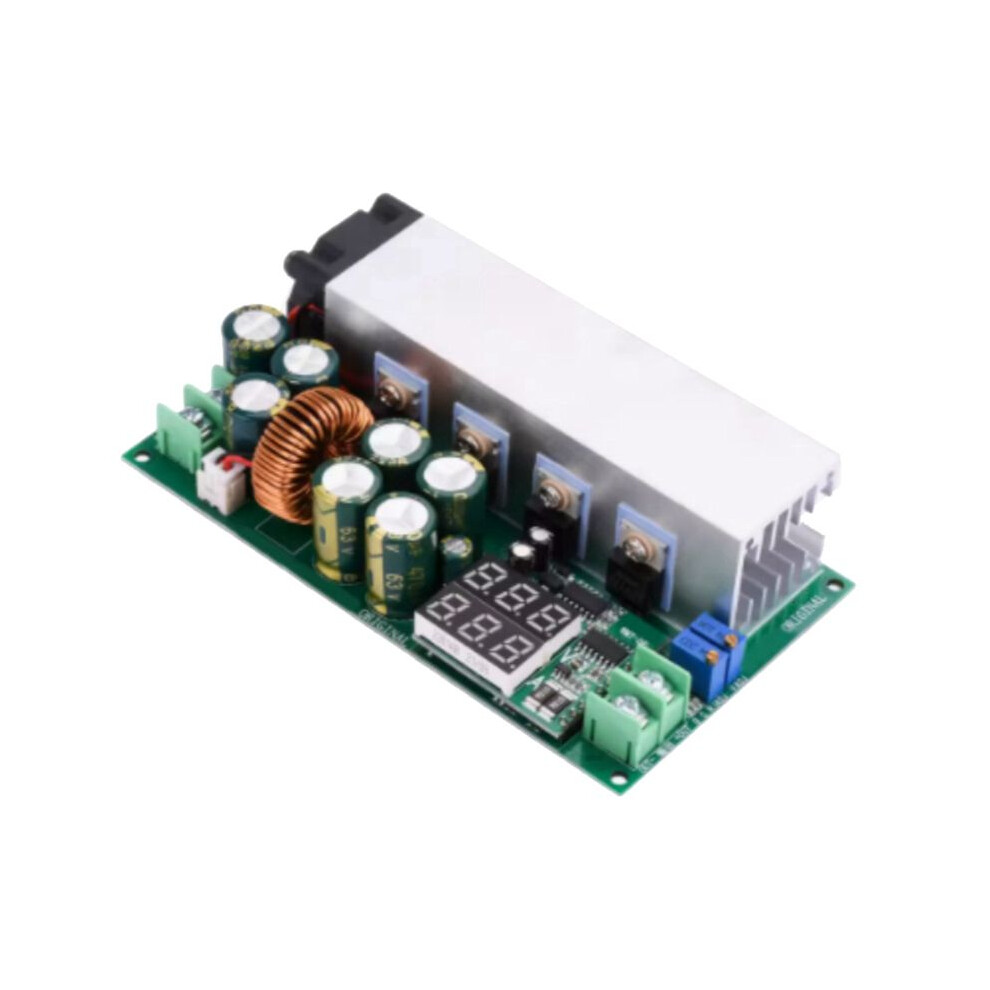

DC12-80V 20A Step-Down Power Module Current Constant Voltage Voltage Current Display 600W Buck Converter Module

DC12-80V 20A Step-Down Power Module Current Constant Voltage Voltage Current Display 600W Buck Converter Module Popis

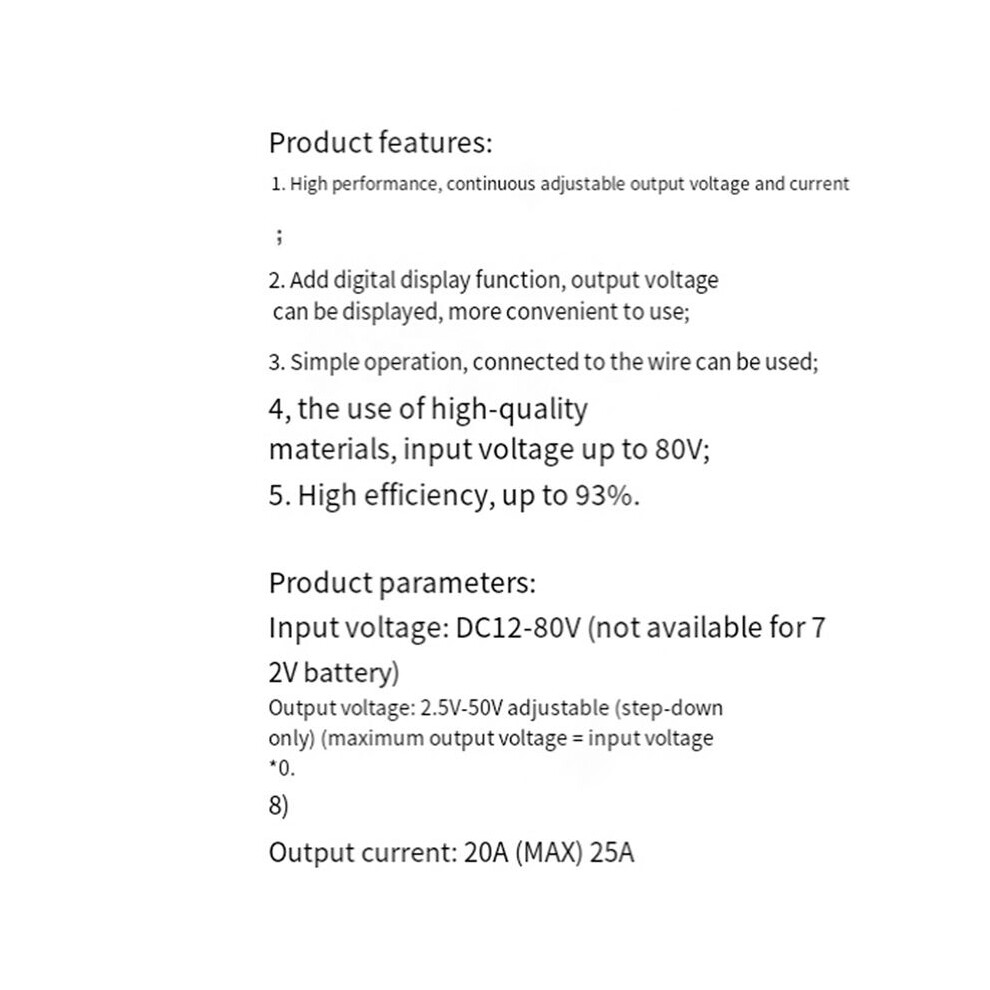

1. High performance, continuously adjustable output voltage and current
2. Add digital display function, output voltage can be displayed for more convenient use;
3. Easy to operate, can be connected and used immediately
4. Using high-quality materials, the input voltage can reach to 80V;
5. Extremely high efficiency, to 93%.

Input voltage:DC12-80V (cannot be used for 7 2V batteries)
Output voltage:2.5V-50V adjustable (can only reduce voltage) (maximum output voltage=input voltage * 08)
Output current:20A (MAX) 25A
Maximum overcurrent power:600W conversion

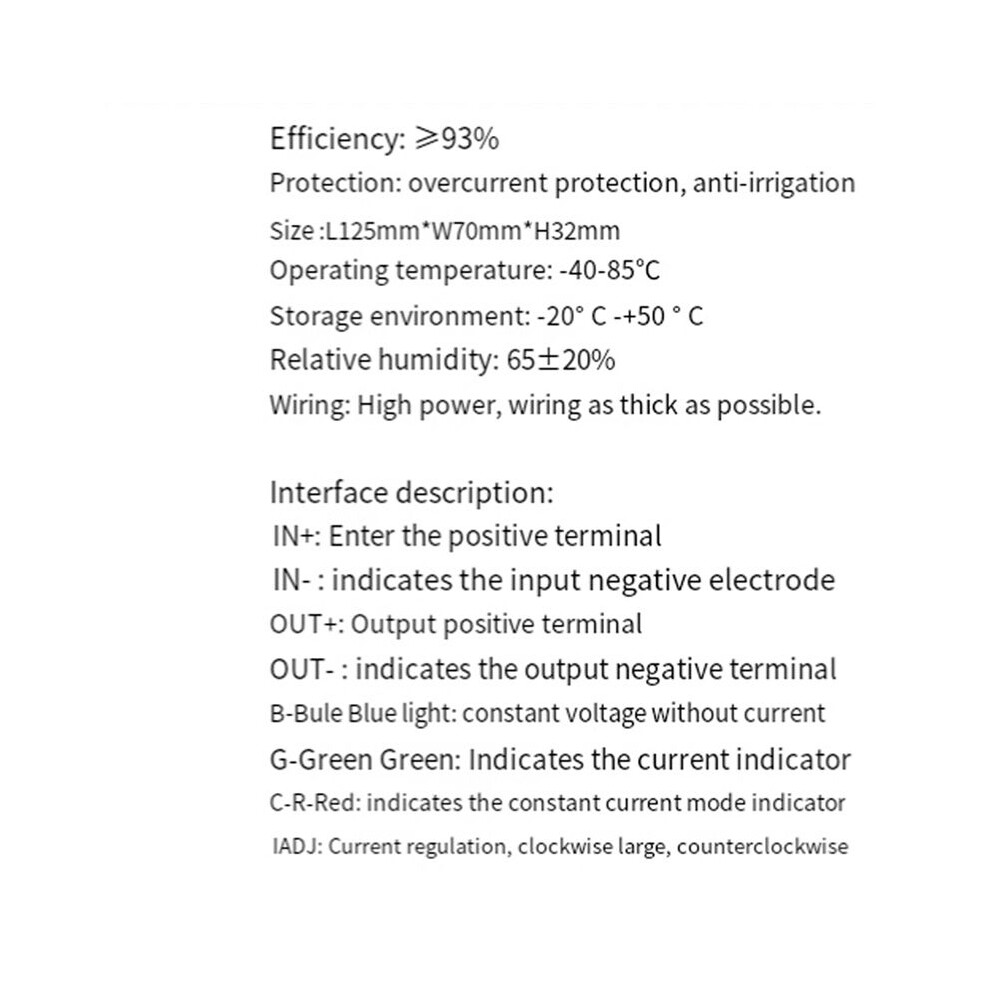

Efficiency:greater than equal 93%
Protection:overcurrent protection, anti backflow
Working temperature:-40-85
Storage environment:-20 -+50
Relative humidity:65 20%
Wiring:For high-power situations, try to make the wiring as thick as possible.

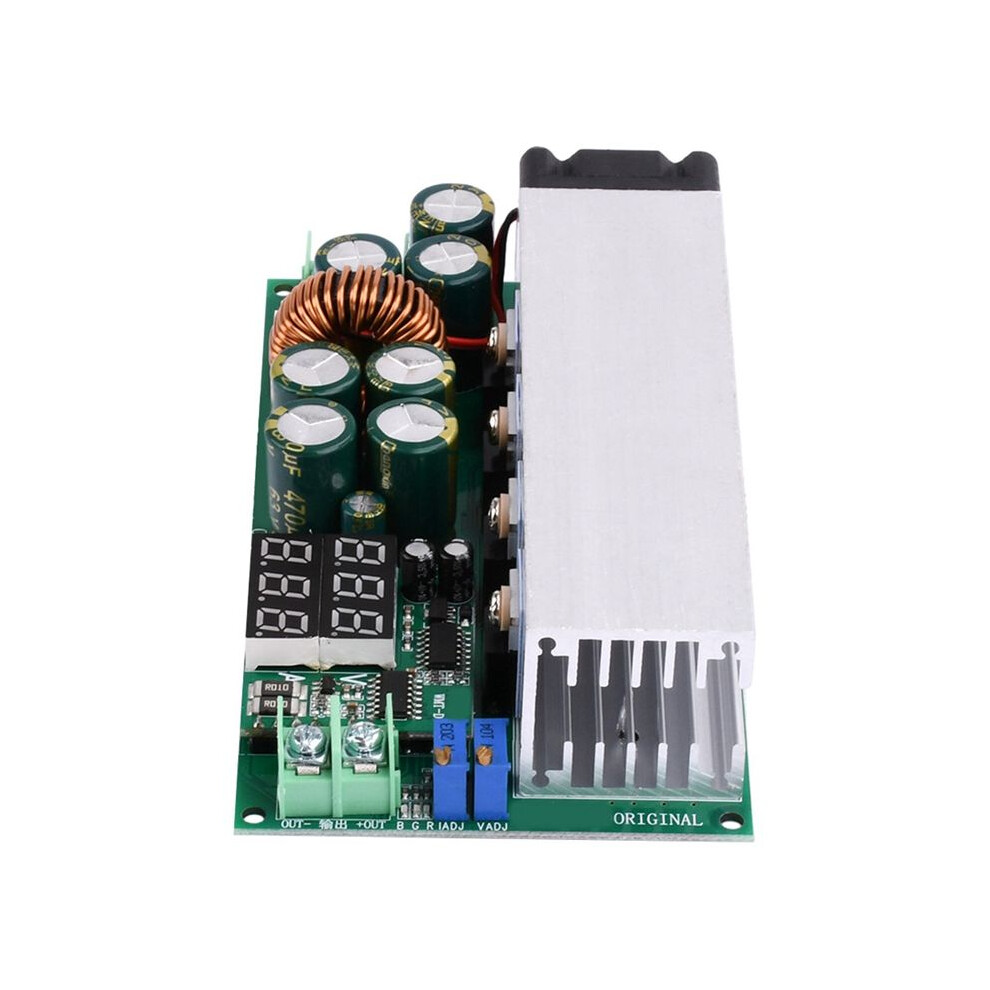

Interface description:IN+: Input positive pole; IN -: Input negative pole; 0UT +: Output positive pole; 0UT -: Output negative pole; B Bule light: Constant voltage no current; G Green light: Current light; C-R-Red Red Red light: Constant current mode light; IADJ: Current adjustment, clockwise large, counterclockwise
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Colour:As Shown
Material:abs
Size:L125mm x W70mm x H32mm

Package Contents:
1 * Adjustable Step-Down Power Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
