ESP32 WiFi Module Development Board ST7796U Drive 240x320 Resolution 3.2 Inch LCD TFT Intelligent Touch Screen

ESP32 WiFi Module Development Board ST7796U Drive 240x320 Resolution 3.2 Inch LCD TFT Intelligent Touch Screen Popis

Comes with ESP32-32E module, easy development, sufficient development resources

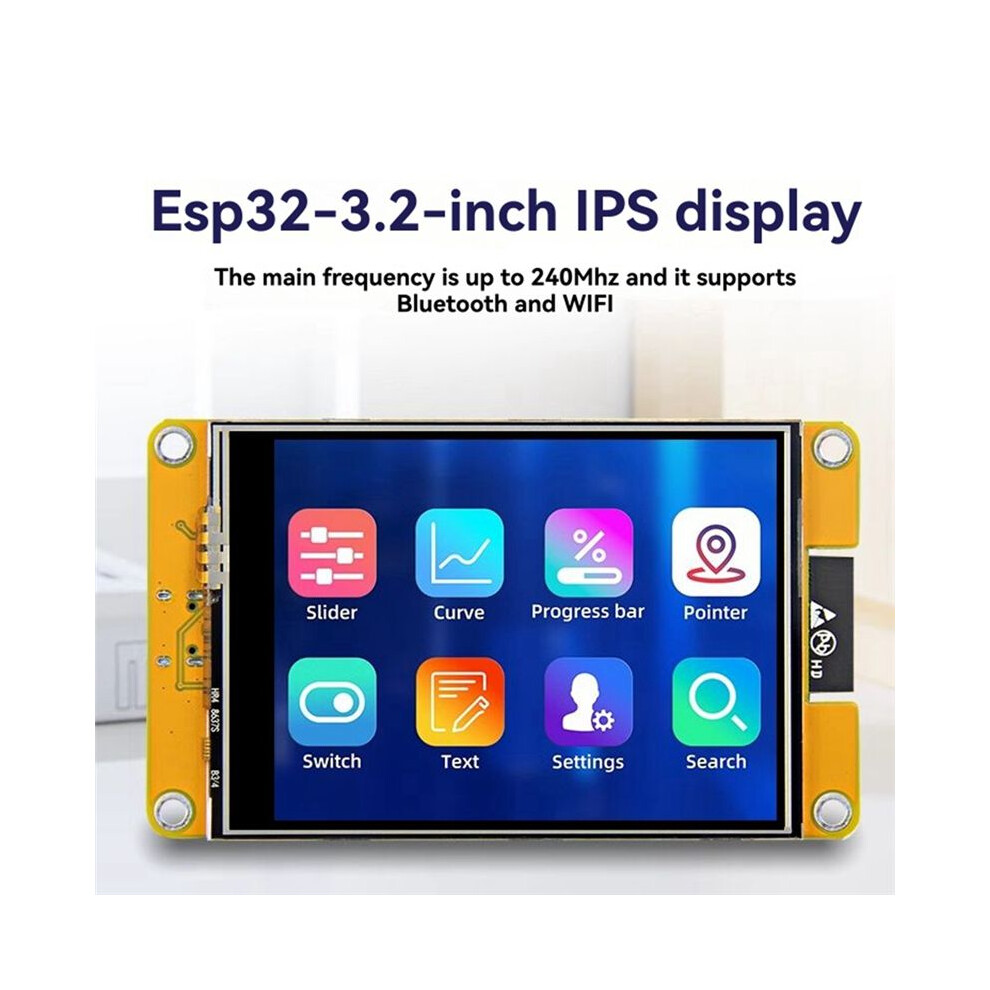

3.2-inch color screen, 240x320 resolution, maximum support 262K color (RGB666), display rich colors
IPS full viewing Angle panel, good viewing Angle
Rich interface, easy to connect a variety of peripherals (I2C, SPI, UART,etc.)
Supports external speakers to audio

Comes with RGB three-color indicator, indicating rich status

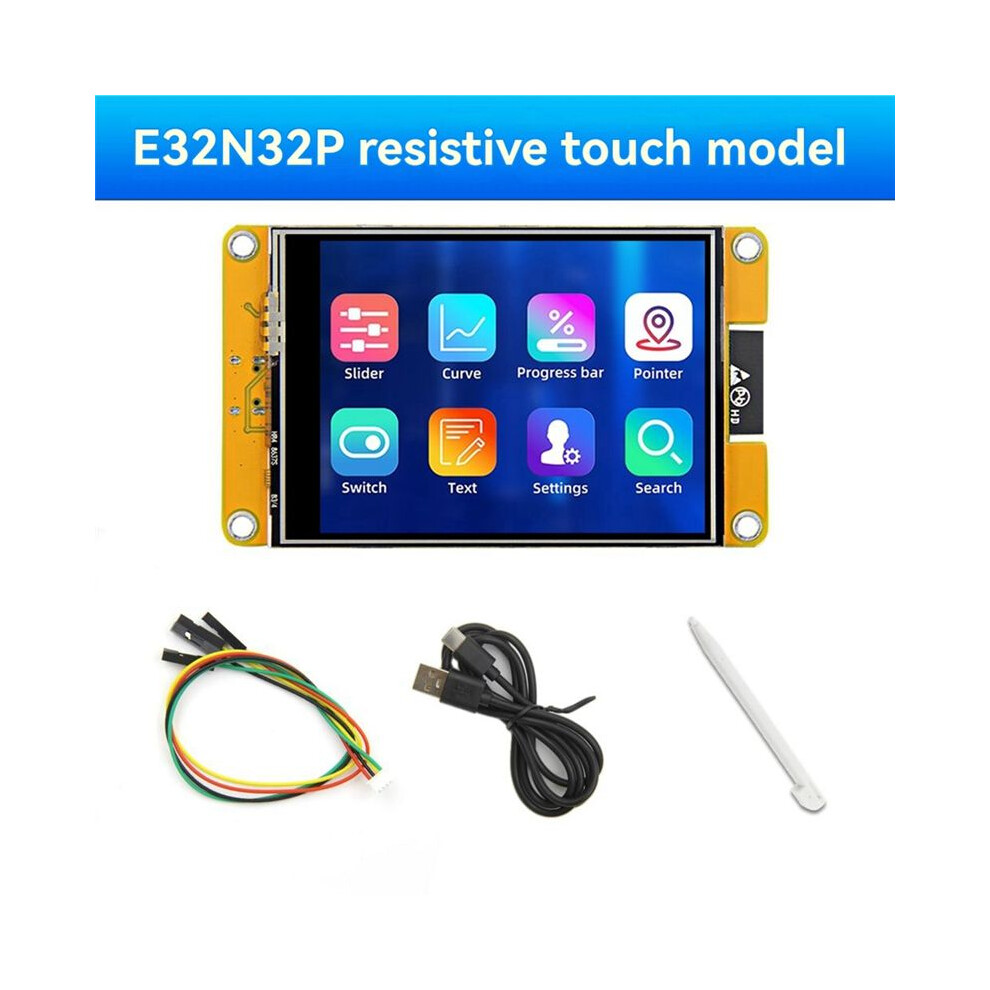

Comes with resistive touch screen, easy -machine interaction
Standard TYPE-C interface for easy program download and power supply
Equipped with micro-TF card slot for easy storage expansion
Support external lithium battery, and portable
Equipped with battery charging management circuit to ensure safe battery charging and discharging
Provide rich example learning programs, easy to learn
Provide low-level driver technical support, and update WIKI information online
Multiple tests for module aging can meet military level standards, supporting long-term stable work
Specifications:
Module:ESP32-32E
CPU:ESP32-D0WD-V3,Xtensa dual-core 32-bit LX6 microprocessor
Frequency:240MHz(Max)
Memory:48KB ROM+520KB +16KB RTC +4MB external QSPI Flash
WIFI:2.4GHz and 802.11b/g/n modes
: V4.2BR /EDR and LE standards
Operating Voltage:3.0-3.6(V)
Operating Temperature:-40-85()
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Colour:As Shown
Material:PCB

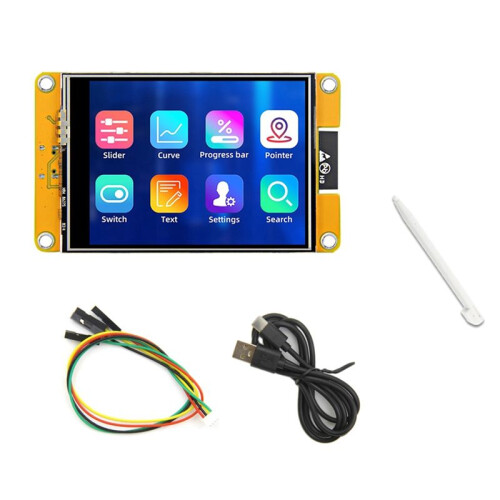

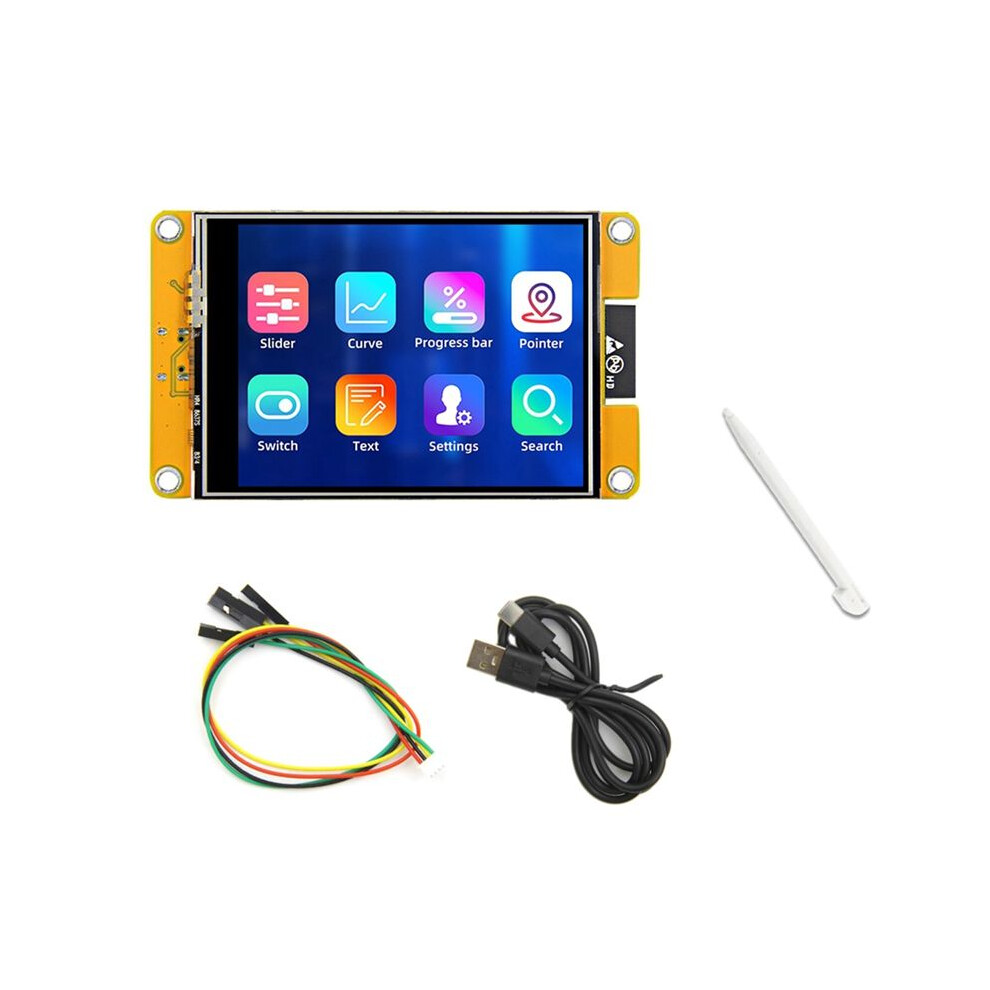

Package Contents:
1 * Screen
1 * Pen
1 * Cable
