Popis a podrobnosti
Zhrnutie
- Description
- FSR402 a light weight, small size, high precision sensor, ultra-thin resistive pressure sensor.
- This kind of pressure sensor is to take place in FSR film sensor area pressure into the change of the resistance value, thus for pressure information.
- The lower the pressure, the greater the resistance.Allow its use in place of pressure 0g - 10 kg.
- The terminal holder sensor can be used in the manipulator with or without holding items, bionic robot first step walk the ground sensors, mammals bite test of biological experiments, application scope and widely. But, since the pressure detection is not very accurate, it is not recommended to use in situations where precise pressure measurement is required.
FSR402 Resistive Thin Film Pressure Sensor Pressure Long Tail Force Sensitive Resistor Popis
Description

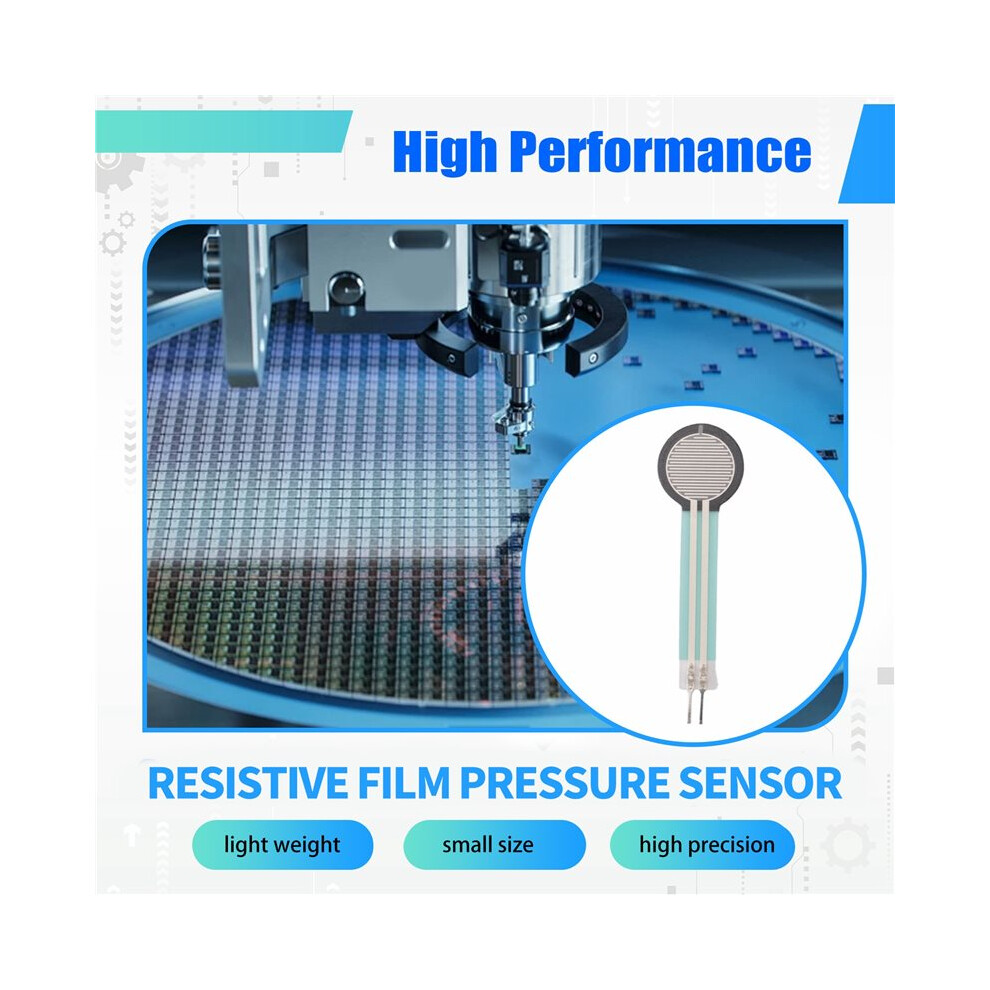

FSR402 a light weight, small size, high precision sensor, ultra-thin resistive pressure sensor.
This kind of pressure sensor is to take place in FSR film sensor area pressure into the change of the resistance value, thus for pressure information.
The lower the pressure, the greater the resistance.Allow its use in place of pressure 0g - 10 kg.
The terminal holder sensor can be used in the manipulator with or without holding items, bionic robot first step walk the ground sensors, mammals bite test of biological experiments, application scope and widely. But, since the pressure detection is not very accurate, it is not recommended to use in situations where precise pressure measurement is required.
Paramaters
Sensing area (Sensing range): 0.5 inch circle
The Output signal (Output signal): Resistance signal
The Force sensitive range (range), pressure test: 0g to 10 kg
(life): Greater than 10 m letters actuations

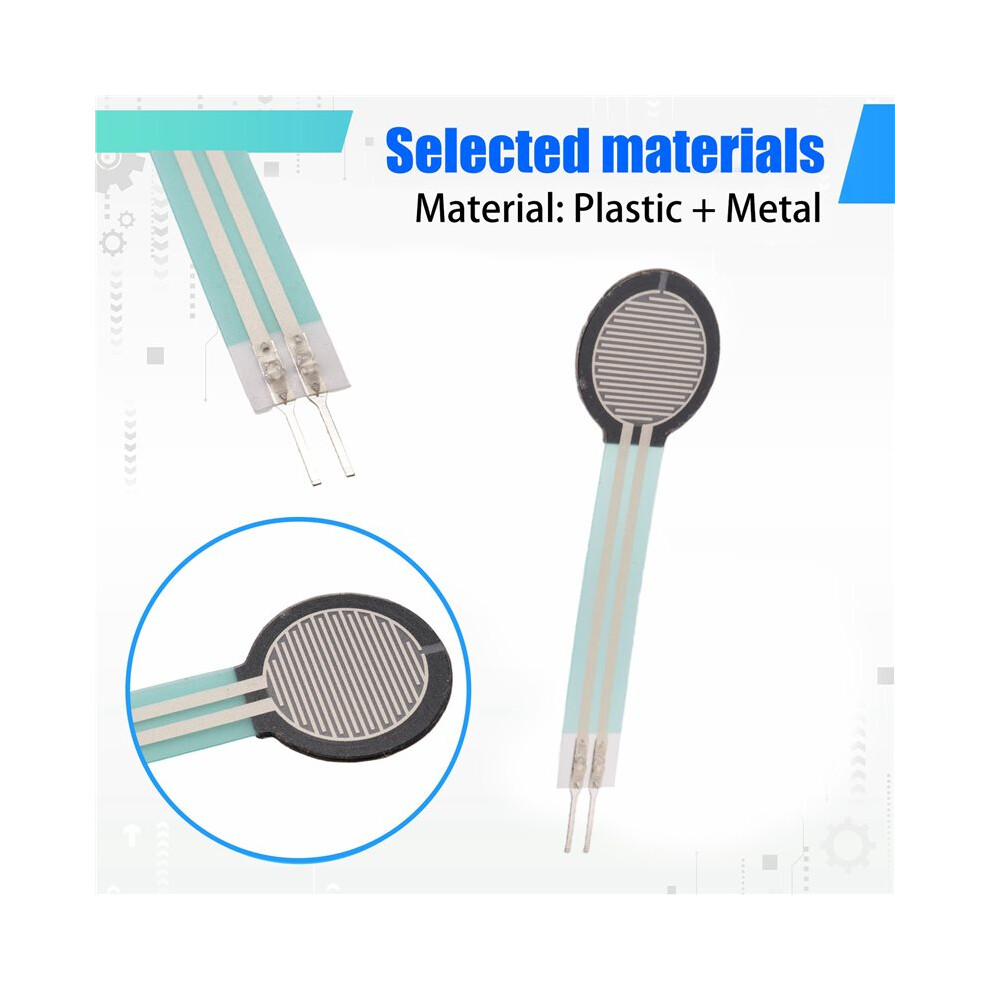

Material: Plastic + Metal
Color: As shown
There are slight color differences or differences in the real thing, and it does not affect the use
Package Contents:
1 x Resistive film pressure sensor
Podrobnosti
| OPC | PVJR5TJ |
|---|---|
| Značka | Tlily |
| Kódy | 6034124926599 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 1cm |
|---|---|
| Width | 2cm |
| Length | 7cm |
| Weight | 0.001kg |
| Colour | As Shown |
| Material | Plastic + Metal |
