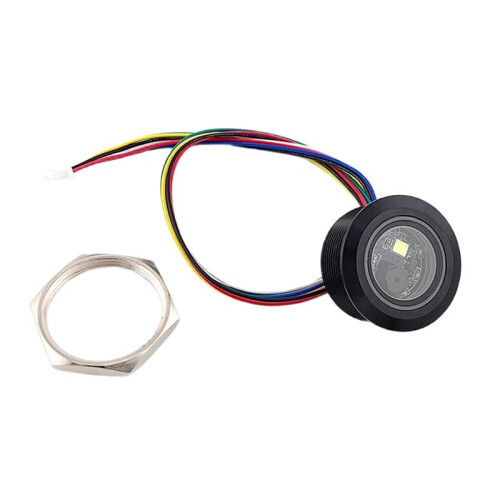

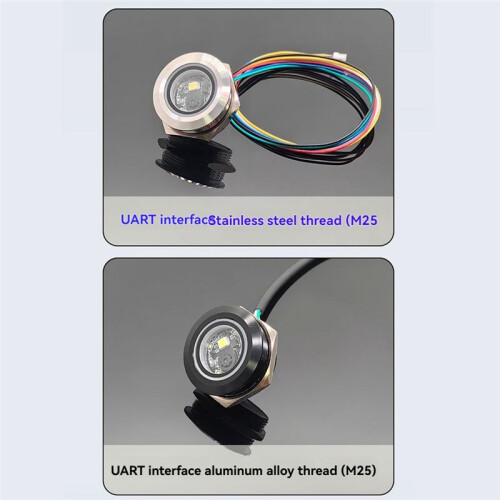

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3V QR Code Round Barcode Module Scanner Metal Enclosure Black

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3V QR Code Round Barcode Module Scanner Metal Enclosure Black Popis

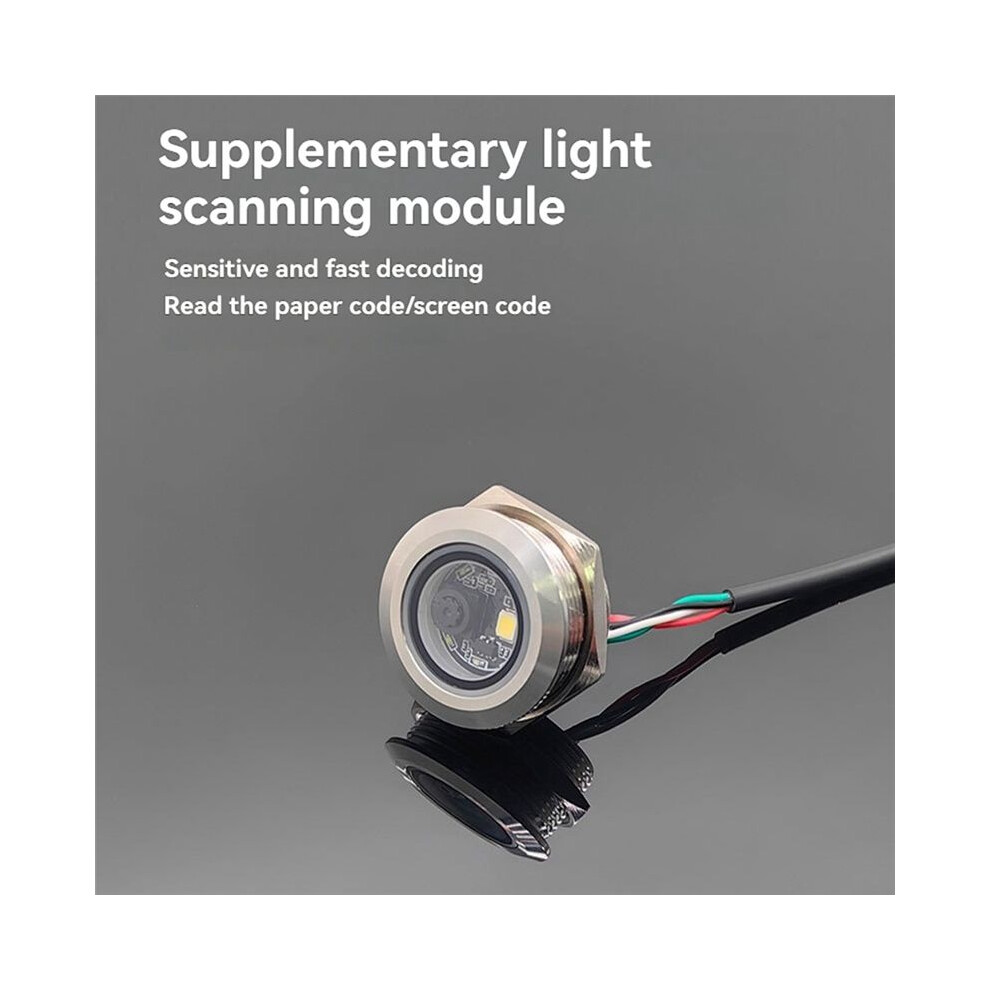

Sensitive sensor, fast decoding, reads both paper and screen codes.
Suitable for retail, medical equipment, traffic management, intelligent device development, and other fields.

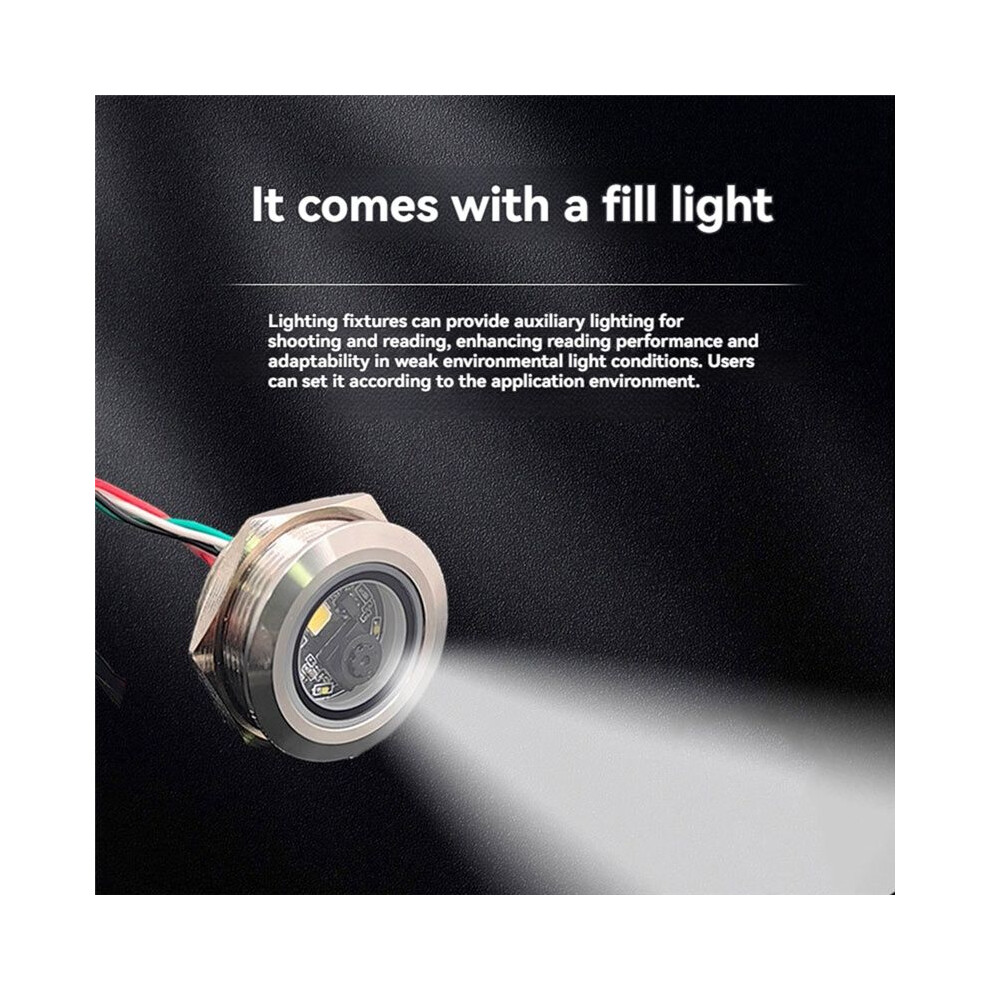

Built-in fill light: The light provides auxiliary illumination for shooting and reading, improving reading performance and adaptability to low-light conditions. Users can set it according to the application environment.
Multi-system compatibility: Supports for Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android, for , and other mainstream operating systems.

GM861-LED Performance Parameter:
Sensor:CMOS
Scan Mode:640x480
GM861-LED
Indicator Light:White light as power Green light as read successfully
GM861-LED Fill Light:White light
Read Code Type:
1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial 2 of 5,
Matrix 2of 5, Code 39,Code11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
2D: QRCode, DataMatrix, PDF417, Micro-QR, Micro-type PDF417, Aztec
GM861-LED Reading Distance:5-30cm
Contrast: Greater than 25%
Scan Angle: Roll:360Pitch:65Yaw:65
Viewing Angle:67(Horizontal)53(Vertical)
Accuracy of reading: greater than equal 10mil
Mechanical/electrical Parameters:

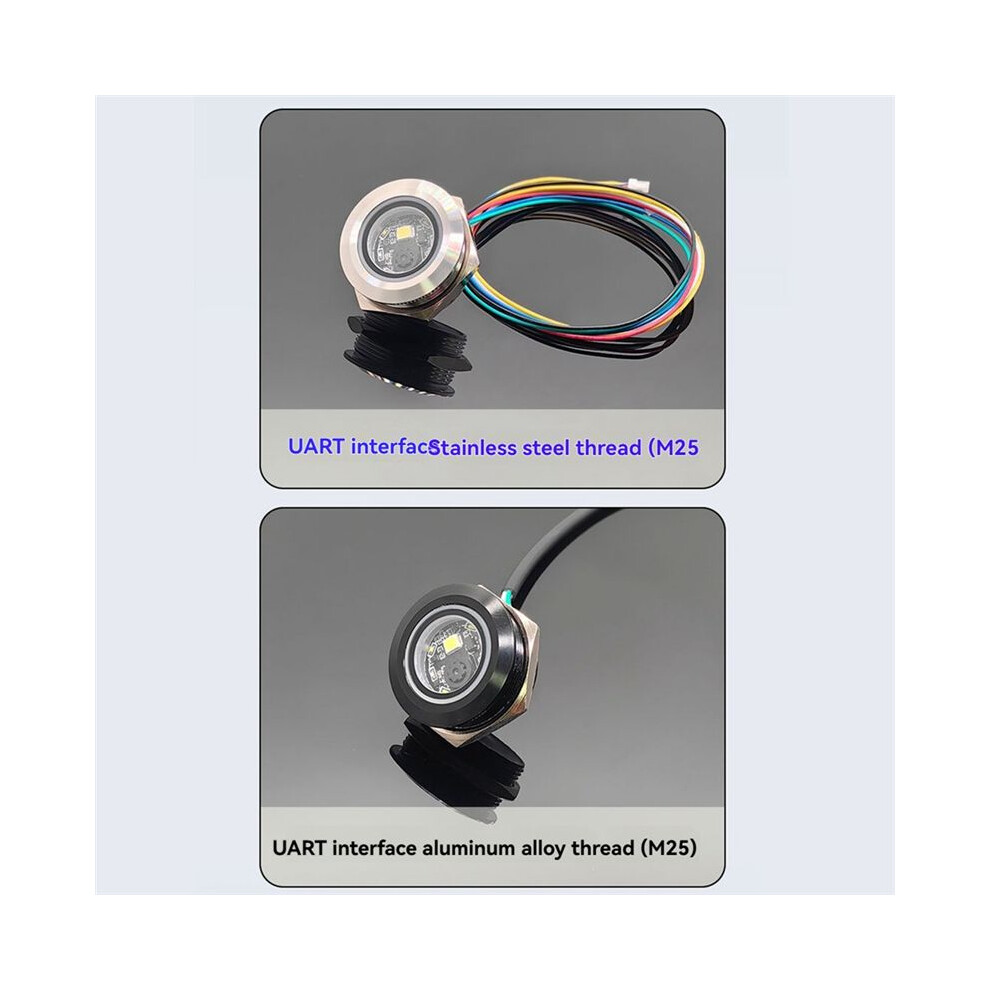

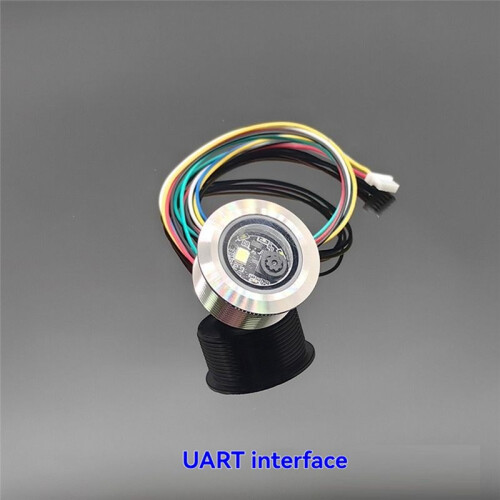

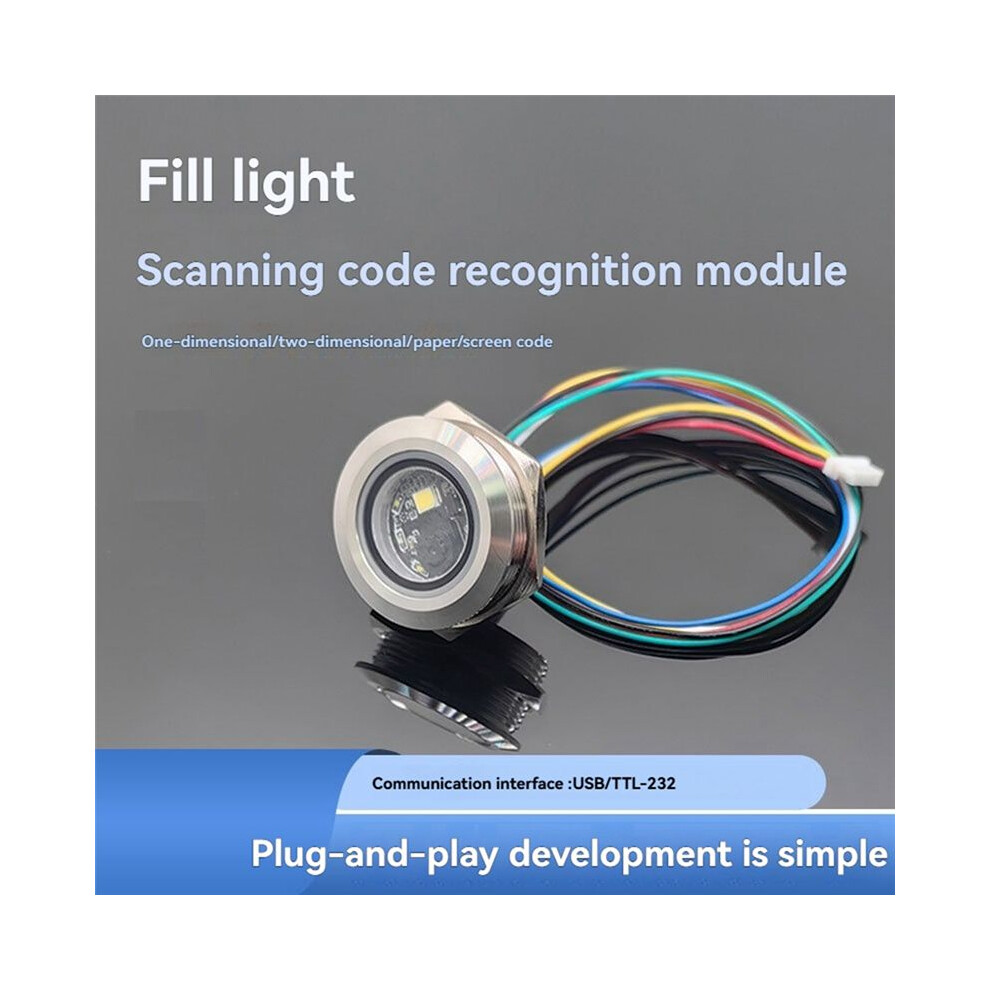

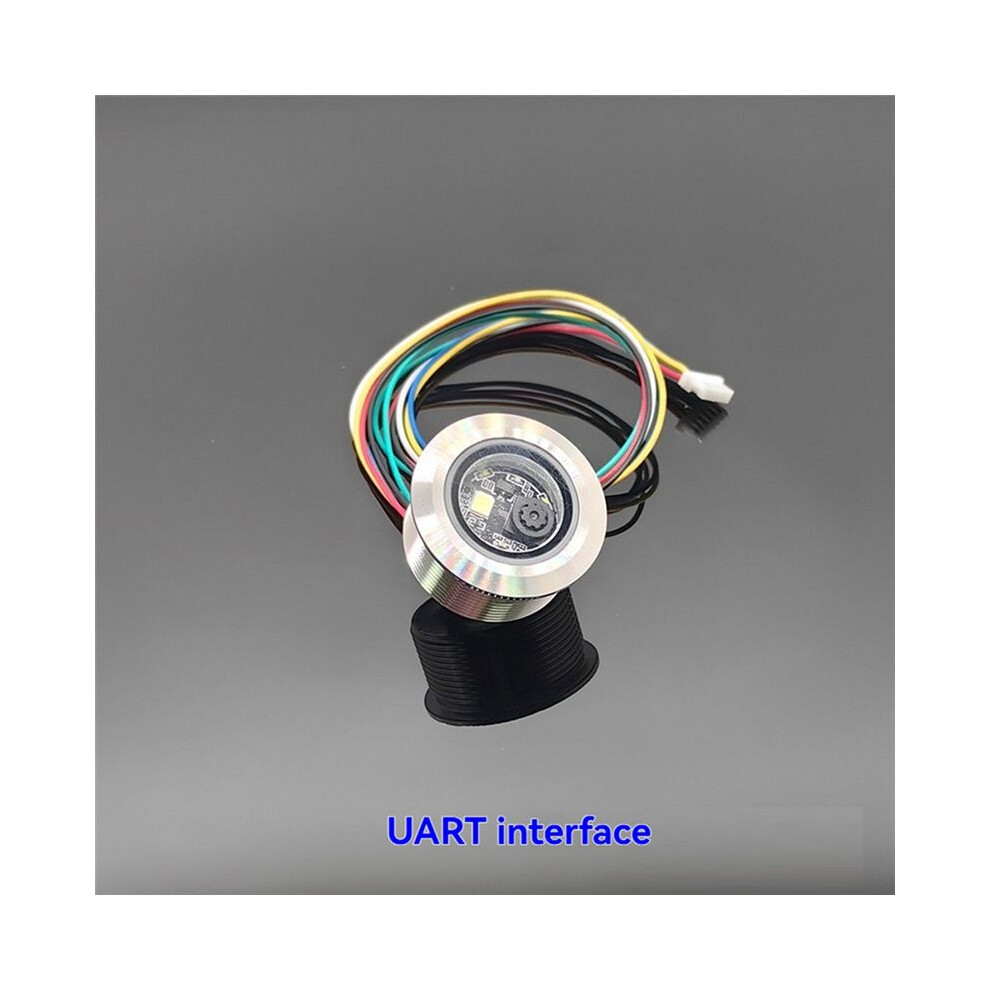

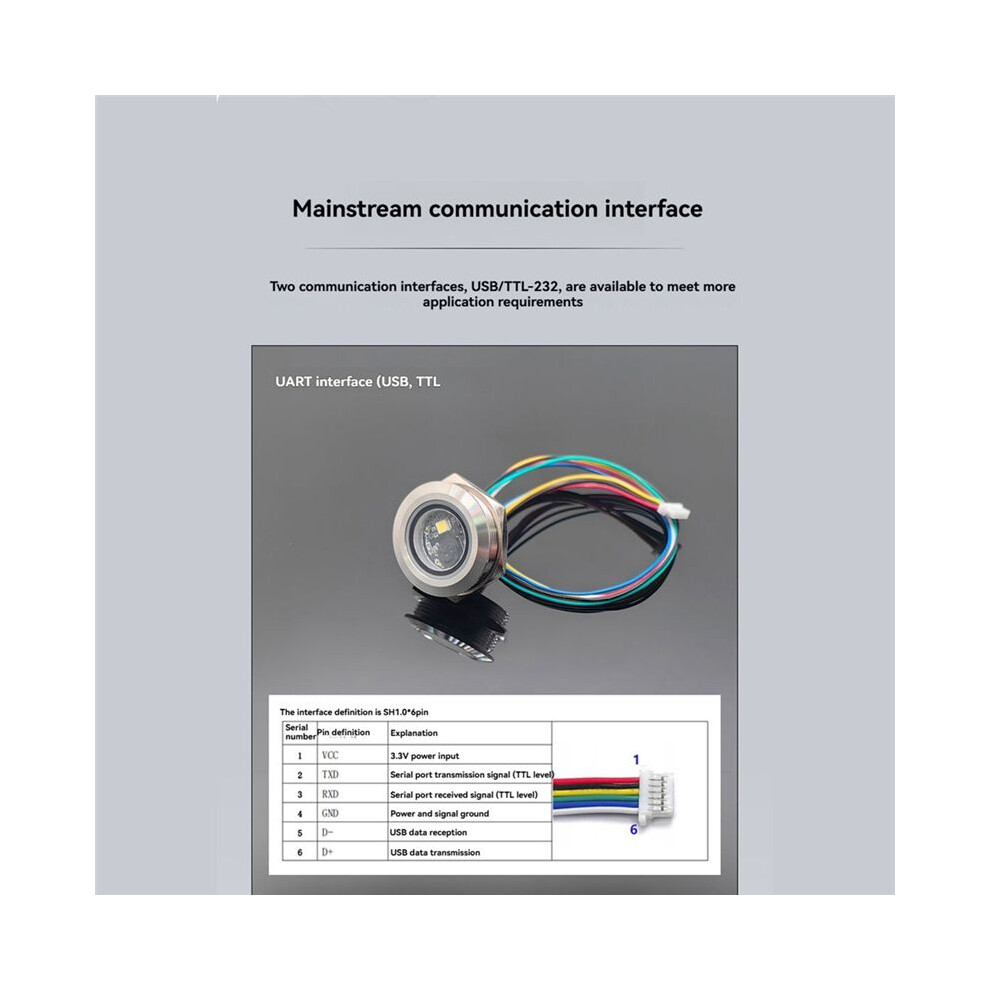

Interface:TTL-232/USB
Prompting Mode:LED Indicator
Operating Voltage:3.3V
Operation Current:70mA(Max)
Standby Current:less than equal 6mA(Typical)
Startup :less than equal 250mS (Typical)
Color:Black

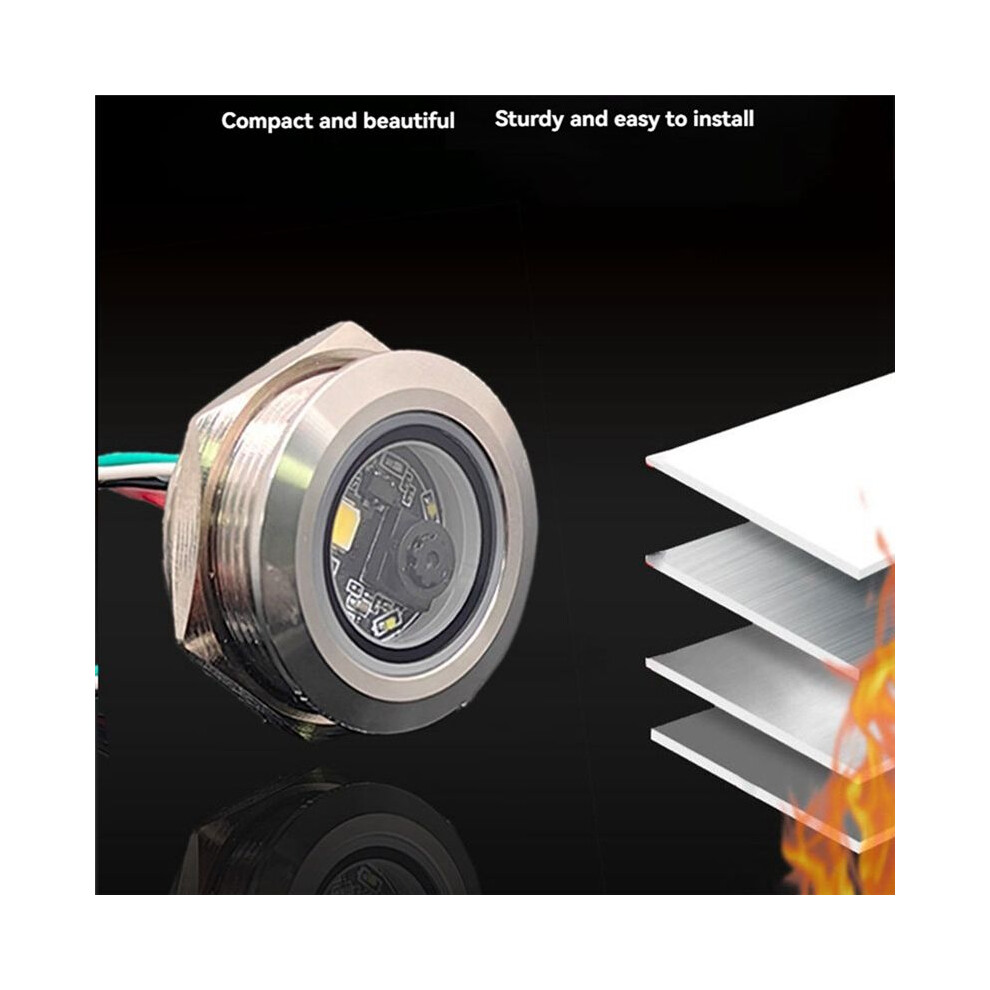

Material:Aluminum Alloy

Package Contents:
1 * Barcode Module
