High Current Suitable for Solar Charging No Voltage Restriction 40A 65A 100A Backflow Prevention Ideal Diode Module 65A

High Current Suitable for Solar Charging No Voltage Restriction 40A 65A 100A Backflow Prevention Ideal Diode Module 65A Popis

Product Features:

1. Utilises 300A high-current MOSFETs for efficient, low-loss conduction
2. Multiple specifications available to accommodate diverse power applications with exceptional flexibility
3. No voltage restrictions ensure broad compatibility across various power systems
4. Reverse current and reverse connection protection safeguards circuits from damage
5. Rapid response with millivolt-level detection for precise control
6. Modular design with optional terminals for straightforward installation and adaptability
Product Description:

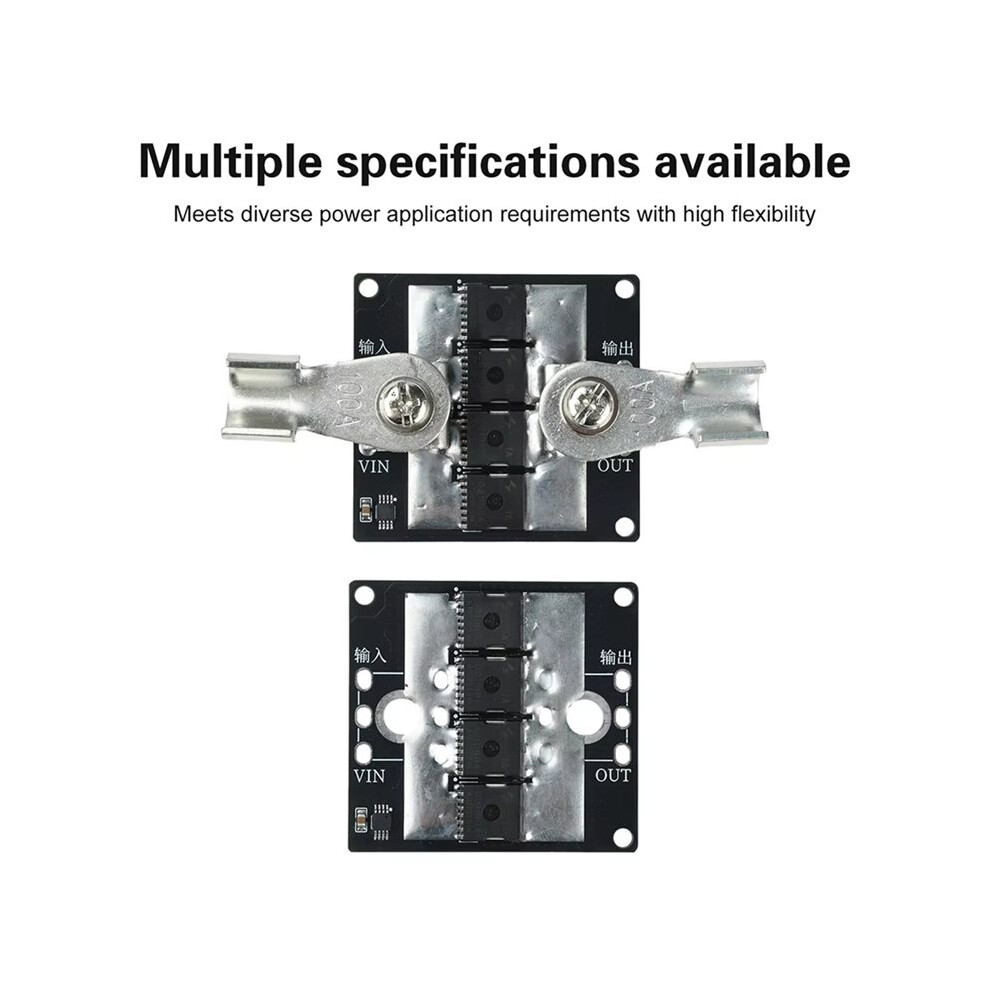

Multiple variants available to fulfil diverse requirements
Simply connect in series to the circuit's positive terminal; no negative connection required
No input voltage restrictions (ensuring reverse voltage remains below 40V)
300A high-current MOSFETs: single unit handles 40A, dual units 65A, quad units 100A
Rapid response to reverse polarity within 2μs; input and output behaviour equivalent to a diode. Output immediately shuts off upon detecting output voltage exceeding input, with detection sensitivity at the millivolt level
Color: Black
Material: Plastic+Metal
Specification: 65A

Package Contents:
1*Module
