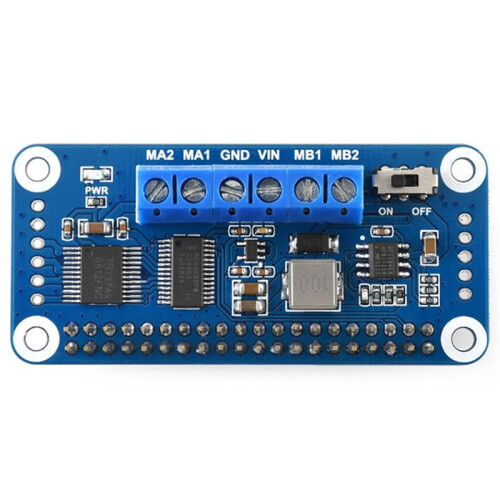

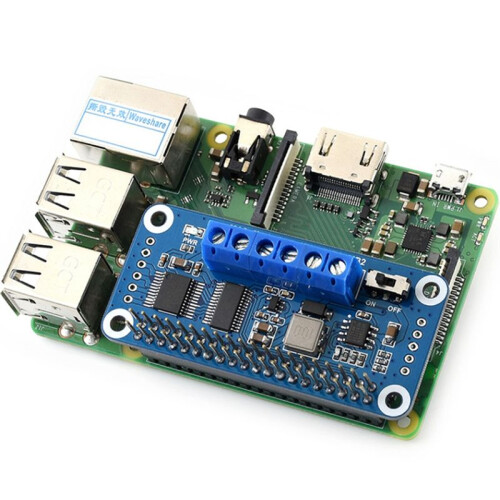

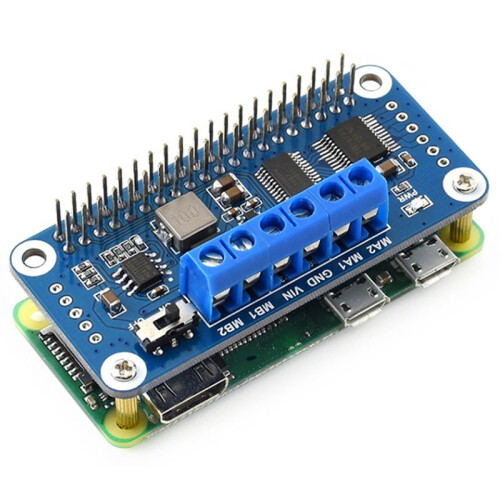

Motor Driver Board for Raspberry Pi PCA9685 I2C Interface for DIY Car
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 128,000 hodnotení s “Vynikajúcim” hodnotením
37,26 €
+10,07 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
K dispozícii sú aj bezúročné možnosti platby
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (10,07 €) | pon 27 júl - sob 1 aug
Predáva: CollBea
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Najobľúbenejšie v Konektory na doske plošných spojov
Popis a podrobnosti
Zhrnutie
- Motor Driver Board Optimized for Raspberry Pi: Designed for the Raspberry Pi platform, this motor driver board features an I2C interface for easy control, making it an ideal component for DIY smart cars.
- Advanced Control Features: Equipped with a PCA9685 chip, the board provides 12-bit hardware PWM for precise motor speed control.
- Enhanced Connectivity: The board is able to connect up to 32 modules simultaneously using adjustable address jumpers, which improves the scalability of your project. It also includes a reserved I2C control interface for connecting other main control boards.
- Powerful Power Management: With an onboard 5V regulator chip, it supports a supply voltage of 6V to 12V through the VIN terminal, with an output of up to 3A, allowing battery power to be connected.
- Compact and Durable: With a board size of 65mm x 30mm and a through-hole diameter of 3.0mm, the board is designed to be durable and easy to install in a variety of settings.
Motor Driver Board for Raspberry Pi PCA9685 I2C Interface for DIY Car Popis
Motor Driver Board Optimized for Raspberry Pi: Designed for the Raspberry Pi platform, this motor driver board features an I2C interface for easy control, making it an ideal component for DIY cars.
Advanced Control Features: Equipped with a PCA9685 chip, the board provides 12-bit hardware PWM for precise motor speed control.
Enhanced Connectivity: The board is able to connect to 32 modules simultaneously using adjustable address jumpers, which improves the scalability of your project. It also includes a reserved I2C control interface for connecting other main control boards.
Powerful Power Management: With an onboard 5V regulator chip, it supports a supply voltage of 6V to 12V through the VIN terminal, with an output of to 3A, allowing battery power to be connected.
Compact and Durable: With a board size of 65mm x 30mm and a through-hole diameter of 3.0mm, the board is designed to be durable and easy to install in a variety of settings.
Supply voltage:6V-12V (VIN terminal)
Logic voltage:3.3V
PWM driver chip: PCA9685
Control interface: I2C
Motor driver chip: TB6612FNG
Via diameter: 3.0mm
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:
Material:PCB
Package Contents:
1 * Motor Driver Board
Podrobnosti
| OPC | PRKB8WD |
|---|---|
| Kódy | 4713634469087 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 11cm |
| Weight | 0.022kg |
| Colour | Blue |
| Material | PCB |
