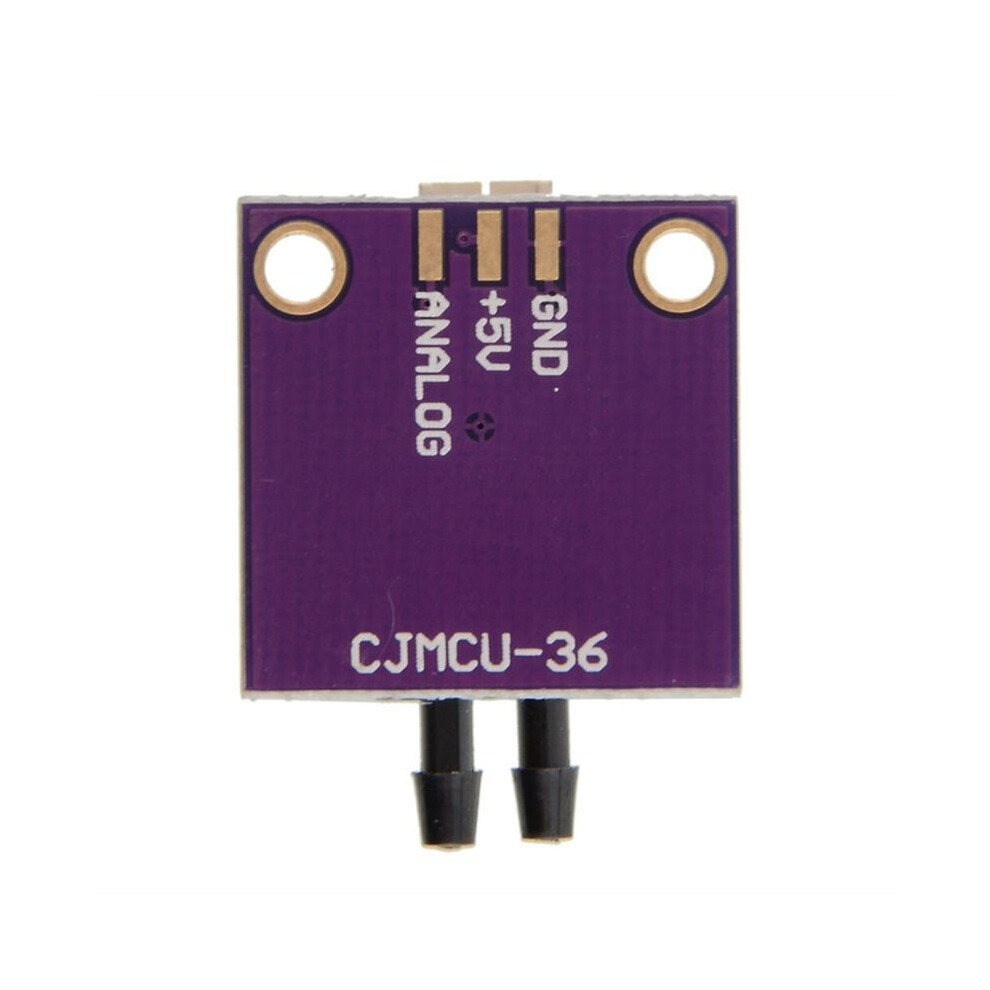

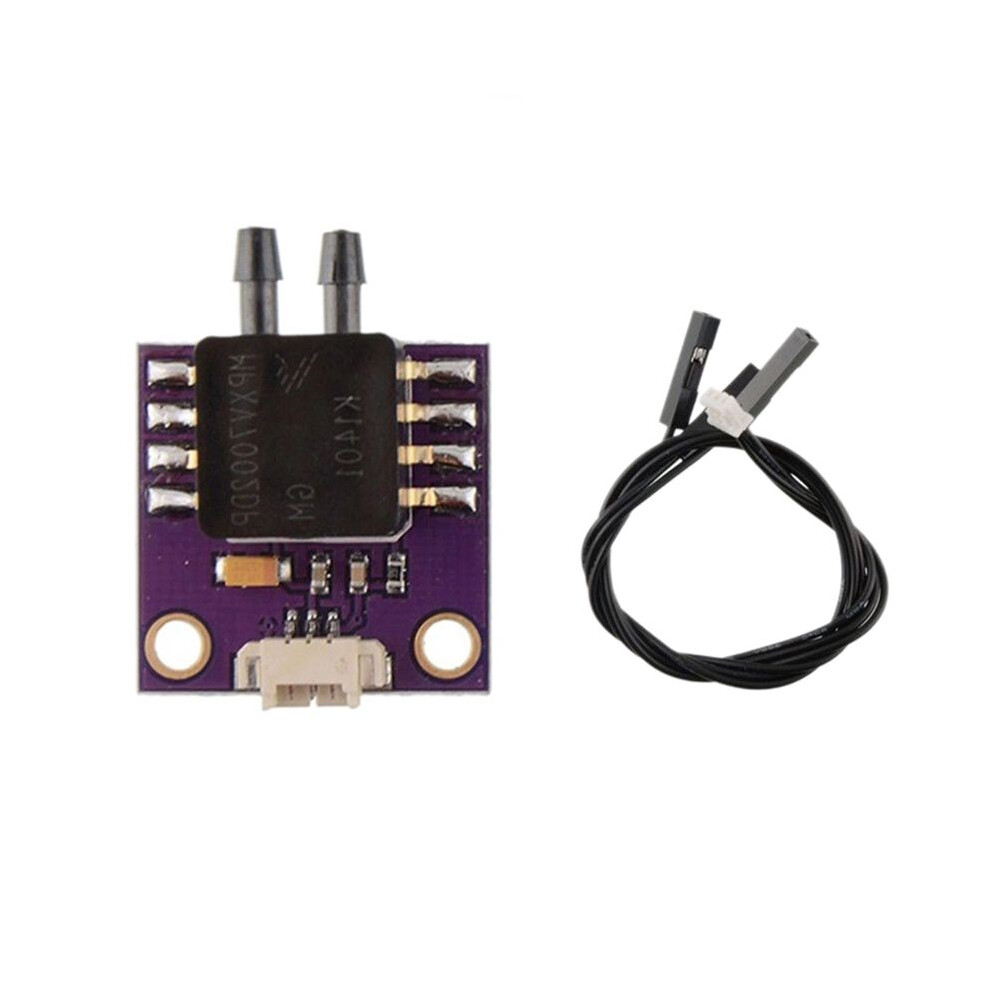

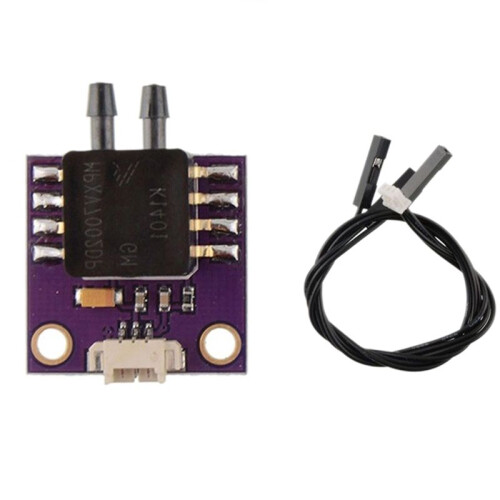

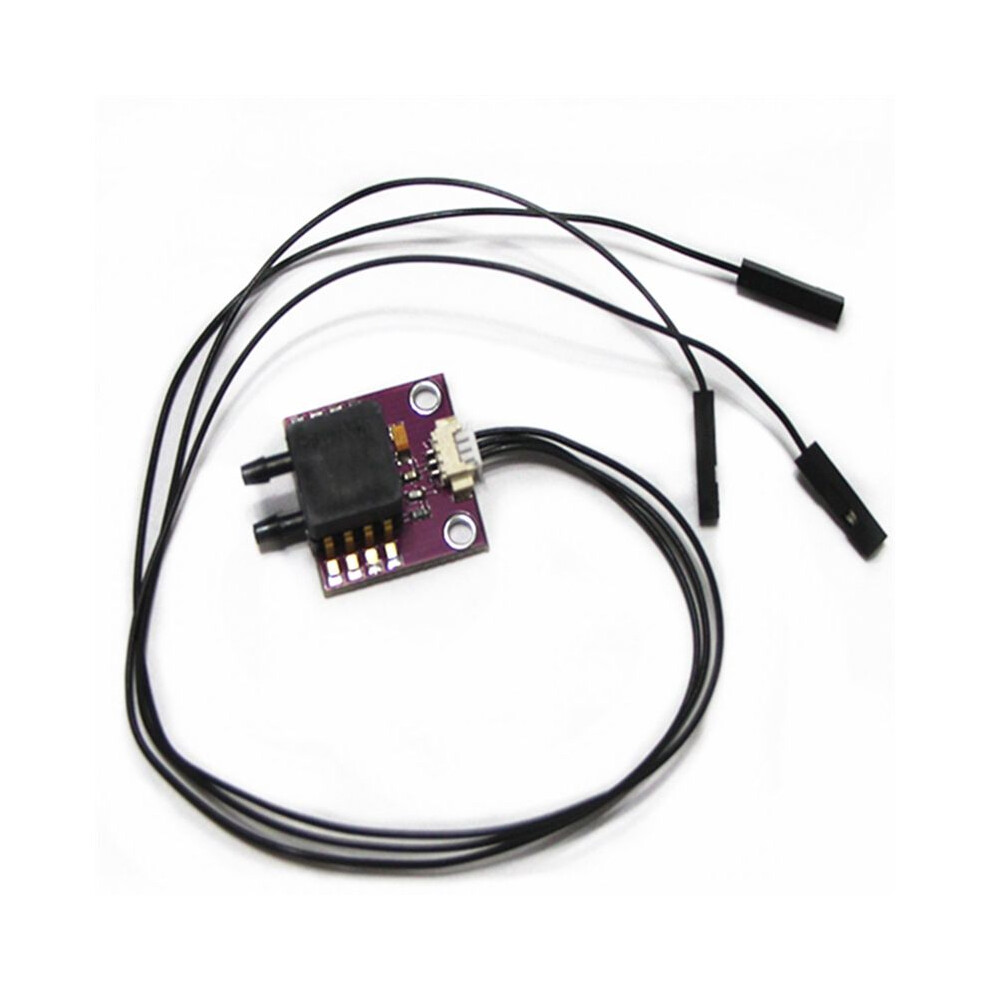

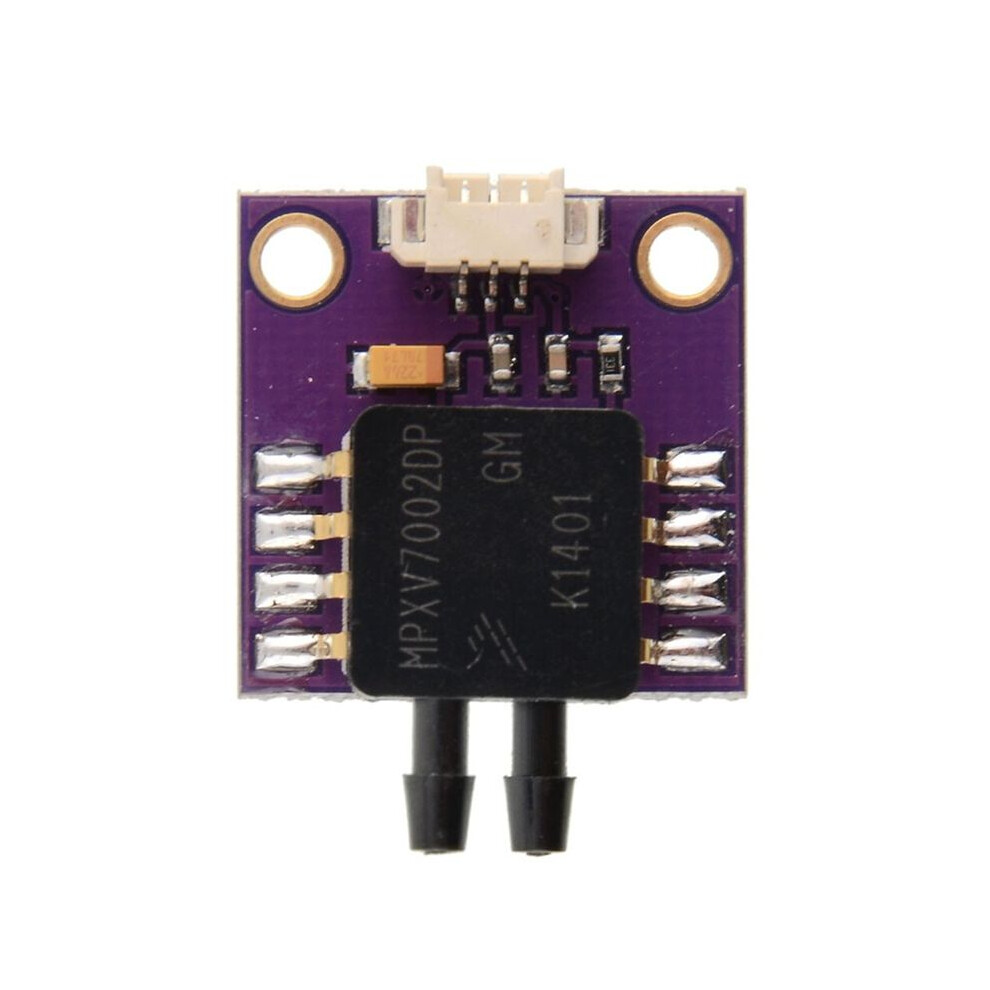

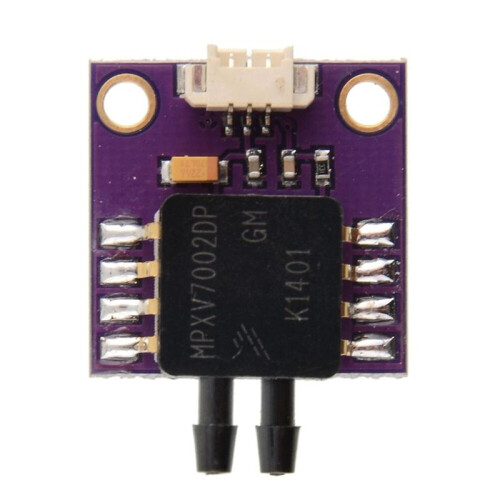

MPXV7002DP Airspeed Sensor Breakout Board Transducer APM2.5 Differential Pressure Sensor Flight Controller

MPXV7002DP Airspeed Sensor Breakout Board Transducer APM2.5 Differential Pressure Sensor Flight Controller Popis

The MPXV7002 series piezoresistive transducer in the small outline package(SOP) is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications,but particularly those employing a microcontroller or microprocessor with A/D inputs.This patented,single element transducer combines advanced micromachining techniques, thin-film metallization,and bipolar processing to provide an accurate,high level analog output signal that is proportional to the applied pressure.
The MPXV7002 is designed to measure positive and negative pressure. In addition, with an offset specifically at 2.5V instead of the conventional 0V, this new series allows to measure pressure to 7kPa through each port for pressure sensing but also for vacuum sensing

Features:-2 to 2 kPa (-0.3 to 0.3 psi)
0.5 to 4.5 V Output
Weight:0.1 oz; 4 g
Color:As Shown
Material:PCB

Package Contents:
1 * Sensor Module
