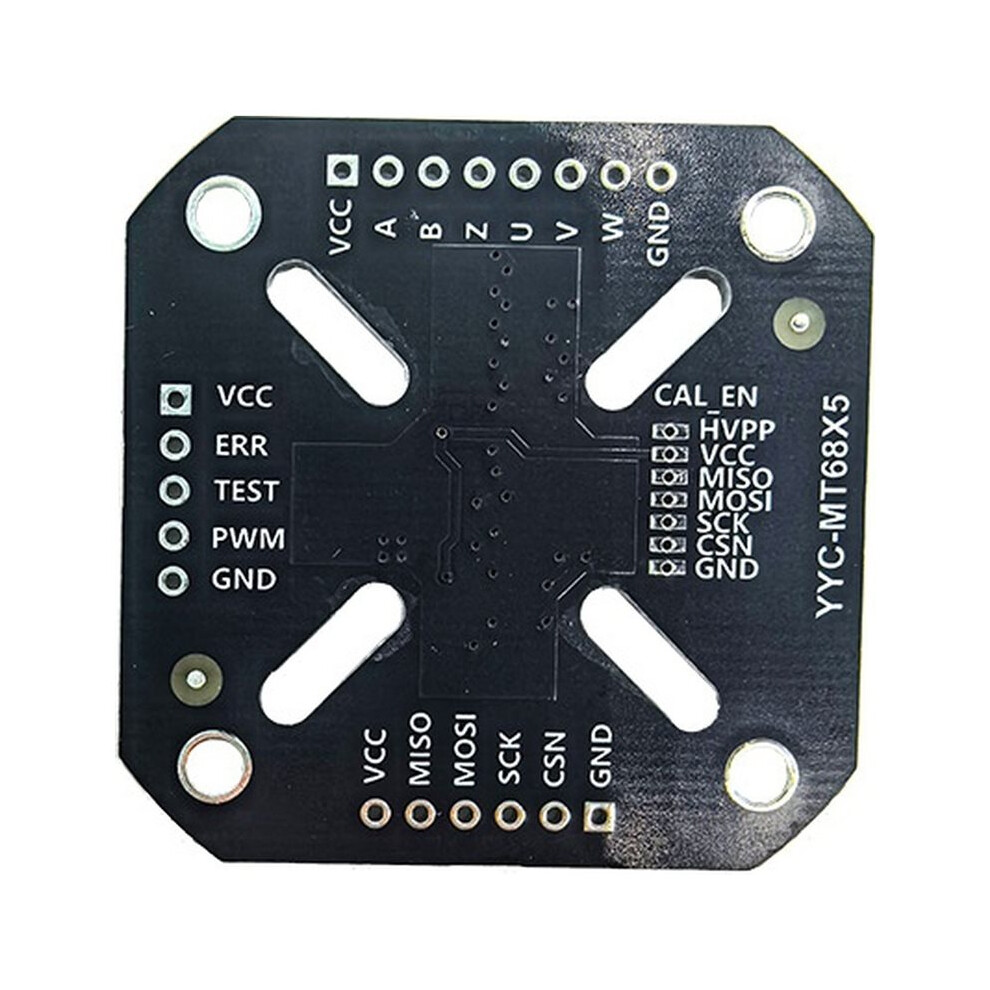

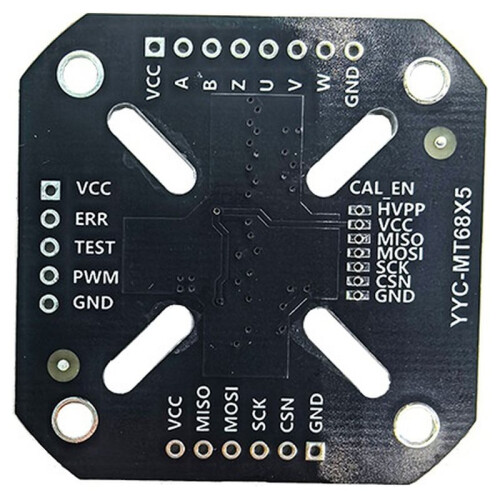

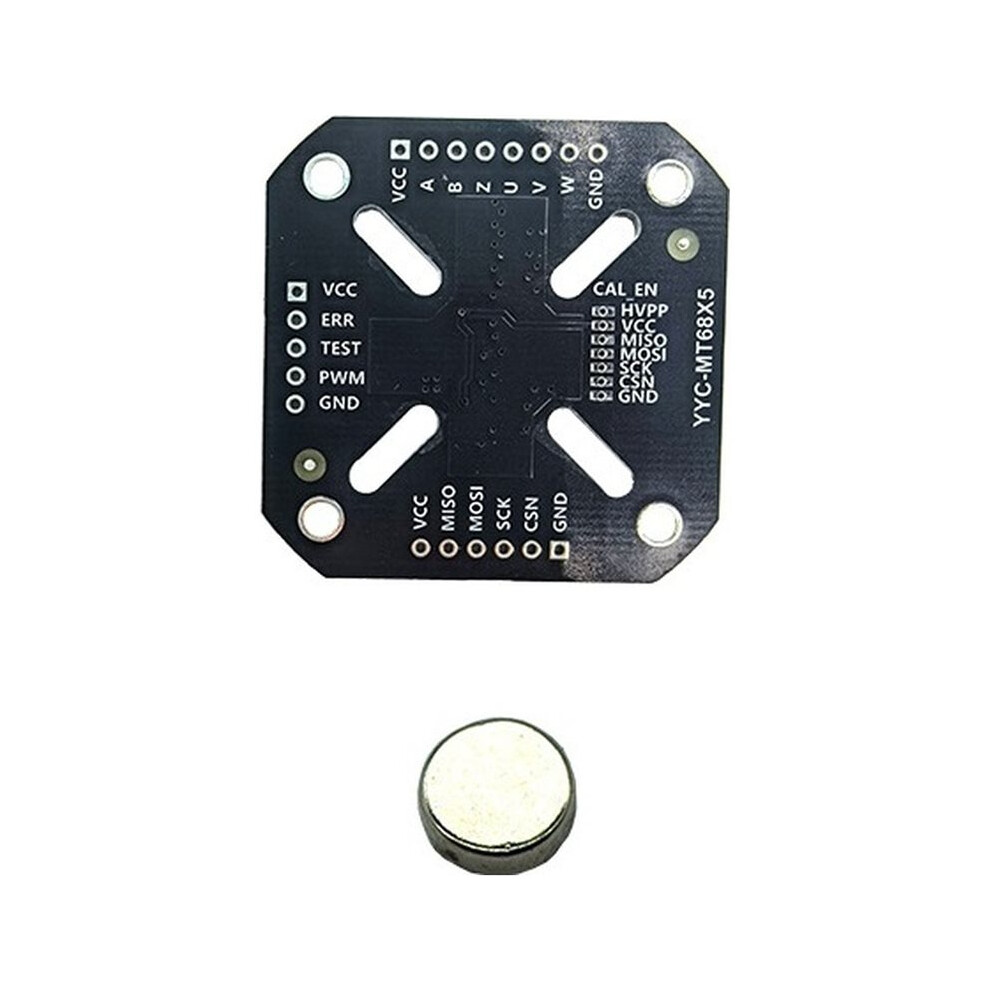

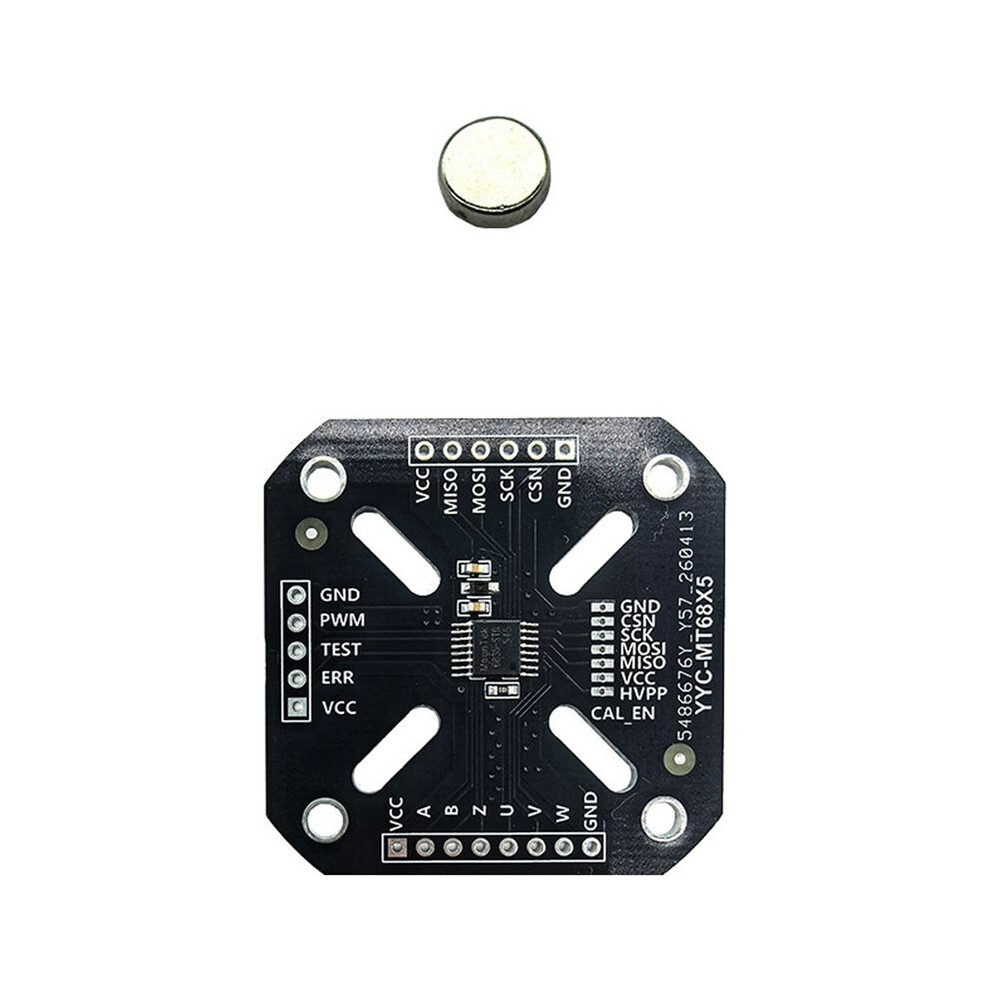

MT6825 Magnetic Encoder with 18-Bit Absolute Value for Stepper Brushless Motor ABZ 1-4096 Output SPI Communication
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 133,000 hodnotení s “Vynikajúcim” hodnotením
9,39 €
43,98 €
79 % zľava!
+8,00 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (8,00 €) | pon 14 - pon 21 sep
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Popis a podrobnosti
Zhrnutie
- The MT6825 is a third-generation magnetic angle encoder chip, based on anisotropic magnetoresistive (AMR) technology and proprietary signal processing technology to achieve absolute angle measurement from 0 to 360°.
- The chip consists of a pair of AMR Wheatstone bridges and a signal processing ASIC circuit. As the magnetic field parallel to the chip surface rotates, the chip outputs a corresponding encoded angle signal with a signal delay as low as less than 2µs. User can also read the angle data calculated internally by the chip via a high-speed SPI interface.
- Compared to traditional Hall effect sensors, AMR angle sensors operate in the saturation region, reducing the requirements for the magnetic field and making installation easier for customers.
- The MT6825 is available in a TSSOP-16 package and can simultaneously output ABZ, UVW, and SPI signals, making it widely applicable in various consumer and industrial fields such as motor position feedback control and rotation control.
- Brushless motor encoder
MT6825 Magnetic Encoder with 18-Bit Absolute Value for Stepper Brushless Motor ABZ 1-4096 Output SPI Communication Popis
The MT6825 is a third-generation magnetic angle encoder chip, based anisotropic magnetoresistive (AMR) technology and proprietary signal processing technology to achieve absolute angle measurement from 0 to 360.
The chip consists of a pair of AMR Wheatstone bridges and a signal processing ASIC circuit. As the magnetic field parallel to the chip surface rotates, the chip outputs a corresponding encoded angle signal with a signal delay as low as less than 2µs. User can also read the angle data calculated internally by the chip via a high-speed SPI interface.
Compared to traditional Hall effect sensors, AMR angle sensors operate in the saturation region, reducing the requirements for the magnetic field and making installation easier for customers.
The MT6825 is available in a TSSOP-16 package and can simultaneously output ABZ, UVW, and SPI signals, making it widely applicable in various consumer and industrial fields such as motor position feedback control and rotation control.
MT6825 Parameters:
Operating voltage: 3.0-5.0V
Operating temperature: -40-125C
System latency (constant speed):
Podrobnosti
| OPC | PXJH6VW |
|---|---|
| Kódy | 6033015279783 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 1cm |
|---|---|
| Width | 5cm |
| Length | 5cm |
| Weight | 0.008kg |
| Colour | Black |
| Material | PCB |
