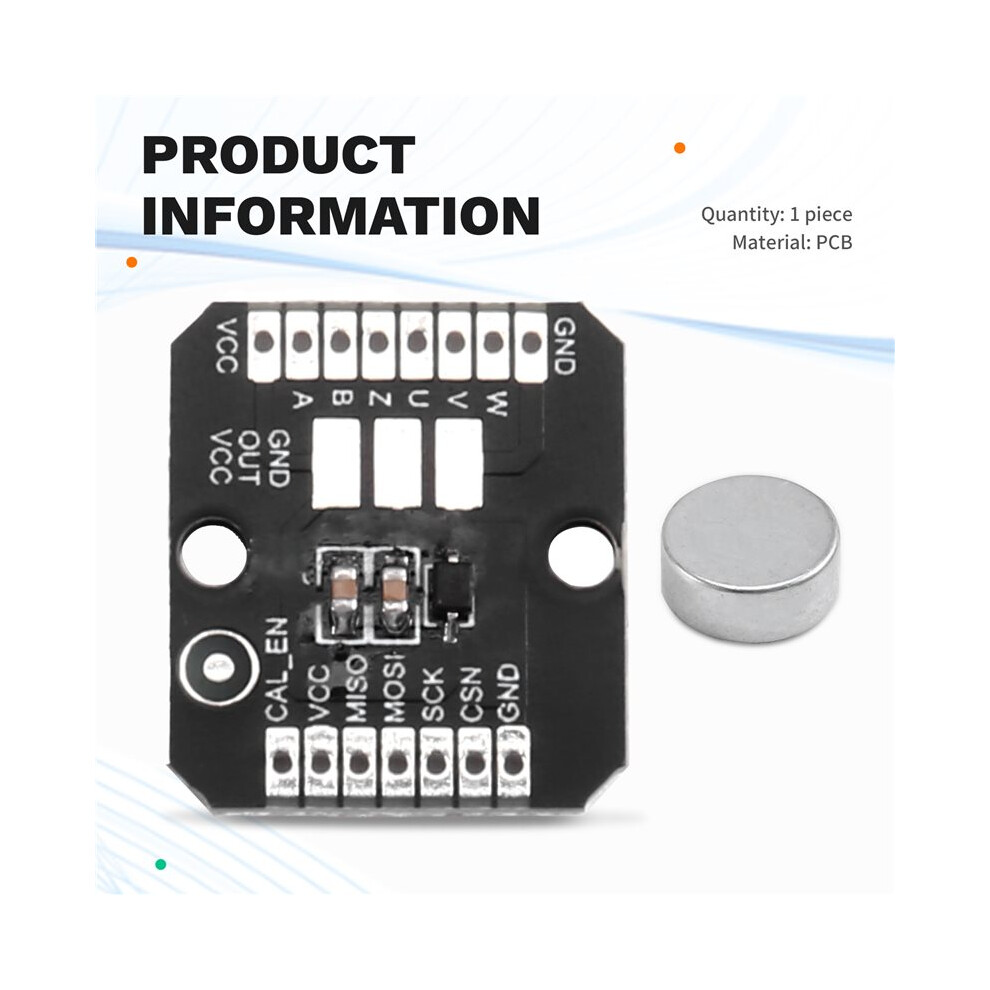

MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Sends Magnet Instead of AS5048

MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Sends Magnet Instead of AS5048 Popis

The MT6835 chip is MagnTek's latest fourth-generation magnetic angle encoder IC, a new upgrade to the MT6825. Based anisotropic magnetoresistive (AMR) technology and proprietary signal processing techniques, it achieves absolute angle measurement from 0 to 360.

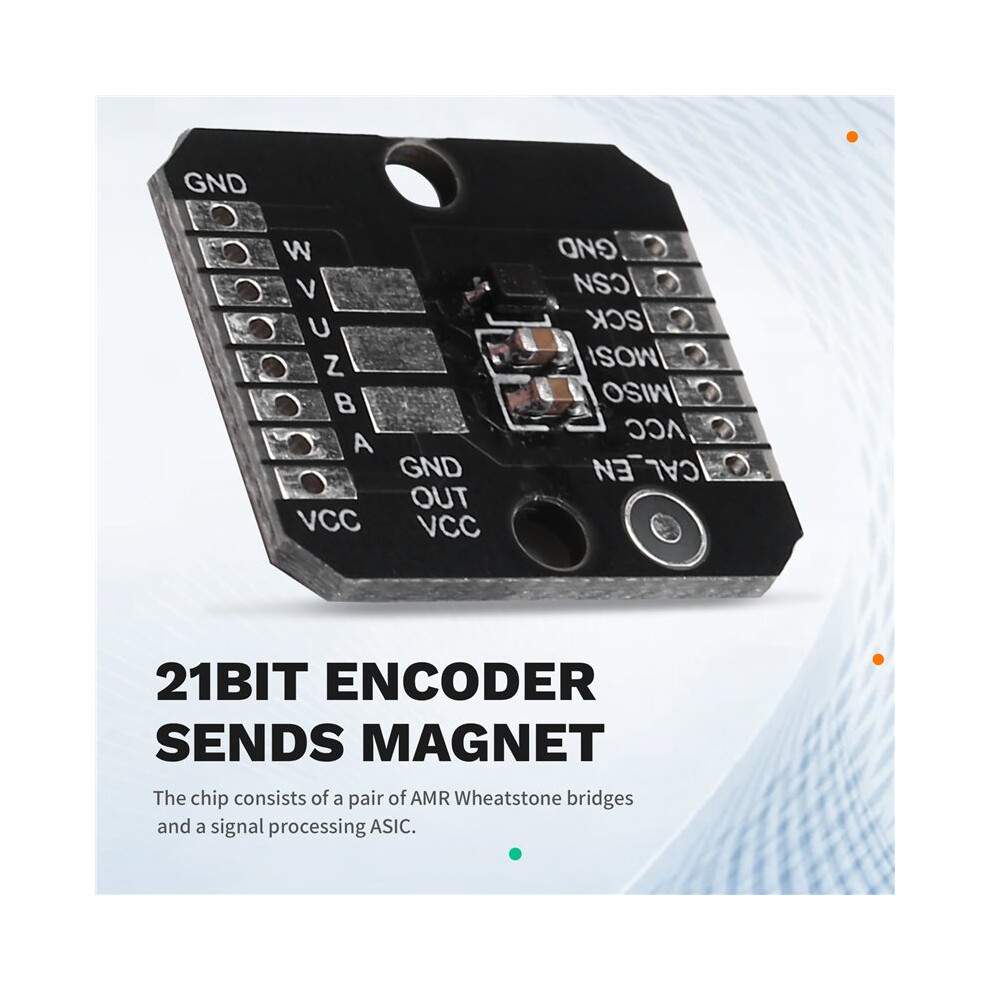

The chip consists of a pair of AMR Wheatstone bridges and a signal processing ASIC. As the magnetic field parallel to the chip surface rotates, the chip outputs angle signals such as ABZ/UVW and PWM. Users can also read the chip's internal 21-bit absolute angle data via an SPI interface supporting to 16MHz clock speed. It supports speeds to 120,000 rpm.
The MT6835 chip is suitable for a variety of applications requiring high-speed and high-precision control, such as closed-loop stepper motor control, 2500- servo motor control, and 17-bit absolute servo motor control.

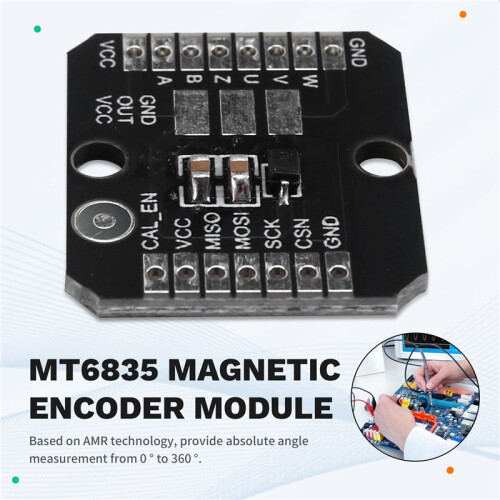

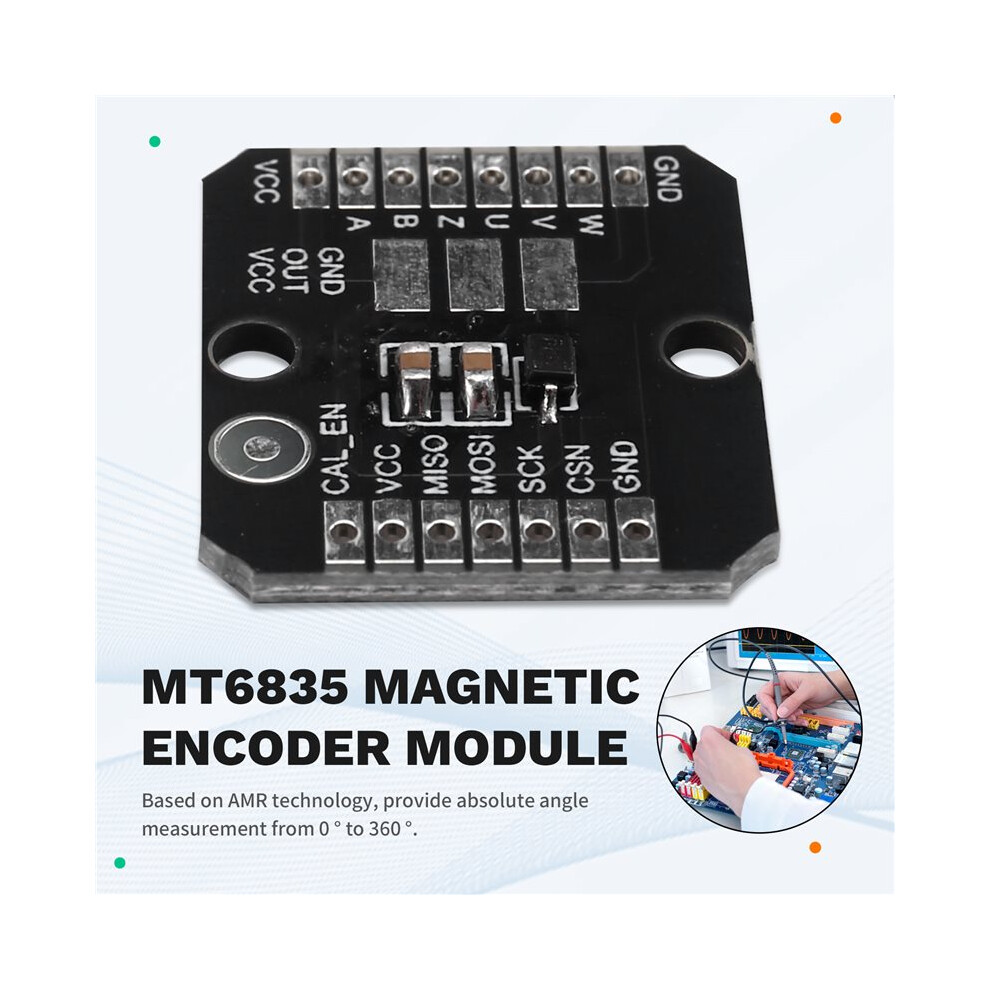

Based AMR technology, provides absolute angle measurement from 0 to 360

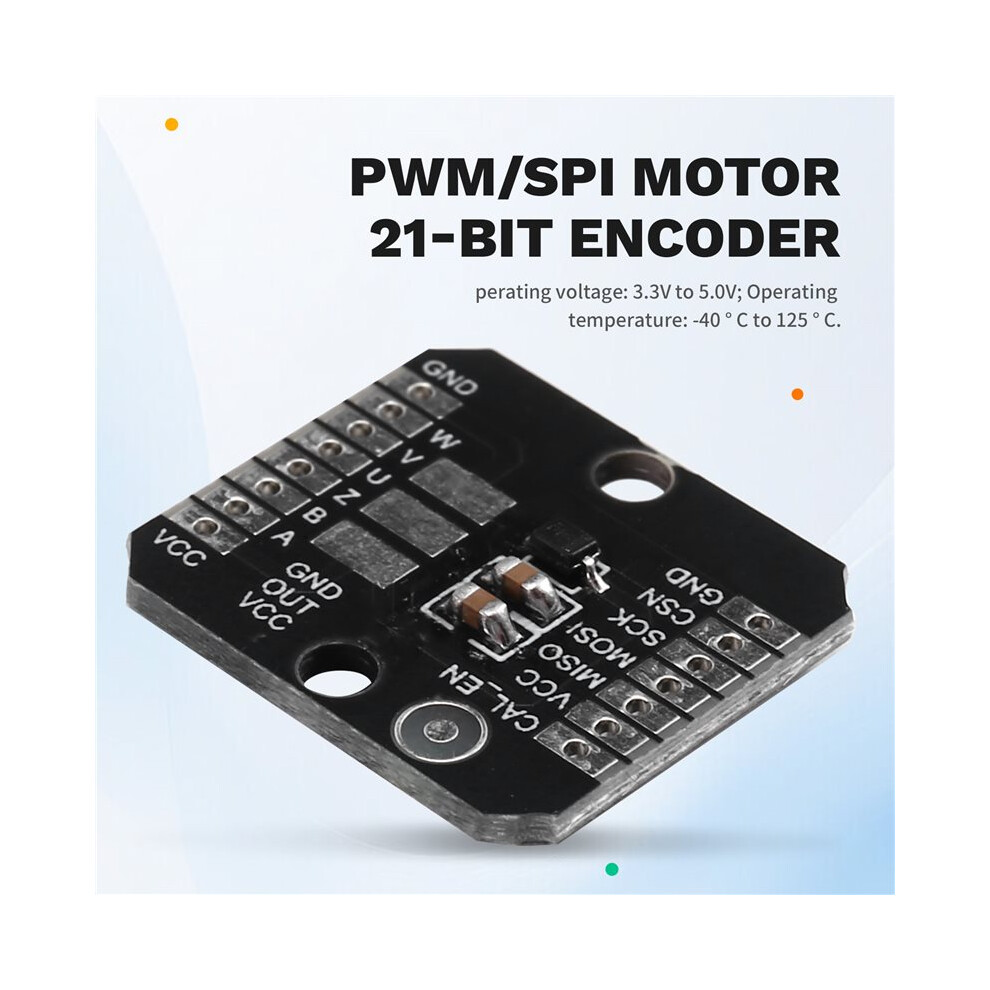

Operating voltage: 3.3V to 5.0V; Operating temperature: -40C to 125C; Typical linearity deviation: Less than 0.5 (factory value), typical linearity deviation: Less than 0.07 (typical self-calibration), typical linearity deviation: Less than 0.02 (typical NLC self-calibration)

System latency: 2µs to 10µs, supporting speeds to 120,000 rpm
Provides a standard 4-wire SPI interface (maximum clock frequency: 16MHz) to read the chip's internal 21-bit angle data
Incremental ABZ output supports arbitrary resolutions from 1 to 16,384 lines
Incremental UVW output supports arbitrary pole pairs from 1 to 16

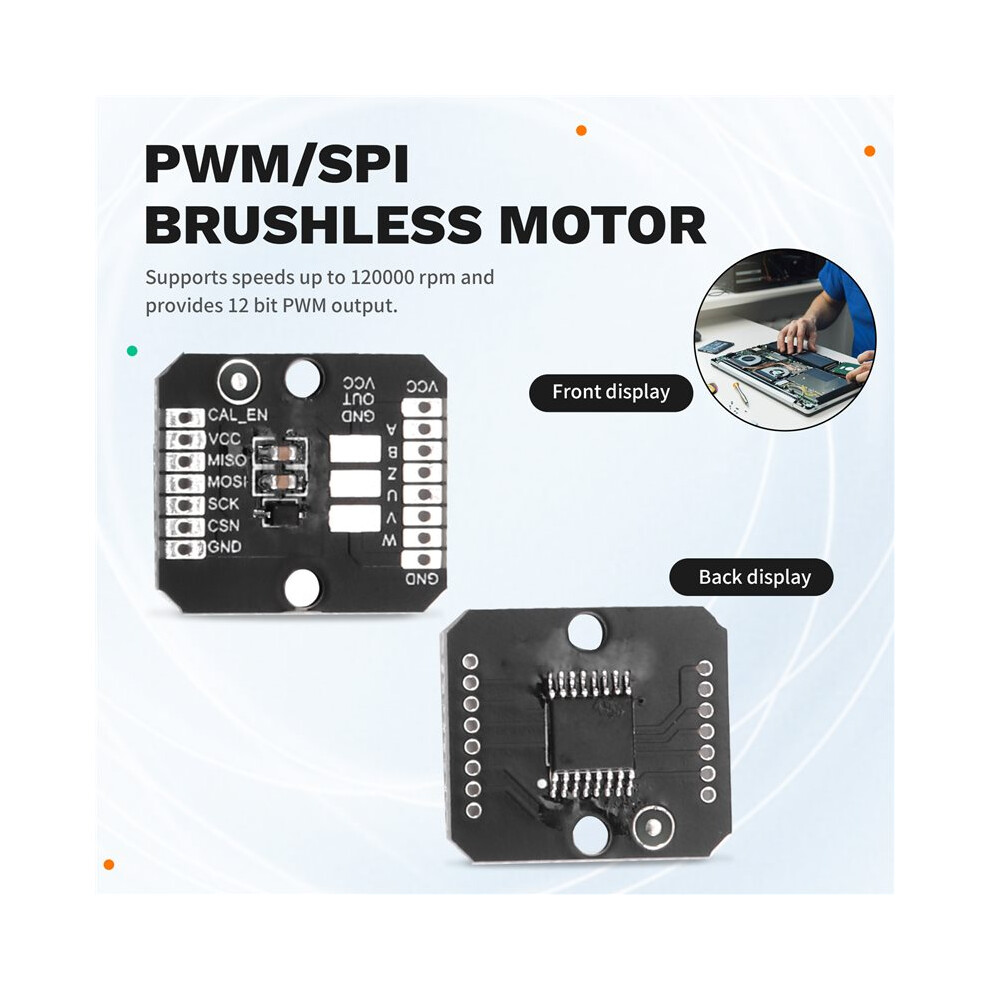

Provides 12-bit PWM output
Based advanced AMR technology, provides full-range angle sensing from 0 to 360
18-bit core resolution
Maximum speed: 25,000 rpm Output propagation delay Less than 2 µs
40C to 125C industrial operating temperature range
Available output modes: ABZ, U
