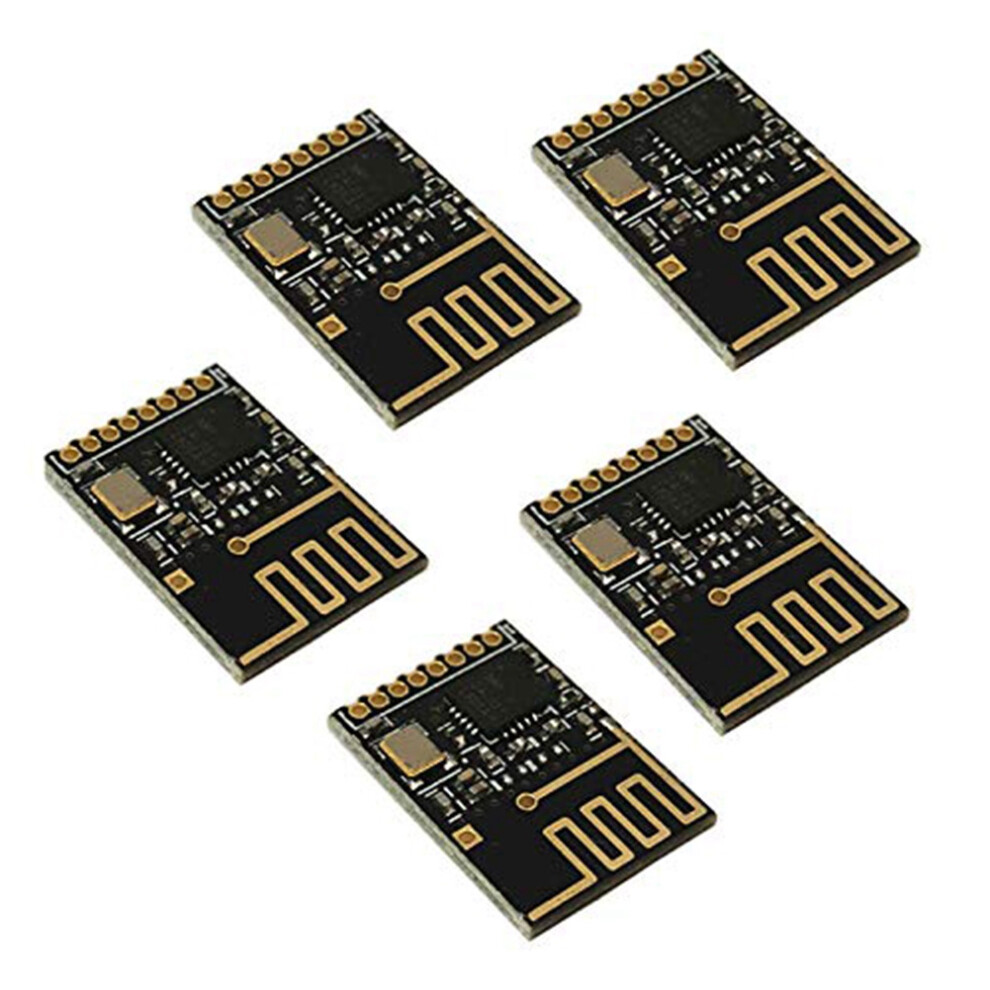

NRF24L01 + 2.4GHz SMD Wireless Transceiver Module for (5Pcs)2.4G Wireless Transceiver Module

Nové

Na sklade

Prečo si zamilujete nakupovanie na OnBuy:

Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
Doprava zadarmo – na milióny produktov na celej stránke
Zákazníci nás milujú – 126,000 hodnotení s “Vynikajúcim” hodnotením

Zobraziť celý popis a podrobnosti o produkte

Množstvo

9,19 €

15,16 € 39 % zľava!

BEZPLATNÉ doručenie

1% Čo je okamžitý Cashback? Zistiť viac

Pridať do košíka

Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.

K dispozícii sú aj bezúročné možnosti platby

Zobraziť celý popis a podrobnosti o produkte

Doručenie: Štandard (Zadarmo) | pon 22 - sob 27 jún

Predáva: dávam vám najlepšie

Vrátenie tovaru: 30 dní

180-dňová ochrana platieb

Pridať do košíka

Popis a podrobnosti

Zhrnutie

NRF24L01 + wireless module 2Mbit / s 1Mbit / s 250Kbit / s transfer rate options MultiCeiver hardware to provide the 6 receiver functions at the same time + / - 60 ppm crystal Only need an external inductance when match antenna No multi-layer PCB 5V input tolerance level No need external level converter
Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU No MCU with SPI Interface 20 pin 4x4mm QFN leadless package very few external components
The 2Mbit / s rate when the peak current 12.5mA received The 2Mbit / s rate @ 0dBm output current of 11mA peak 2Mbit / s rate of only a small average current 400nA
Power-down mode, power consumption Power consumption of 32uA in standby mode 130us fast switching and wake-up time With on-chip voltage regulator oltage regulators In the 1.9 to 3.6V low voltage operation Possible to reduce noise
Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.

NRF24L01 + 2.4GHz SMD Wireless Transceiver Module for (5Pcs)2.4G Wireless Transceiver Module Popis

NRF24L01 + wireless module 2Mbit / s 1Mbit / s 250Kbit / s transfer rate options MultiCeiver hardware to provide the 6 receiver functions at the same + / - 60 ppm crystal Only need an external inductance when match antenna No multi-layer PCB 5V input tolerance level No need external level converter
Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU No MCU with SPI Interface 20 pin 4x4mm QFN leadless package very few external components
The 2Mbit / s rate when the current 12.5mA received The 2Mbit / s rate @ 0dBm output current of 11mA 2Mbit / s rate of only a small average current 400nA
Power-down mode, power consumption Power consumption of 32uA in standby mode 130us fast switching and wake- With -chip voltage regulator oltage regulators In the 1.9 to 3.6V low voltage operation Possible to reduce noise
Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.

Colour: as shown
Material: PCB
Size: 18 x 12 x 2mm

Package Contents:
5 x Module

Podrobnosti

OPC	PPW7KGM
Kódy	4711042964903 (EAN)

Údaje o produkte

Height	1cm
Width	9cm
Length	8cm
Weight	0.007kg
Colour	as shown
Material	PCB
