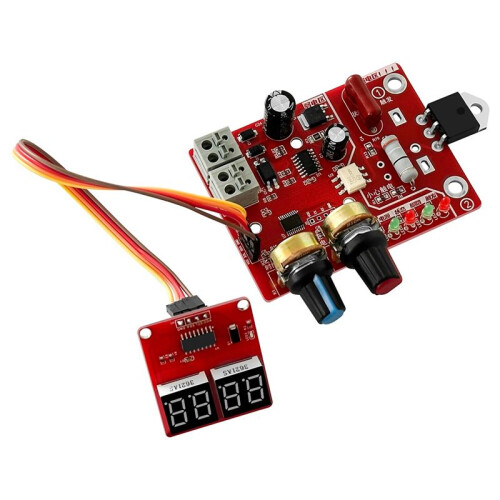

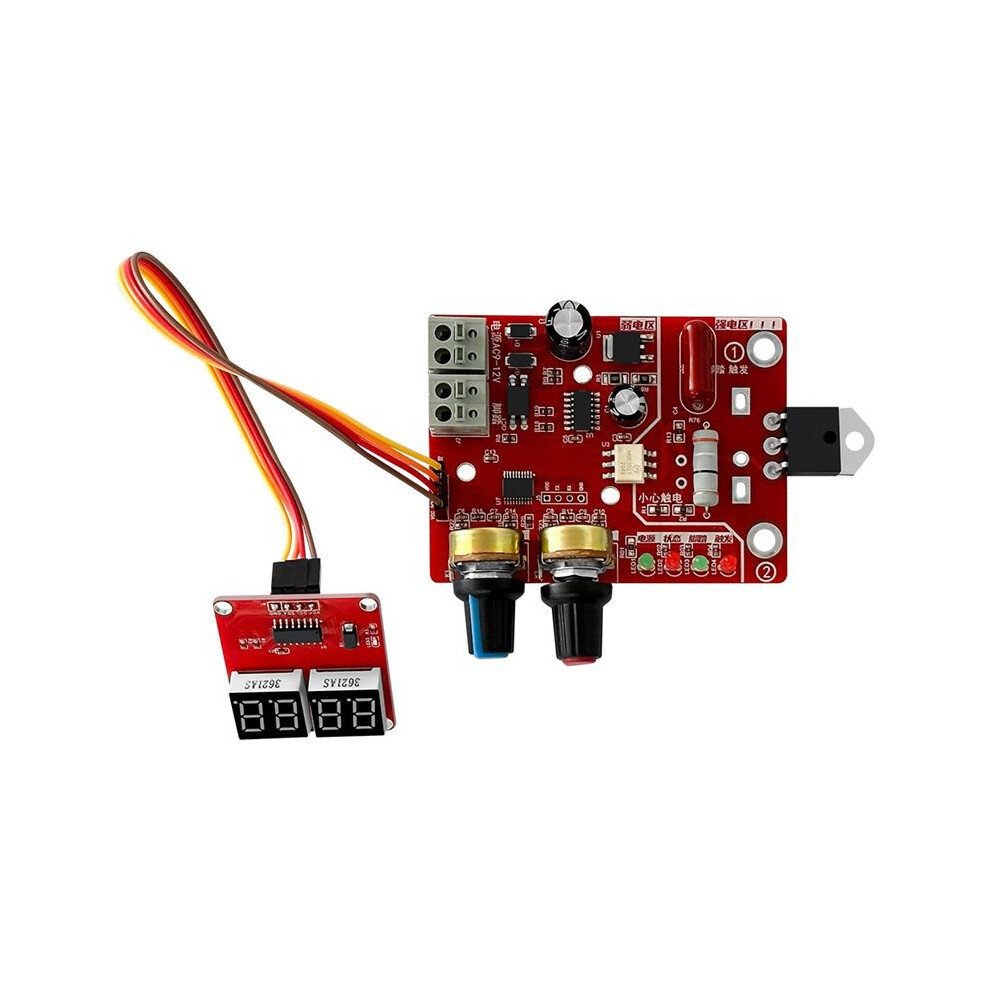

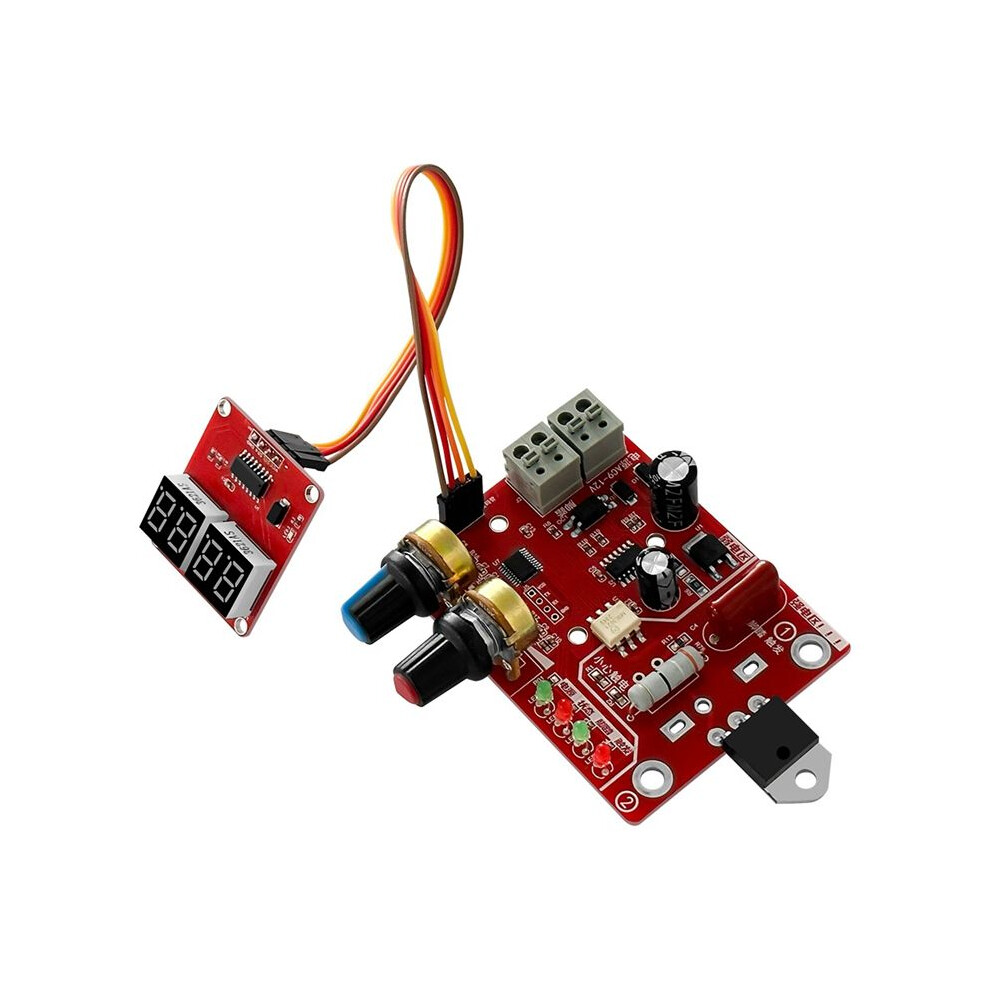

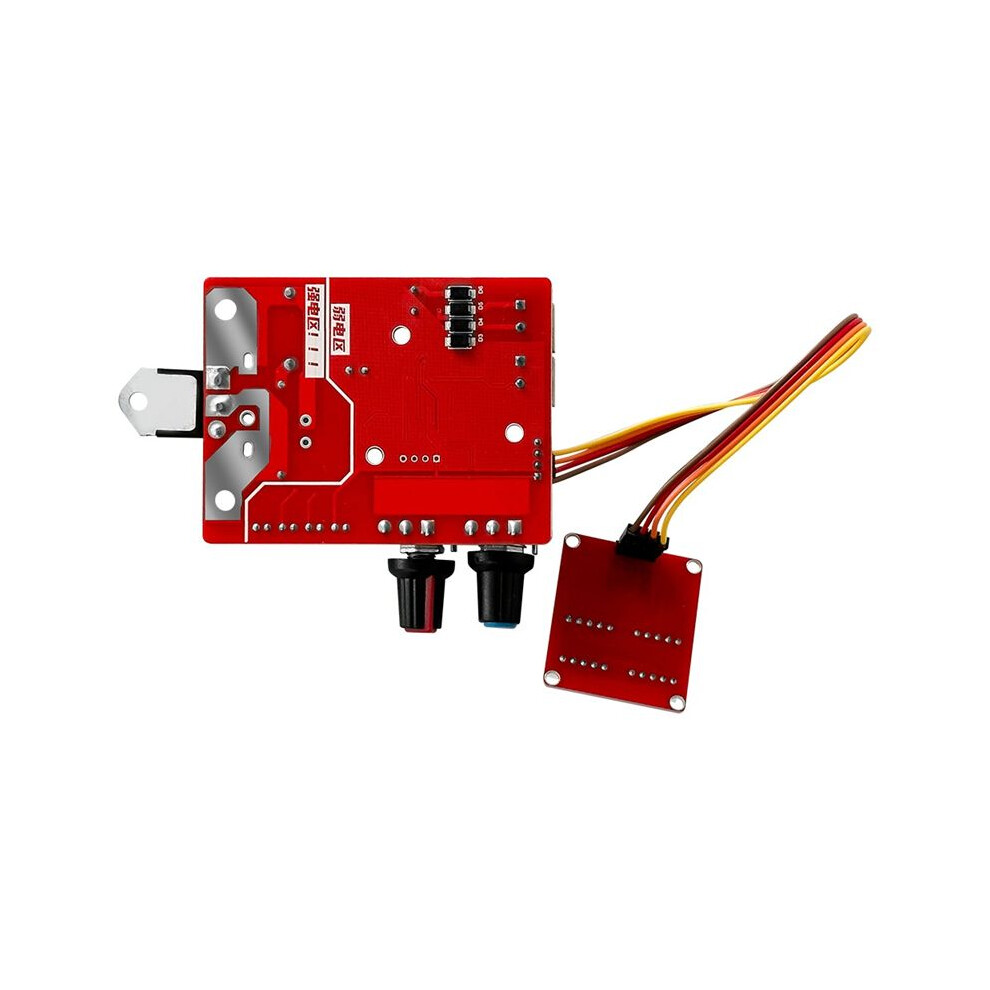

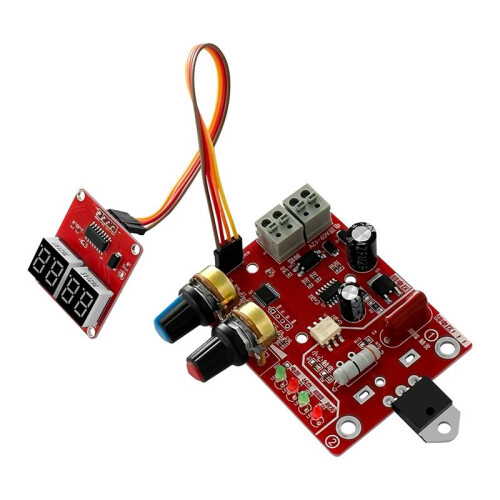

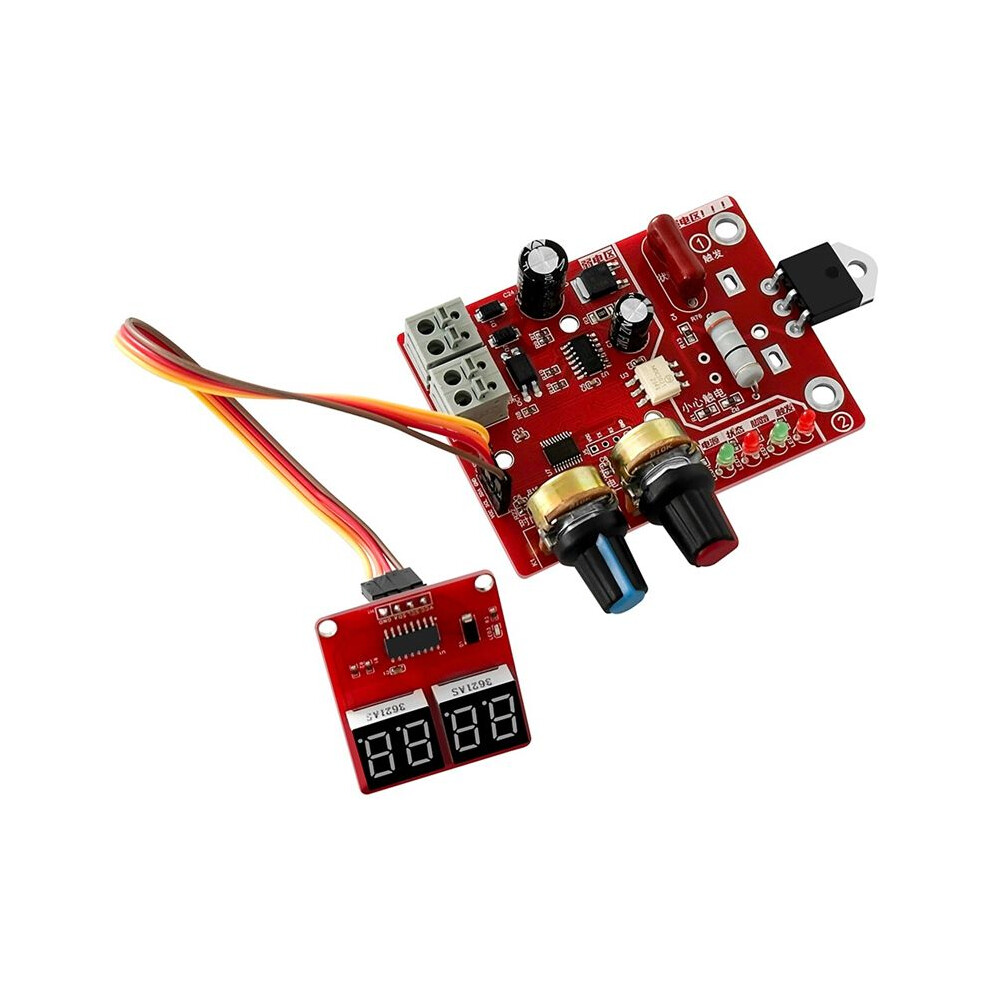

NY-D01 Spot Welding Machine Control Board Regulating and Current Digital Display DIY Control Board (40A)
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 135,000 hodnotení s “Vynikajúcim” hodnotením
13,09 €
21,60 €
39 % zľava!
+4,50 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (4,50 €) | pon 19 - sob 24 okt
Predáva: dávam vám najlepšie
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Popis a podrobnosti
Zhrnutie
- 1. STM8 industrial single chip microcomputer is the main control core.
- 2. Strong and weak light are isolated through optocoupler, which makes operation safer.
- 3. The power line and foot switch line adopt screw free quick connect terminal, which is more convenient and reliable.
- 4. High precision unit potentiometer is used for input time and current to ensure reliable and convenient input
- 5. On board power supply, status, pin, trigger indicator, and working status are clearly visible.
NY-D01 Spot Welding Machine Control Board Regulating and Current Digital Display DIY Control Board (40A) Popis
1. STM8 industrial single chip microcomputer is the main control core.
2. Strong and weak light are isolated through optocoupler, which makes operation safer.
3. The power and foot adopt screw free quick connect terminal, which is more convenient and reliable.
4. High precision unit potentiometer is used for input and current to ensure reliable and convenient input
5. board power supply, status, pin, trigger indicator, and working status are clearly visible.
6. The reliable zero crossing detection circuit is designed to ensure the accurate phase shifting of silicon controlled rectifier.
7. The controller is compatible with 40A-100A thyristor.
8. The digital control interface can display the current set and current.
9. input 1-50, unit cycle (one cycle is 20ms), current input (30-99%)
Product name: spot control panel
Model: NY-D01
Thyristor current: 40A

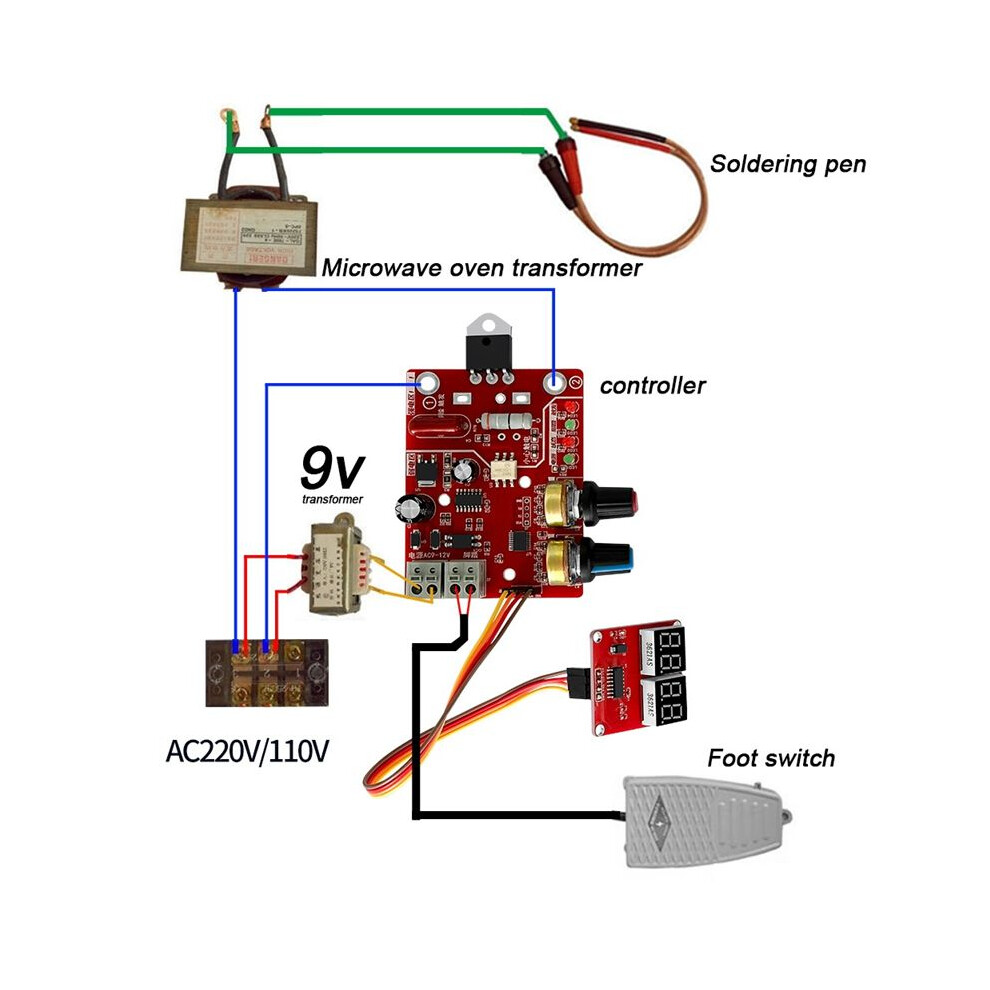

During installation: the motherboard should be far away from the large transformer! Not the transformer! Because large have strong electromagnetic interference!
Note: The spot control board is independently developed by DIY or simple resistance welding and controller. The welding purpose is achieved by adjusting the and current based the principle of thyristor phase-shift trigger
color:Red
Material:PCB+metal

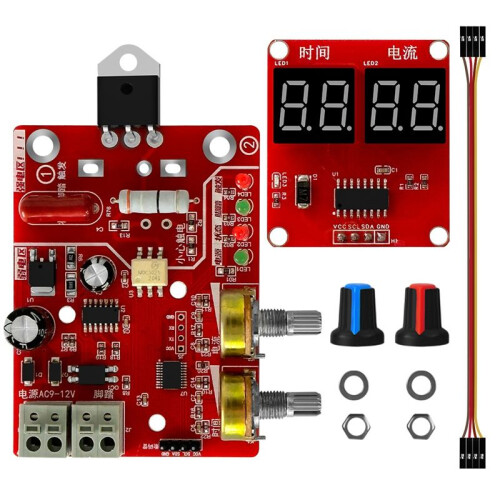

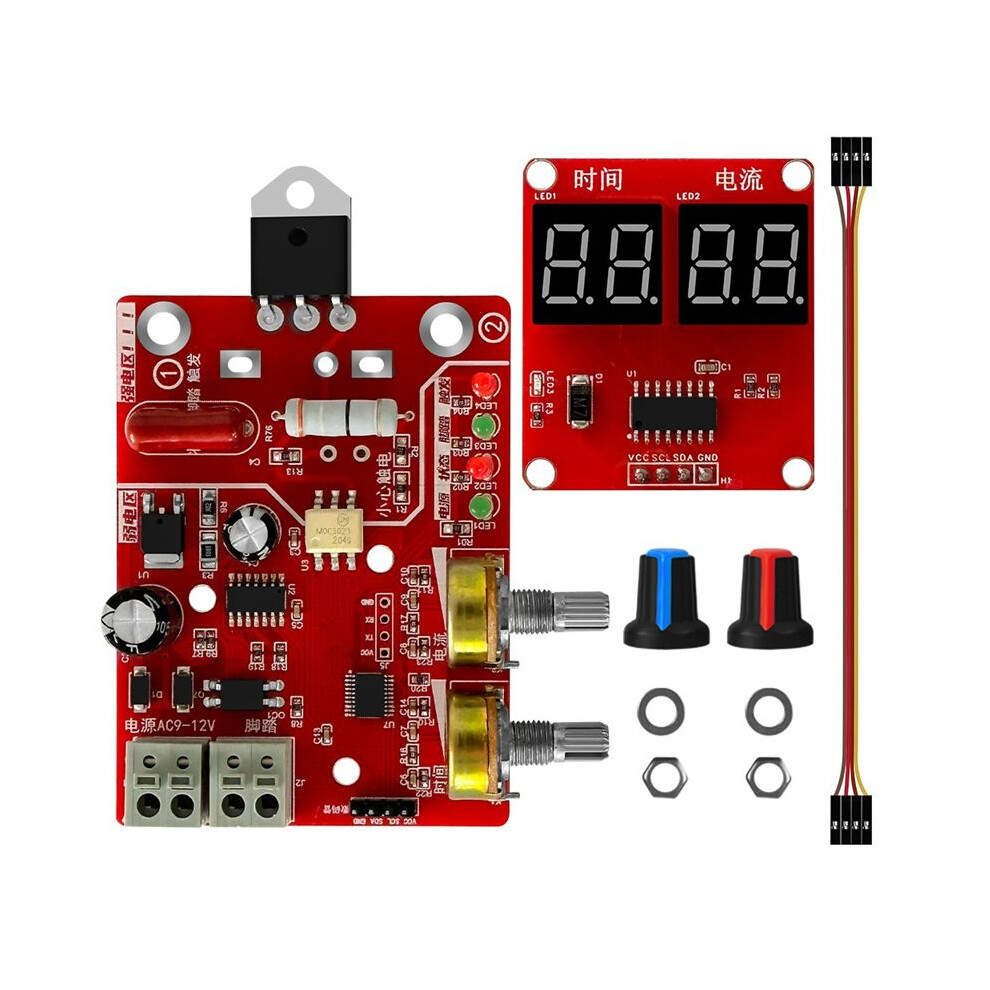

Package Contents:
1 x control board
1 x display panel
1 x connecting
2 x twist caps
Podrobnosti
| OPC | PRMDK57 |
|---|---|
| Kódy | 6033826206985 (EAN) |
| Informácie o produkte a bezpečnosti |

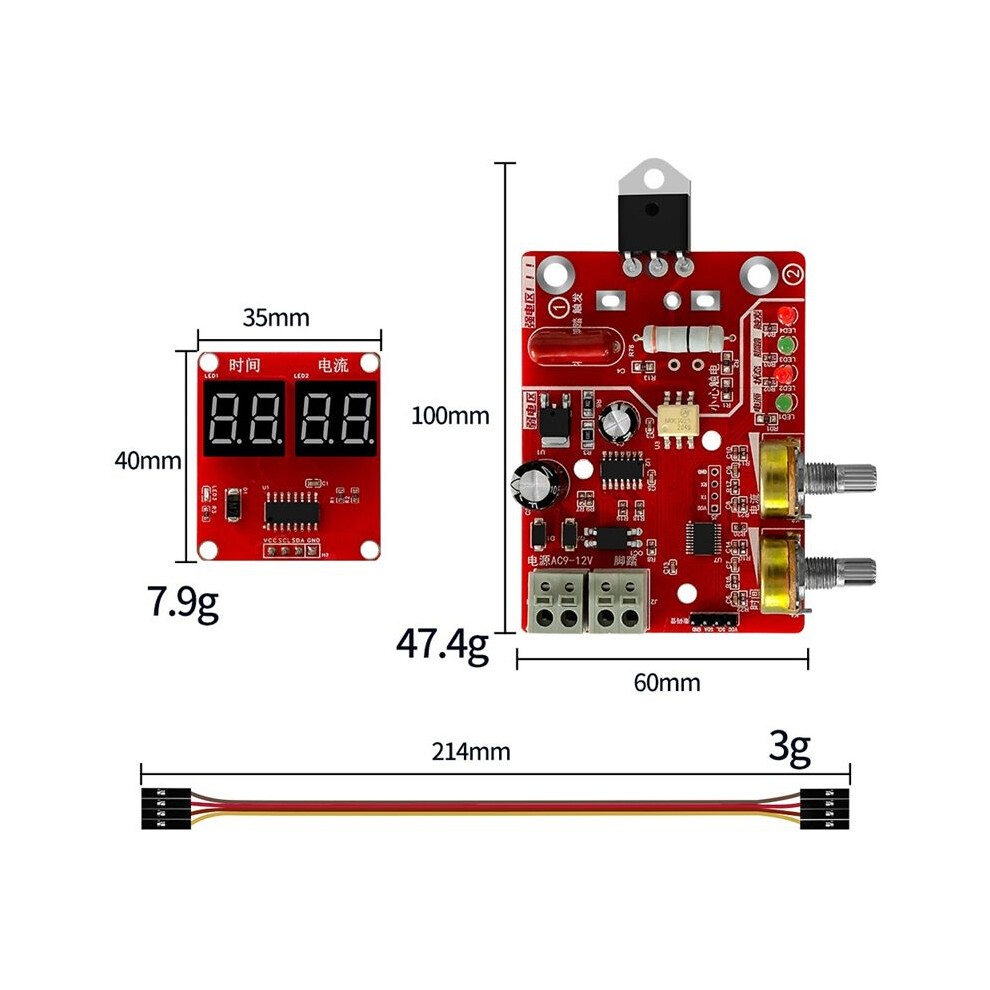

Údaje o produkte
| Height | 4cm |
|---|---|
| Width | 13cm |
| Length | 13cm |
| Weight | 0.0895kg |
| Colour | Red |
| Size | 40A |
| Material | PCB+metal |
