RGBS SCART to YPBPR Component Transcoder Converter Retro Game Console, RGBS to Color Difference Component Popis

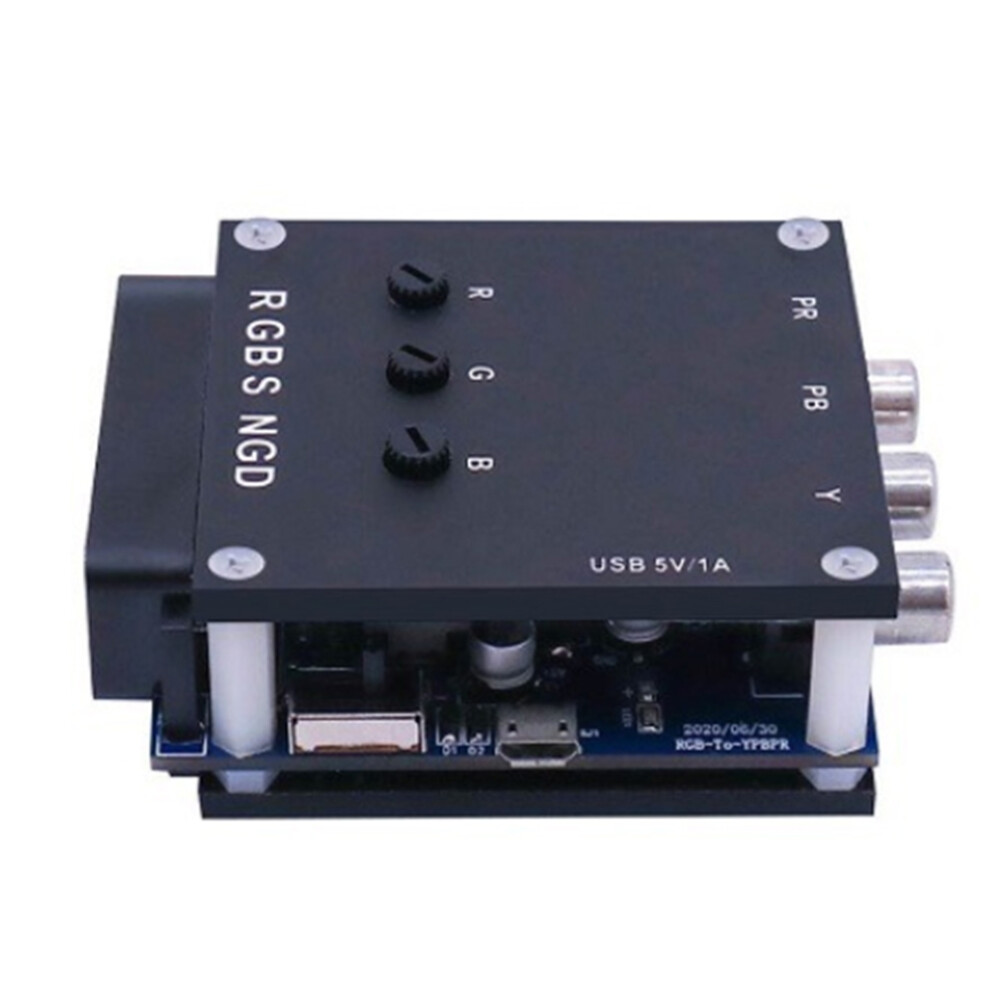

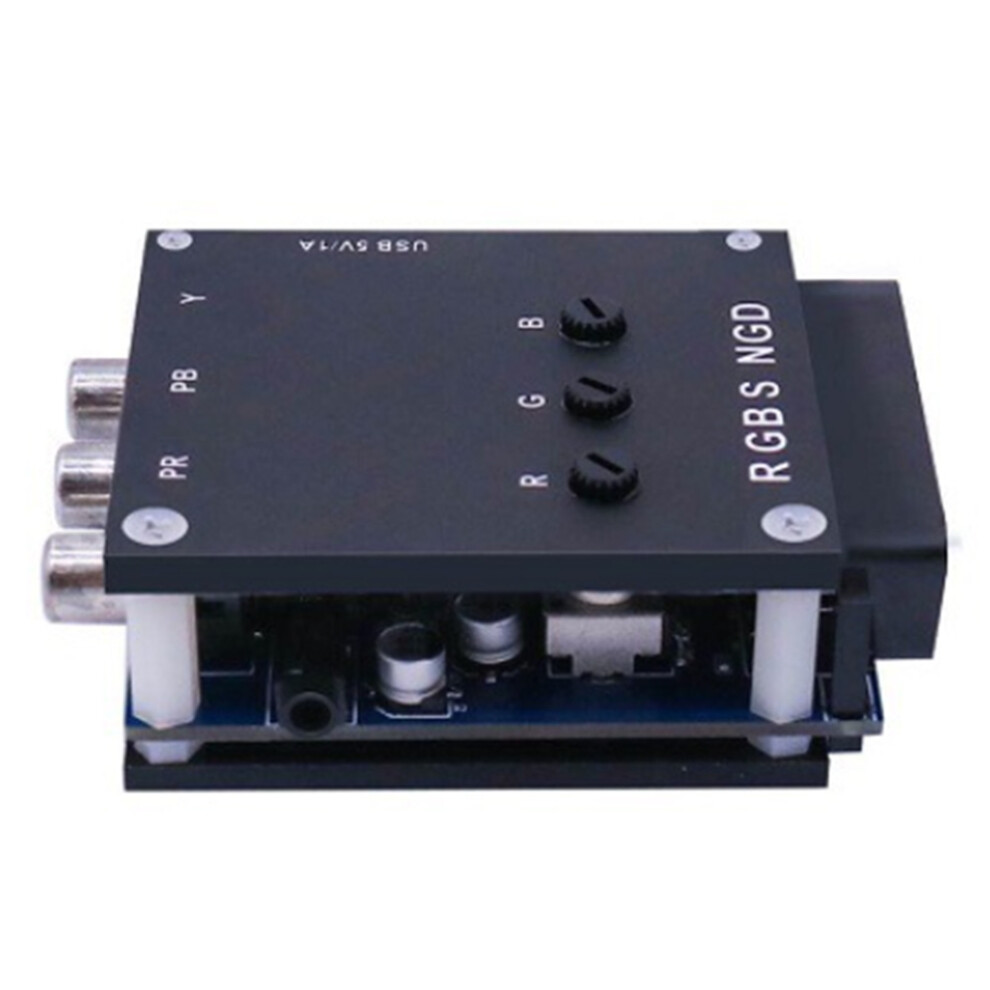

Odv-rgbs is specially designed for classic host and arcade skirting boards. It uses a high speed amplification circuit to identify the best rgbs signals from various conventional hosts, convert them to component signals, connect to TVs, digital multipliers and other equipment to provide gamers with the best native picture experience.
The R button, G button and B button of the product can adjust the color levels of red, green and signals separately to meet the color needs of gamers.
LM1881 separation chip is added to separate and process different synchronization signals of home host and arcade baseboard.

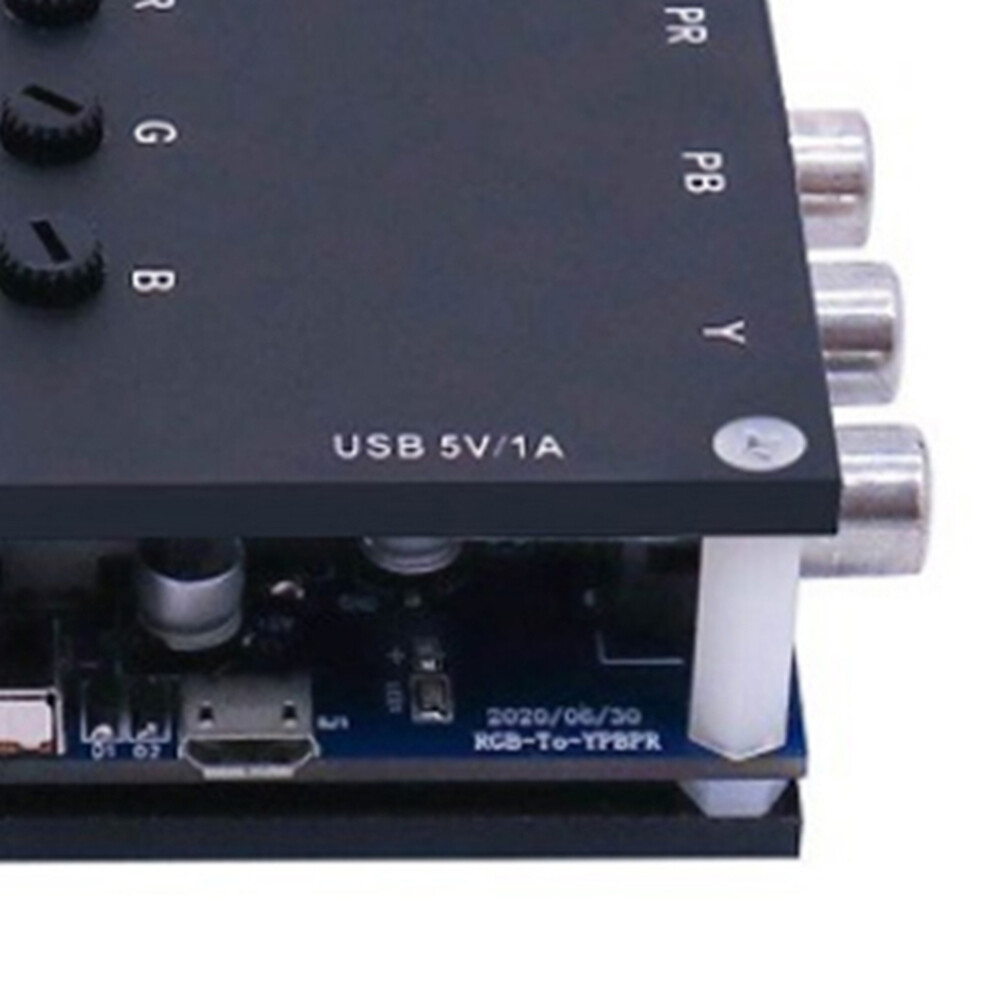

Power input: micro-USB 5V / 1A
Input interface: European standard scart rgbs input interface, universal rgbs connector.
Input format: support all analog signal input, special chip support separate arcade signal.
240P / 480i / 288P / 576i / 480P / 720P / 1080i

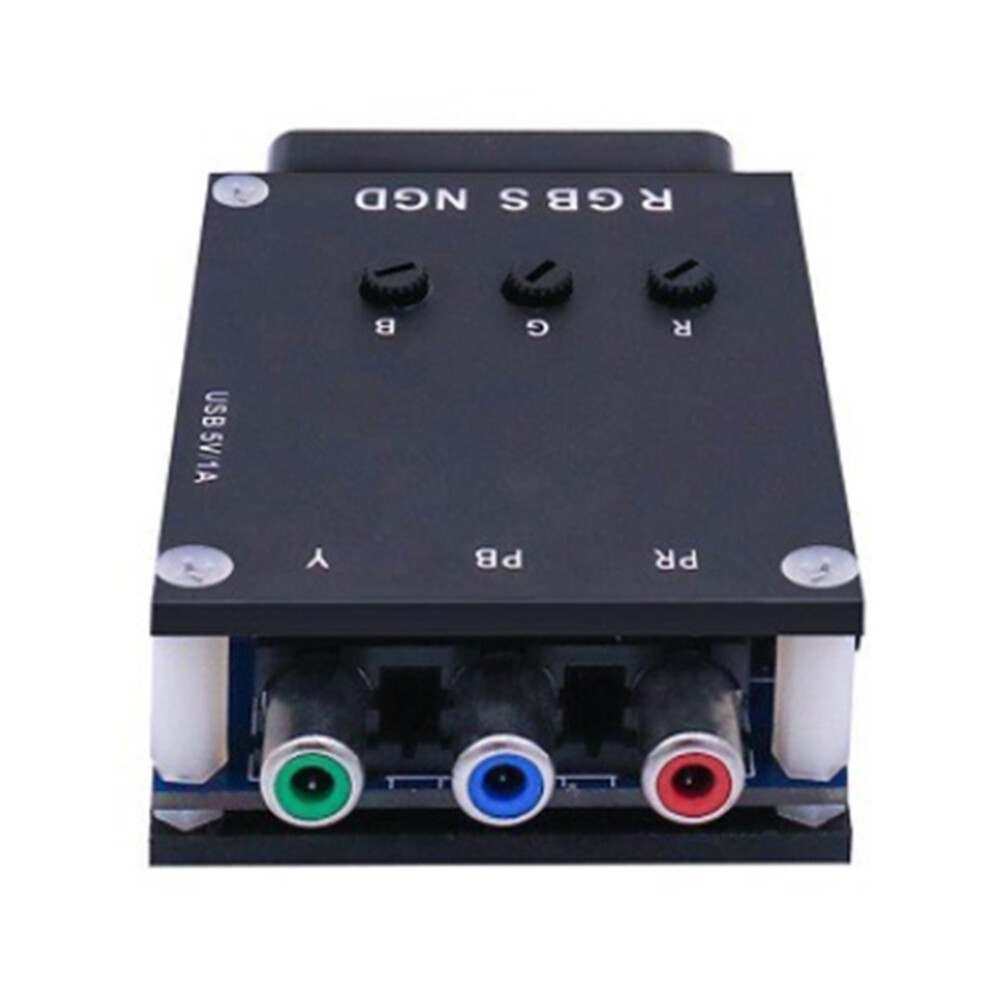

Input interface: YPBPR component output
Output signal: analog signal by conversion
Delay: analog circuit conversion without adding additional zero delay
Product size: 75 x 57 x 26mm
Direction of Conversion: unidirectional conversion, rgbs to component, vice versa

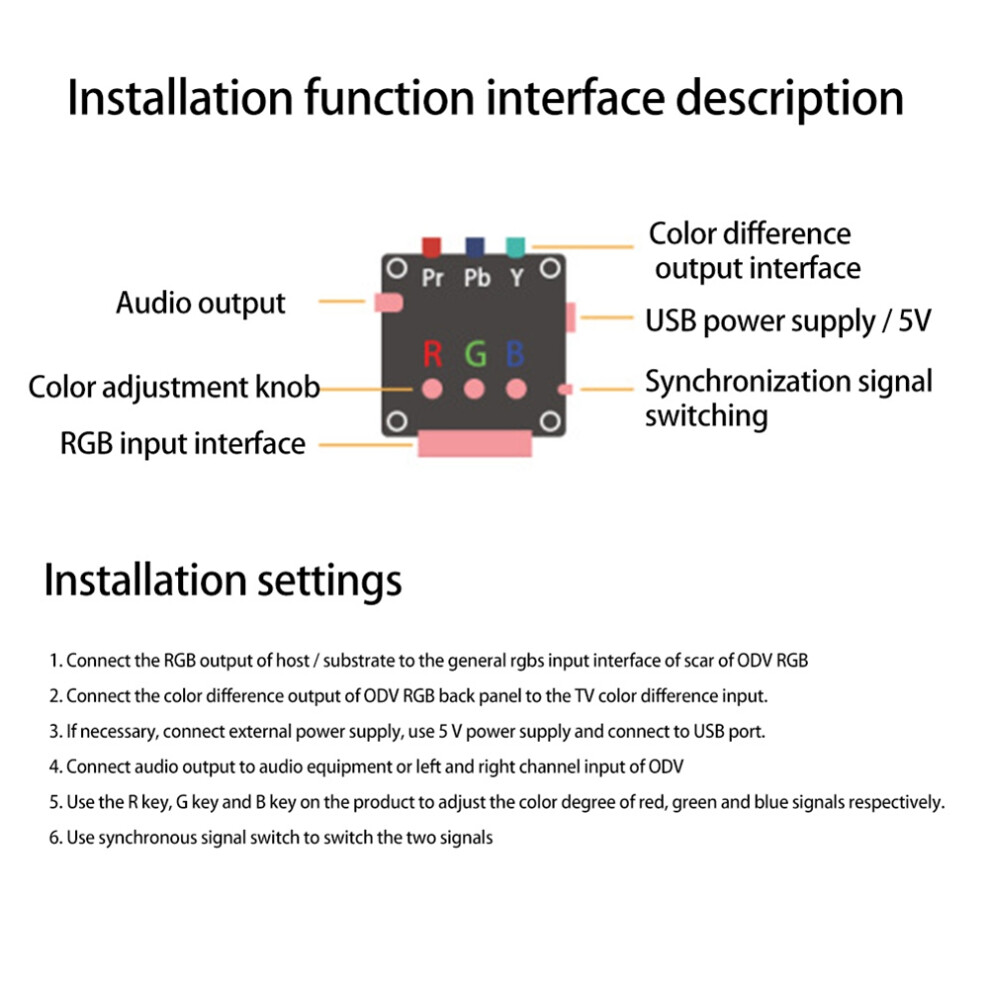

Installation configuration
1. Connect host / substrate rgb output to odv-rgb scart / universal rgbs input interface

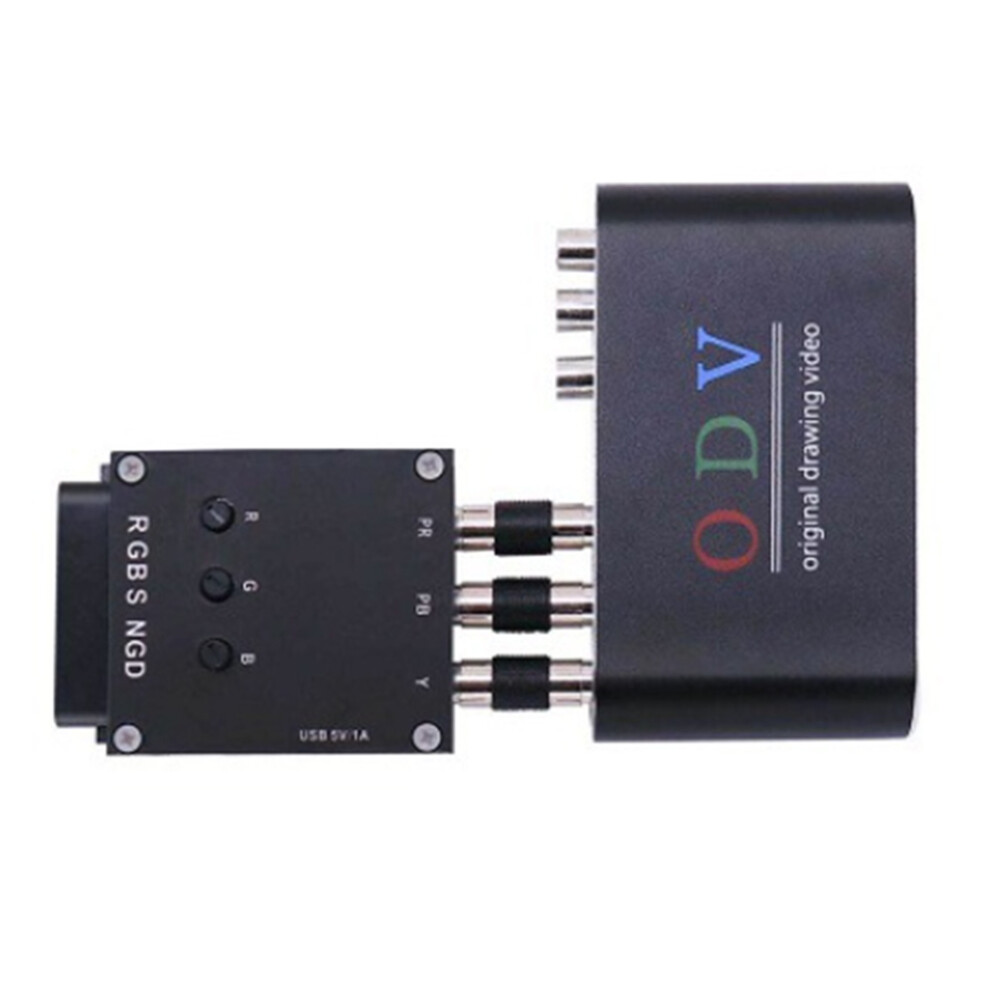

2. The component output terminal the rear panel of odv-rgb, connected to the input of the component TV
3. Connect external power if needed, use 5V power supply and connect to usb port
4. Connect audio output to audio equipment, or left and right channel input of odv
5. Use R key, G key and B key the product to adjust the color of red, green and signals respectively.
6. Use the sync signal to between the two signals
Colour:Black
Material:Plastic

Package Contents:
1 x RGBS SCART to YP
