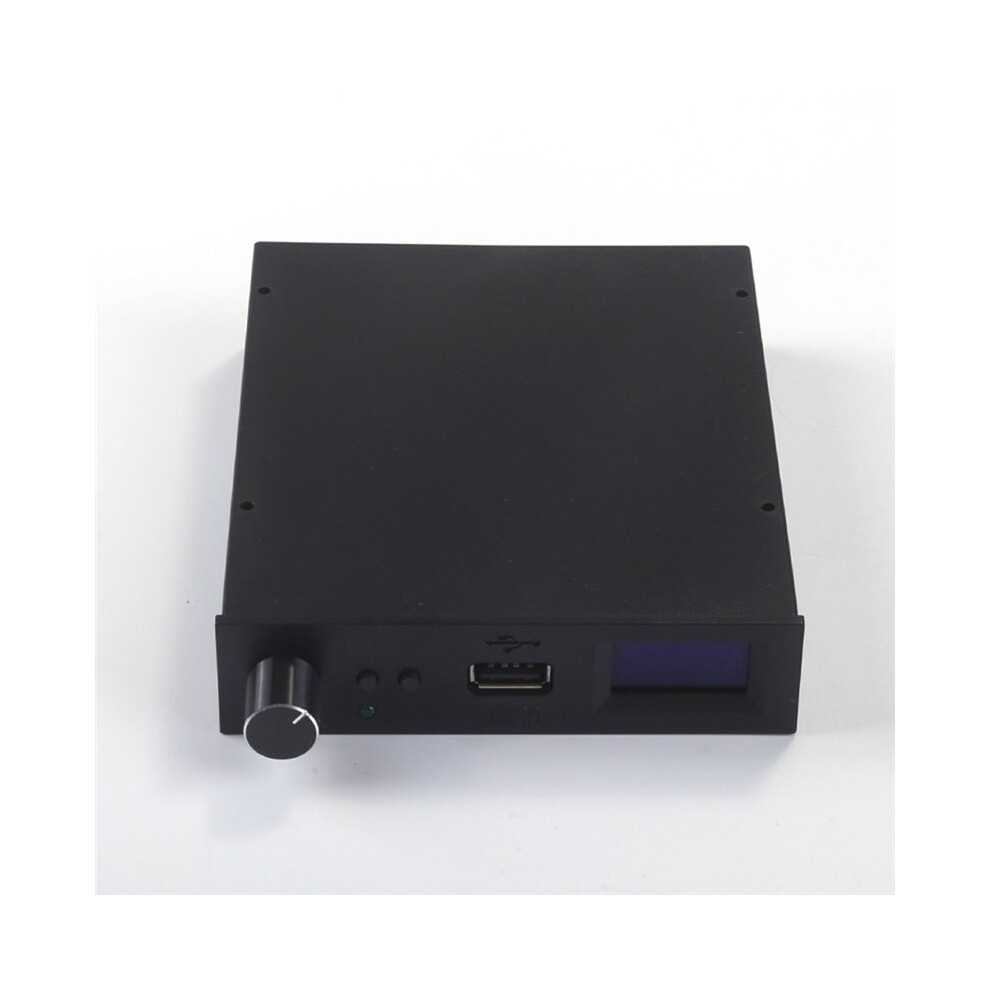

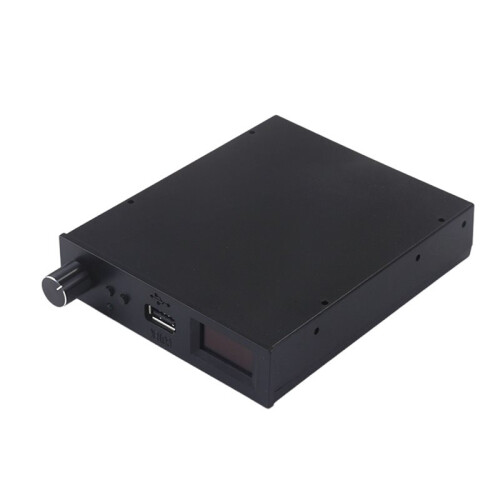

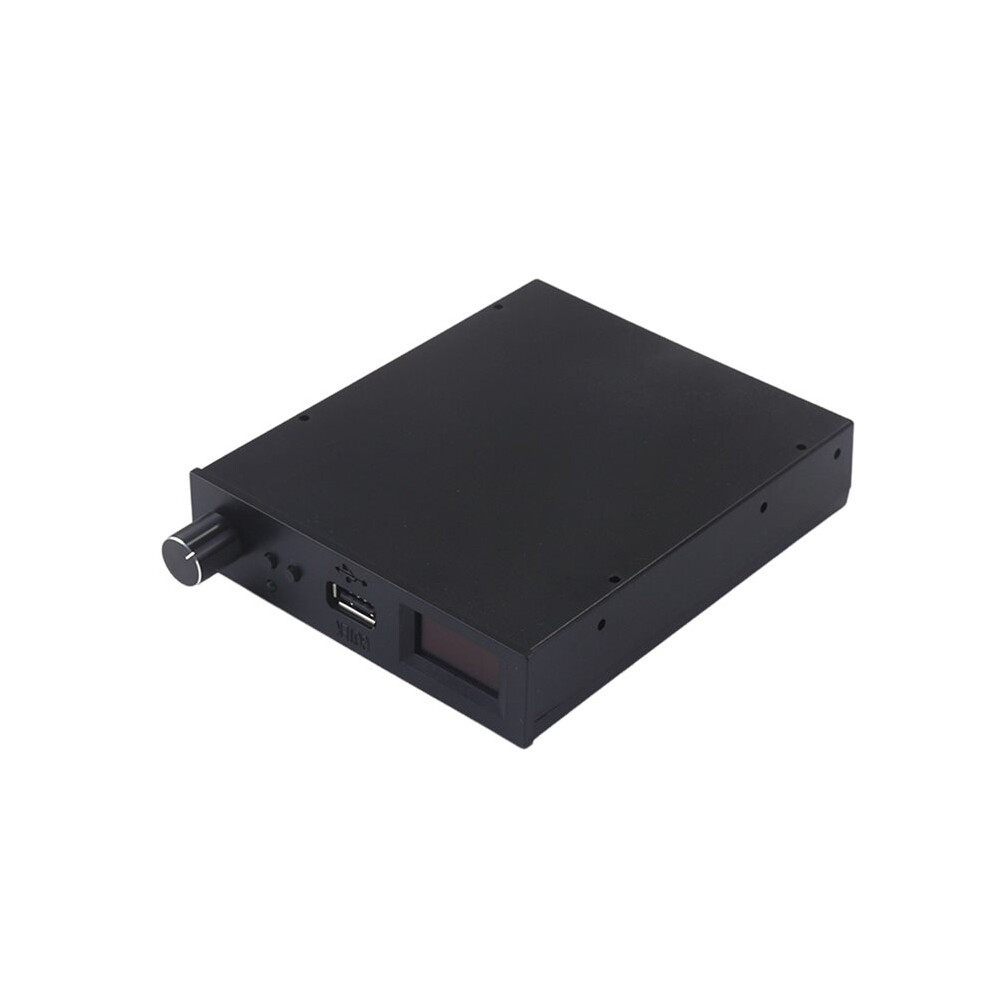

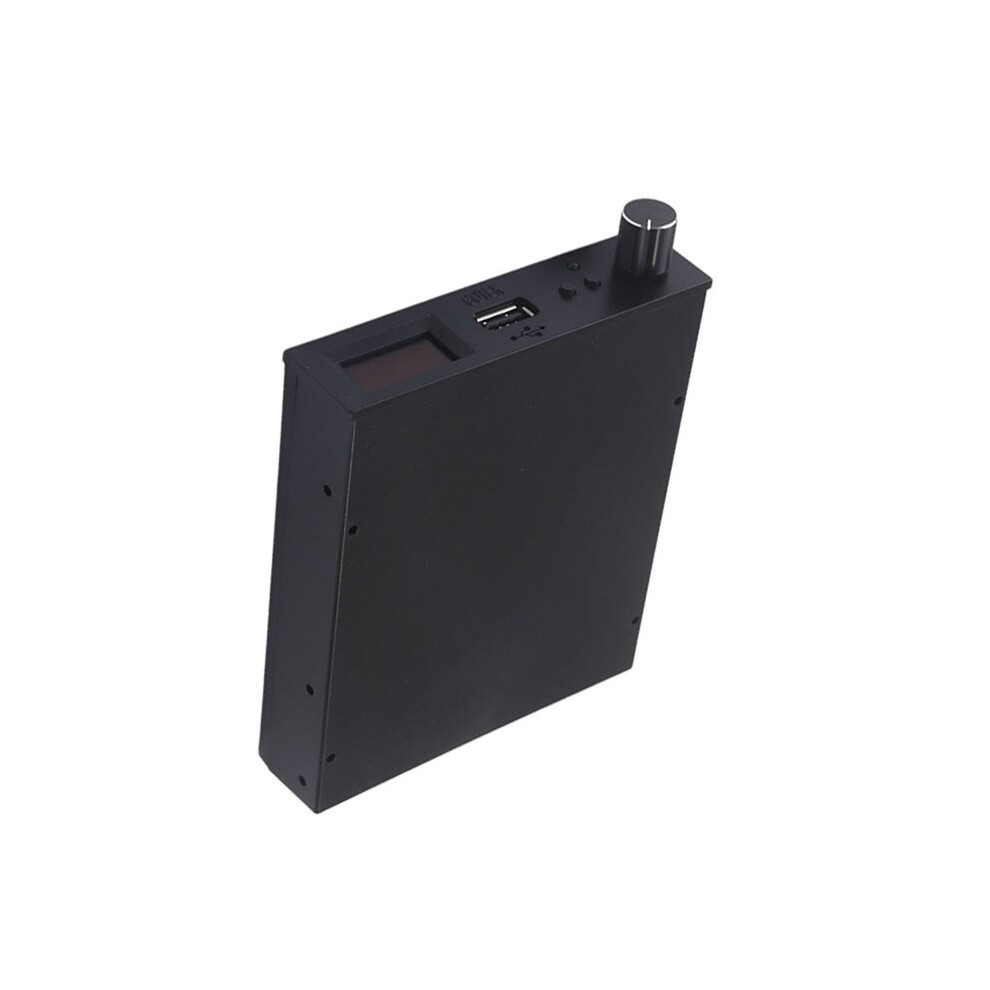

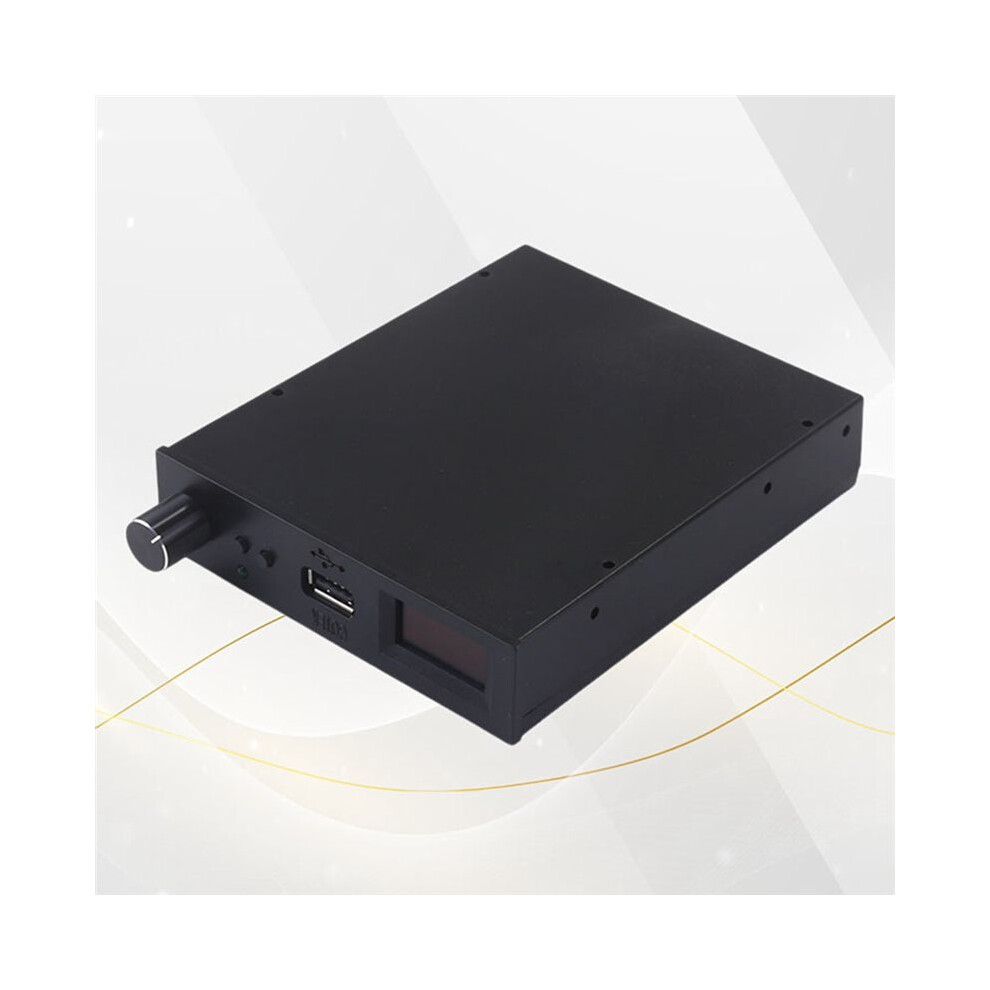

SFR1M44-U100LQD-435 Floppy Disk Drive with OLED Screen+Encoder AT32F435 Industrial Floppy Disk Emulator

SFR1M44-U100LQD-435 Floppy Disk Drive with OLED Screen+Encoder AT32F435 Industrial Floppy Disk Emulator Popis

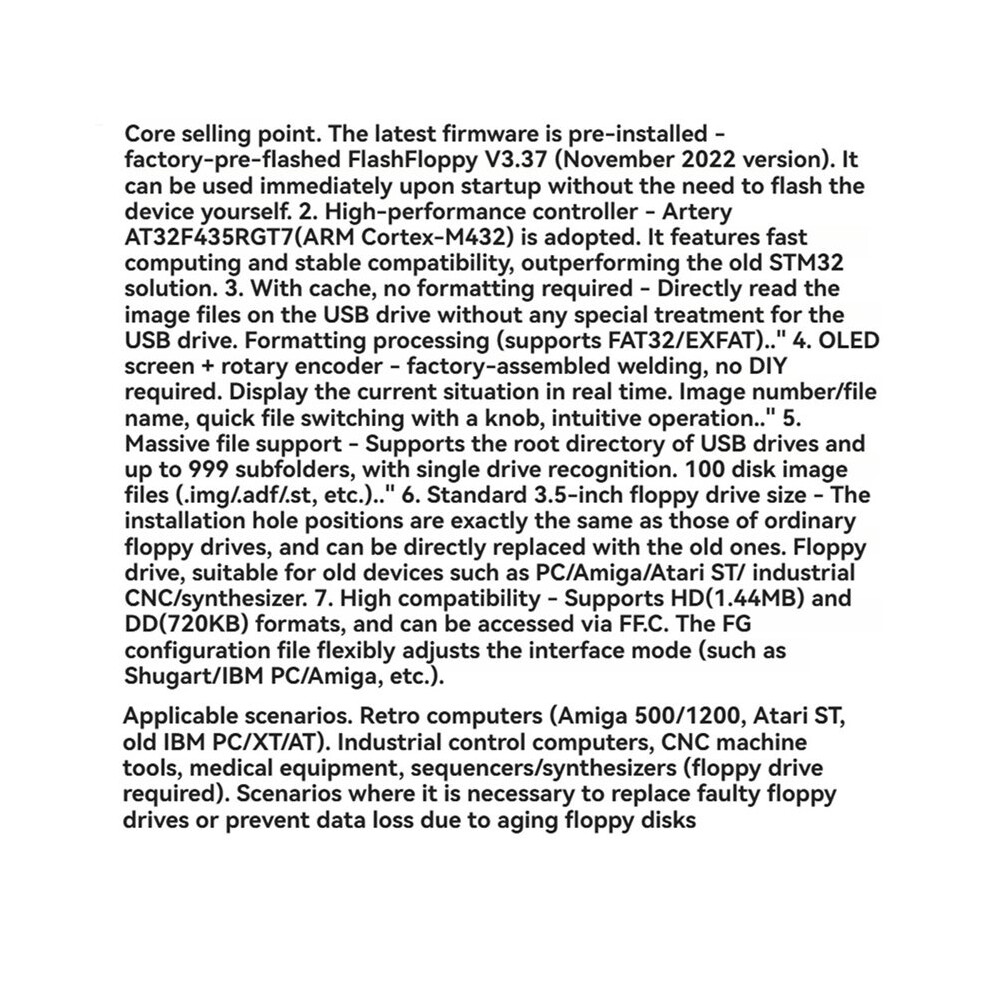

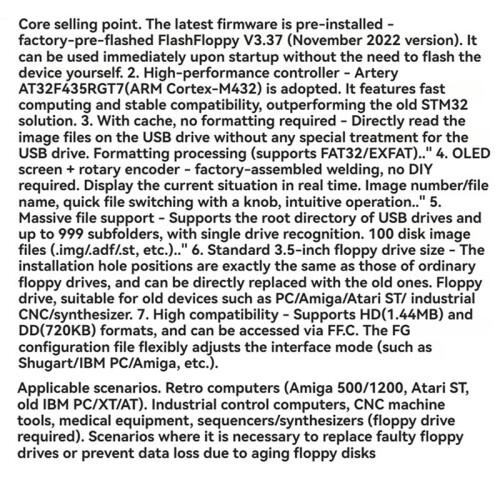

Latest Firmware Pre-installed - Comes factory-flashed with FlashFloppy V3.37 (November 2022 version); ready to use right out of the box-no manual flashing required.
High-Performance Controller - Powered by the Artery AT32F435RGT7 (ARM Cortex-M4 32-bit MCU), offering faster processing and superior compatibility compared to older STM32-based solutions.
Cache-Enabled & No Formatting Required - Directly reads image files from the USB drive without needing special formatting (supports FAT32/exFAT).
OLED Display + Rotary Encoder - Factory-soldered; no DIY assembly needed. Displays the current image number or filename in real-; the rotary knob allows for quick file switching and intuitive operation.
Extensive File Support - Supports the USB root directory and to 999 subfolders; recognizes 100 disk image files (e.g., .img, .adf, .st) per drive.

Model: SFR1M44-U100LQD-435
Main Control Chip: AT32F435RGT7 (Cortex-M4, with cache)
Firmware: FlashFloppy V3.37 (pre-installed)
Display: 0.96-inch OLED (white text)
Operation: Rotary encoder (push and rotate to files/confirm selection)
Storage Media: Standard USB-A flash drive (supports FAT32/exFAT)
Image Formats: Common formats such as .img, .adf, .st, .ssd, .dsk, etc.
Interface: 34-pin floppy ribbon cable (IDC); 4-pin floppy power connector
Dimensions: 101.6mm x 25.4mm x 141mm (standard 3.5-inch floppy drive size)
Mounting Holes: Matches standard floppy drive specifications
Color: Black
Material: plastic

Package Contents:
1*Floppy Disk Drive
