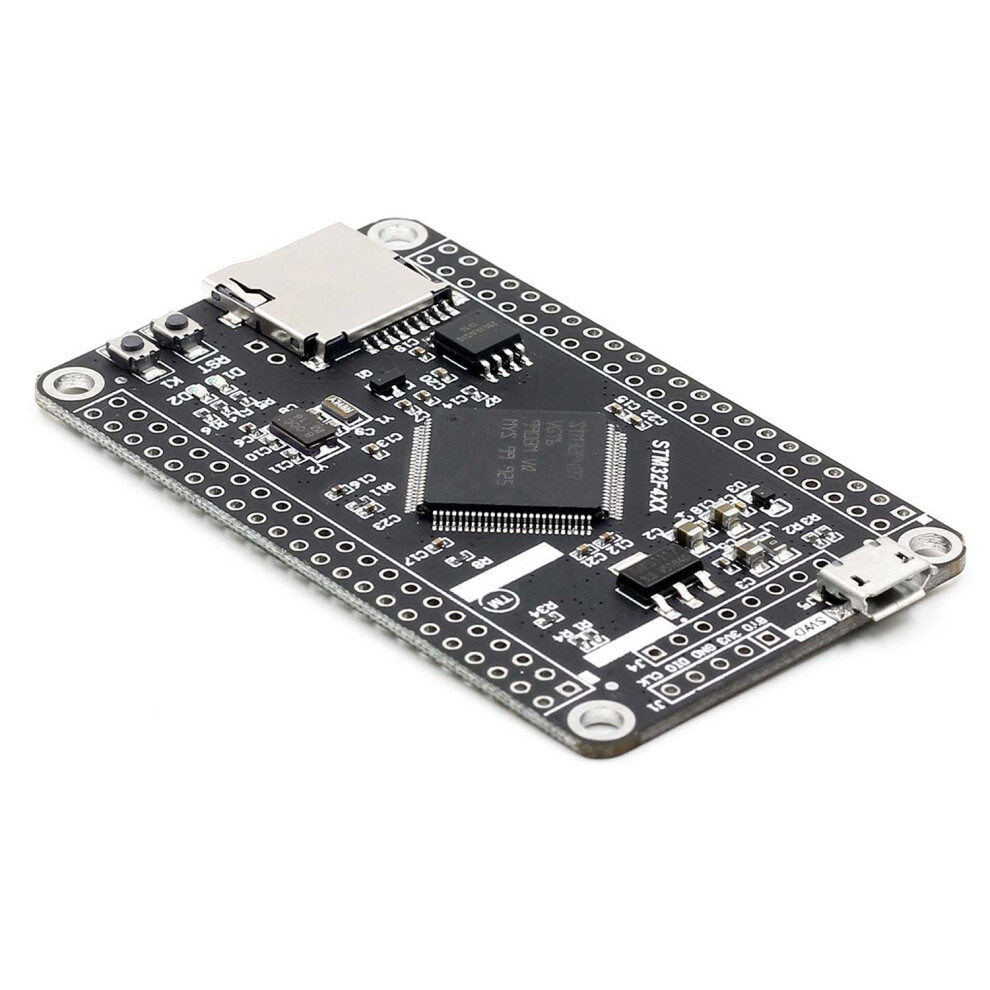

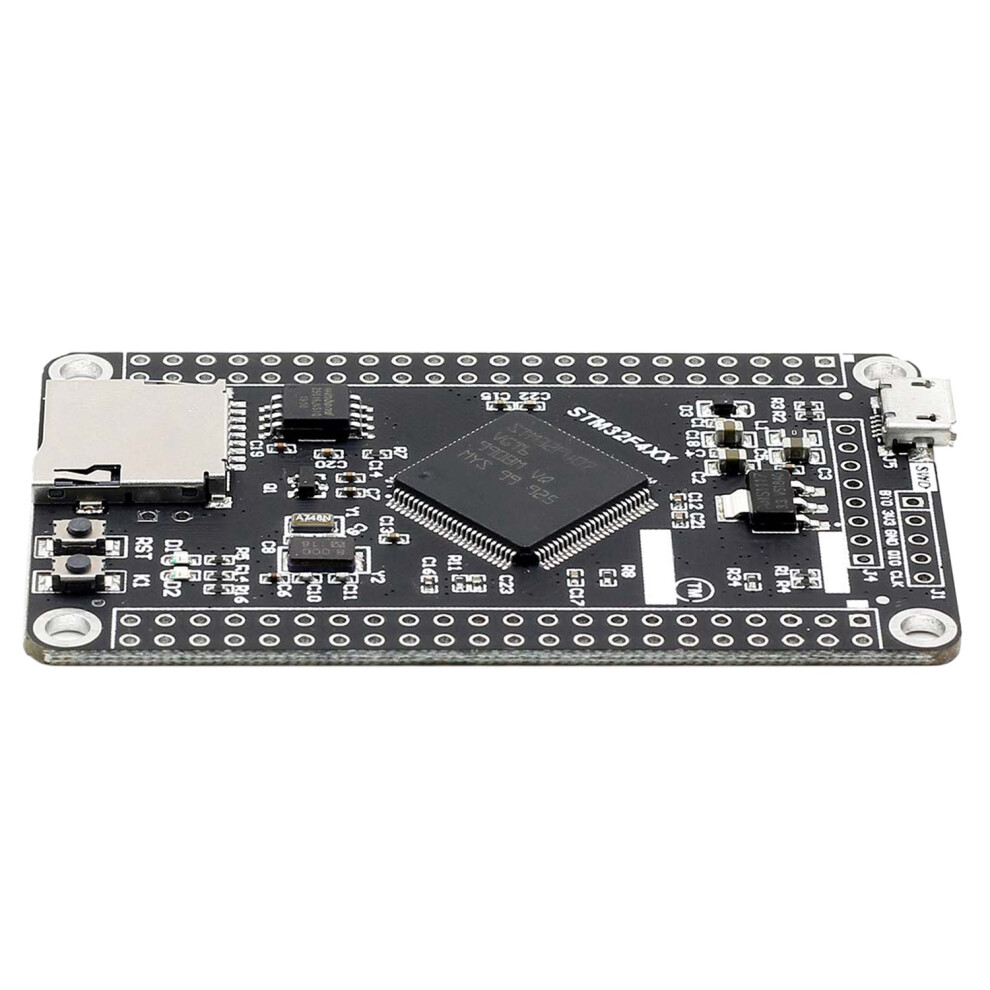

STM32F407VGT6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board

STM32F407VGT6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board Popis

USB interface support download (DFU download, not serial port);OLED interface - plug and support 0.96 inch OLED
TFT liquid crystal interface;Connect 1.44 inch full color LCD;Connect 1.8 inch full color LCD;Data storage: W25Q16
High speed crystal oscillator 8MHz;Low frequency crystal: 32.768K
Power + programmable LED lights;User and reset button

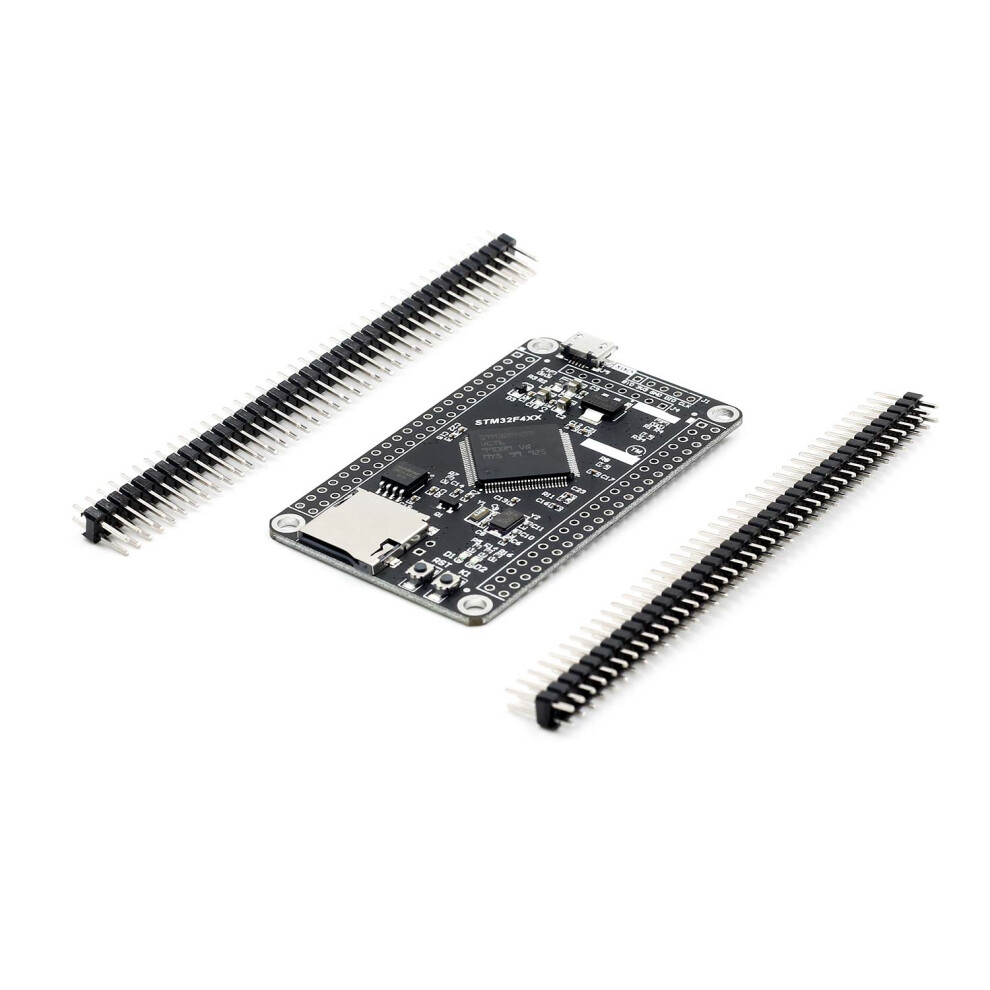

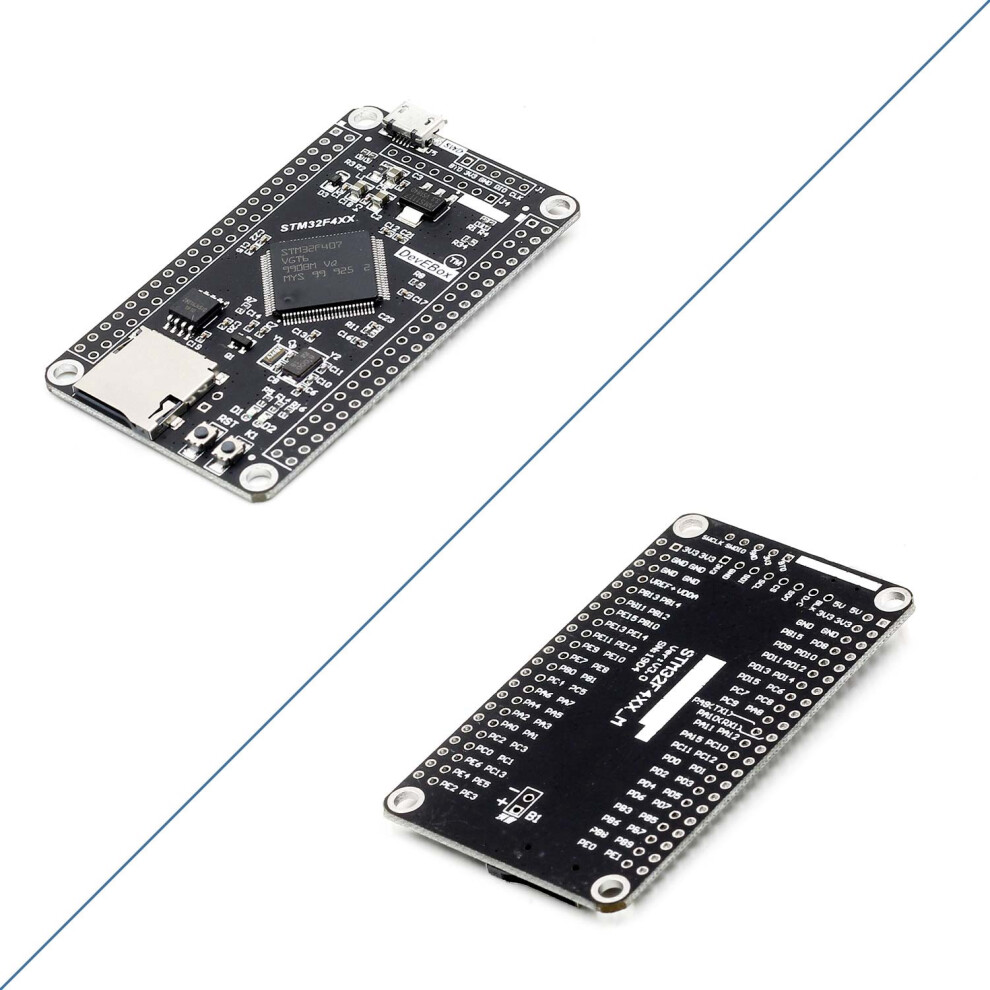

All CPU-IO leads 2.54 integer pitch pins

Parameter:
Kernel: Cortex-M4 32 bit RISC
Features: Single-cycle DSP instructions
Operating frequency: 168MHZ, 210DMIPS/1.25DMIPS/MHz
Working voltage: 1.8-3.6V
Package: LQFP100
Storage resource: (VG specification is 1M capacity)
192+4KB
Resources: 3*SPI, 3*USART
2*UART, 2*I2S, 3*12C
1*FSMC, 1*SDIO, 2*CAN;
1*USB 2.0 FS/HS controller (with dedicated DMA)
1*USB HS ULPI (for external USB HS PHY)
1*10/100Ethemet
1*8 to 12-bit parallel camera interrace
3*AD (12-bit, 1us, -sharing 24), 2*DA (12-bit)
colour: black
Material: PCB

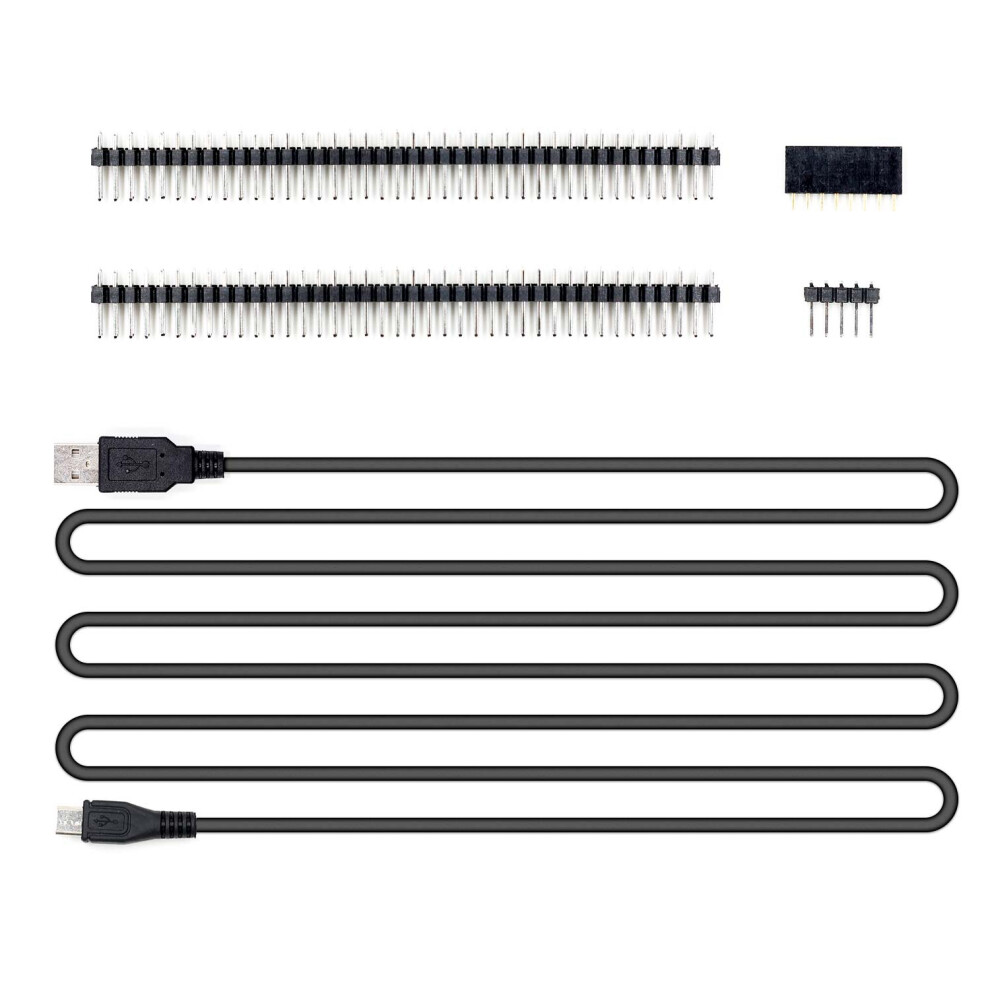

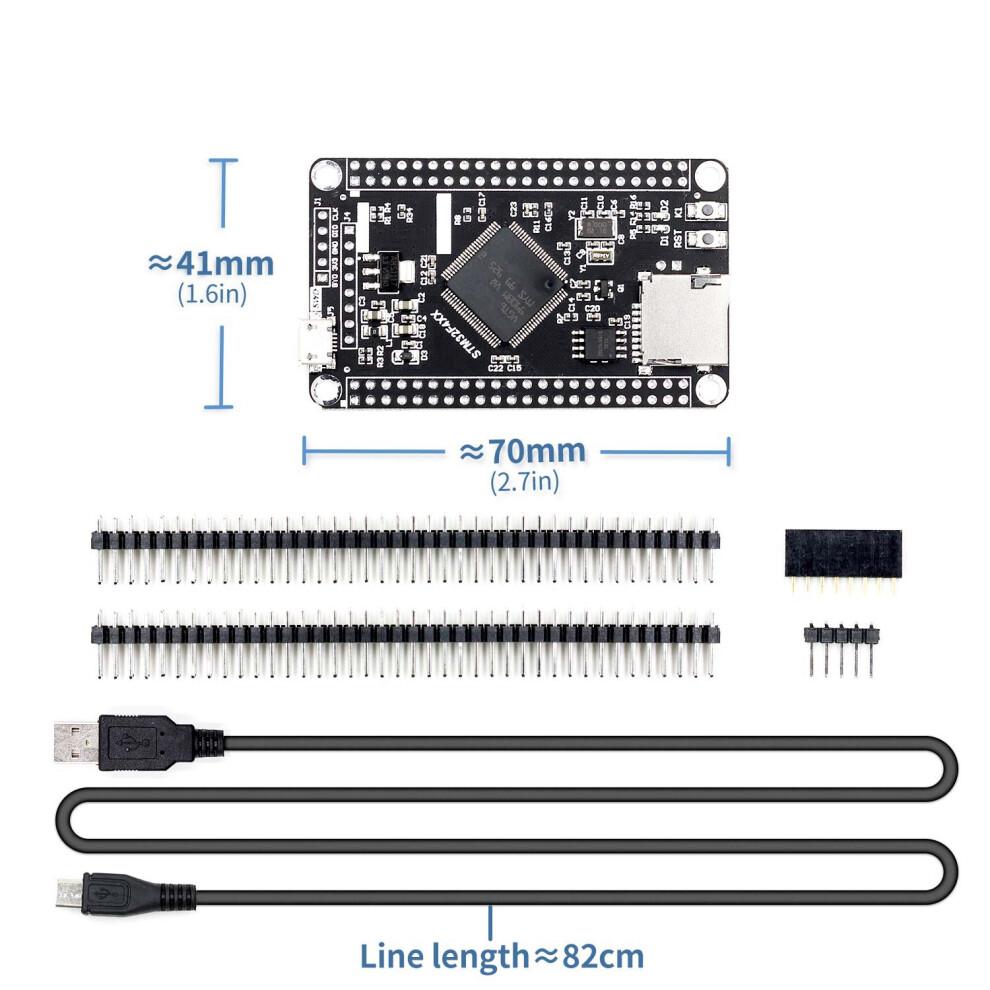

Package Contents:
1*System Core Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
