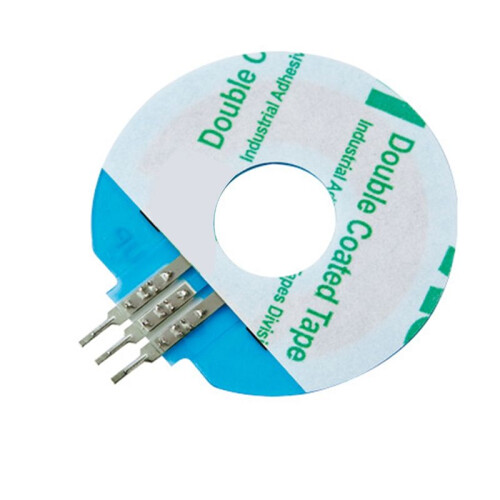

1.POT-C36H12 is a resistive ring-shaped film position sensor. The sensor interface V0 is connected to ground, V+ is connected to the positive pole of the power supply, and V1 is the sensor output voltage.
2. When there is no external pressure acting the sensing area, V1 is in an open circuit state, and the output voltage V1 is 0; when there is pressure (20g-50g), the sensor is triggered, and V1 outputs a voltage signal. When the pressure is applied from the left end of the sensor to When the right end moves, V1 becomes larger, and the change range changes linearly from 0.2V+ to 0.8V+. The voltage of V1 is determined by the position of the pressure;
3. After the pressure is removed, the sensor returns to the off state and the V1 voltage is 0.
4. The position sensor is composed of polyester film with excellent comprehensive mechanical properties and environmental protection, highly conductive materials, graphene pressure-sensitive materials, and adhesive materials. There is double-sided tape the back for easy installation. It adopts metal terminal interface, which is anti-oxidation and can be soldered directly.
5. Fast response, long durability, long service life, simple circuit principle and easy application

Description:
Typical Application:
Location Sensing
Potentiometer
Gear
Other Location Sensing Scenarios
parameter:
1.Thickness: about 0.45mm
2. Style: Flake
3. Trigger force: 20g-50g
4. Recommended pressure: 20g~200g
5. Recommended indenter: curved shrapnel/D3 rubber
6.Contact resistance: Less than 10Ω

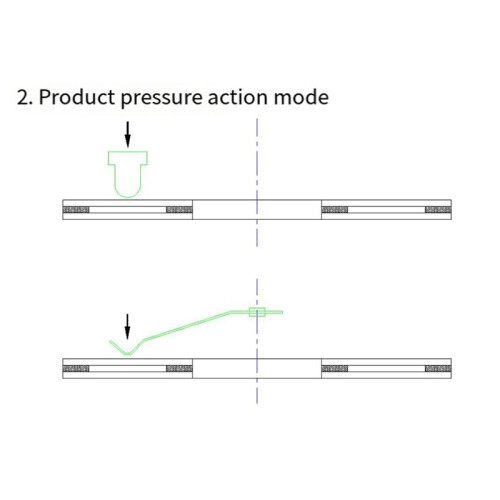

7. Pressure action mode: shrapnel/spring/weight block
8. Resistance when not triggered: infinite (V1-V0, V1-V+)
9.Activation : Less than 0.01S
10.Using temperature: -20~+65
11. Durability: More than 1 million times of normal
