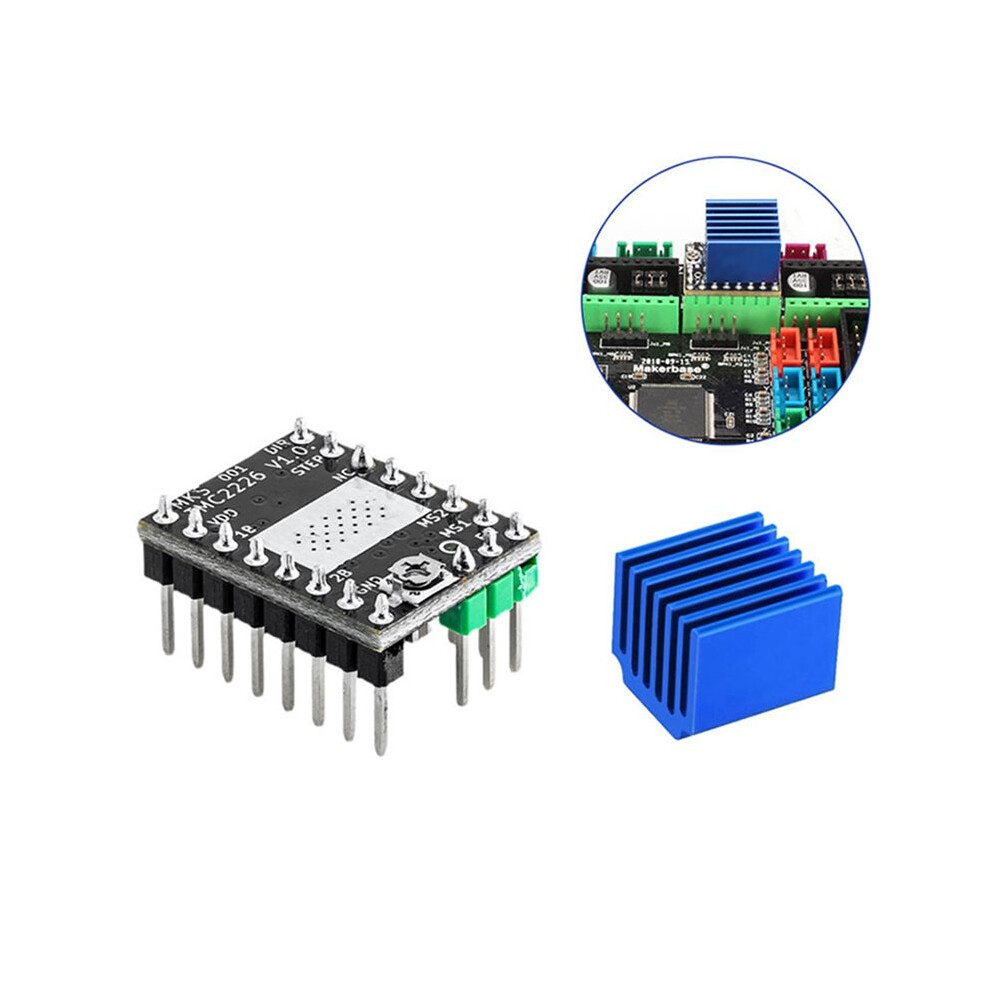

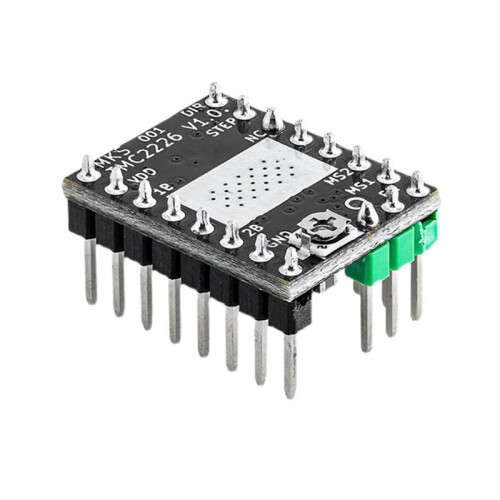

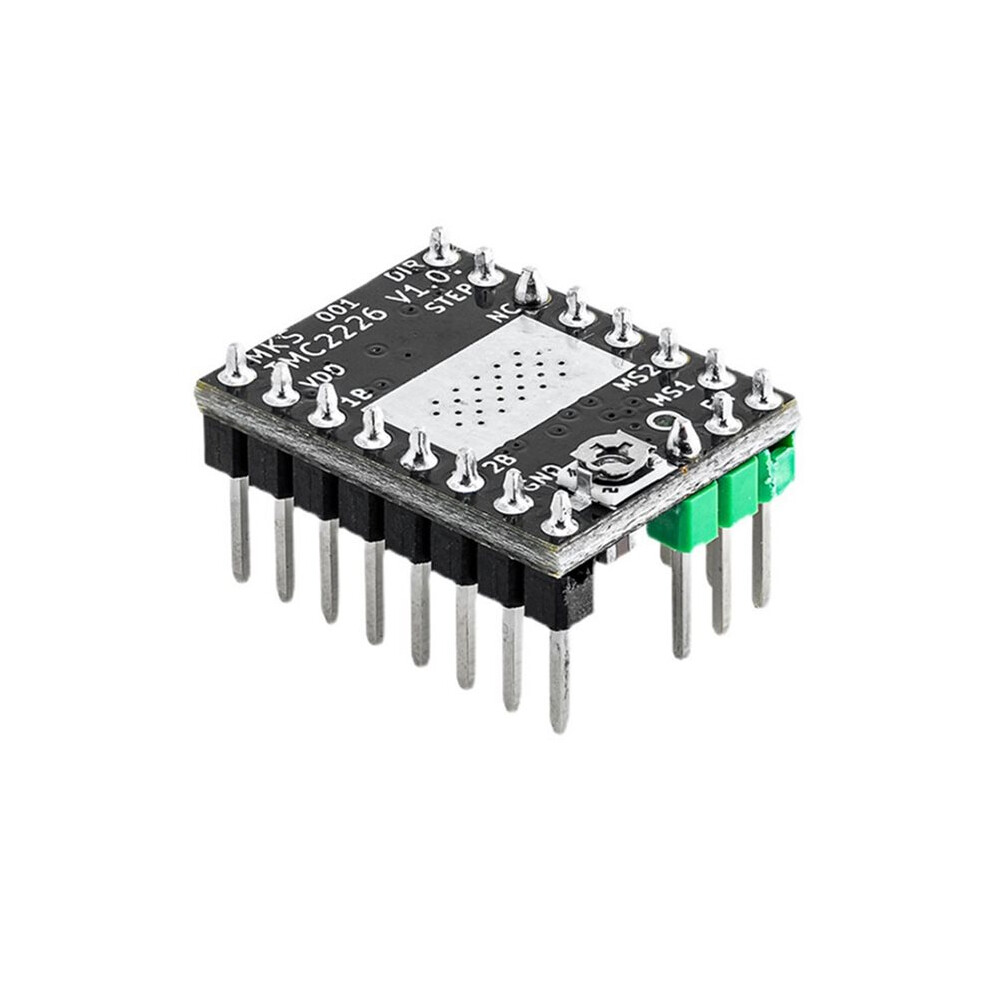

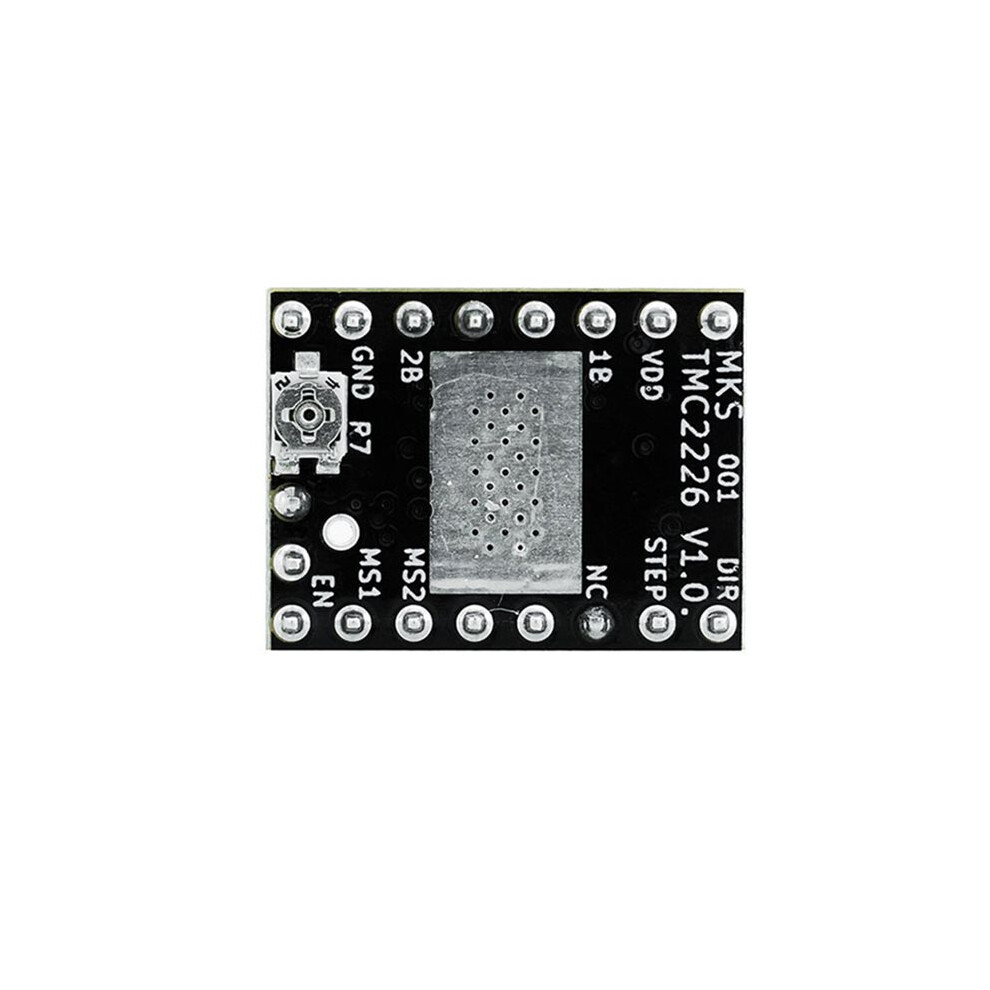

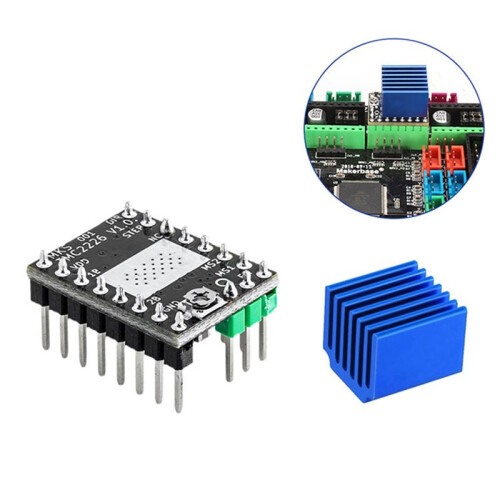

TMC2226 Stepper Motor Driver Ultra-Quiet High-Current UART Mode 3D Printer Parts
Nové
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 133,000 hodnotení s “Vynikajúcim” hodnotením
4,60 €
7,59 €
39 % zľava!
+8,56 € doručenie
1%
Čo je okamžitý Cashback?
Zistiť viac
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (8,56 €) | pon 14 - pon 21 sep
Predáva: CollBea
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Mohlo by sa vám tiež páčiť
Popis a podrobnosti
Zhrnutie
- The TMC2226 possesses all the features of the TMC2209 and serves as a direct replacement. It utilizes an HTSSOP package, offering superior heat dissipation at the same current levels; it generates less heat, supports higher currents, and enables sensorless homing.
- Ultra-quiet operation
- Large heatsink for excellent thermal performance
- Supports sensorless homing
- UART mode is enabled via jumper caps, eliminating the need for soldering on boards such as the MKS SGEN_L, MKS GEN L, MKS Robin E3D, and MKS Robin Nano V3.
TMC2226 Stepper Motor Driver Ultra-Quiet High-Current UART Mode 3D Printer Parts Popis
The TMC2226 possesses all the features of the TMC2209 and serves as a direct replacement. It utilizes an HTSSOP package, offering superior heat dissipation at the same current levels; it generates less heat, supports higher currents, and enables sensorless homing.
Ultra-quiet operation
Large heatsink for excellent thermal performance
Supports sensorless homing
UART mode is enabled via jumper caps, eliminating the need for soldering boards such as the MKS SGEN_L, MKS GEN L, MKS Robin E3D, and MKS Robin V3.
Drive Current Adjustment
1. Measure the voltage between GND and the potentiometer's center pin (Vref).
2. Do not connect the motor while measuring the voltage; doing so risks burning out the driver.
3. Connect the main power supply when measuring the voltage; do not rely solely USB power.
4. Pay close attention to orientation; do not plug it in backwards.
Color: As Shown
Material: PCB
Package Contents:
1*TMC2226 Stepper Motor Driver
Podrobnosti
| OPC | PXQ2QBM |
|---|---|
| Kódy | 6032757549208 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 5cm |
| Weight | 0.02kg |
| Colour | As Shown |
| Material | PCB |
