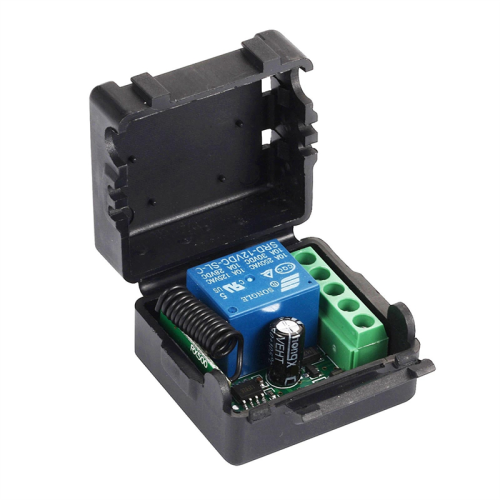

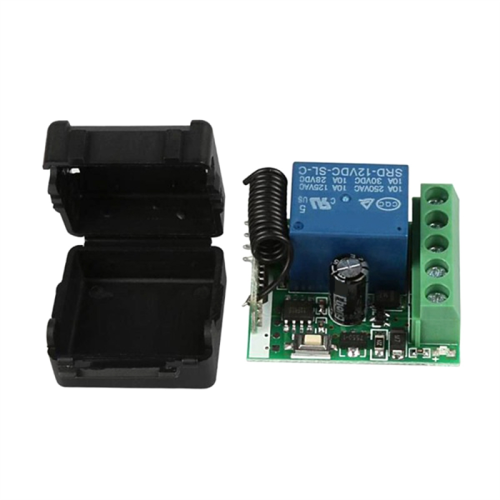

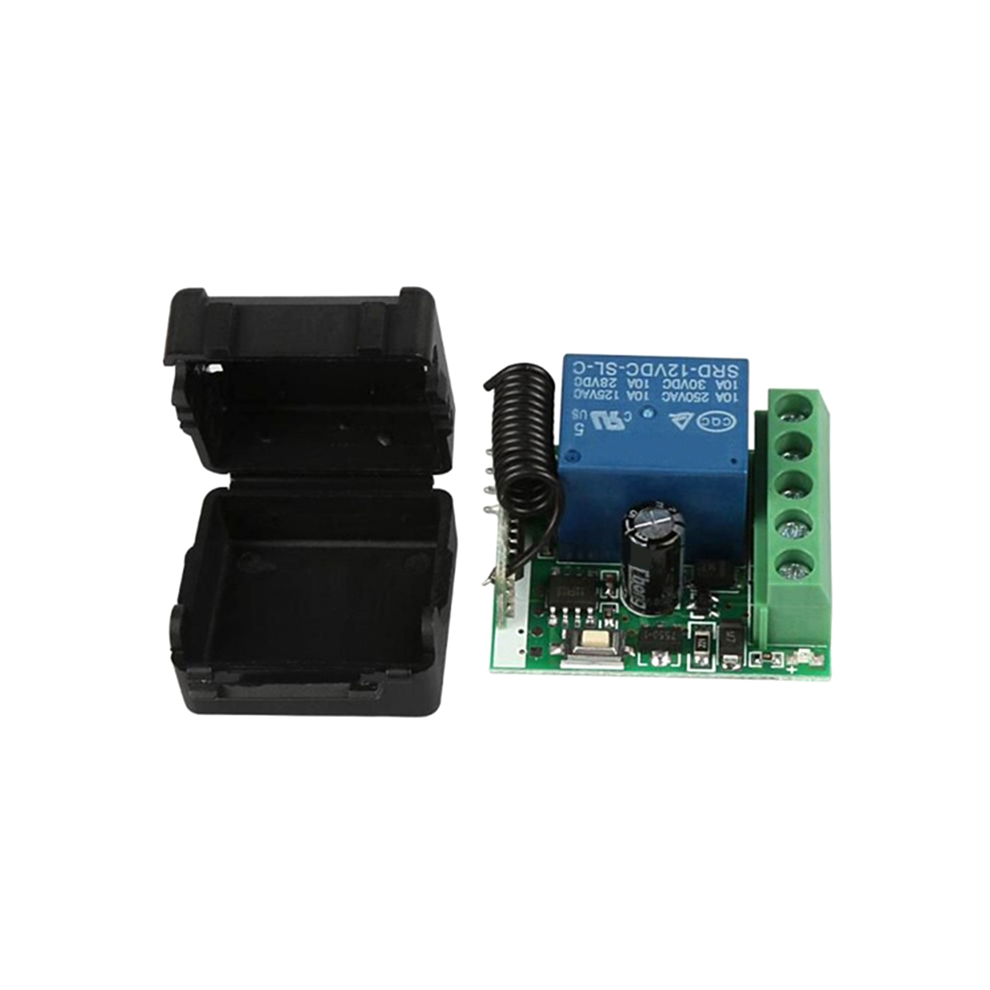

10PCS DC 12V Single Channel 433 MHZ Wireless Switch Control Board Remo

10PCS DC 12V Single Channel 433 MHZ Wireless Switch Control Board Remo Beschreibung

Support Multiple Working Mode: Momentary, Toggle, Latching and Time Delay Mode.

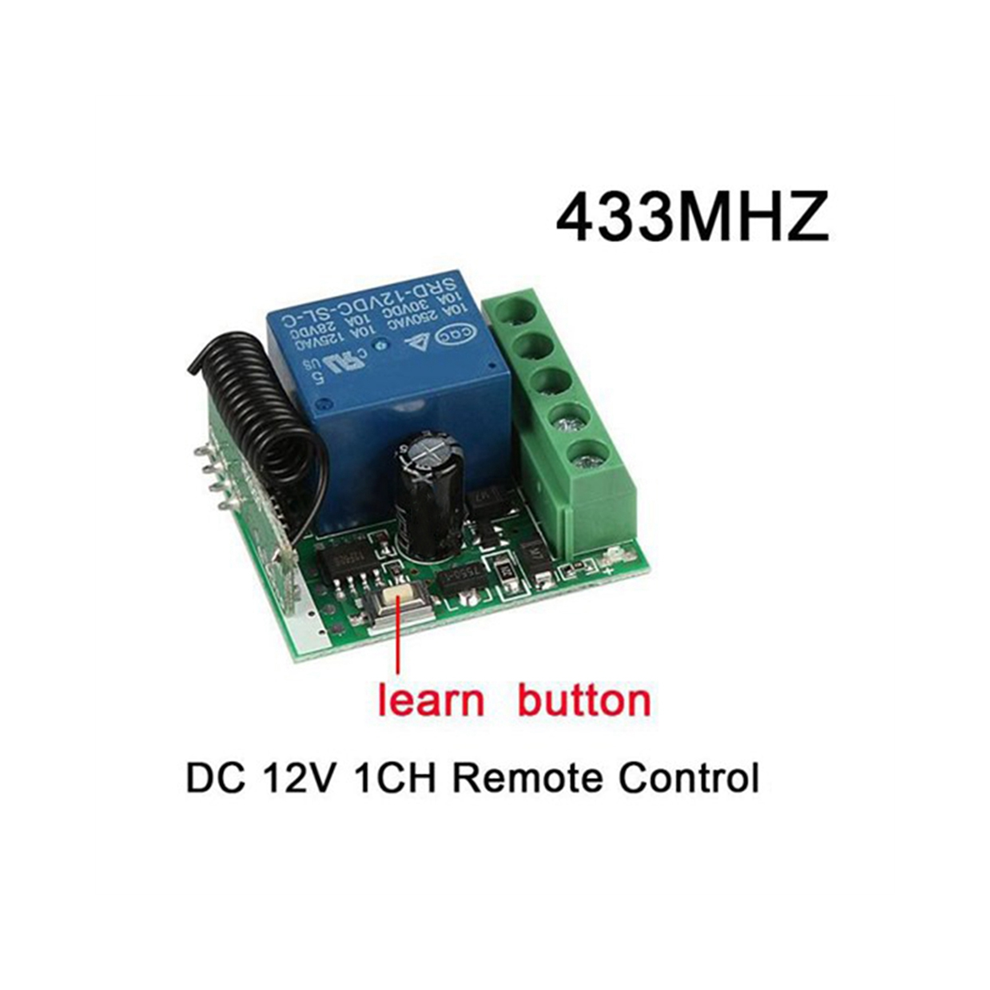

Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
Support storing the quantity of remote control: 25Pcs (NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs , the initial remote control will be lost).
RF Working Mode: Superheterodyne Reception(Modulation Mode: ASK).

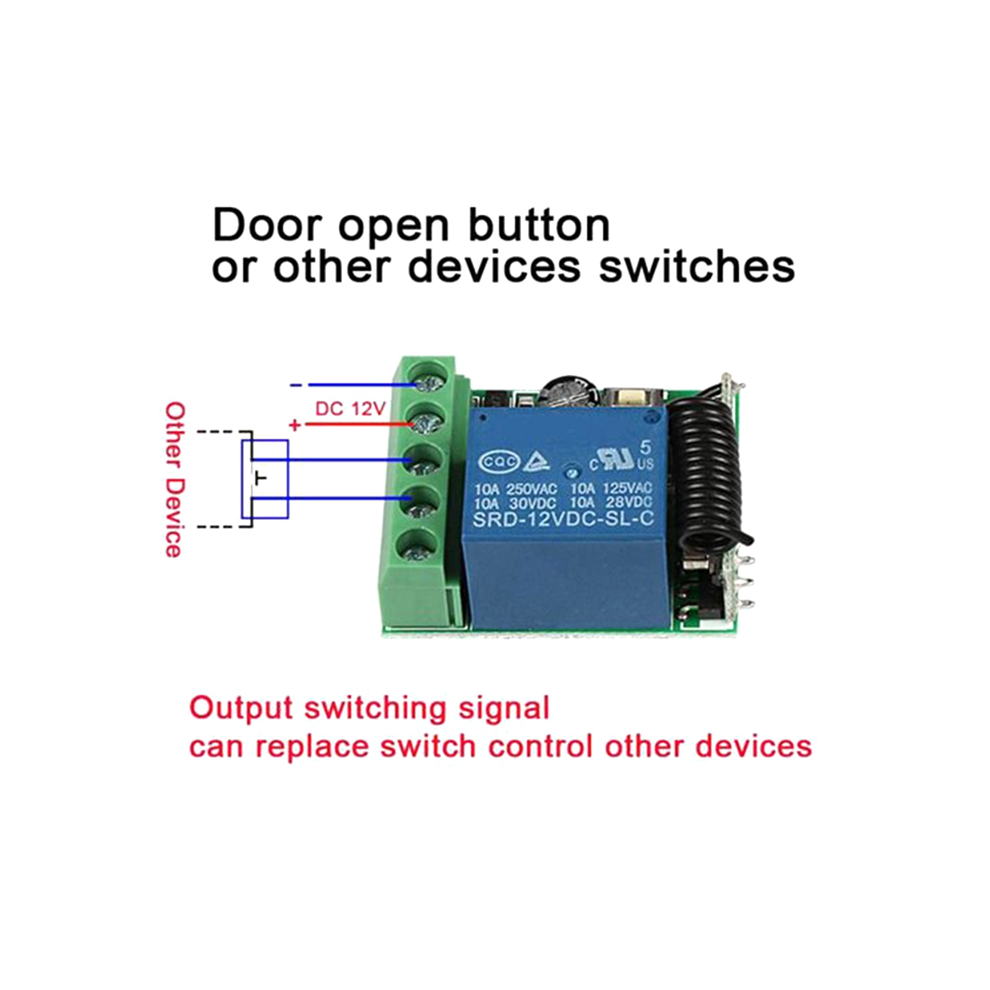

Perfect suitable for remote control of roller shutter door, garage door and other telecommand equipments

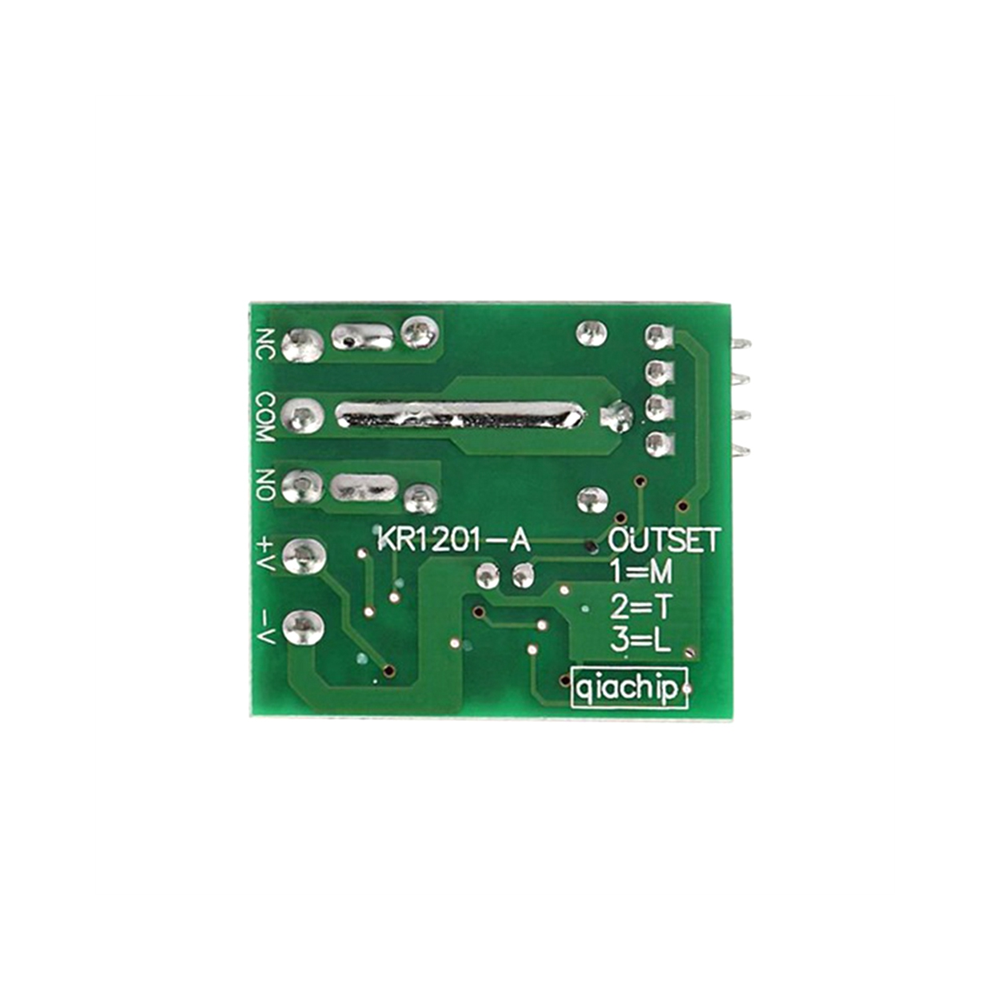

Model: KR1201A
Product Type: Single Channel Remote Control Switch
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK
Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC 10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: Greater than 97dbm
Remote Control Range: Greater than 100m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )
Colour:As Shown
Material:PCB

Package Contents:
10 x Single Channel Remote Control Switch

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
