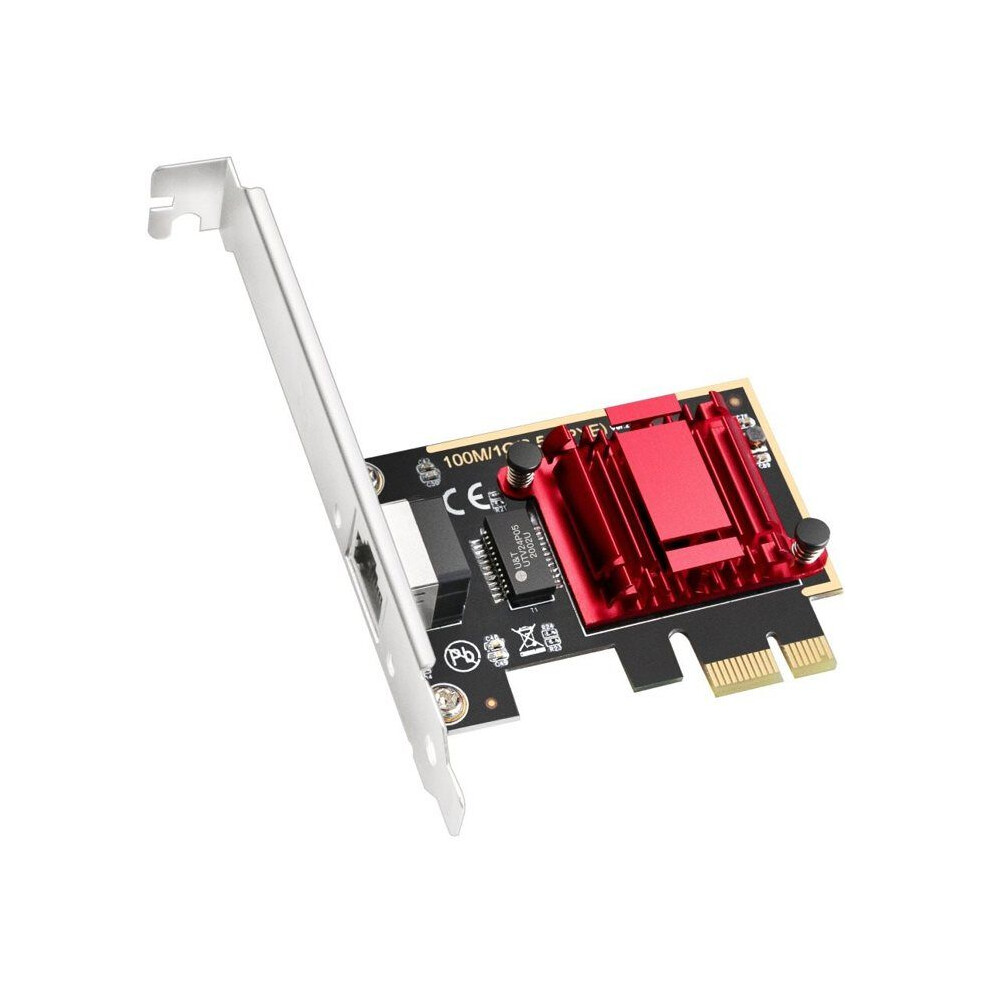

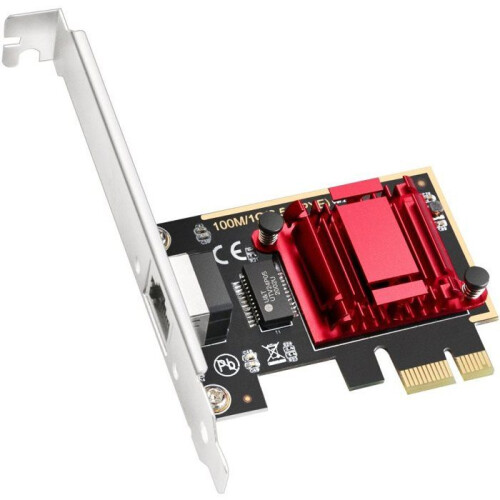

Cudy PE25 network card Internal Ethernet

Cudy PE25 network card Internal Ethernet Beschreibung

Description Ports & interfaces Connectivity technology Wired Host interface PCI Express Interface Ethernet Ethernet LAN (RJ-45) ports 1 PCI Card form factor Full-height (low-profile) Network Networking standards IEEE 802.3IEEE 802.3abIEEE 802.3azIEEE 802.3bzIEEE 802.3uExpandFold Ethernet LAN Yes Ethernet interface type 2.5 Gigabit EthernetFast EthernetGigabit Ethernet Ethernet LAN data rates 101001000 Mbit/s2500 Mbit/sExpandFold Cabling technology 10/100/1000BaseT(X) Wake-on-LAN ready Yes Auto MDIX IEEE Yes LAN controller Realtek RTL8125-BG Design Component for PC/Server Internal Yes LED indicators ActivityLinkSpeed Mean time between failures (MTBF) 376212 h System requirements Windows operating systems supported Windows 10Windows 11Windows 7Windows 8Windows 8.1ExpandFold Linux operating systems supported Yes Server operating systems supported Windows Server 2012Windows Server 2022 Operational conditions Operating temperature (T-T) 0 - 70 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Weight & dimensions Width 64 mm Depth 56 mm Height 15 mm Weight 37.2 g Packaging content Mounting brackets included Yes Resource CD Yes Quick installation guide Yes Other features Flow control support Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
