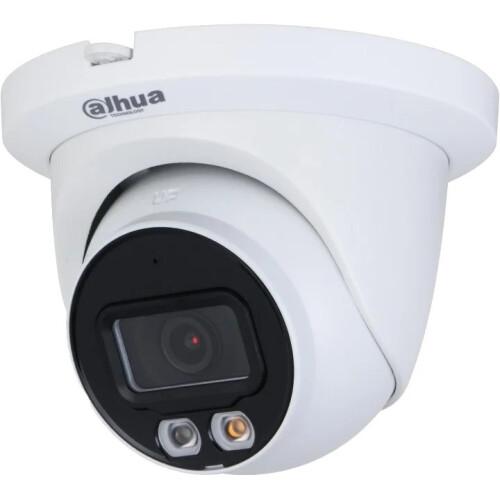

IP CAMERA DAHUA IPC-HDW2849TM-S-IL-0280B

IP CAMERA DAHUA IPC-HDW2849TM-S-IL-0280B Beschreibung

Description Performance Type IP security camera Placement supported External / Internal Connectivity technology Wired Certification LVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B 2023-04-10 Wide Dynamic Range (WDR) 120 dB Signal-to-Noise Ratio (SNR) 56 dB Design Form factor Dome Mounting type Ceiling Product colour White Housing material Metal, Plastic International Protection (IP) code IP67 Camera Pan range 0 - 360 Tilt angle range 0 - 78 Minimum illumination 0.008 lx Lens viewing angle, horizontal 111 Lens viewing angle, vertical 58 Lens viewing angle, diagonal 132 Camera shutter speed 1/3 - 1/100000 s Adjustment shutter speed Auto/Manual White balance AutoManualNaturalOutdoorStreet lampExpandFold Night vision Night vision Yes Night vision distance 30 m LED type IR / White light LED Number of illumination LEDs 2 Video Maximum resolution 3840 x 2160 pixels Total megapixels 8 MP Video compression formats H.264H.264+H.264BH.264HH.265H.265+M-JPEGExpandFold Supported graphics resolutions 1280 x 720 (HD 720)1280 x 9601920 x 1080 (HD 1080)2048 x 1536 (QXGA)2304 x 12962688 x 15202880 x 16203072 x 17283072 x 2048352 x 240352 x 2883840 x 2160640 x 480 (VGA)704 x 480704 x 576ExpandFold Frame rate 30 fps Video streaming Yes Noise reduction Yes Noise reduction technology 3D noise reduction Gain control type Auto/Manual Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Bit rate H.264: 32 kbps-8192 kbps H.265: 12 kbps-8192 kbps Back Light Compensation (BLC) Yes Highlight Compensation (HLC) Yes Region of Interest (ROI) encoding Yes Mirror function Yes Network Ethernet interface type Fast Ethernet Networking standards IEEE 802.3af Wi-Fi No Bluetooth No Quality of Service (QoS) support Yes Number of users 20 user(s) Storage Built-in HDD No Internal memory 256 MB ROM capacity 128 MB Power Power source type DC, PoE Power consumption (max) 5 W DC output voltage 12 Power consumption (Power over Ethernet (PoE)) 5.9 W Operational conditions Operating temperature (T-T) -40 - 55 C Lens system Number of lenses 1 Maximum aperture number 1.6 Focal length range 2.8 mm Closest focusing distance 1.5 m Lens type Fixed focal length lens Image sensor Number of sensors 1 Optical sensor size 25.4 / 2.7 mm (1 / 2.7") Progressive scan Yes Sensor type CMOS Weight & dimensions Height 99.1 mm Weight 480 g Diameter 12.2 cm Packaging content Number of cameras 1 Management features Web-based management Yes Web browser Yes System requirements Mobile operating systems supported AndroidiOS Audio Built-in microphone Yes Audio formats supported G.711aG.711MuG.726PCMExpandFold Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
