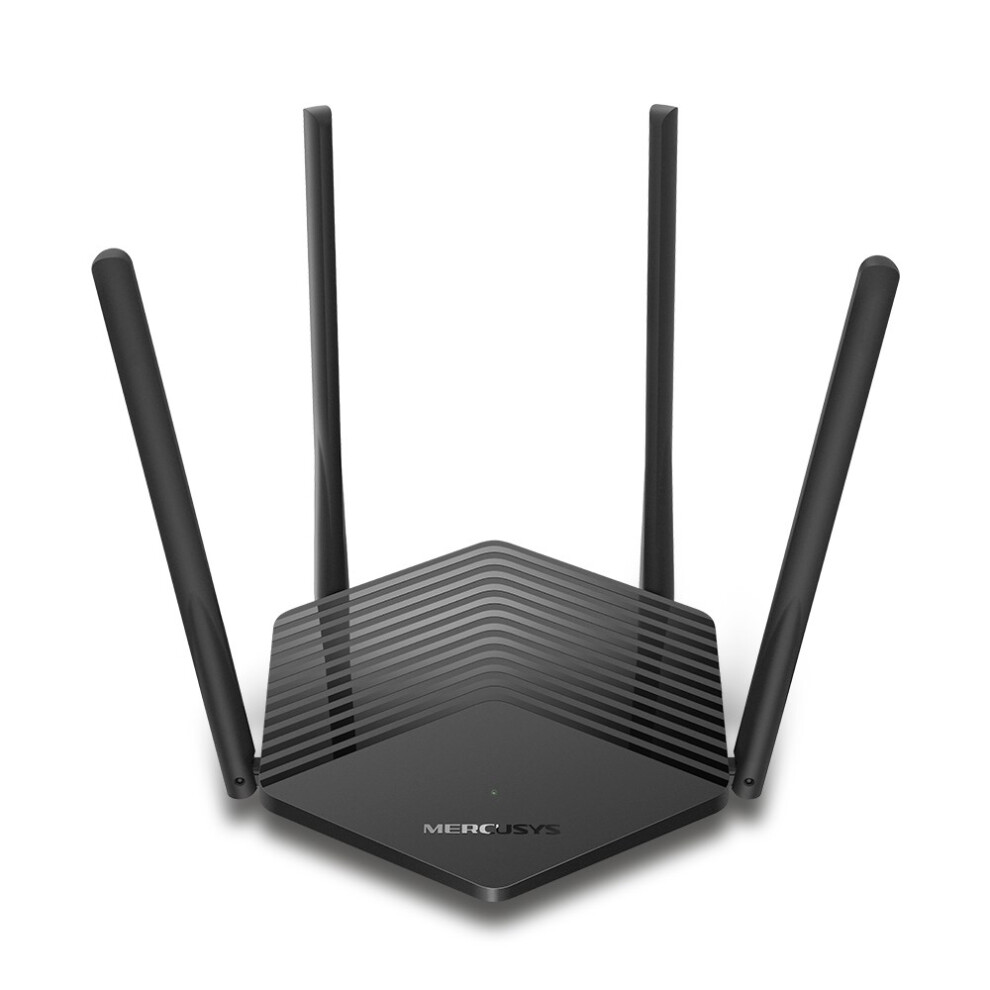

Mercusys AX1800 Dual-Band WiFi 6 Router

Mercusys AX1800 Dual-Band WiFi 6 Router Beschreibung

Description WAN connection Ethernet WAN Yes DSL WAN No SIM card slot No 3G/4G USB modem compatibility No WAN connection type RJ-45 Wireless LAN features Wi-Fi band Dual-band (2.4 GHz / 5 GHz) Top Wi-Fi standard Wi-Fi 6 (802.11ax) WLAN data transfer rate (max) 1500 Mbit/s Wi-Fi standards 802.11a802.11b802.11gWi-Fi 4 (802.11n)Wi-Fi 5 (802.11ac)Wi-Fi 6 (802.11ax)ExpandFold WLAN data transfer rate (first band) 1201 Mbit/s WLAN data transfer rate (second band) 300 Mbit/s Network Ethernet LAN Yes Ethernet LAN interface type Gigabit Ethernet Ethernet LAN data rates 10100 Mbit/s1000 Mbit/s Cabling technology 10/100/1000Base-T(X) Networking standards IEEE 802.11aIEEE 802.11acIEEE 802.11axIEEE 802.11bIEEE 802.11gIEEE 802.11nExpandFold Port forwarding Yes Port triggering Yes Number of guest networks (2.4 GHz) 1 Number of guest networks (5 GHz) 1 Ports & interfaces Ethernet LAN (RJ-45) ports 3 USB port No Management features Wi-Fi Multimedia (WMM)/(WME) Yes Reset button Yes WPS push button Yes MU-MIMO technology Yes Security Security algorithms WPAWPA2WPA3 Firewall Yes Firewall security SPI Firewall, IP and MAC Address Binding Access Control List (ACL) Yes DMZ support Yes Network address translation (NAT) Yes Protocols DHCP client Yes DHCP server Yes Design Product colour Black Wall mountable Yes LED indicators Power, WLAN Product type Tabletop router Packaging content Cables included LAN (RJ-45) AC adapter included Yes Quick installation guide Yes Antenna Antenna design External Antenna gain level (max) 5 dBi Antennas quantity 4 Detachable antenna(s) No Power Power source type DC Operational conditions Operating temperature (T-T) 0 - 40 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Weight & dimensions Width 175.6 mm Depth 157.2 mm Height 45 mm Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
